EinScan Rigil
₱450,000.00

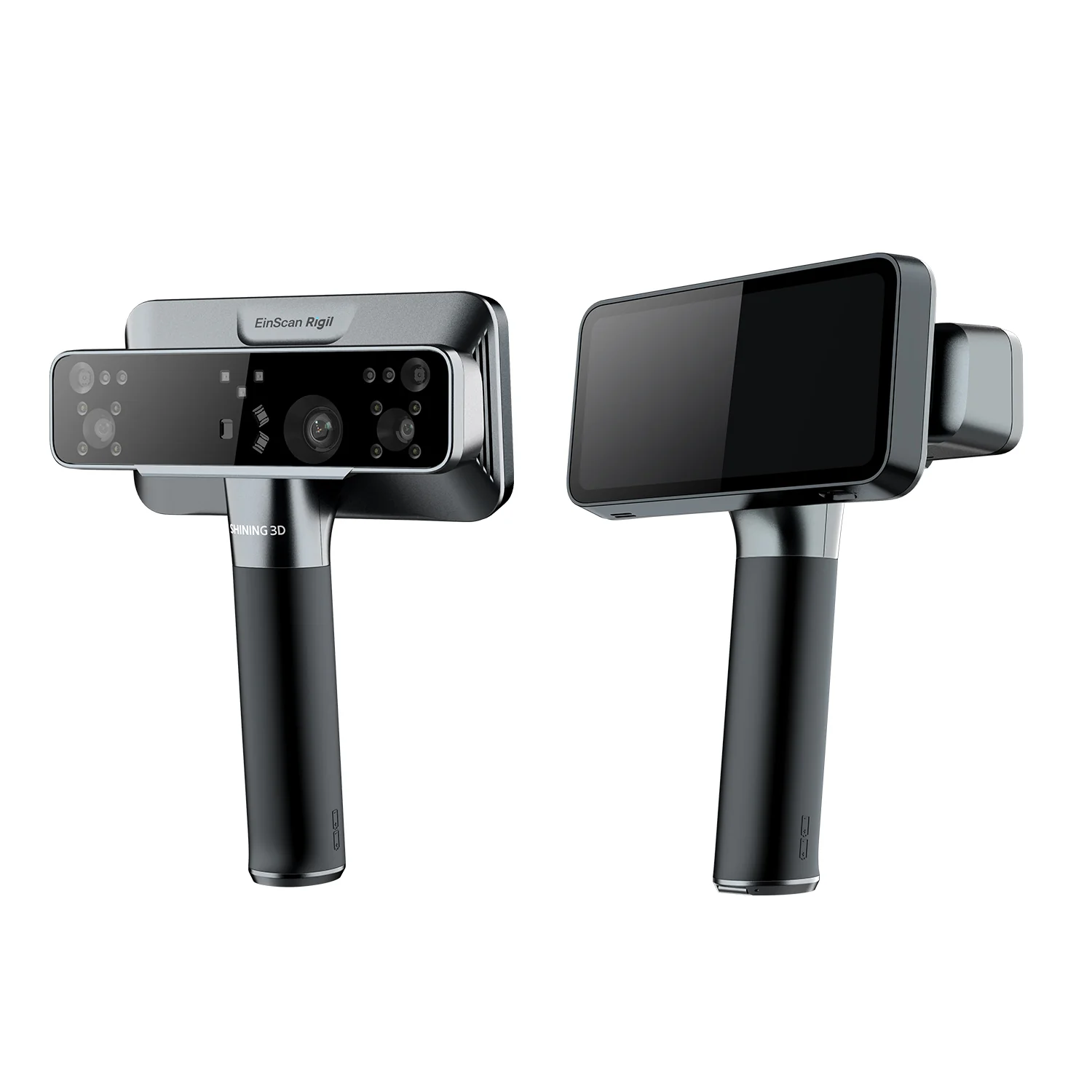

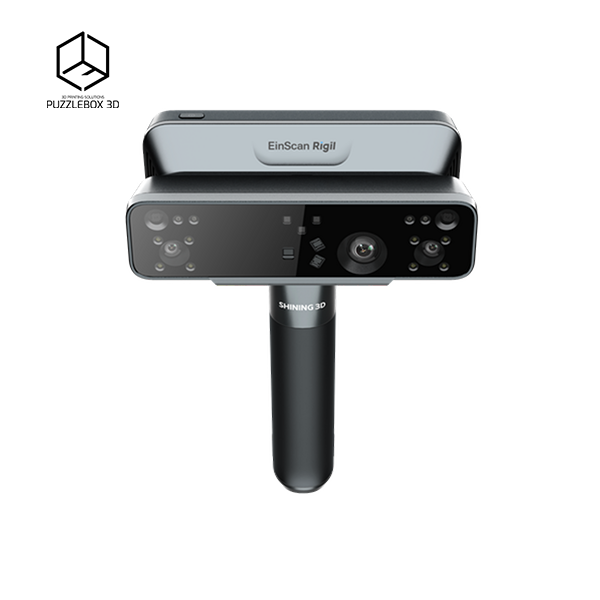

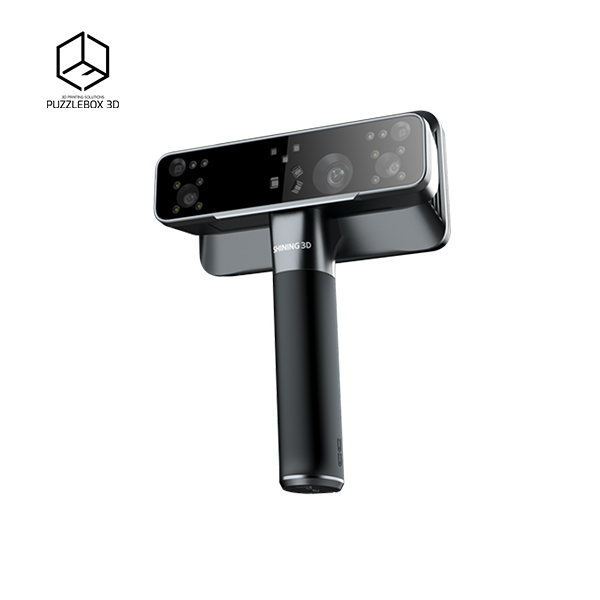

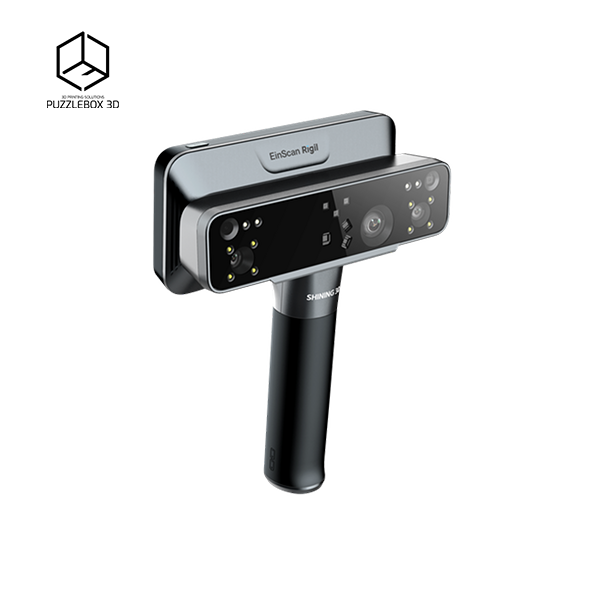

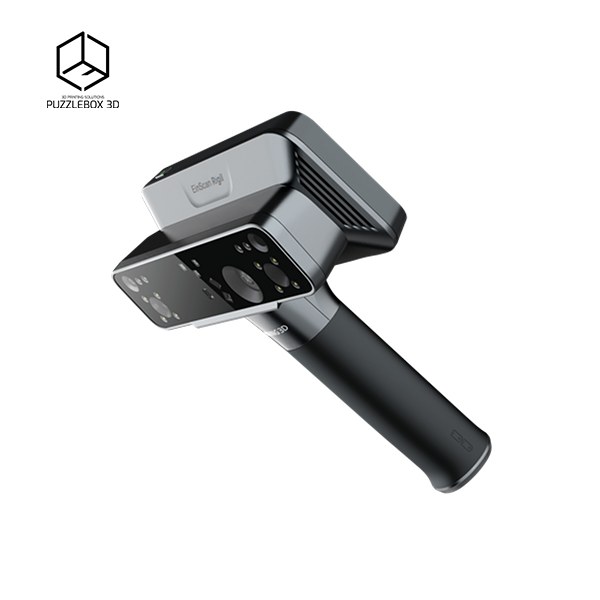

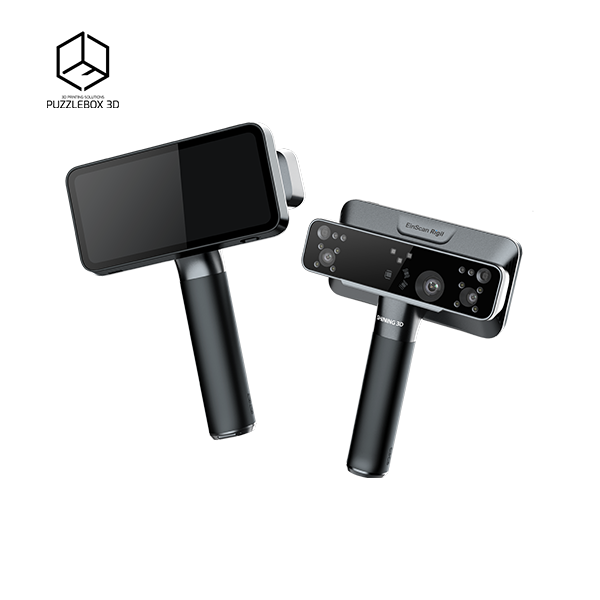

Shining 3D EinScan Rigil
is a 3D scanner with tri-mode technology, an integrated processing unit and wireless high-performance architecture. With its clever all-in-one design, Rigil offers a professional scanning solution for every tricky task - from complex geometries to shiny metal surfaces.
Target group: Automotive professionals who want more
inScan Rigil has been developed specifically for the automotive aftermarket - for prosumers, tuners, developers and creatives who don't want to waste any time. You can generate high-quality 3D models at lightning speed, measure complex components or process your designs digitally. Even with difficult materials such as carbon, shiny metal or dark surfaces, the 3D scanner delivers clean results - even without spraying agents.
Three scan modes - one goal: absolute control
The EinScan Rigil combines three light sources in one device, which you can combine flexibly, even during an ongoing scan:
- 19+19 crossed blue laser lines for ultra-fast scanning with impressive data density and 7 parallel blue laser lines for high-resolution detail, ideal for fine geometries (small-medium range).
- Infrared rapid VCSEL projection for marker-free scanning in large areas – particularly easy on the eyes and efficient for portraits or reflective surfaces (medium-large range).
Tip: The clever combination of both laser modes allows you to combine speed and detail fidelity in a single scan project - without any compromises.
Full power, maximum flexibility
You decide how you work:
- Standalone mode: Wireless and without a PC – with up to 50 FPS scanning speed for maximum mobility.
- PC mode: Connected via WLAN or cable – with up to 70 FPS, ideal for the highest level of detail and ultra-fast data processing.
Technology that thinks for itself
What makes the EinScan Rigil special? The two separate camera groups, each of which is perfectly matched to the blue laser or IR light source. So you get precise results even with complex lighting or strong sunlight, without any markers, if the object has sufficient geometry.
Additional information
| Dimensions | 233 x 180 x 72.8 mm |
|---|---|
| Weight | 870 g |
| Operating mode | Wireless Standalone & PC-Wireless/PC-Wired |
| Resolution | 0.05 ~ 19 mm |
| Working distance | 170 ~ 550 mm |
| Alignment mode | Global marker, marker, features, hybrid |
| Volumetric accuracy | up to 0.04 + 0.06 mm/m |
| Camera resolution | 3D: 2.3 MP x 2, 1.3 MP x 2 |
| Hardware | CPU: 8 core 2.4 GHZ |
| Display | 0.4 inch 2K Amoled Touch |
| Working environment | -10 °C ~ 40 °C |
| Recomm. PC Configurations | Windows 10/11, 64 bit |
| Battery | 2 x 6000 mAh |
