Bambu Lab ABS-GF
₱1,149.00
Product Features
- Enhanced Strength and Stiffness
- Greater Dimensional Stability
- Fine Matte Finish
- Durability and Water Resistance
- Comes with High Temperature Reusable Spool
- Diameter: 1.75mm +/- 0.03mm
Cautions for Use
- 0.2 mm Nozzle NOT Compatible
- AMS 2 Pro, AMS HT & AMS Compatible
- AMS lite NOT Compatible
- Enclosure Printers Required
- Dry Out Before Use
* Note: Before printing, please kindly refer to the Printing Tips for optimal results.
Bambu Lab ABS-GF

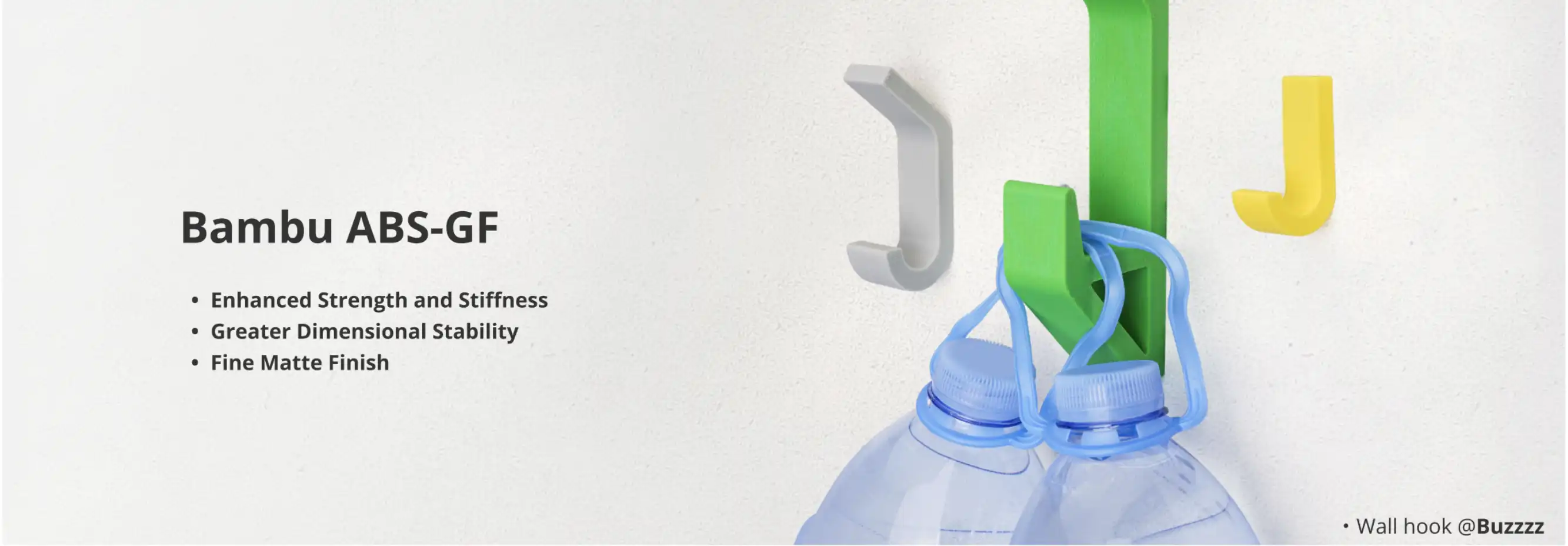

Bambu ABS-GF is a glass fiber-reinforced ABS filament, enhanced in both mechanical and aesthetic properties. Compared with regular ABS, ABS-GF outperforms in strength, stiffness, temperature resistance and dimensional stability, while being less prone to deformation and warping. Glass fiber imparts a smooth matte finish with micro-spot gloss, blurring layer lines. ABS-GF is ideal for both mechanical parts and decorations due to the inherited water resistance, wear resistance, durability and vibrant colors.

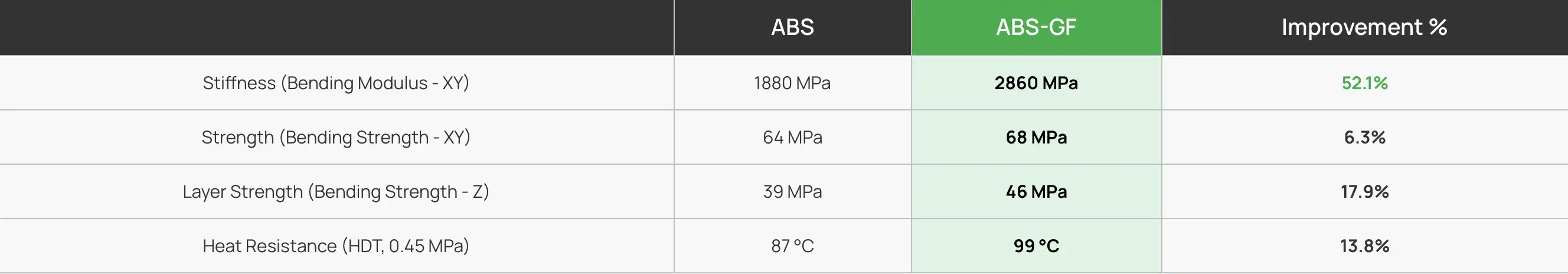

Enhanced Strength and Stiffness

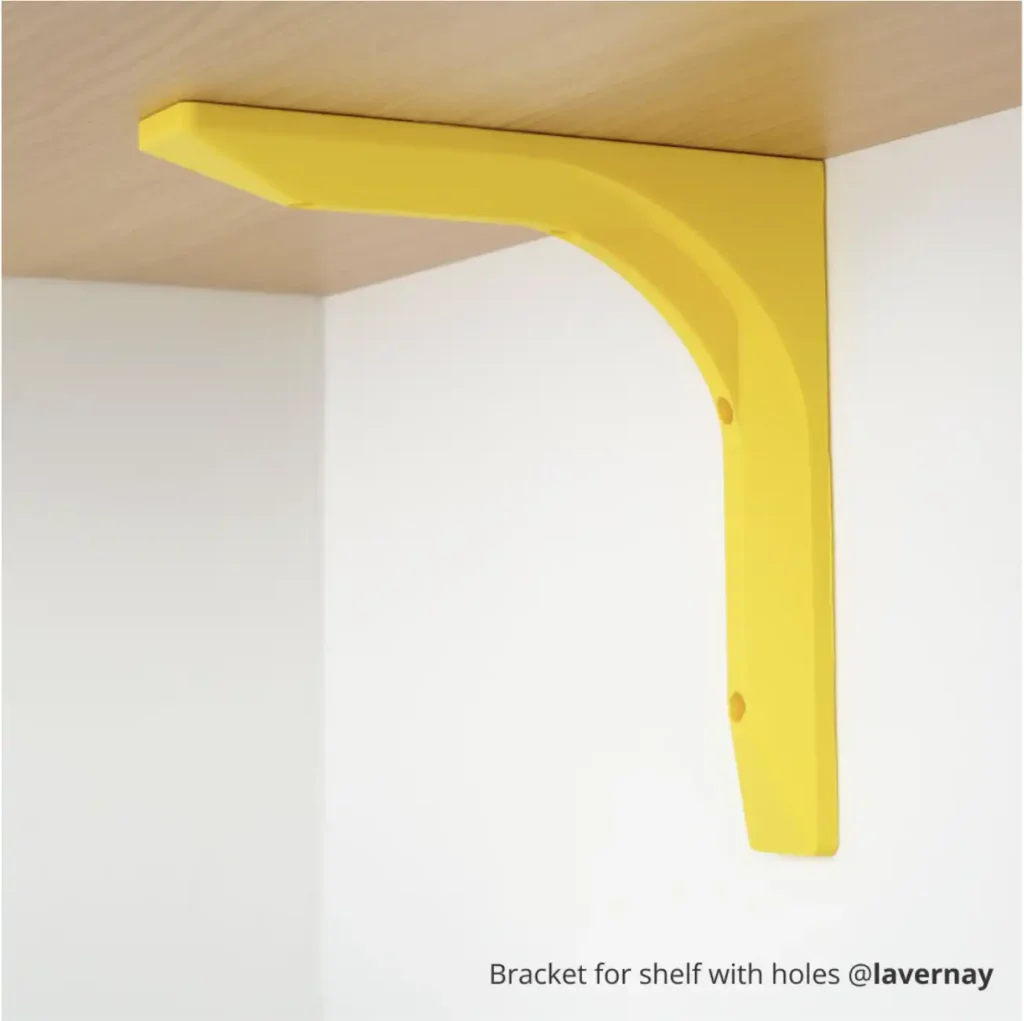

ABS-GF outclasses regular ABS in strength and stiffness, making it perfect for load-bearing and bending-resistance parts.
Greater Dimensional Stability
Glass fiber reinforcement gives ABS-GF better dimensional stability than regular ABS, minimizing warping and deformation during printing. This makes it ideal for intricate mechanical assembly parts or geometric components.

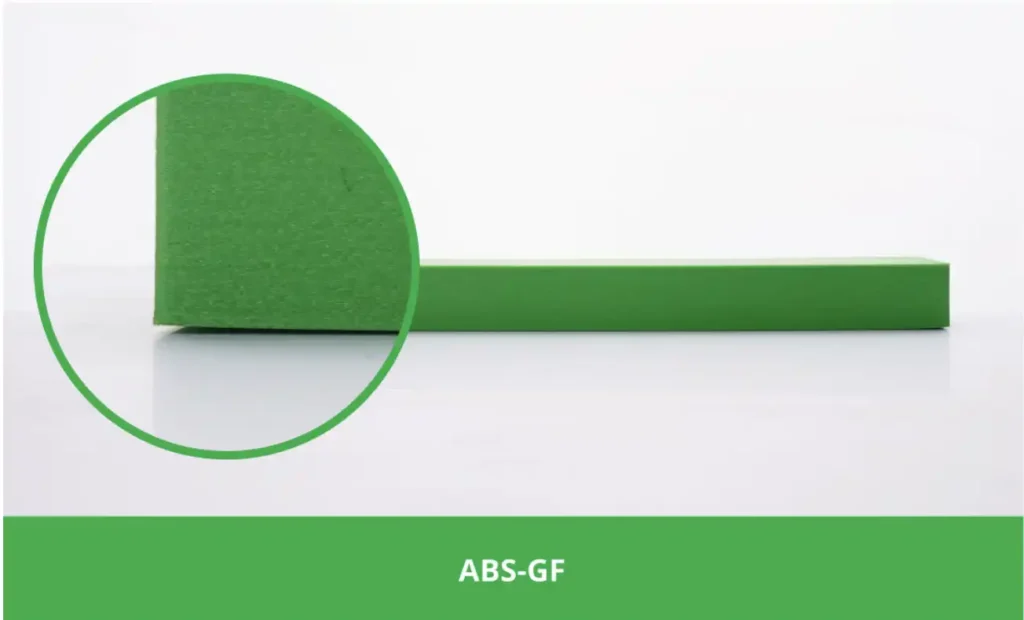

Specimen Test: Model size (L*W*H): 240*50*20 mm³ (the XY direction); Infill Density: 25%

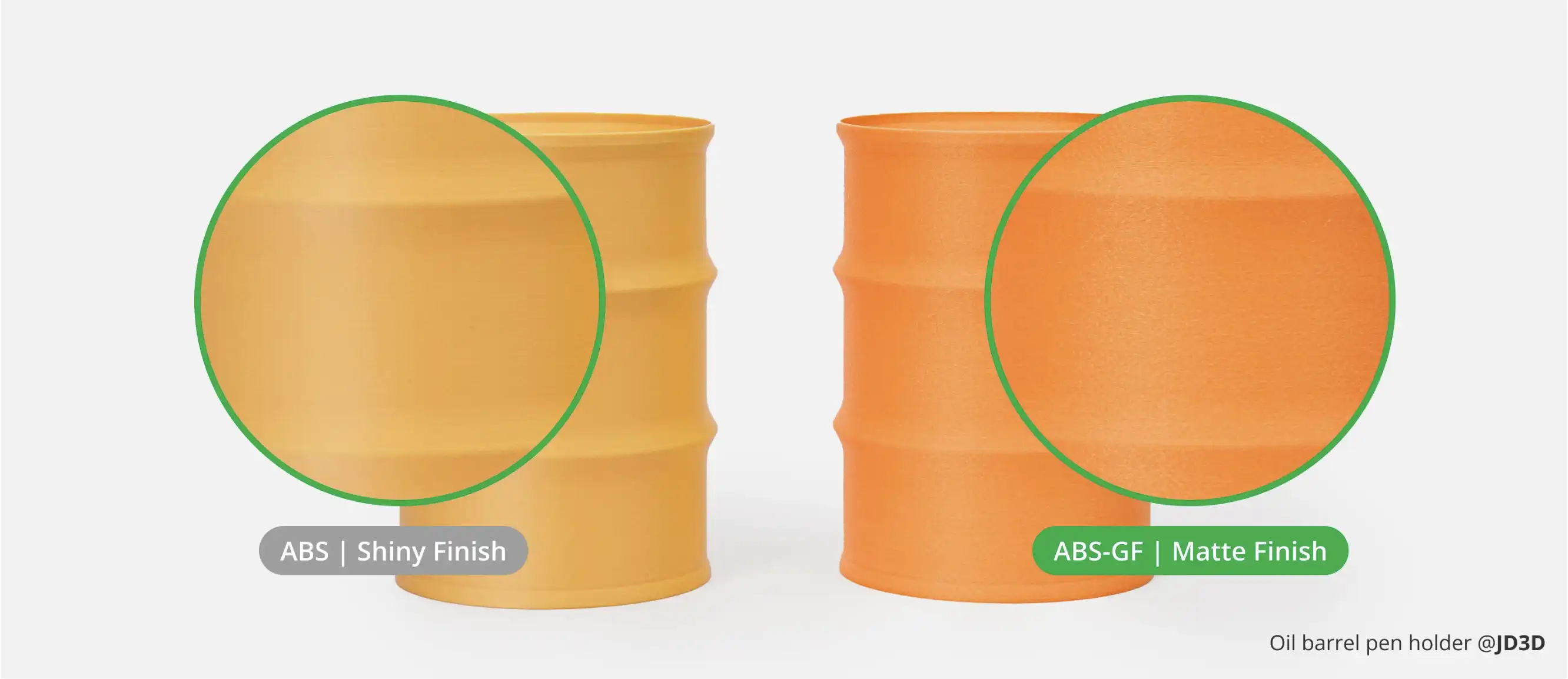

Fine Matte Finish
The seamless matte finish, coupled with nearly invisible layer lines, gives ABS-GF a smooth appearance, making it ideal for decorative and fine-grained parts.
Water Resistance & Built to Last

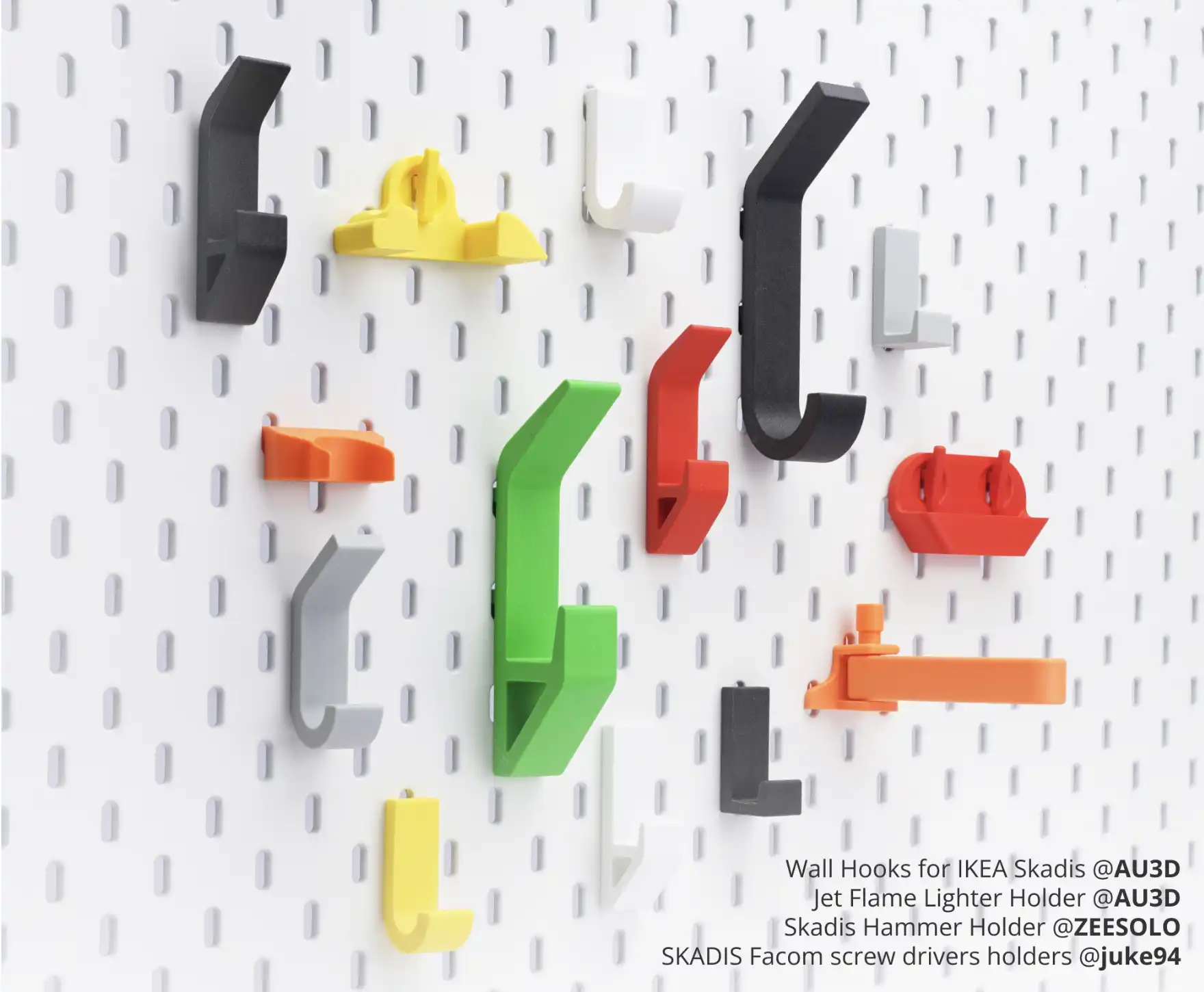

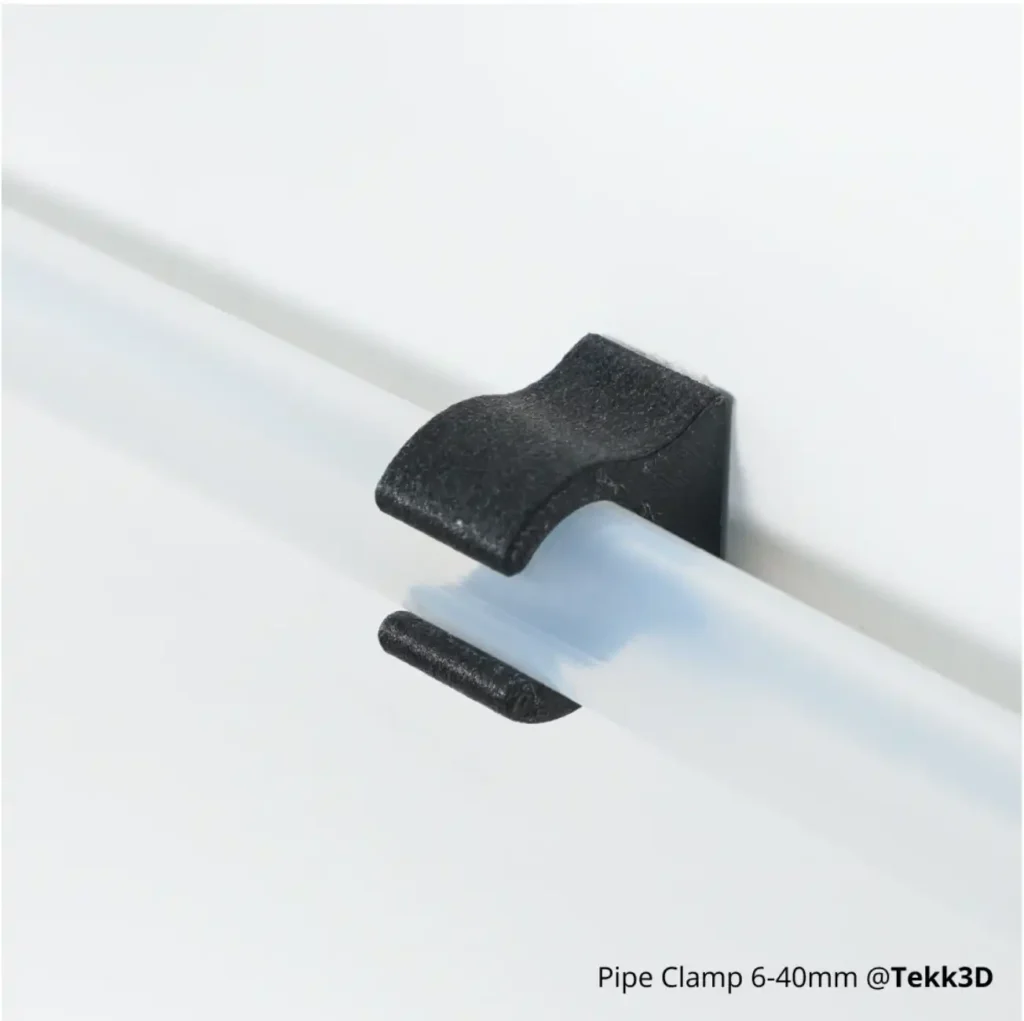

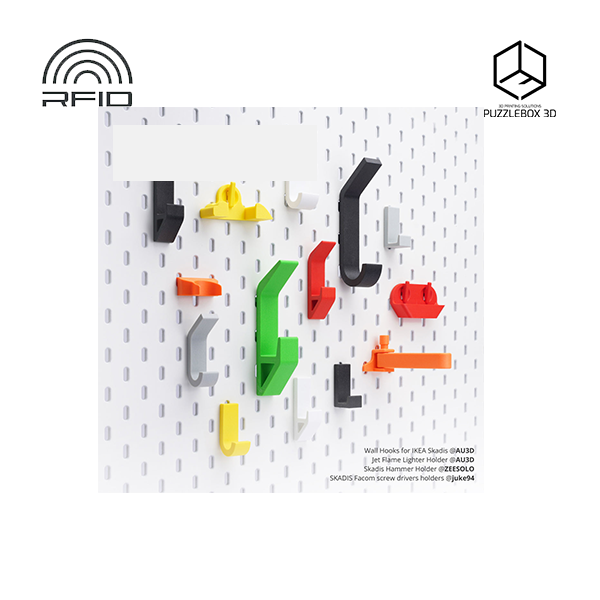

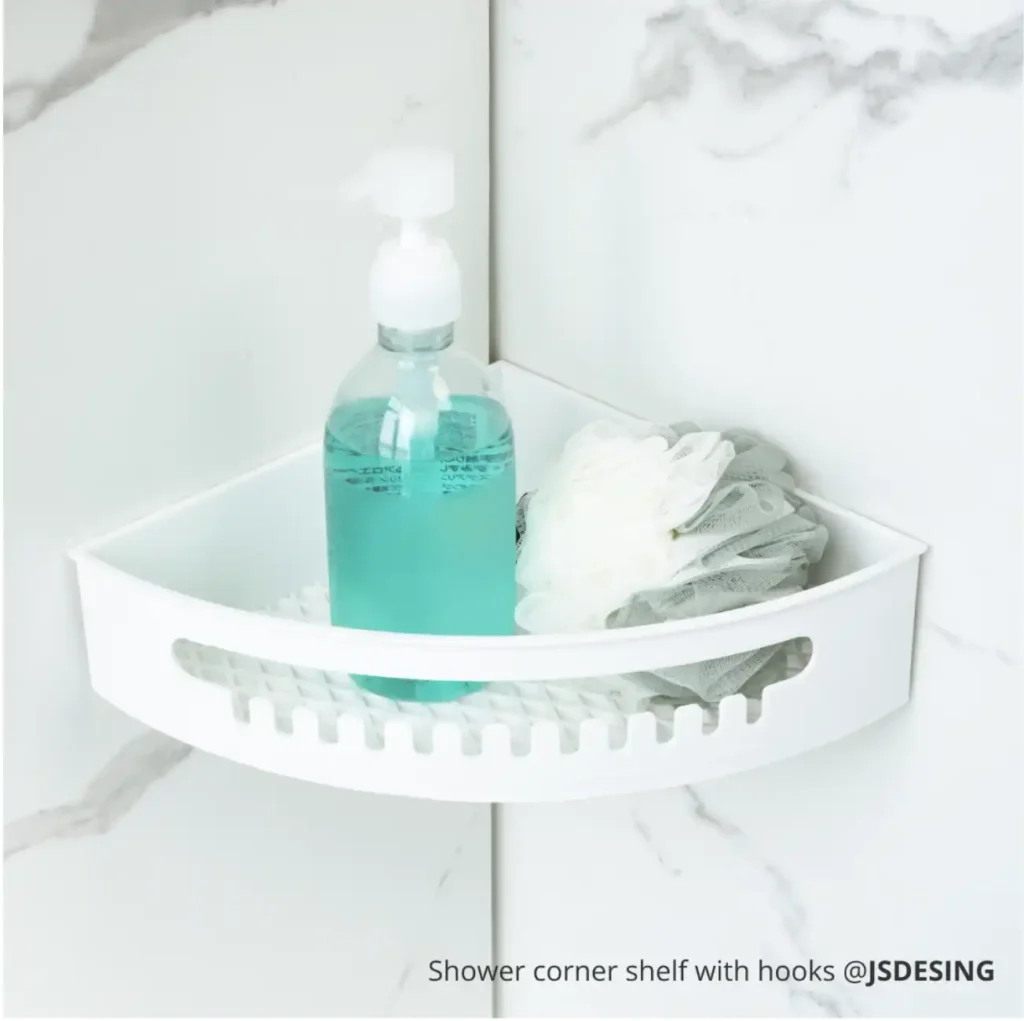

With improved water resistance and durability, Bambu ABS-GF is ideal for printing long-lasting production and household items, like mechanical casings, connectors and molds.
Additional information
| Diameter | 1.75 mm |
|---|---|
| Net Filament Weight | 1 kg |
| Spool Material | PC+ABS (Temperature resistance 90 °C) |
| Spool Size | Diameter: 200 mm; Height: 67 mm |
| Drying Settings before Printing | Blast Drying Oven: 80 °C，8 h |
| Printing and Storage Humidity | < 20% RH (Sealed, with desiccant) |
| Nozzle Size | 0.4, 0.6 ( recommended ), 0.8 mm |
| Nozzle Temperature | 240 – 280 °C |
| Bed Type | Engineering Plate, High Temperature Plate |
| Bed Surface Preparation | Glue |
| Bed Temperature | 80 – 100 °C |
| Cooling Fan | 0 – 80% |
| Printing Speed | < 180 mm/s |
| Retraction Length | 0.8 – 1.4 mm |
| Retraction Speed | 20 – 40 mm/s |
| Chamber Temperature | 45 – 60 °C |
| Max Overhang Angle | ~ 70 ° |
| Max Bridging Length | ~ 40 mm |
| Support Material | Turn on |
