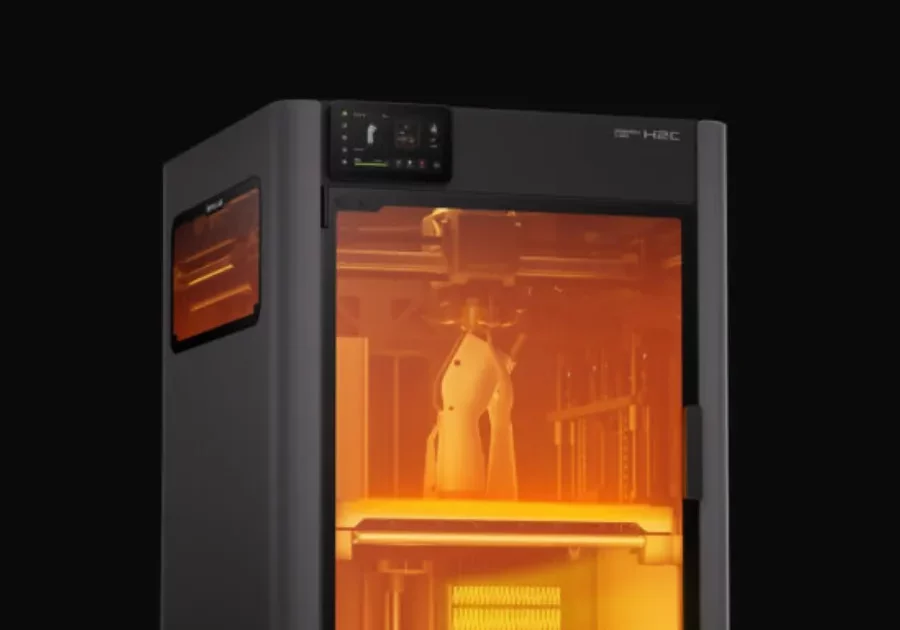

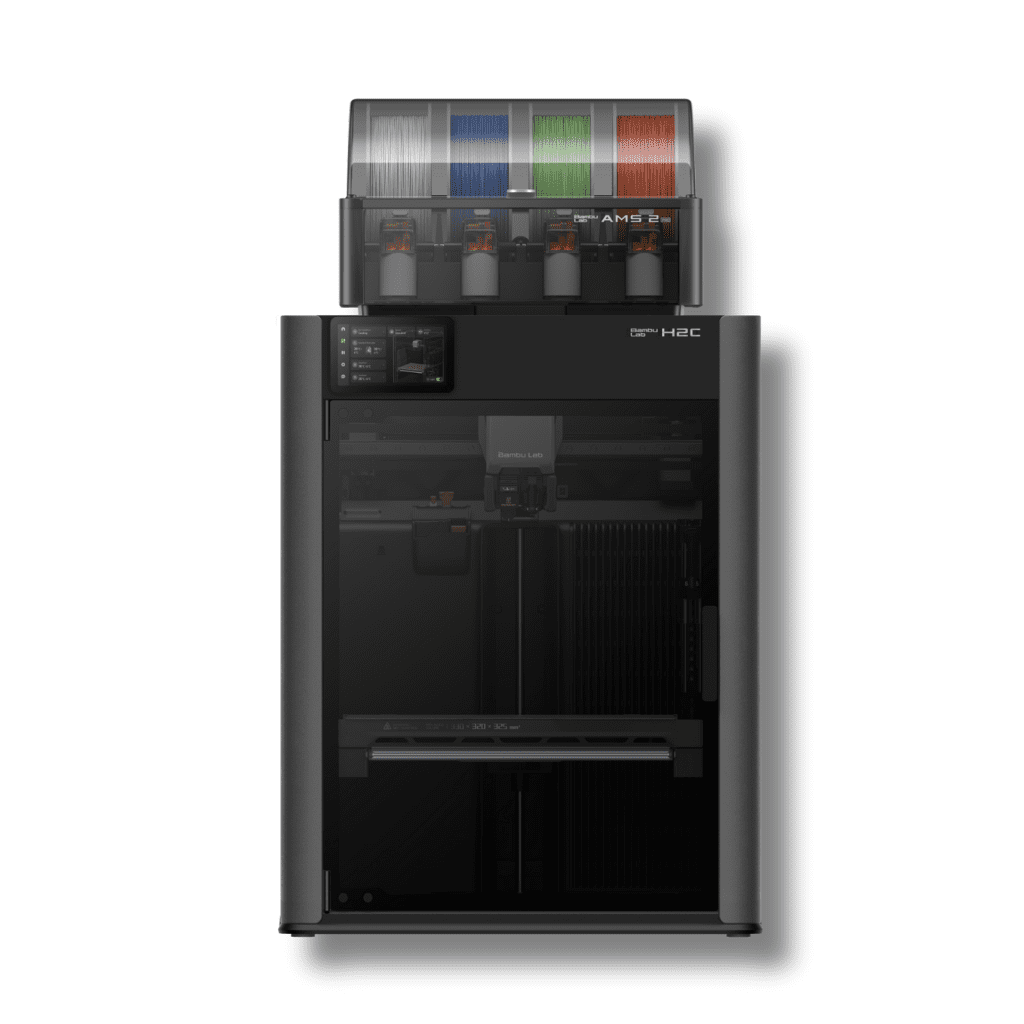

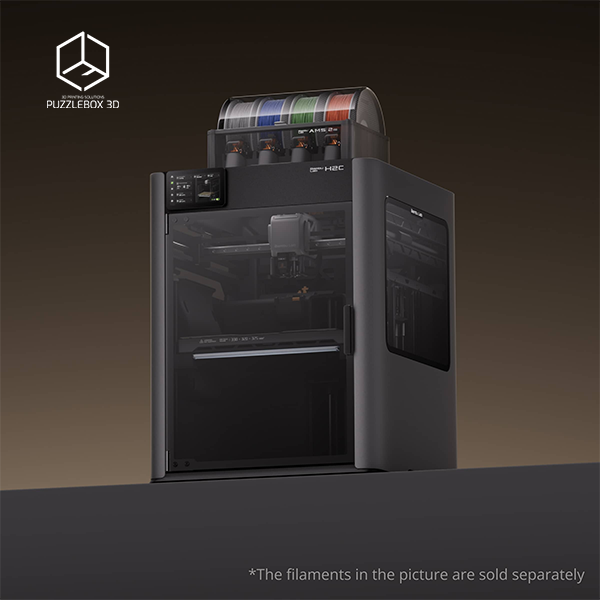

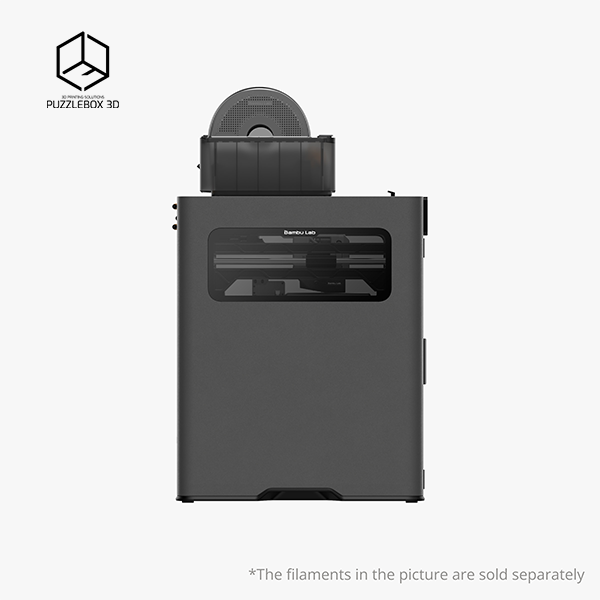

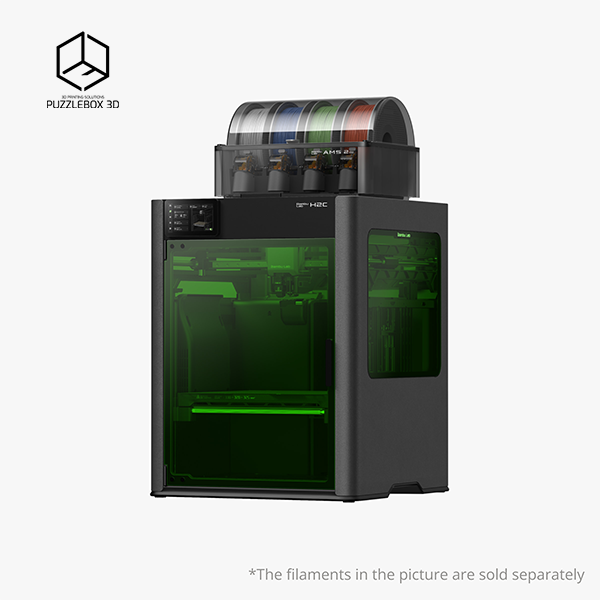

Bambu Lab H2C
Price range: ₱171,899.00 through ₱245,899.00
Product Features
- Hotend Change Multi-material Printing
- Minimal Purge Waste Multi-Color Printing
- Precise & Fast Inductive Nozzle Heating
- Close-loop Servo Extruder
- Full Filament Path AI Error Detection

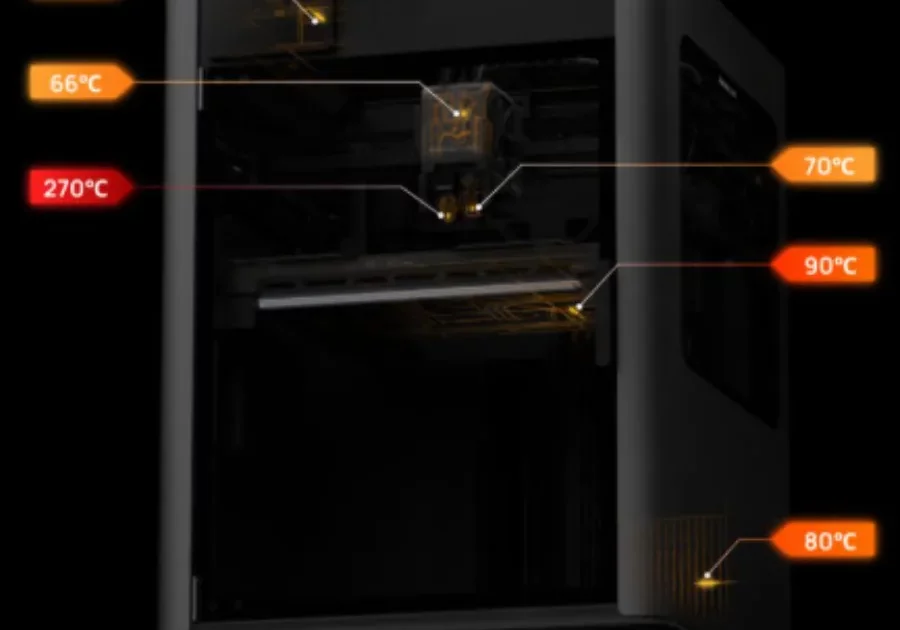

- 350°C Nozzles & 65°C Active Heated Chamber
- Optional 10W/40W Laser and Cutting Module
- 330*320*325 mm³ Build Volume

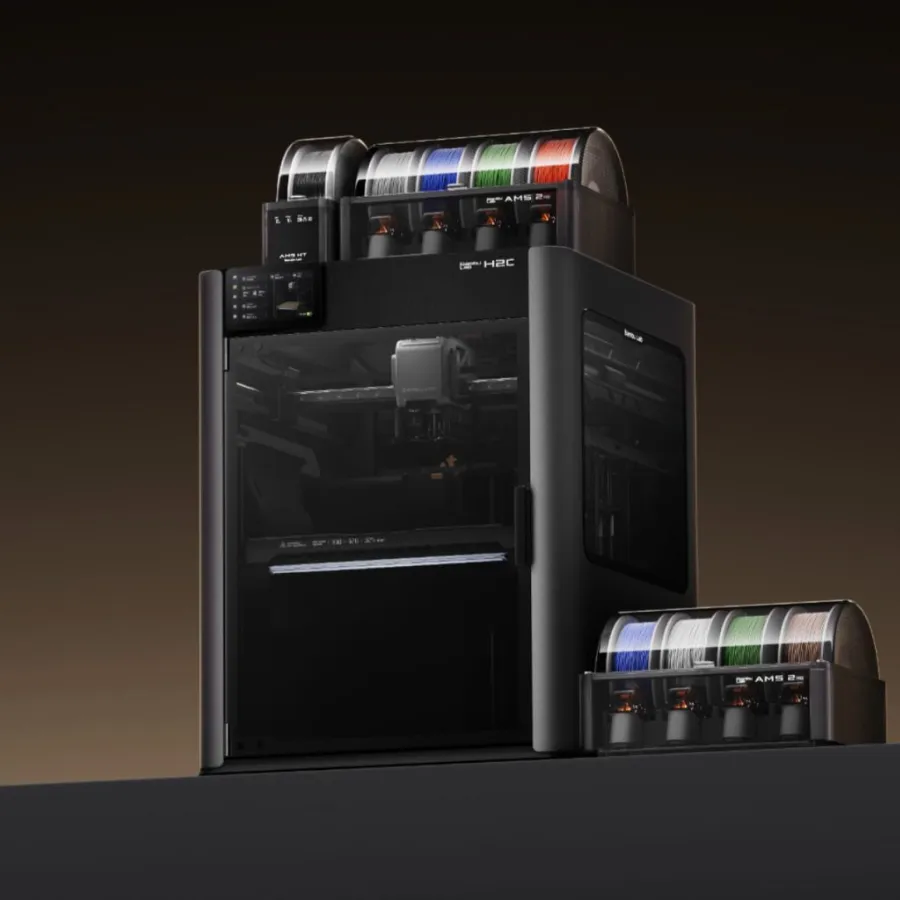

* To connect more than one AMS(including AMS 2 Pro, AMS HT), a 4-in-1 PTFE Adapter (FAZ013-N) is needed.
* Cybersecurity compliant with EU RED Article 3.3(d)(e) and ETSI EN 303 645 V2.1.1:2020.
Bambu Lab H2C
Uncompromising
Multi-Material.
Revolutionize
How You Print Your Projects

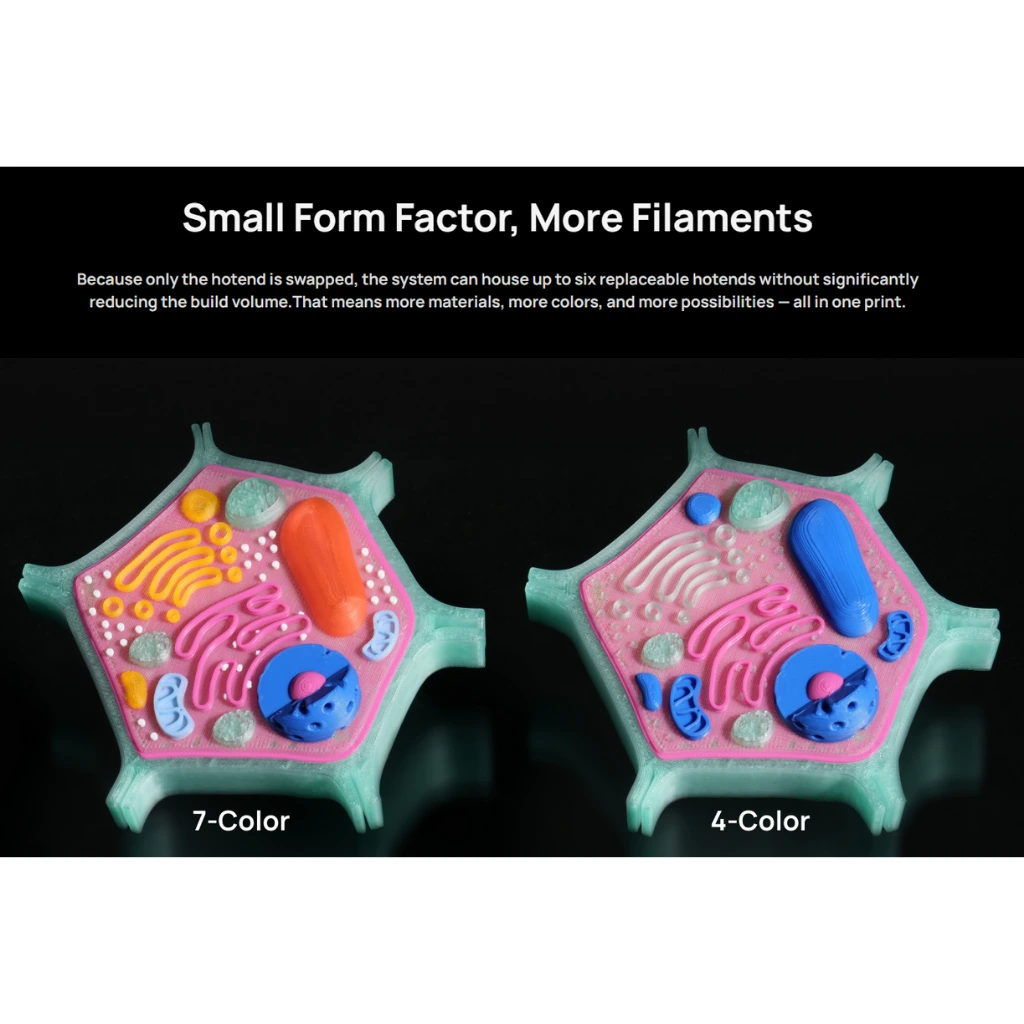

Paint No More, Print 7 Colors
in One-Piece.

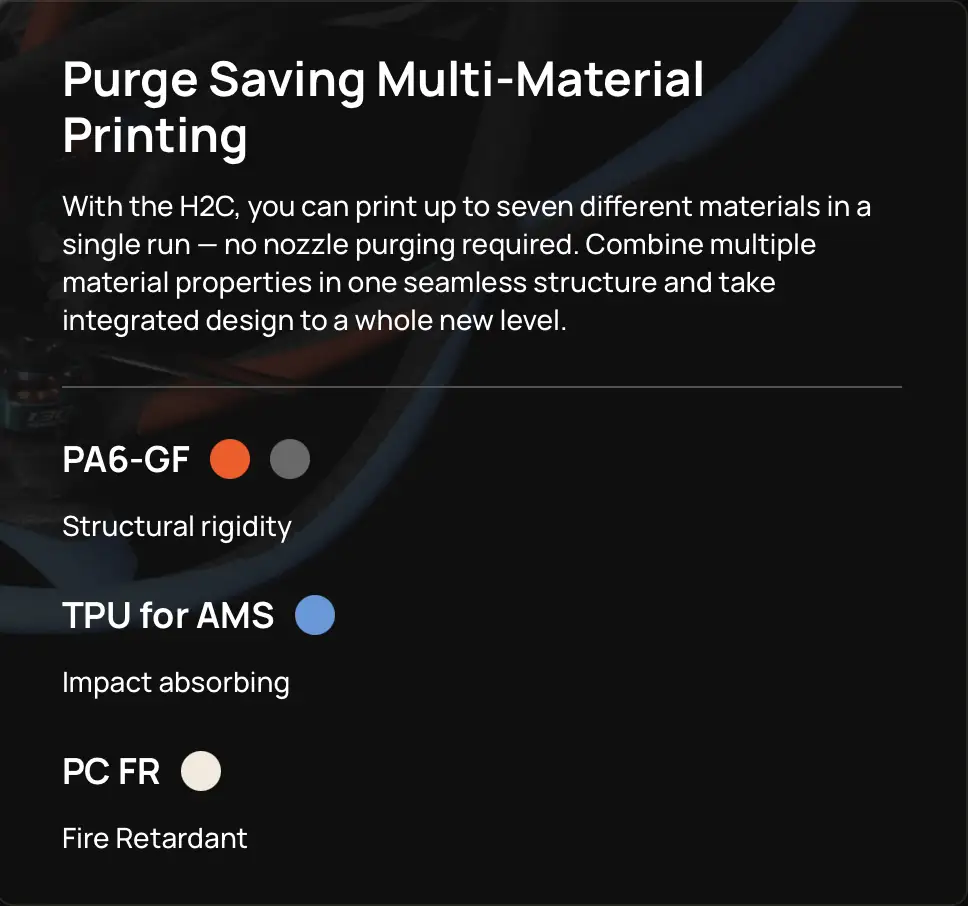

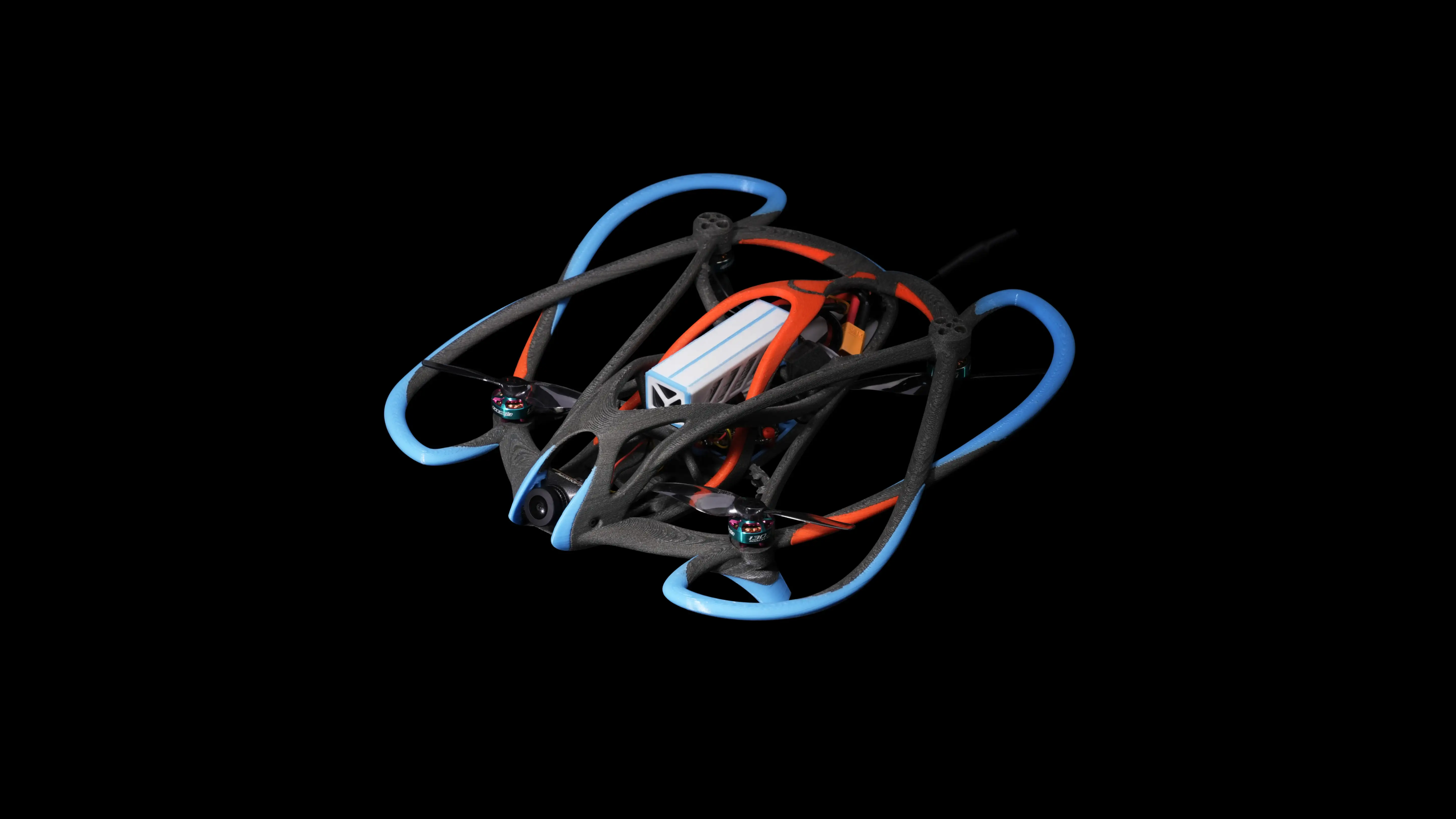

No More Assembly — Print
Multi-Material Parts in One
Piece.

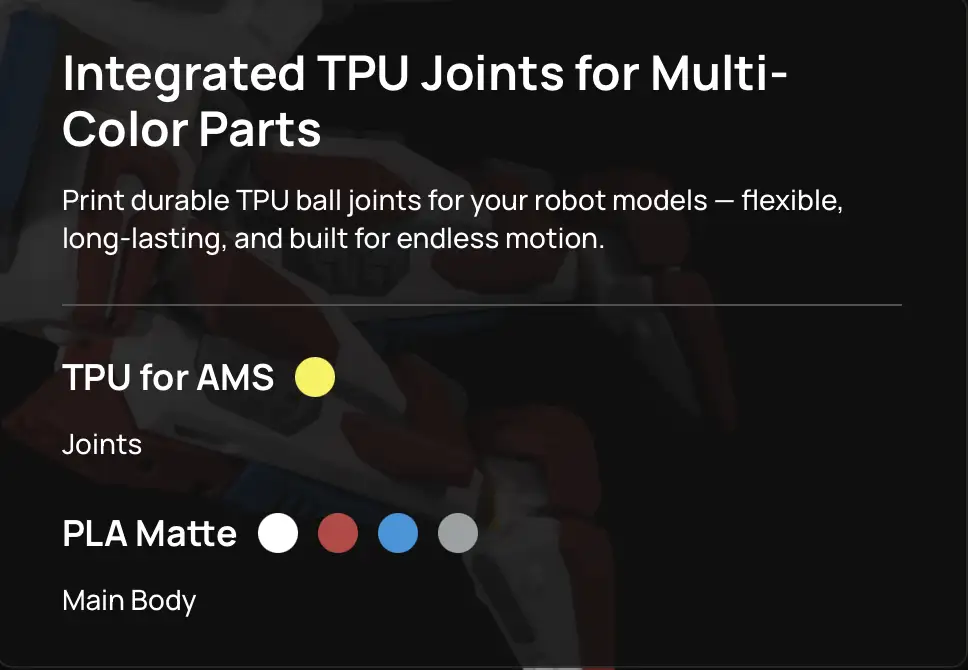

Print Durable Joints — Built
Right Into the Parts.

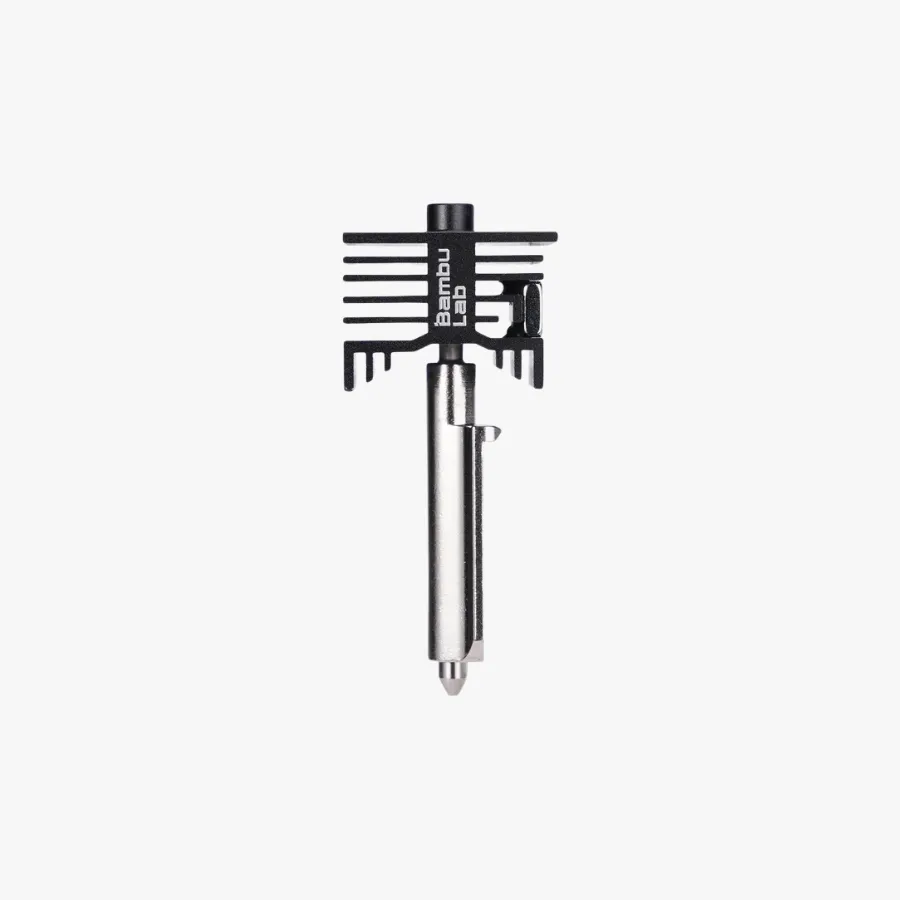

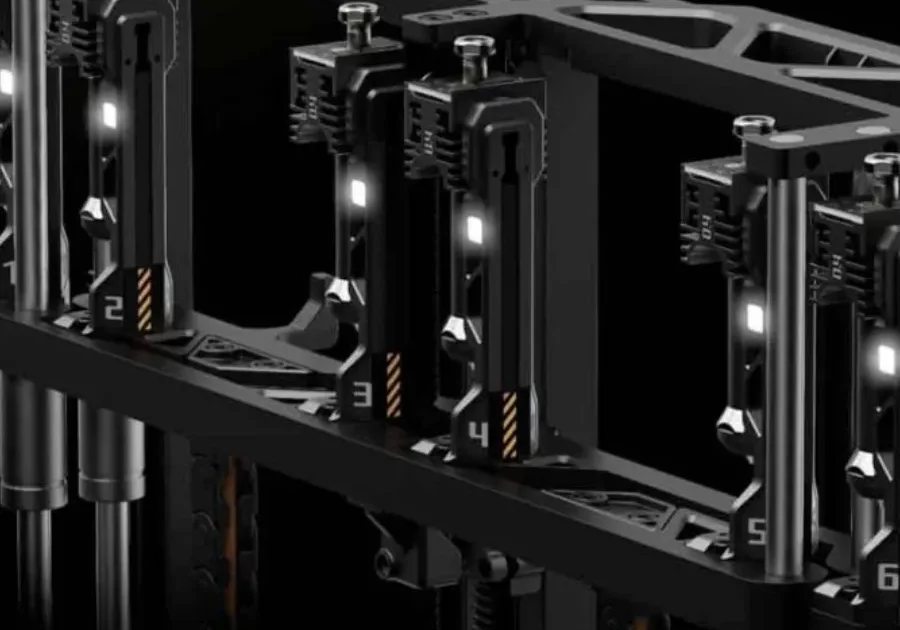

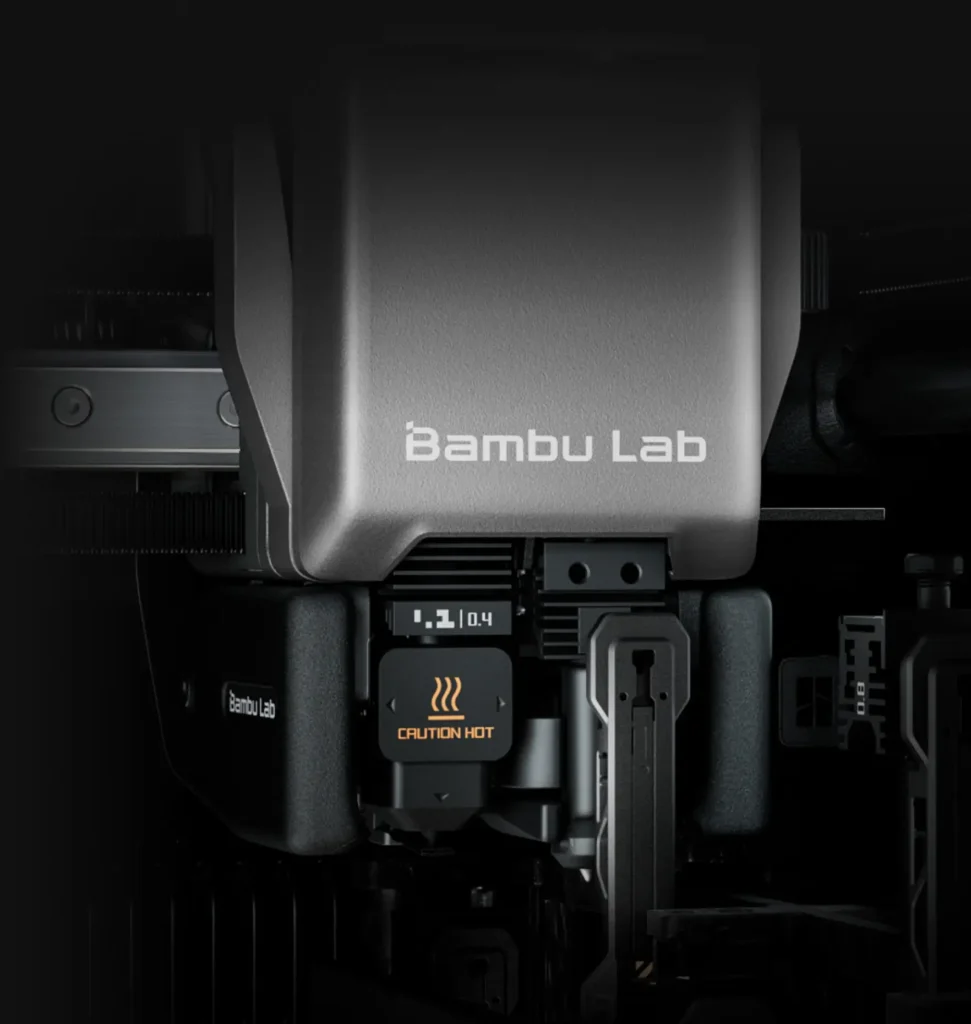

Vortek Hotend Change System

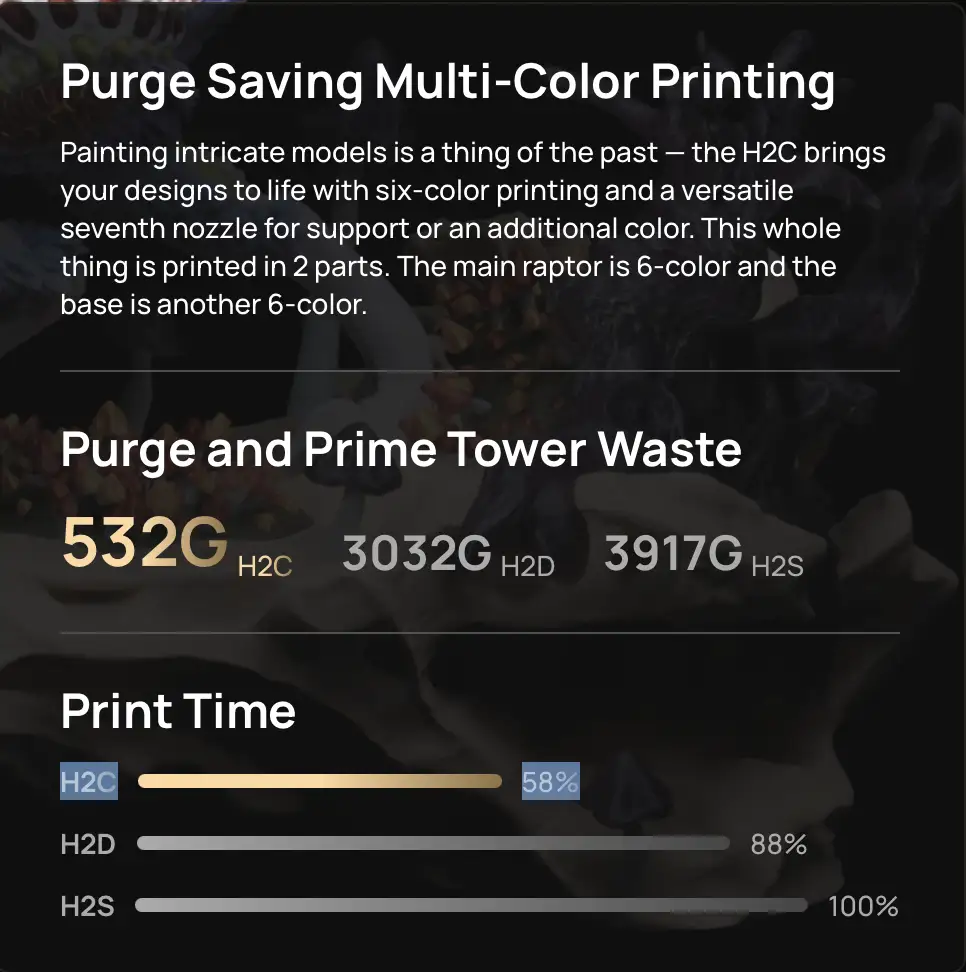

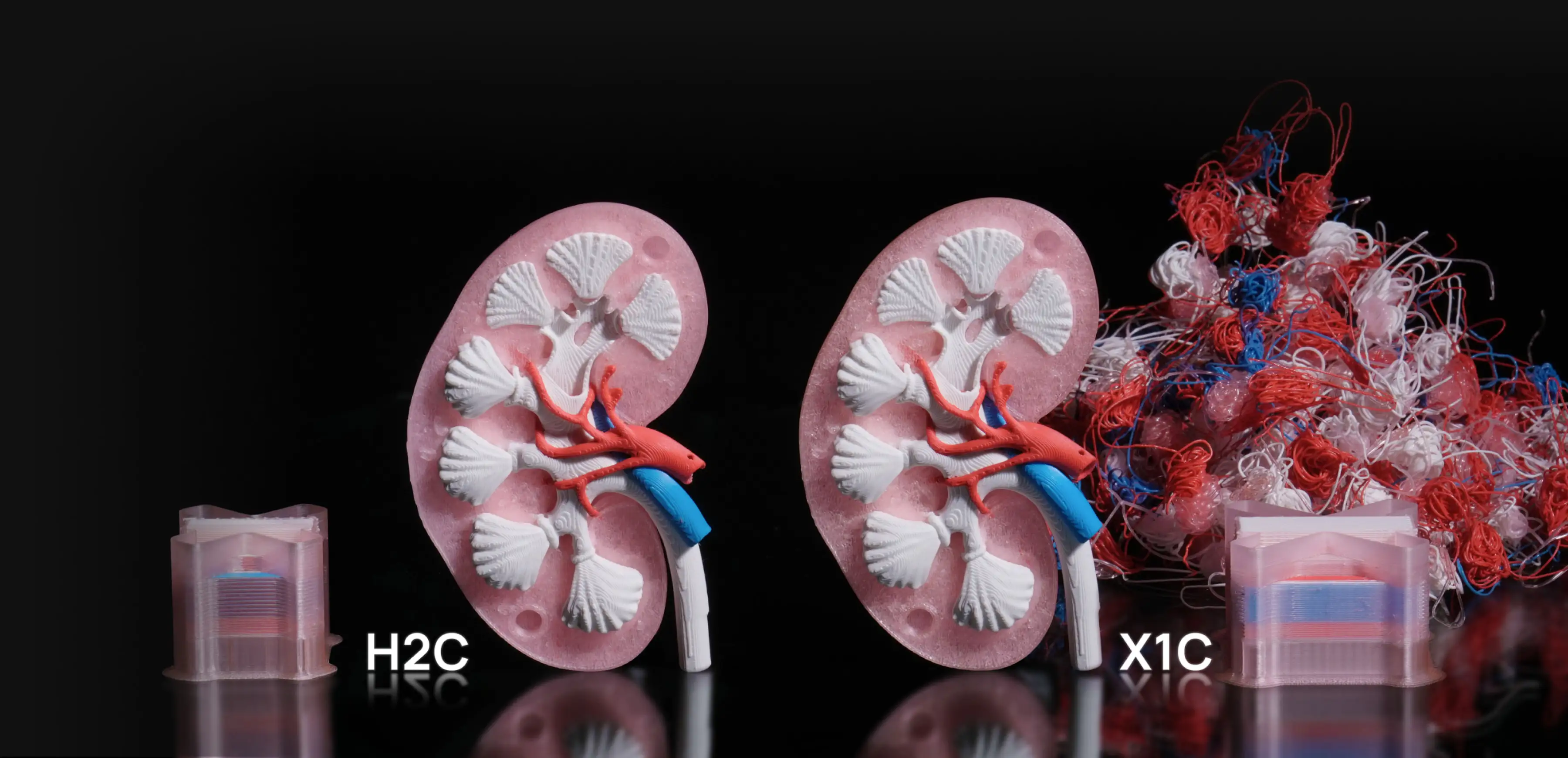

Multi-Material Printing with Minimal Purge Waste
In traditional single-nozzle multi-material printing, purging is needed to clear leftover material between filament changes.Vortek changes that with an intelligent hotend-swapping system that replaces the entire hotend — delivering faster, cleaner prints with minimal waste.

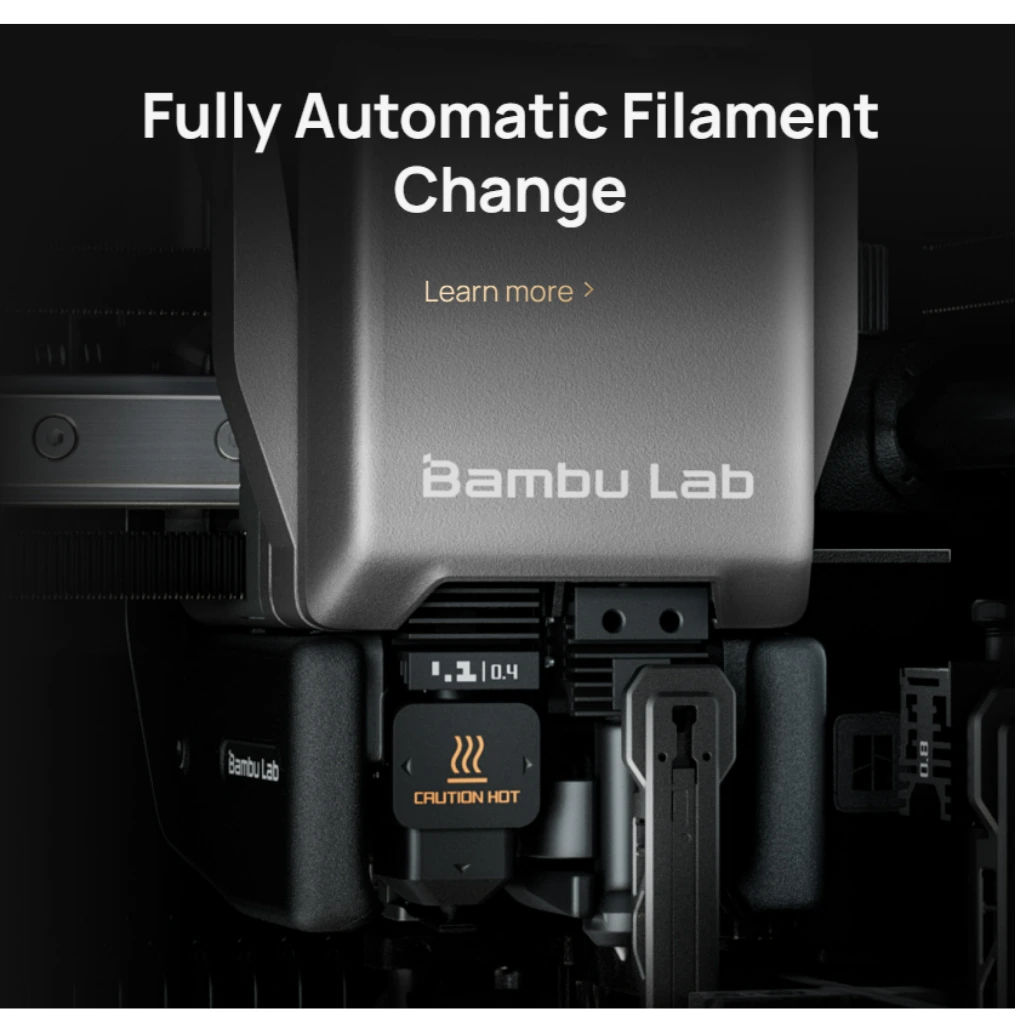

Fully Automatic Filament Change

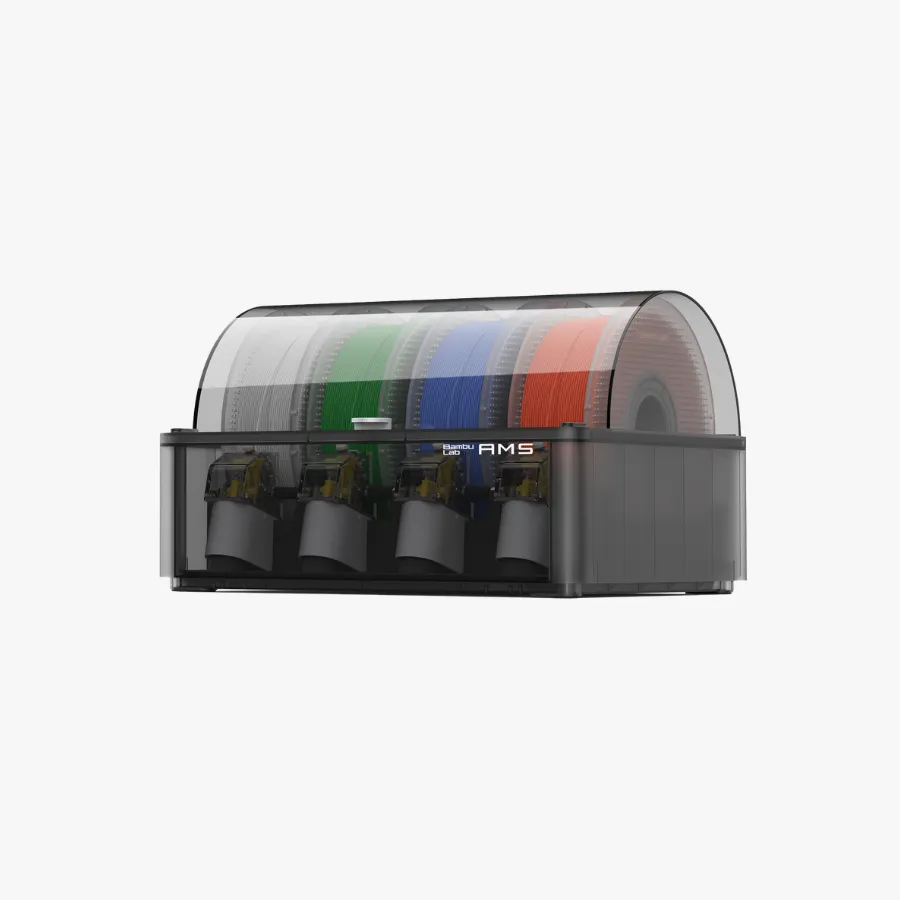

The Vortek system works seamlessly with our highly reliable AMS (Automatic Material System), making the entire filament change process fully automatic — no need to manually load each filament into the toolhead.

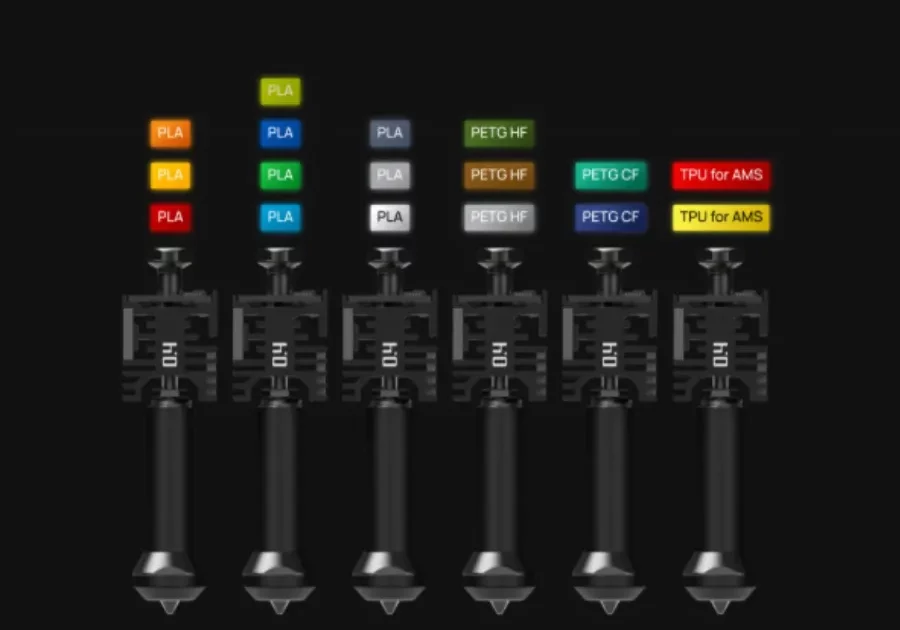

Always Delivering the Most Efficient Combination

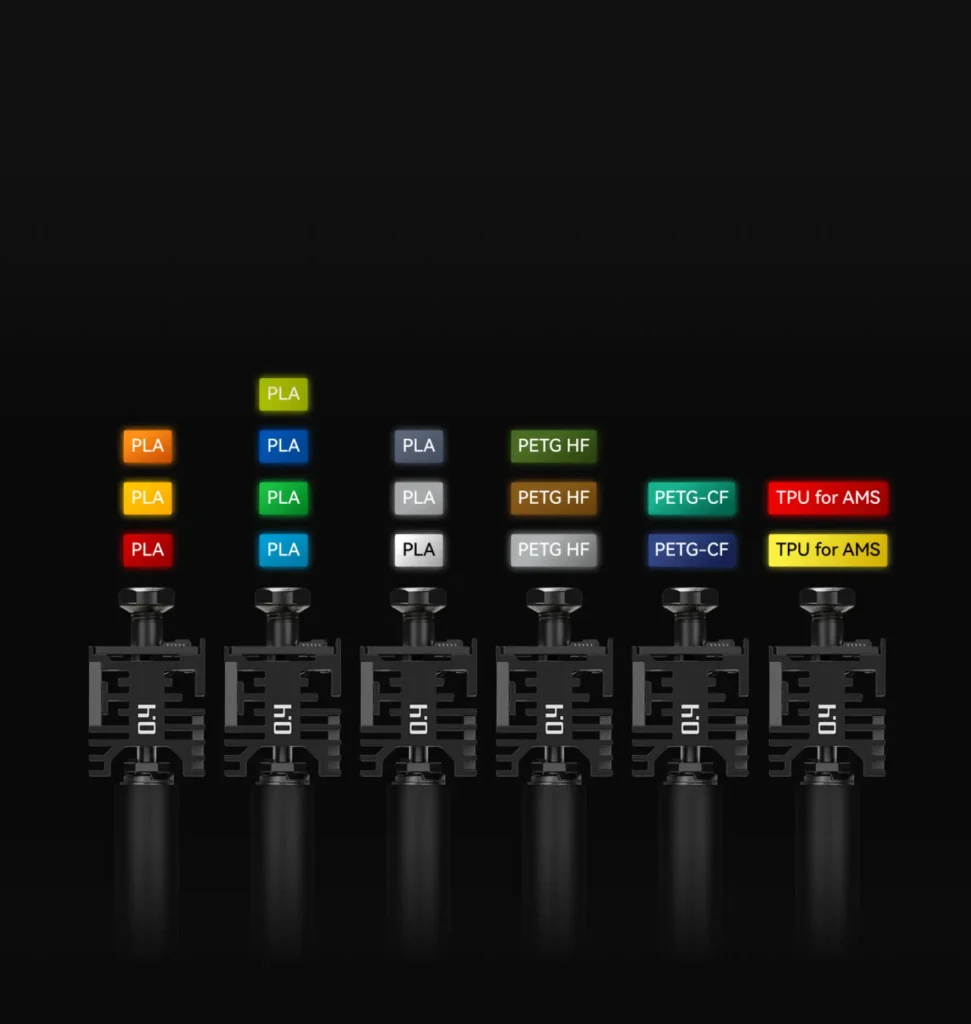

The Vortek system can store filament information in the hotend’s memory, ensuring the correct filament is matched to each hotend. If you are printing with more than seven filament types, the system can calculate the optimal combination to minimize purge waste.
Additional information
| Build Volume (W*D*H) | Single Nozzle Printing: 325*320*320 mm³ (Left) |
|---|---|
| Chassis | Aluminum and Steel |
| Outer Frame | Plastic and Glass |
| Physical Dimensions | 492*514*626 mm³ |
| Net Weight | 32.5 kg |
| Extruder Gear | Hardened Steel |
| Nozzle | Hardened Steel |
| Max Nozzle Temperature | 350 °C |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Filament Cutter | Built-in |
| Filament Diameter | 1.75 mm |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor |
| Build Plate Material | Flexible Steel Plate |
| Included Build Plate Type | Textured PEI Plate |
| Supported Build Plate Type | Textured PEI plate, Engineering Plate |
| Max Heatbed Temperature | 120 ℃ |
| Max Speed of Toolhead | 1000 mm/s |
| Max Acceleration of Toolhead | 20,000 mm/s² |
| Max Flow for Hotend | 40 mm³/s |
| Active Chamber Heating | Supported |
| Max Temperature | 65 °C |
| Pre-filter Grade | G3 |
| HEPA Filter Grade | H12 |
| Activated Carbon Filter Type | Granulated Coconut Shell |
| VOC Filtration | Superior |
| Particulate Matter Filtration | Supported |
| Part Cooling Fan | Closed Loop Control |
| Cooling Fan for Hotend | Closed Loop Control |
| Main Control Board Fan | Closed Loop Control |
| Chamber Exhaust Fan | Closed Loop Control |
| Chamber Heat Circulation Fan | Closed Loop Control |
| Auxiliary Part Cooling Fan | Closed Loop Control |
| Toolhead Enhanced Cooling Fan | Closed Loop Control |
| Supported Filament Type | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS;Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS |
