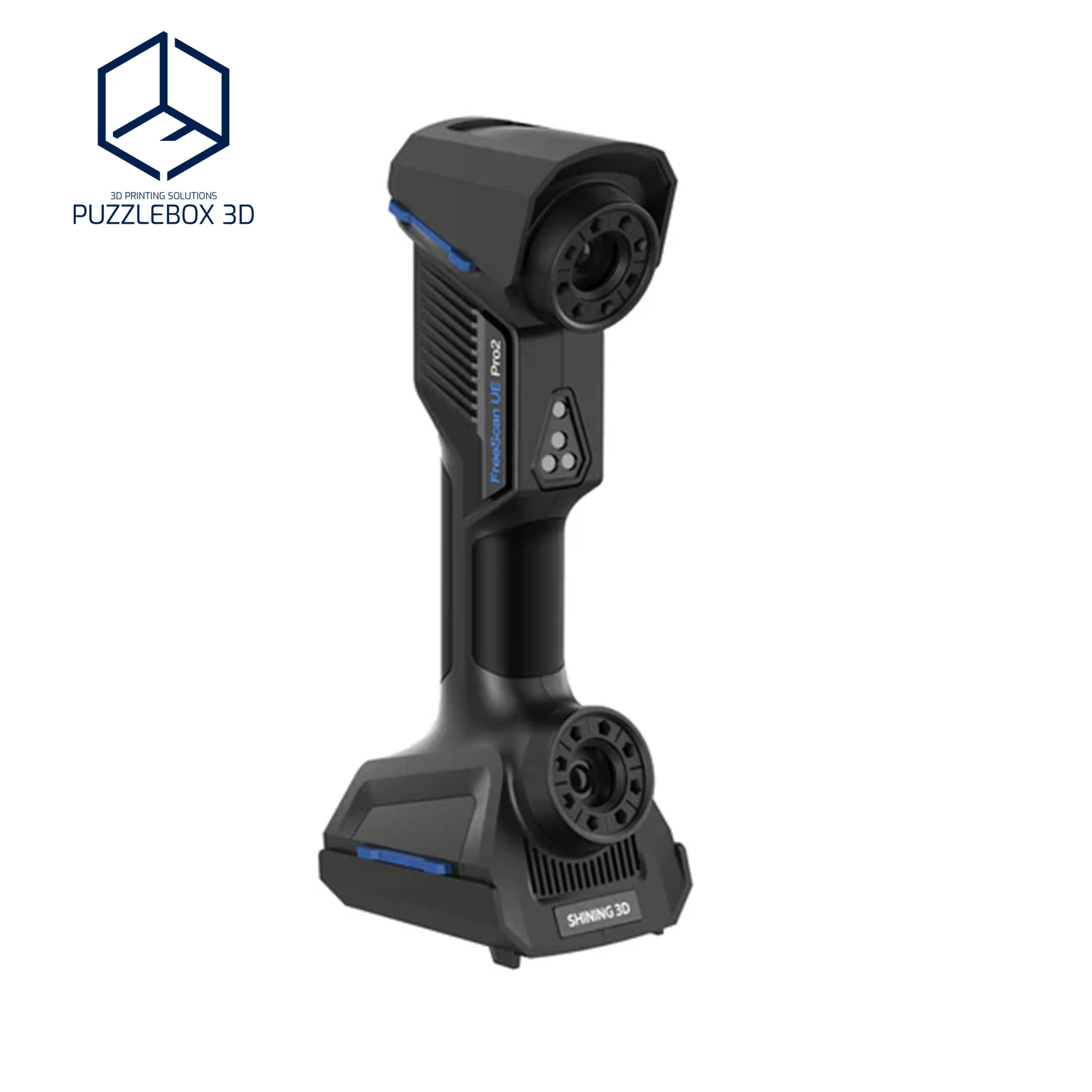

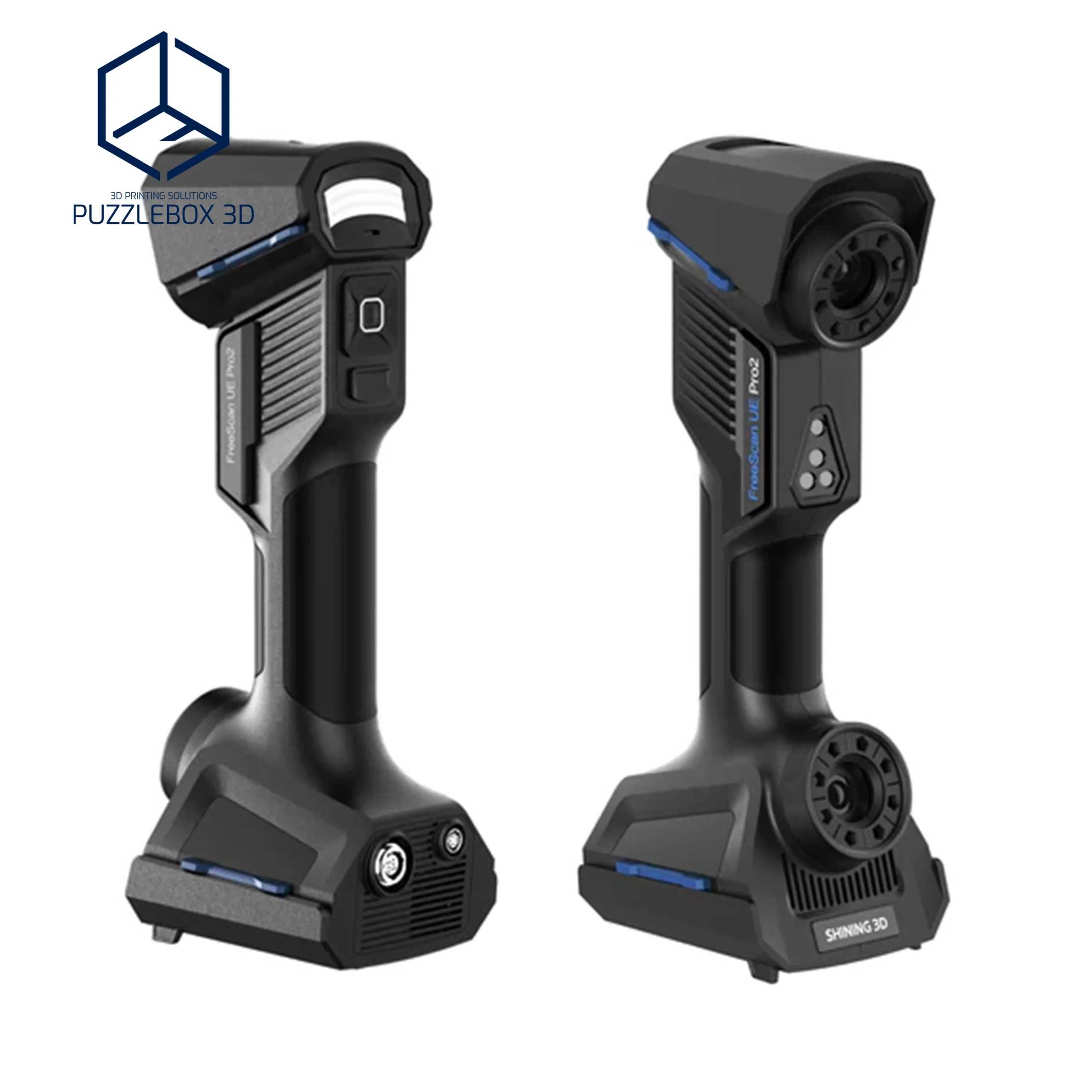

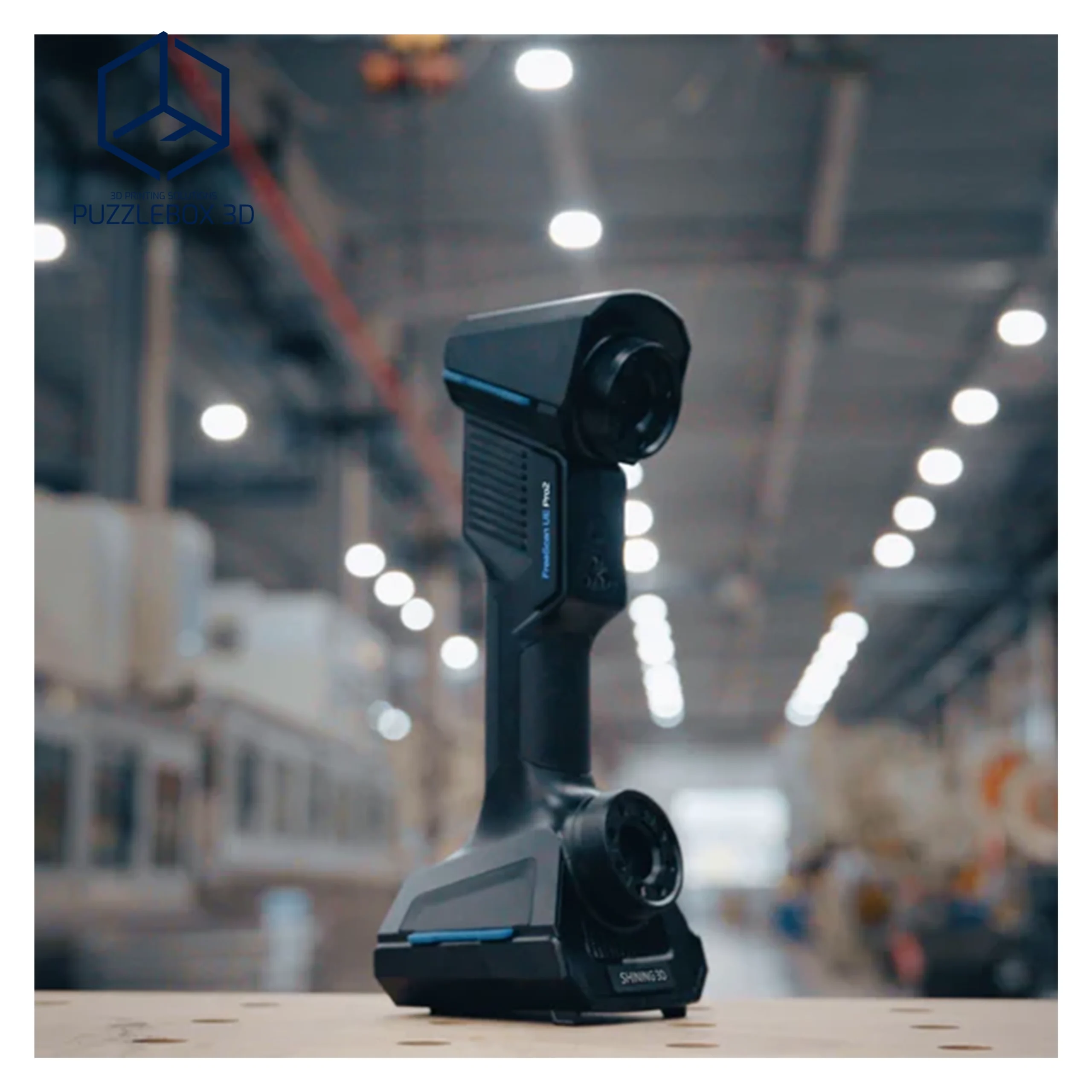

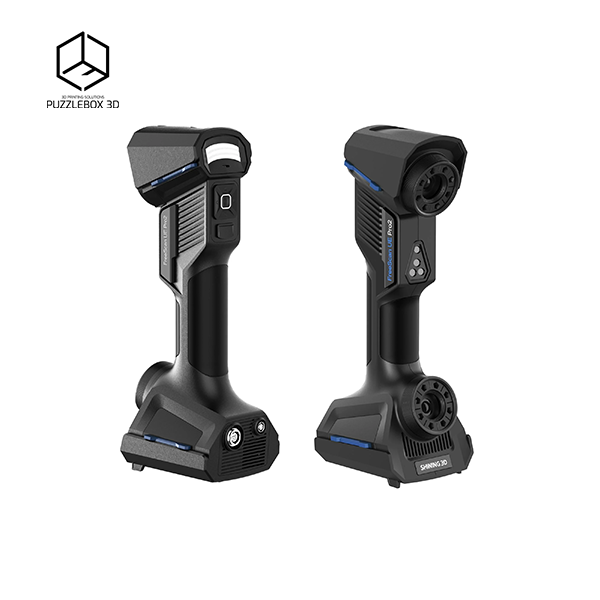

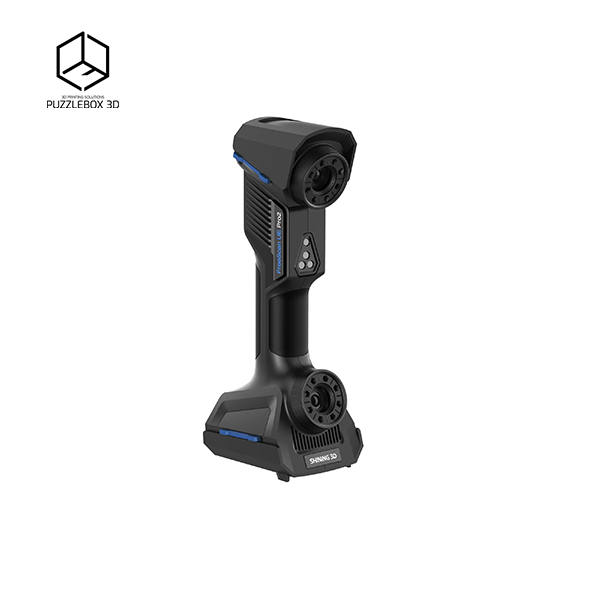

FreeScan UE Pro 2
₱1,980,000.00
FreeScan UE Pro 2 is Wireless, High-Precision 3D Scanner Engineered for Metrology-Grade Accuracy.
Engineered for professionals in need of precise, high-speed 3D scanning, the UE Pro2 stands out as a top choice for industries requiring detailed measurements and inspections.
Why choose the FreeScan UE Pro2?
Engineered for professionals in need of precise, high-speed 3D scanning, the UE Pro2 stands out as a top choice for industries requiring detailed measurements and inspections.
- Metrology-grade accuracy at an affordable price point, ensuring top-tier quality in every scan.

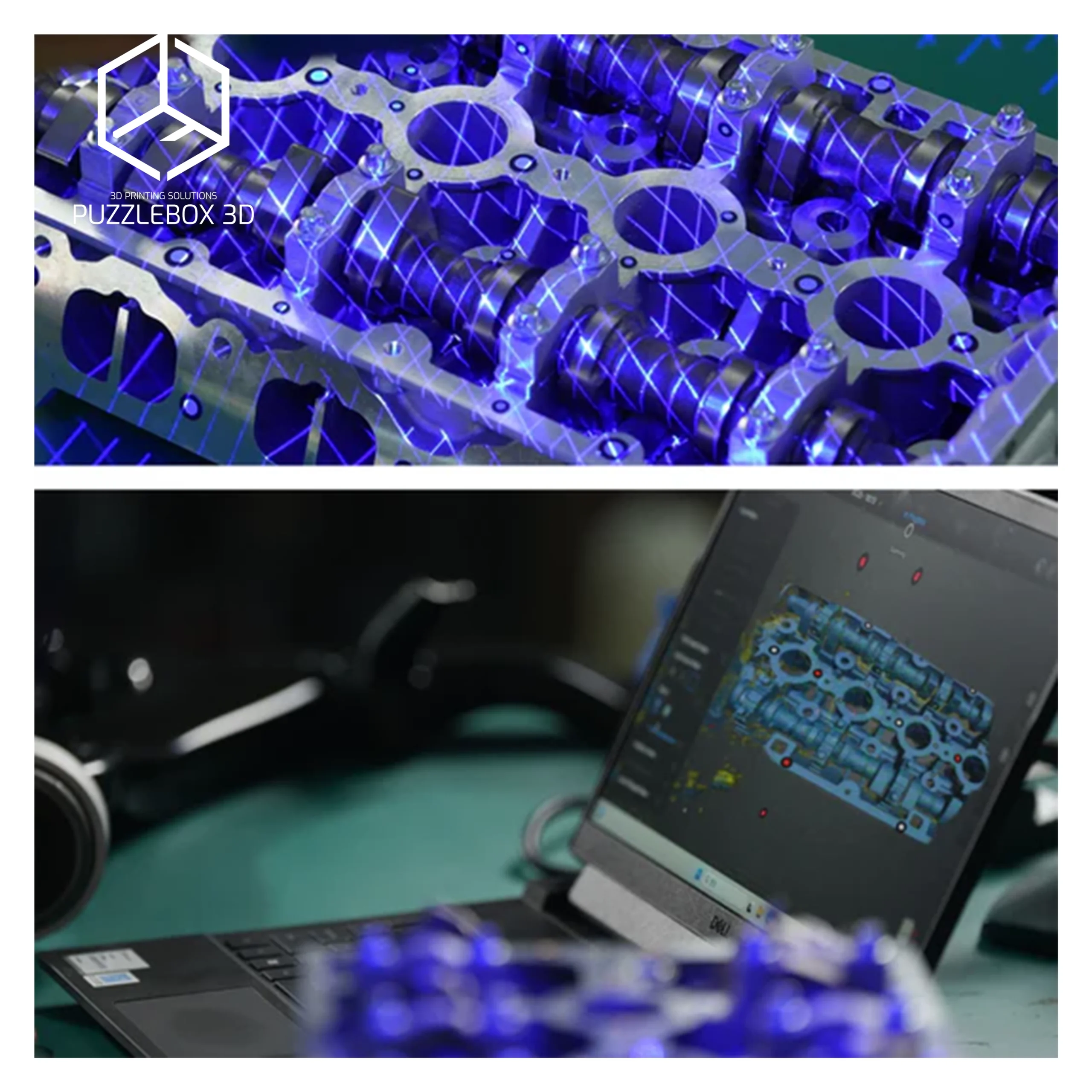

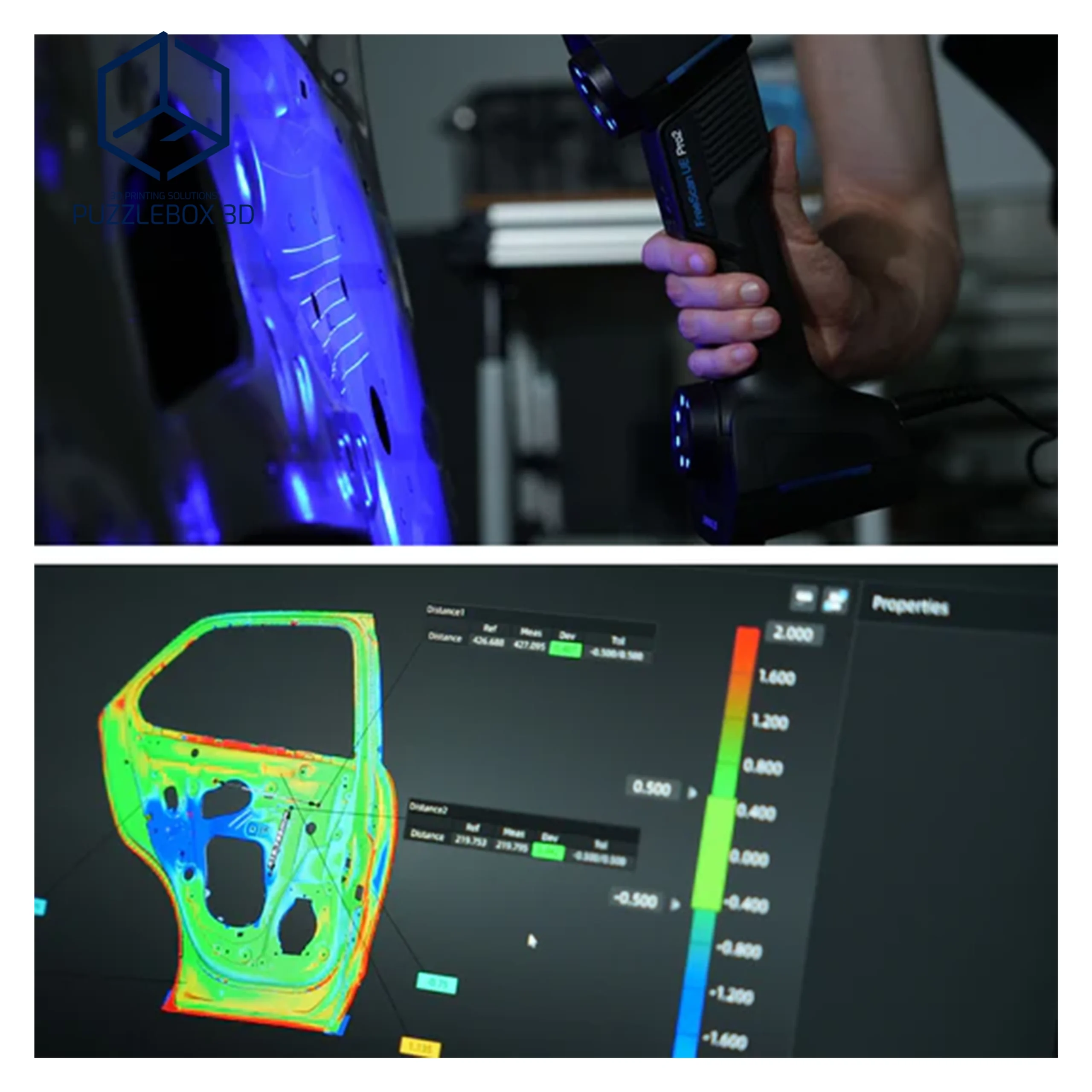

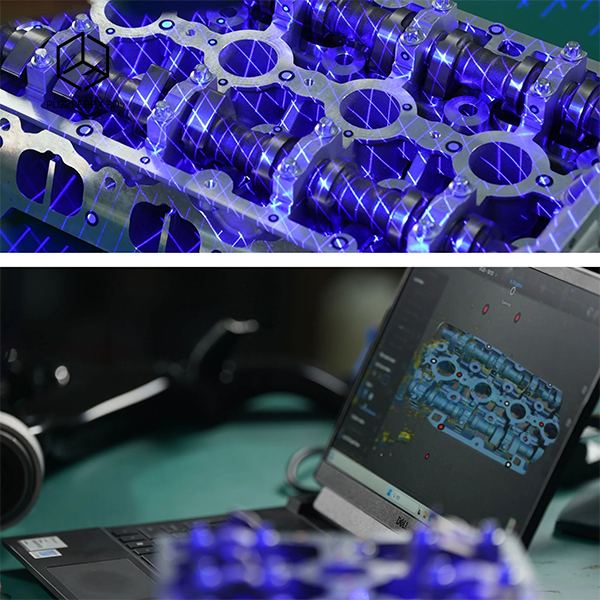

- Perfect for part inspection, quality control, and reverse engineering, offering a comprehensive solution for intricate tasks.

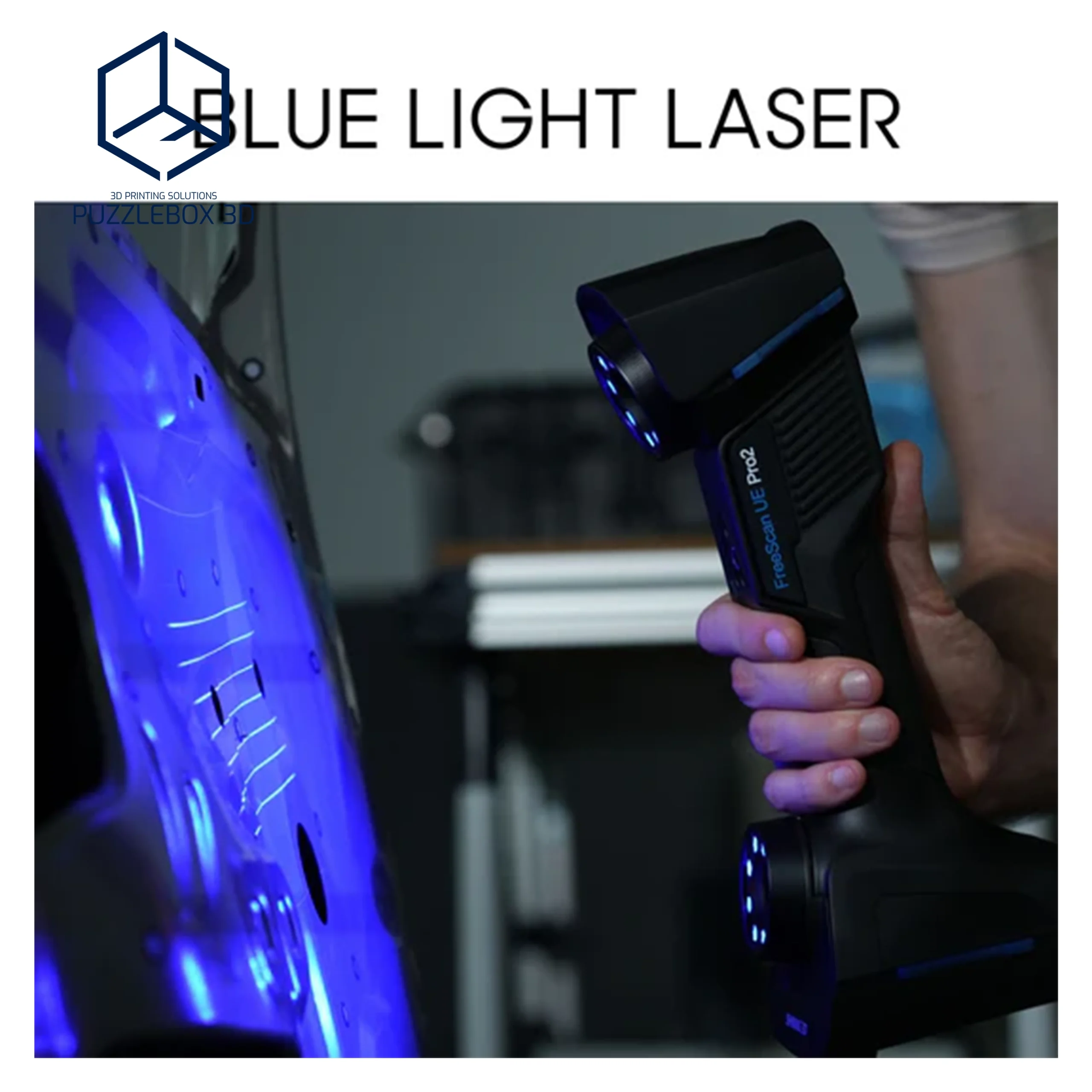

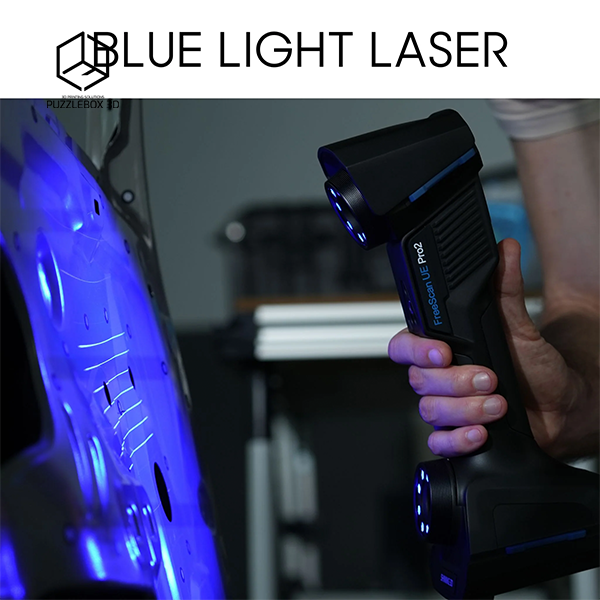

- Blue laser mode excels at scanning dark, shiny, or reflective surfaces, making it versatile for various materials.
- Completely wireless design, enabling effortless on-site use and convenient portability.
- Ultra-high precision with up to 20-micron accuracy (0.020mm), guaranteeing reliable and repeatable results.
- Portable and field-ready, complete with a rugged Pelican-style case for easy transportation.
With the FreeScan UE Pro2, you’re not just getting a scanner—you’re gaining a tool that enhances productivity and precision, perfect for professionals across industries.

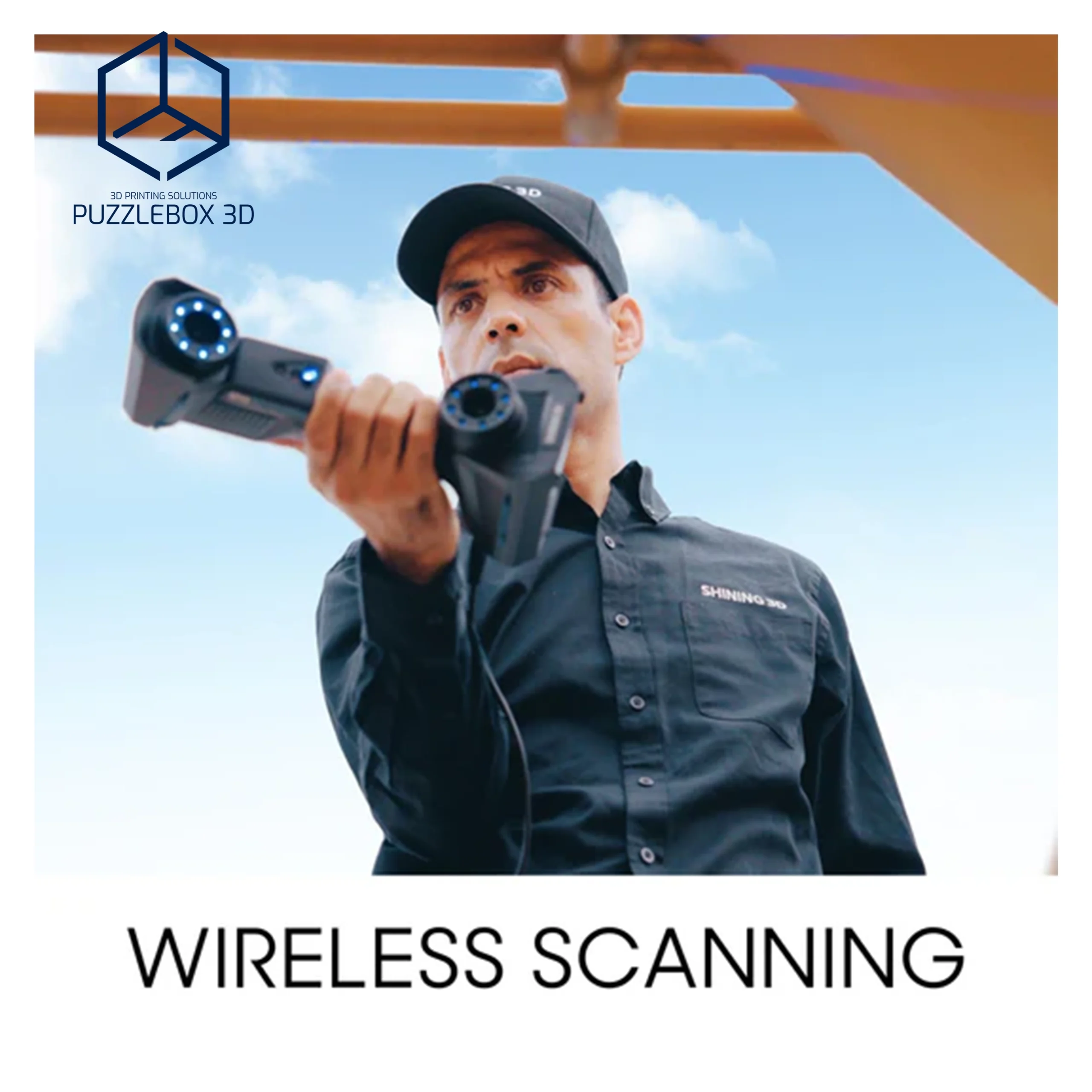

Wireless Portability

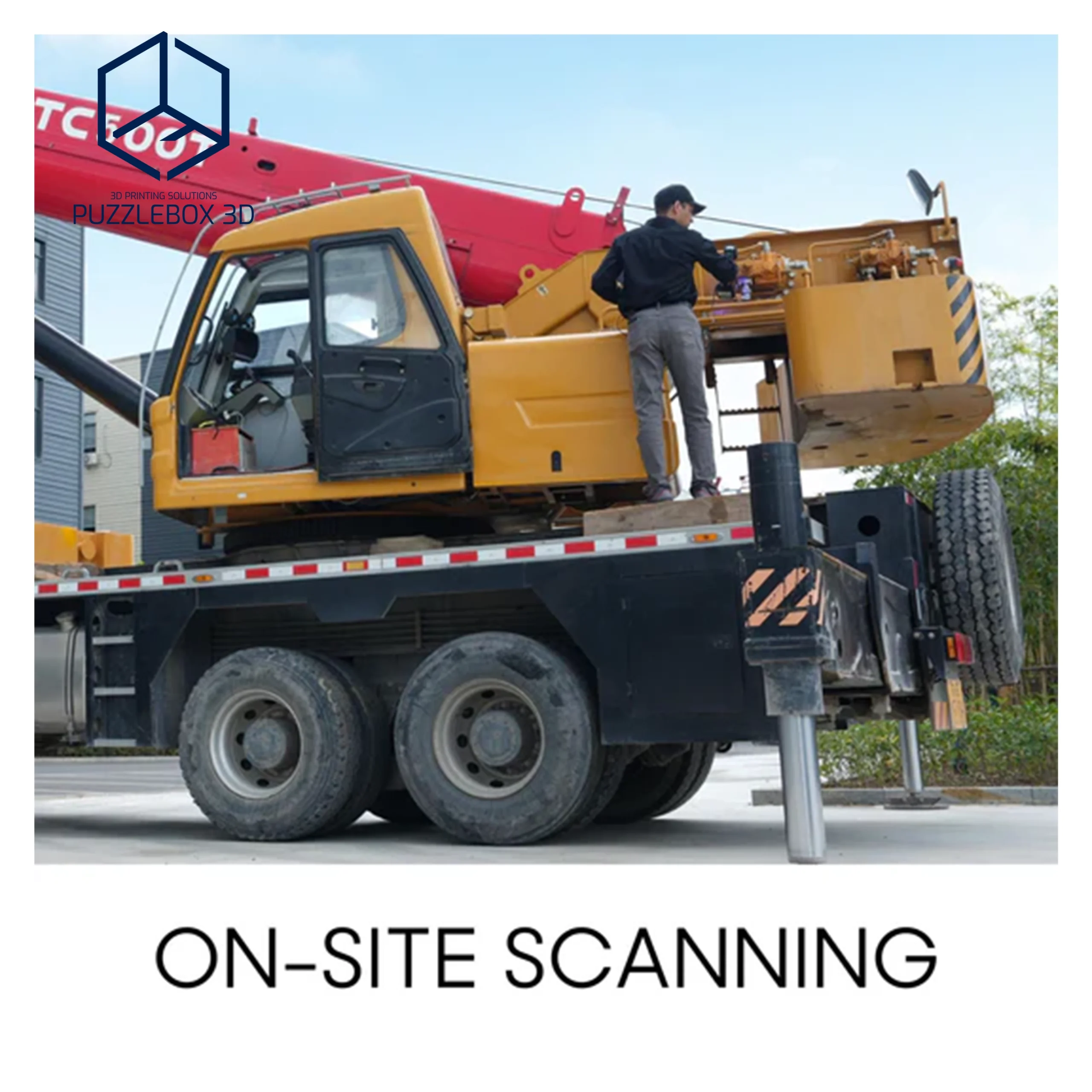

The FreeScan UE Pro2, with its integrated wireless module, enables seamless data transmission without cables. Weighing just 950g, it's ideal for on-site fieldwork and harsh environments, allowing effortless 3D data capture anywhere.
3 Modes for Versatility
The FreeScan UE Pro2 offers unmatched versatility in scanning, allowing users to tackle a wide range of tasks with precision. Whether you're capturing large surface areas at high speed with 50 laser lines, focusing on intricate details with 7 parallel laser lines, or scanning deep holes with a single laser line, the UE Pro2 delivers superior results across various industrial applications.

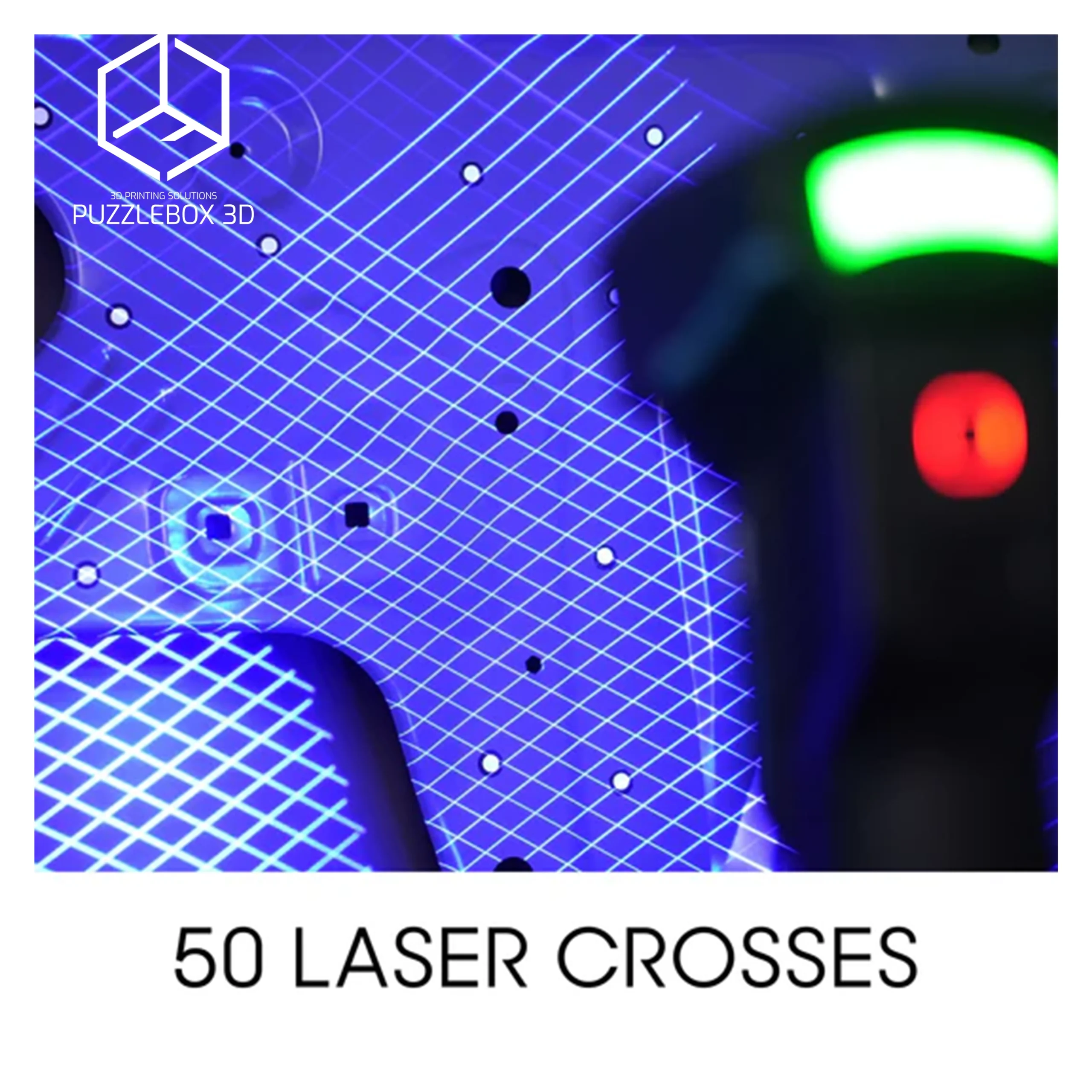

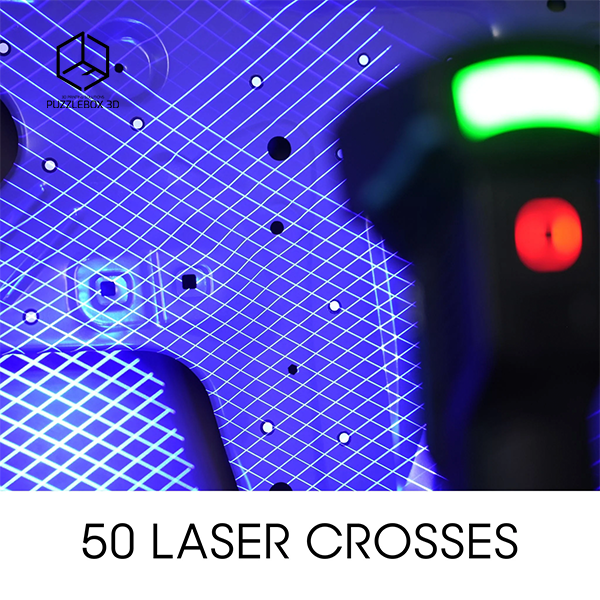

- High-speed scanning: 50 laser lines
- Detail scanning: 7 parallel laser lines
- Deep hole scanning: 1 laser line
Certified Results
With a volumetric accuracy of up to 0.02 mm + 0.015 mm/m using photogrammetry, the FreeScan UE Pro2 delivers consistent and reliable global accuracy and scanning results.
SHINING 3D's Accuracy Laboratory, accredited by CNAS in accordance with ISO 17025, ensures rigorous calibration of optical metrology. Based on VDI/VDE 2634 guidelines, the laboratory guarantees the traceability of measurement processes and calibration results.
Additional information
| Scan Options | 50 laser cross, 7 horizontal laser, 1 laser line |
|---|---|
| Accuracy | Up to 20 microns (0.020mm) |
| Volumetric Accuracy | 0.02 + 0.03mm/mm 0.02 mm + 0.015 mm/m (with photogrammetry) |
| Accuracy Certification | VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab) |
| Scan Speed | 3.64M points/s |
| Max FOV | 600x550mm |
| Working Distance | 300mm (200mm for 7 line mode) |
| Point Distance | 0.1-10mm |
| Power Input | 24V, 3.75A |
| Operating Temperature Range | -20-40C |
| Operating Humidity Range | 10-90% |
