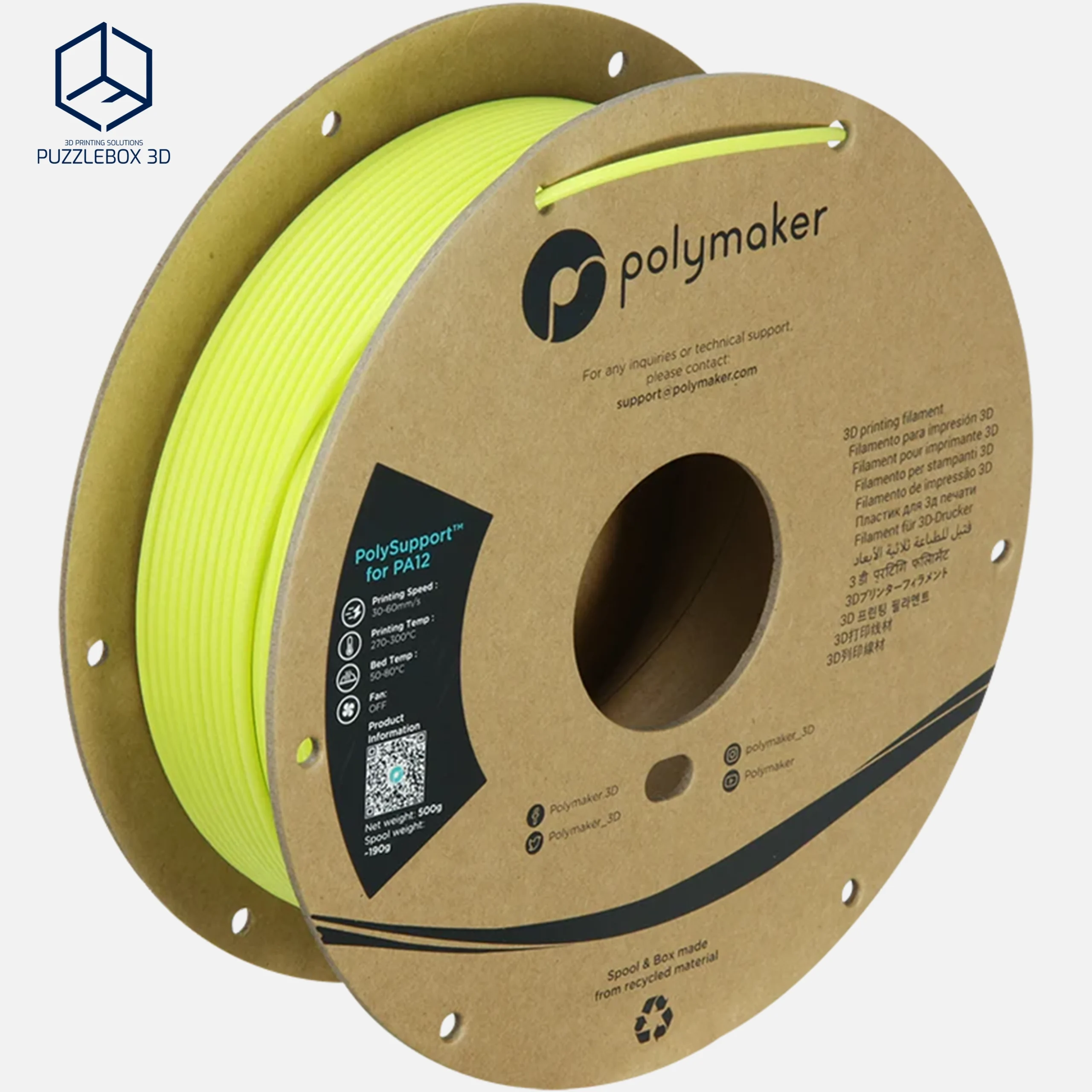

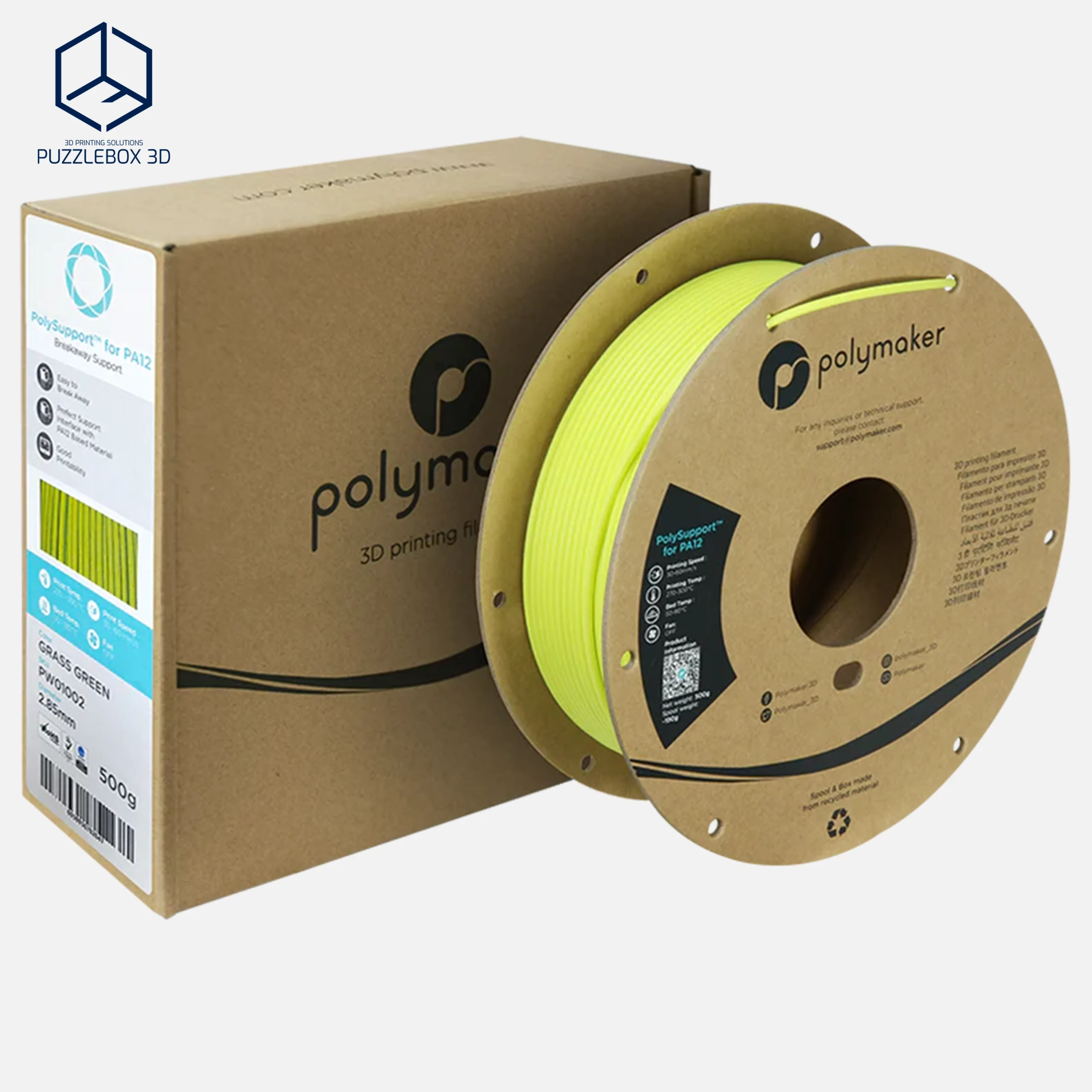

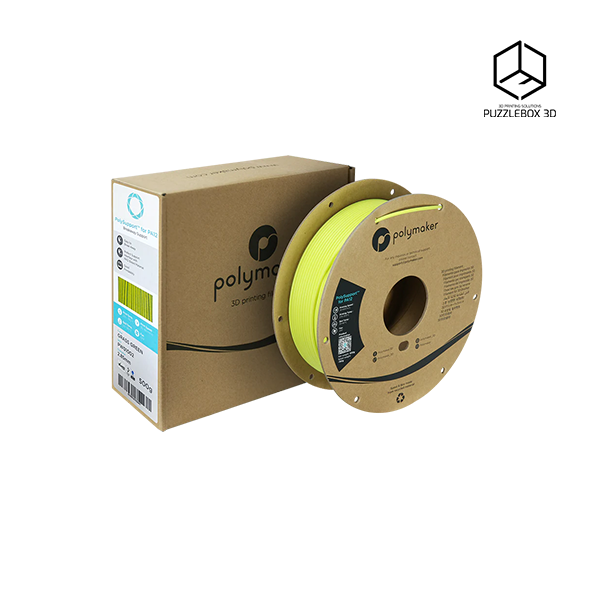

PolySupport™ for PA12
₱2,399.00

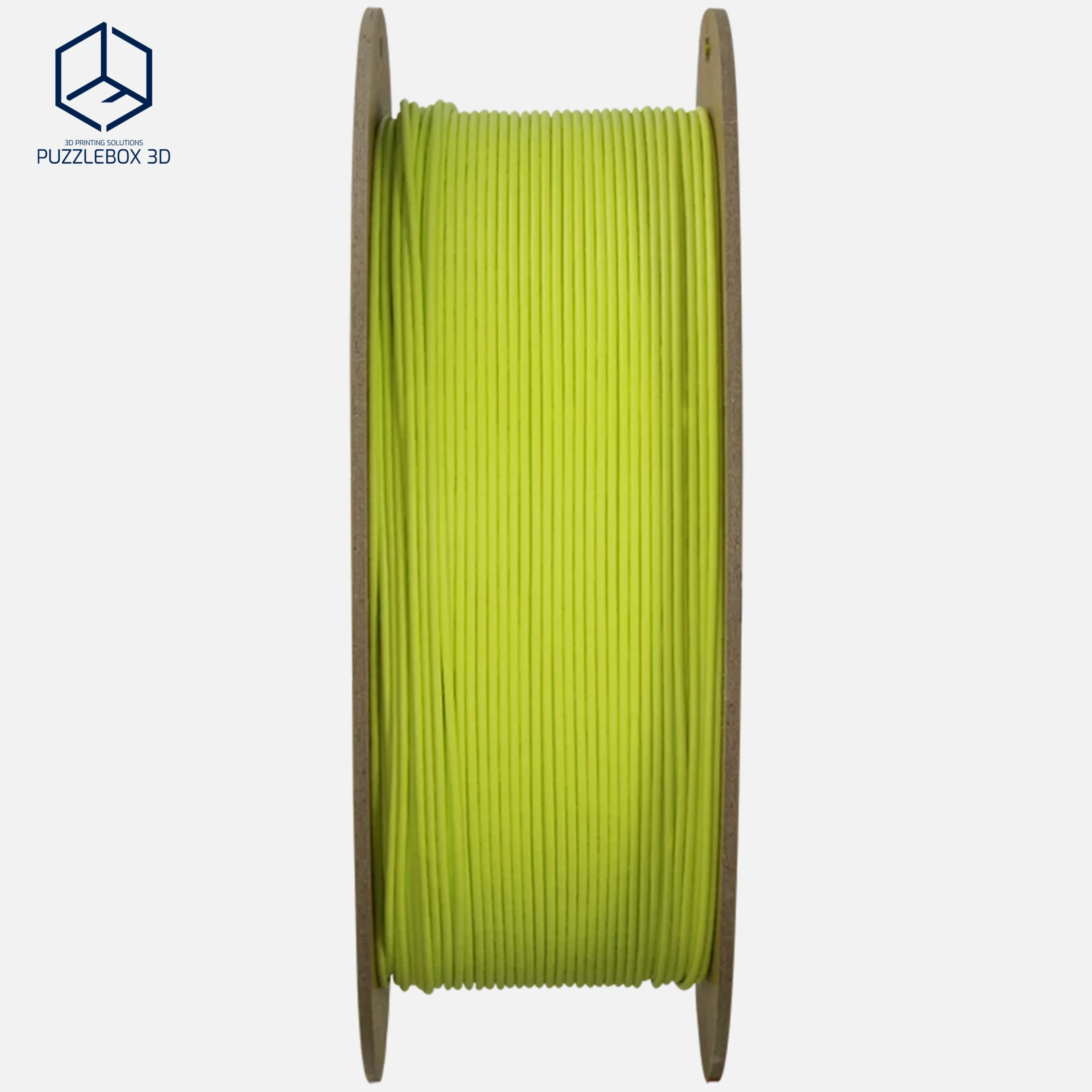

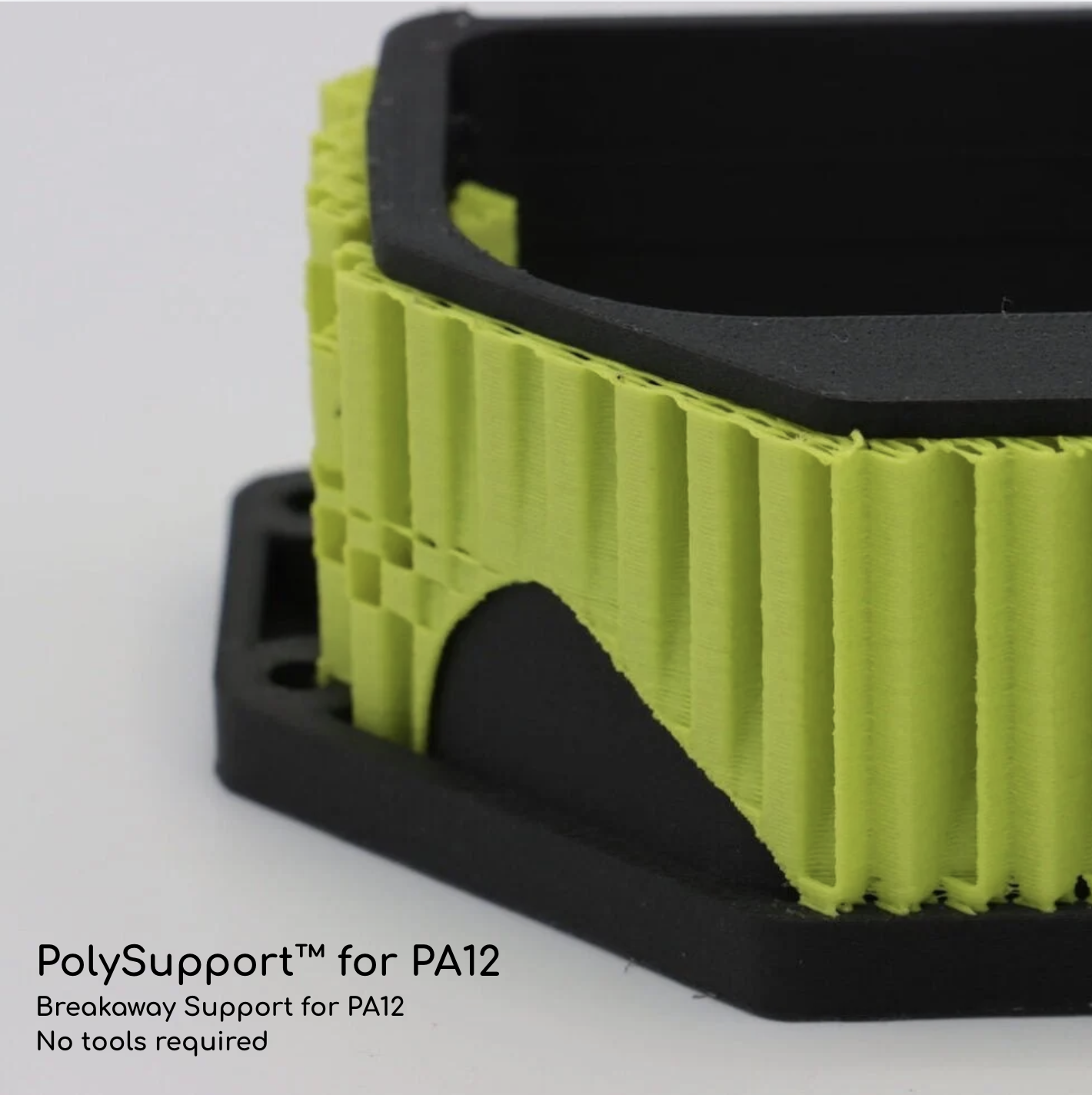

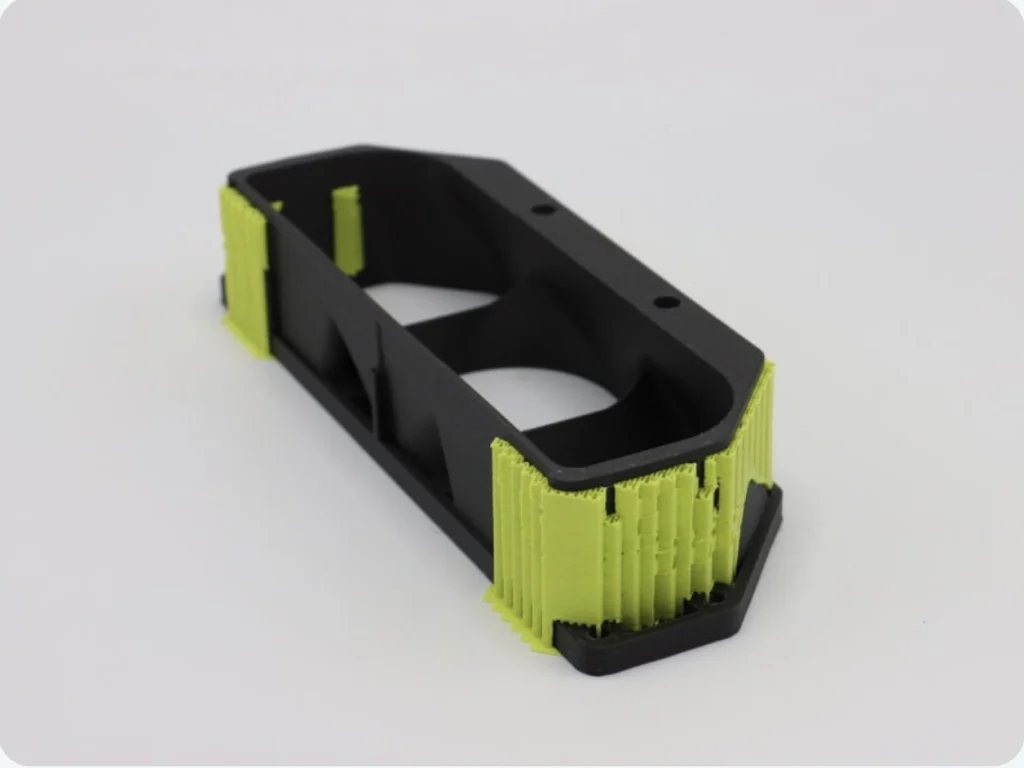

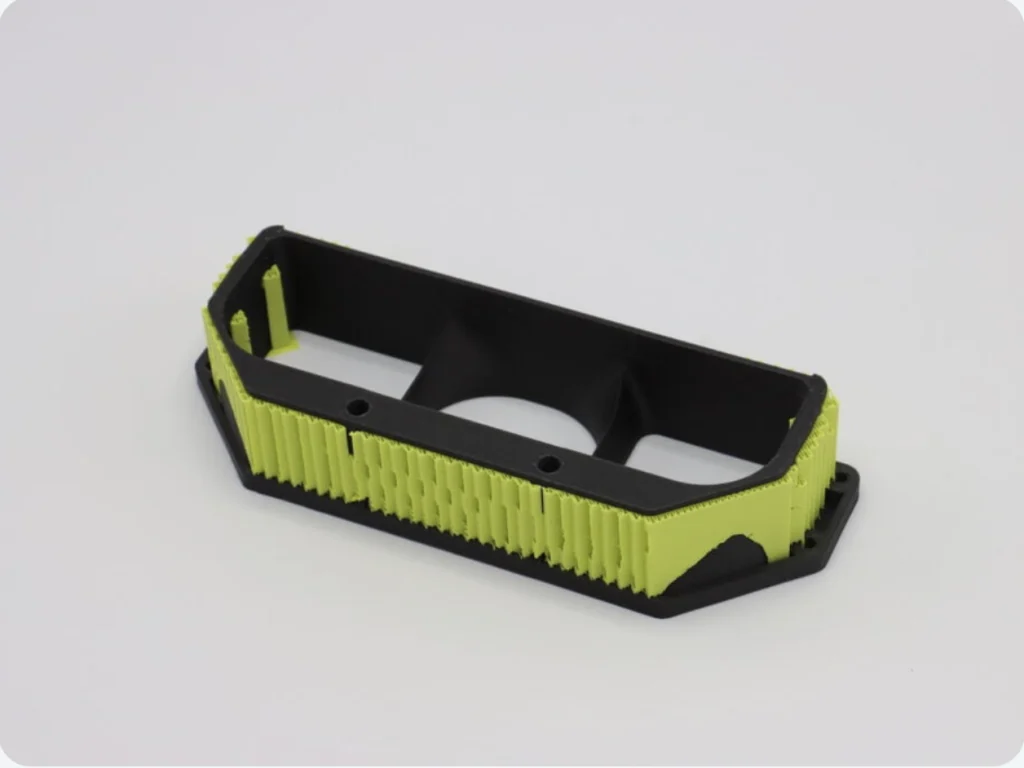

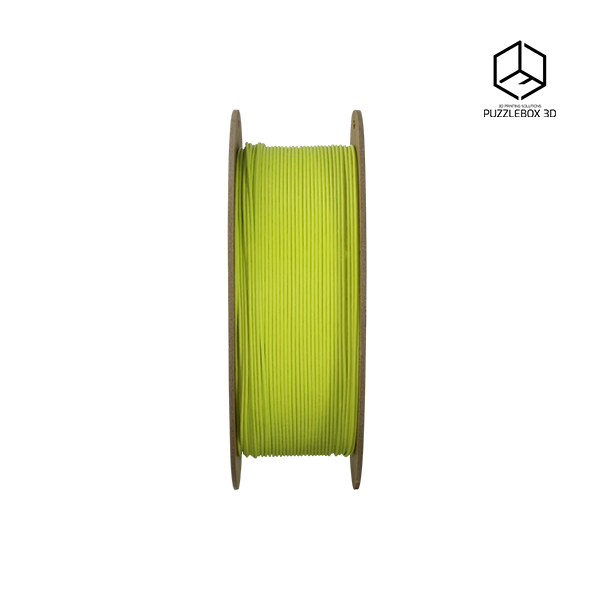

PolySupport™ for PA12 is a break away support specifically engineered for PA12 based filaments. It has a perfect interface with long-chain nylons, strong enough to support it and easily removable by hand. PolySupport™ for PA12 prints at a similar temperature to PA12 and is compatible with open, enclosed and heated chambers. The filament is colored green so its easy to see and remove after printing.

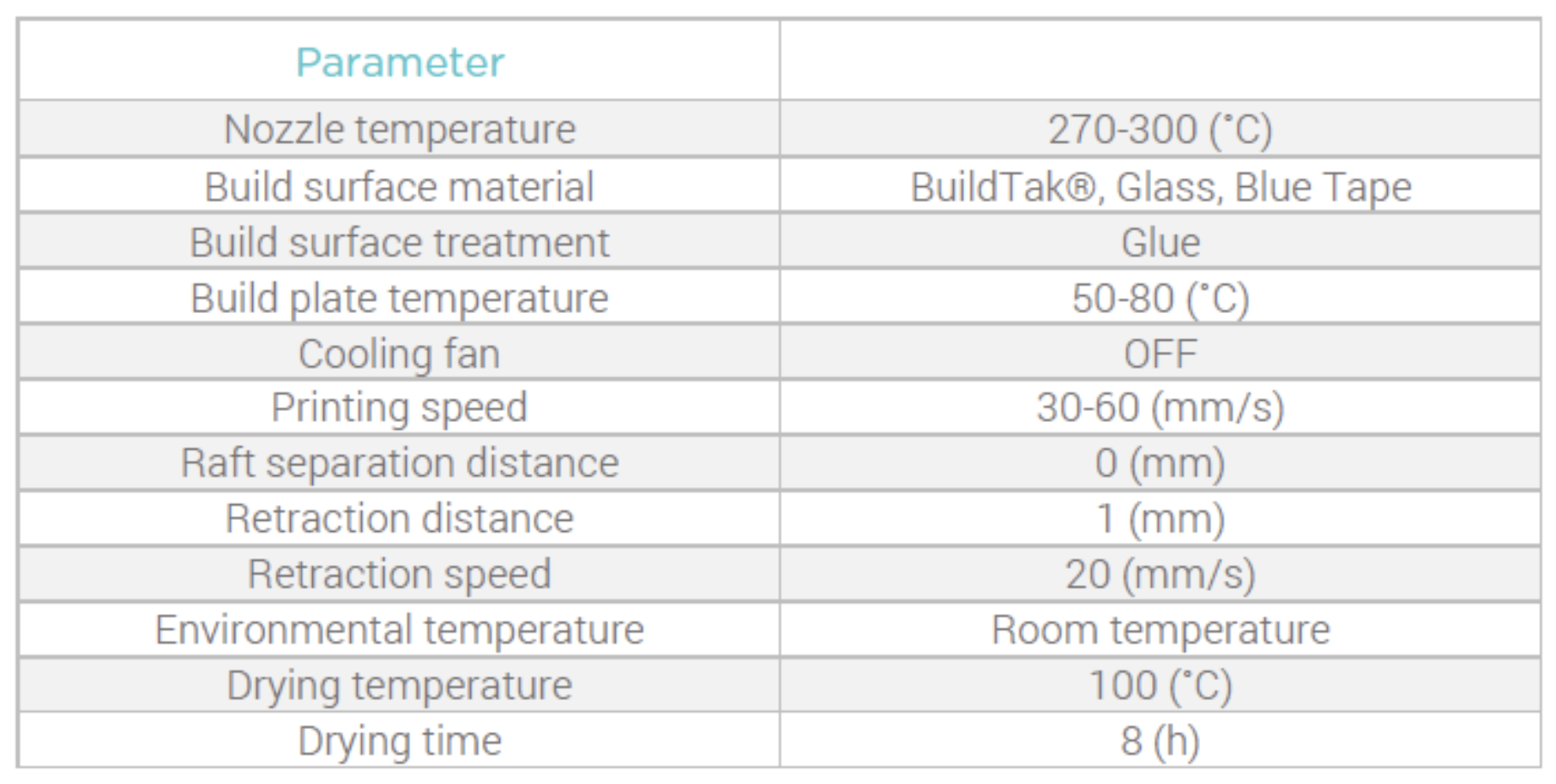

RECOMMENDED PRINTING CONDITIONS
* Based on 0.4 mm nozzle and Simplify 3D v.4.0. Printing conditions may vary with different
nozzle diameters
Note:
– Abrasion of the brass nozzle happens when printing PolySupport™ for PA12. Normally, the life of a brass nozzle would be approximately 9h. A wear-resistant nozzle, such as a hardened steel and ruby nozzle, is highly
recommended to be used with PolySupport™ for PA12.
– PolySupport™ for PA12 is sensitive to moisture and should always be stored and used under dry conditions (relative humidity below 20%).
Additional information
| Material type | Breakaway support material |
|---|---|
| Filament Diameter | 1.75 mm / 2.85 mm |
| Typical Spool Weight | 750 g |
| Printing Temperature | 270˚C – 300˚C |
| Bed Temperature | 50˚C – 80˚C |
| Printing Speed | 50mm/s – 150mm/s |
| Fan | OFF |
| Direct Drive Retraction Distance | 1mm |
| Direct Drive Retraction Speed | 20mm/s |
| Indirect Drive Retraction Distance | 3mm |
| Indirect Drive Retraction Speed | 40mm/s |
