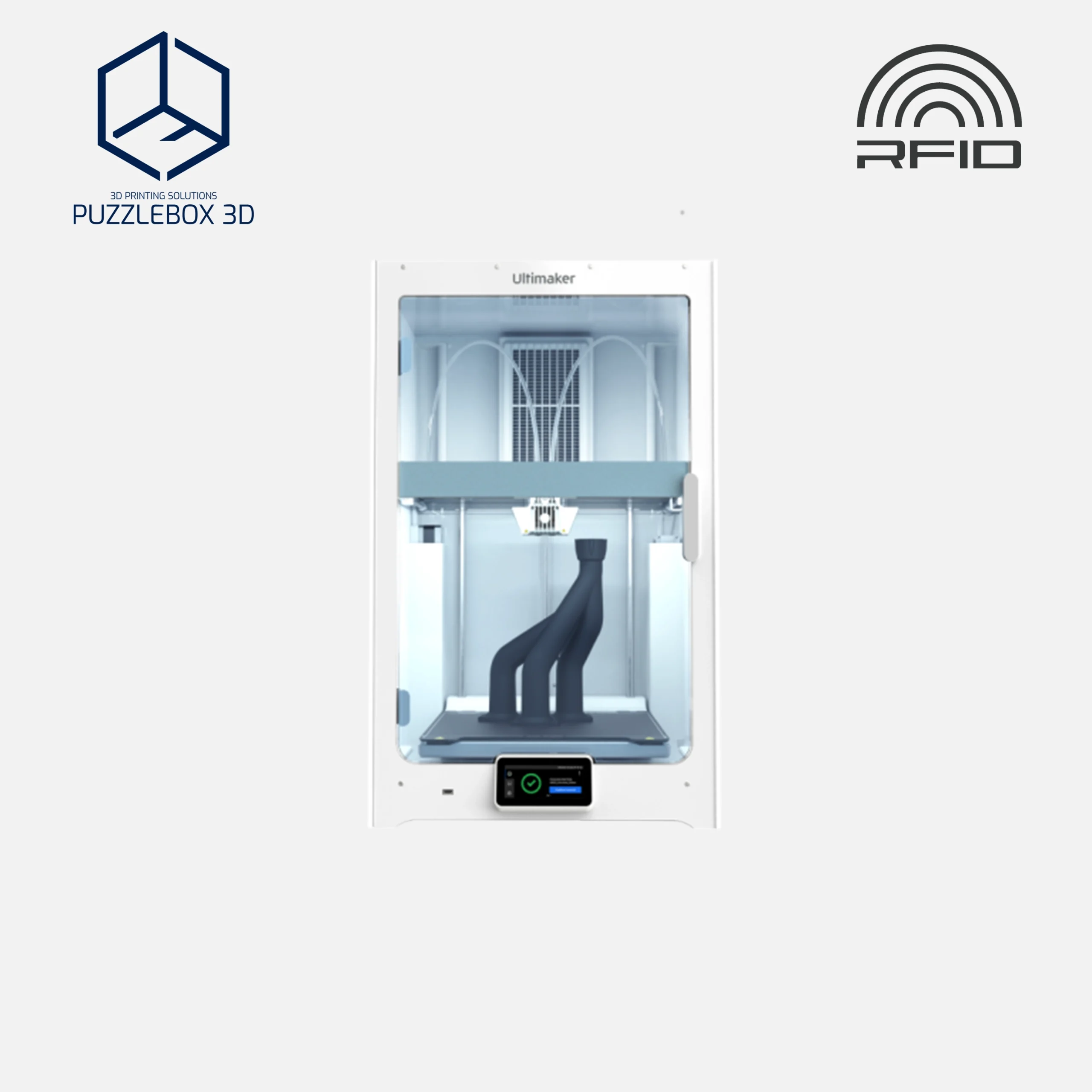

Ultimaker S7
- Set and Forget. Out of the Box
- Click and print with over 280+ material compatibility
- Automatic Bed leveling w/ Inductive Sensor
- Anti-Flood sensor
- Flexible PEI build sheet
- Integrated Air Manager
Ultimaker S7
- Set and Forget. Out of the Box
- Click and print with over 280+ material compatibility
- Automatic Bed leveling w/ Inductive Sensor
- Anti-Flood sensor
- Flexible PEI build sheet
- Integrated Air Manager

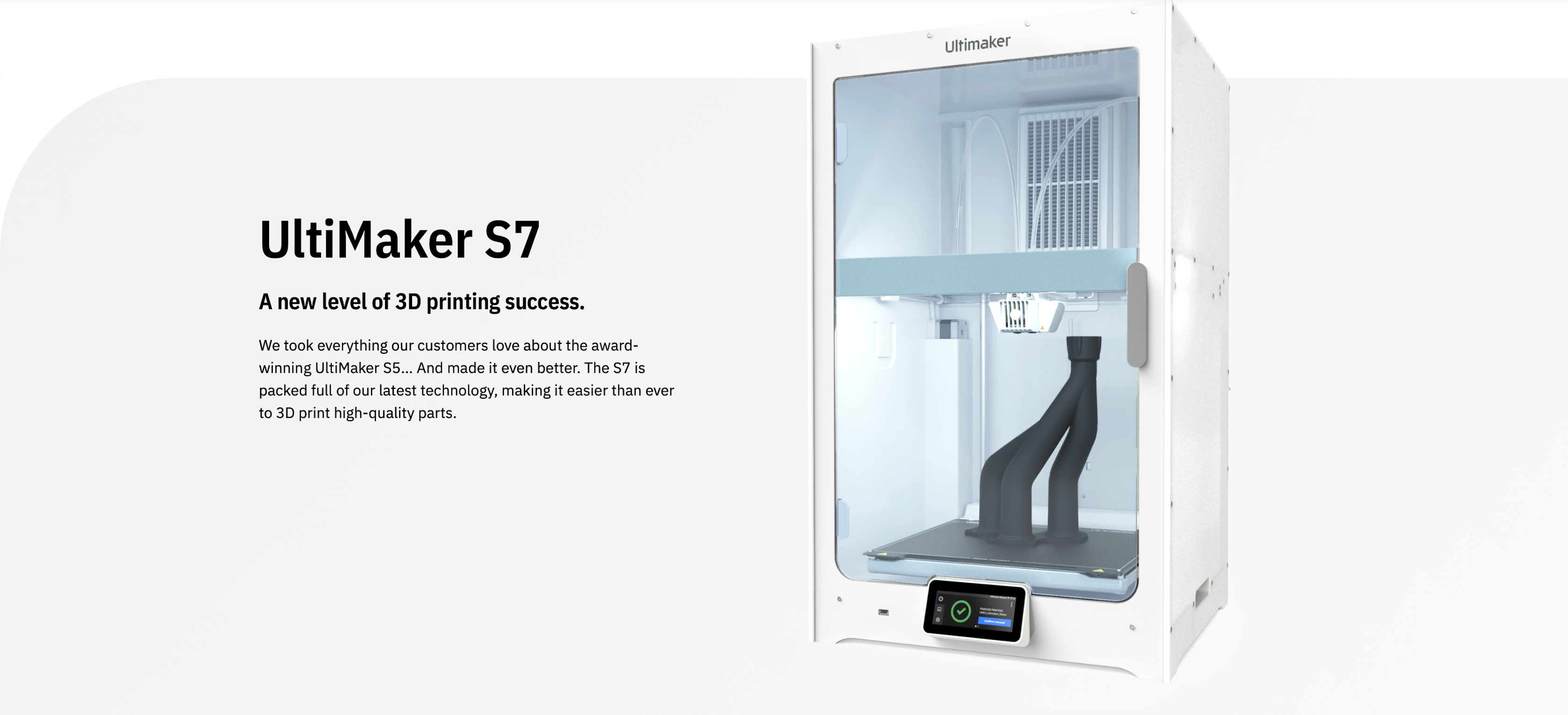

First time right 3D Printing
Ultimaker S7 allows you to achieve a new level of 3D Printing success. Comes with all the features of the award-winning UltiMaker S5... And made it even better. The S7 features new innovations in materials, build plate and an even more reliable auto-calibration sensor for first-time right 3D prints. Extreme Reliability, Out of the box.
Key Features:
- Set and Forget. Out of the Box
- Click and print with over 280+ material compatibility
- Automatic Bed leveling w/ Inductive Sensor
- Anti-Flood sensor
- Flexible PEI build sheet
- Integrated Air Manager
PEI-coated flexible build plate
Integrated Air Manager
More accurate inductive probing
Click and print with 280+ materials

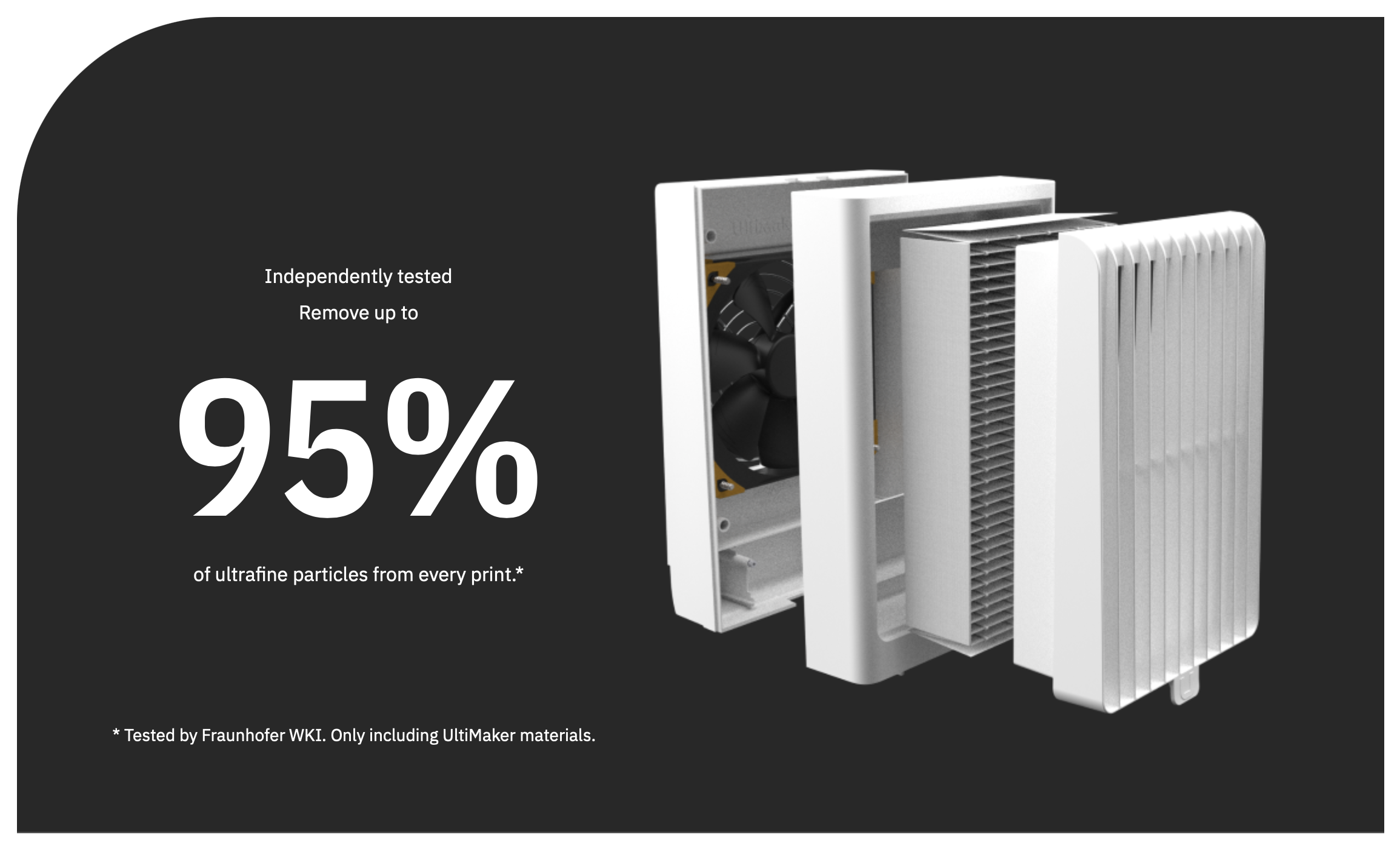

Integrated Air Manager
Not only does this increase air quality peace of mind... It also boosts print quality thanks to its fully enclosed build chamber and single glass door.

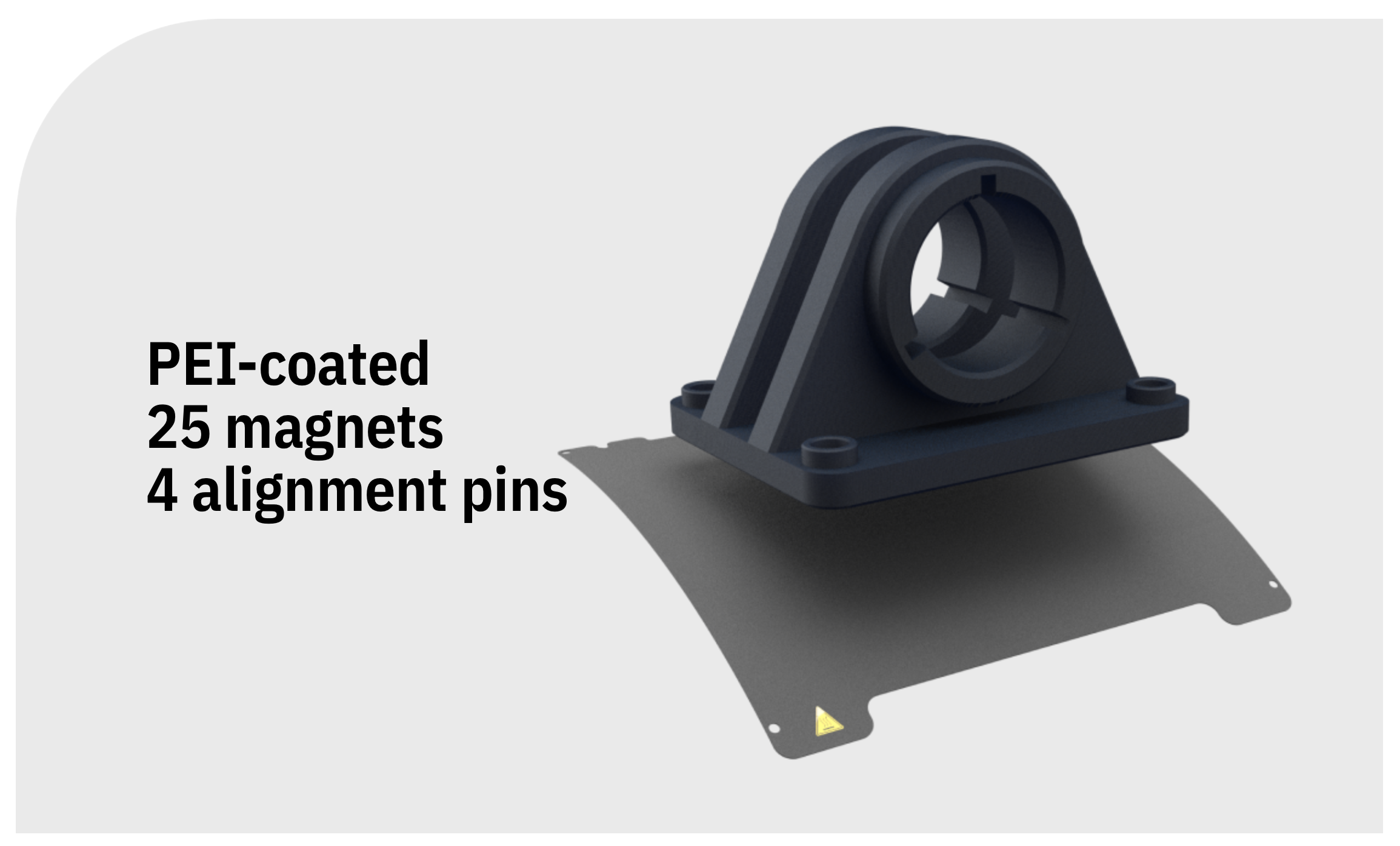

Flexible build plate
Skip using glue and remove parts effortlessly with the PEI-coated flexible build plate. Its patent-pending design uses 25 magnets and 4 pins for perfect alignment – reducing the time spent using the S7 and increasing productivity.

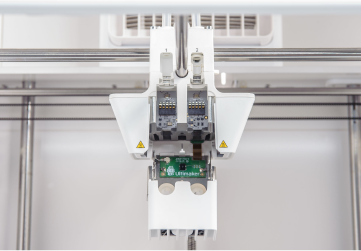

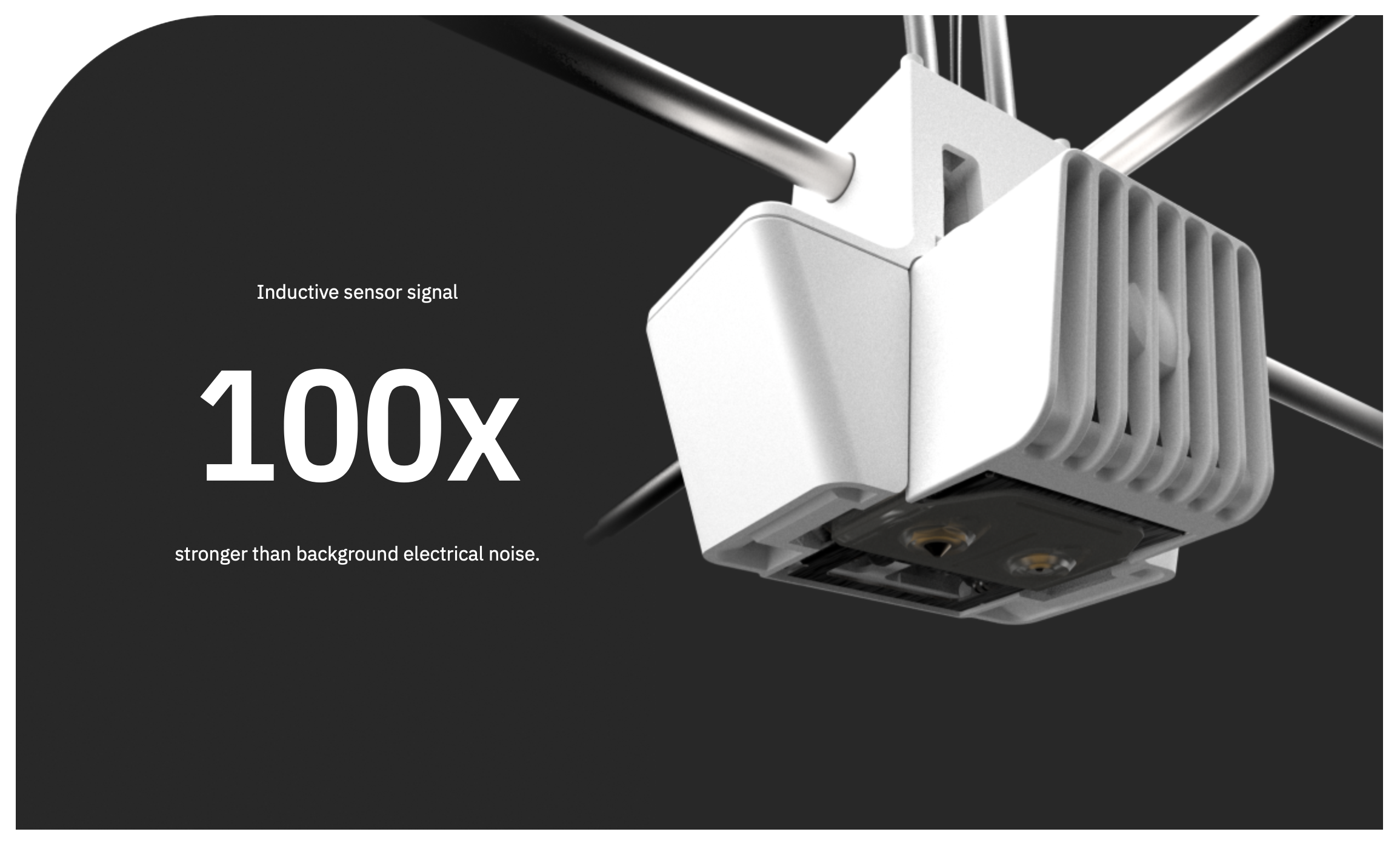

Inductive build plate sensor
A new inductive print head sensor probes the build plate with less noise and more accuracy. And automatic tilt compensation removes the need for thumbscrew bed calibration. Together, these allow you to start a print and walk away – confident in a perfect first layer.

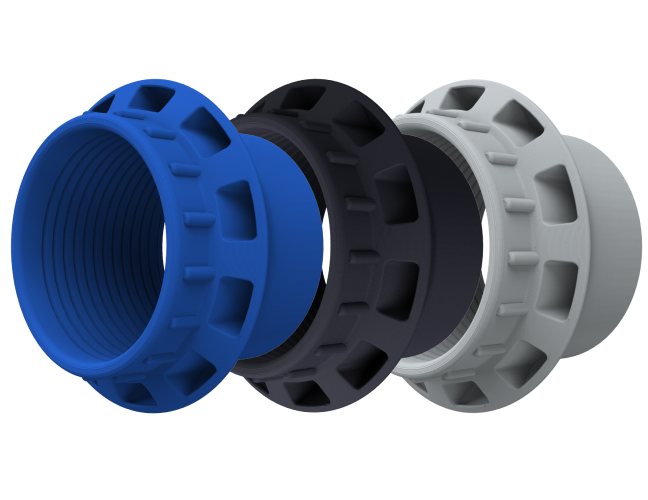

Print with 280+ materials
Unlock limitless potential 3D printing applications. These material profiles have been tested for thousands of hours by their manufacturers and users in the field.

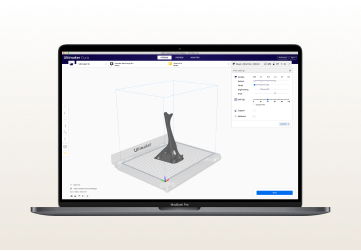

Cura integration
Access the UltiMaker Cura features that speed up your workflow and increase print success – like intent profiles, easy remote printing, and more.

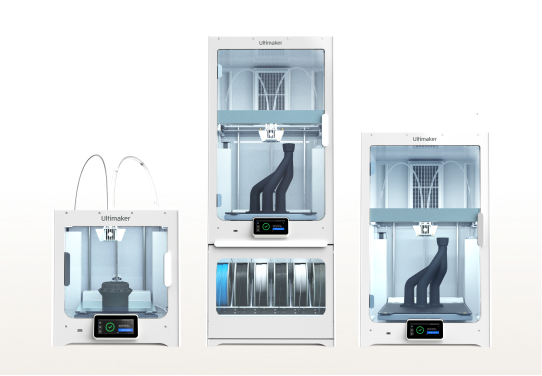

Backwards file compatibility
If you own an UltiMaker S5, your entire digital library of S5 print files will work flawlessly on the S7 – with no reslicing needed.
Anti-flood sensor
The redesigned print head detects potential flooding earlier. It also includes stronger magnets to ensure the print core door stays closed.
| Dimensions | |
|---|---|
| Build volume | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled dimensions | W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches) |
| Print technology | Fused Deposition Modeling (FDM) |
| Compatible filament diameter | 2.85 mm |
| Weight | 29.1 kg (64.2 lbs) |
| Maximum power output | 500 W |
| Printer properties | |
| Layer resolution | 0.25 mm nozzle: 150 – 60 micron 0.4 mm nozzle: 200 – 20 micron 0.6 mm nozzle: 300 – 20 micron 0.8 mm nozzle: 600 – 20 micron |
| XYZ resolution | 6.9, 6.9, 2.5 micron |
| Feeder type | Dual-geared feeder, reinforced for composite materials |
| Display | 4.7-inch (11.9 cm) color touchscreen |
| Print core replacement | Swappable print cores |
| Print head | Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection |
| Nozzle diameters | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Operation parameters | |
| Filter technology | Replaceable EPA filter |
| Air extraction rate | 1 – 50 m³/h (35 m³/h nominal rate for most materials at 23 °C) |
| Nozzle temperature | 180 – 280 °C |
| Nozzle heat-up time | < 2 minutes |
| Operating sound | < 51 dBA |
| Build plate leveling | Advanced active leveling with more accurate inductive sensors |
| Build plate | PEI-coated flexible steel build plate |
| Build plate heat-up time | < 5 minutes (from 20 to 60 °C) |
| Operating ambient temperature | 15 – 32 °C (59 – 90 °F) |
| Non-operating temperature | 0 – 32 °C (32 – 90 °F) |
| Ecosystem | |
| Supplied free software | UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools |
| Supported OS | MacOS, Windows, and Linux |
| Plugin integration | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported file types | UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
| File transfer | Wi-Fi (2.4 and 5 GHz), Ethernet, USB |
