Voltera V-One w/ Drill Attachment
₱385,000.00
Fabricate PCBs right on your desktop

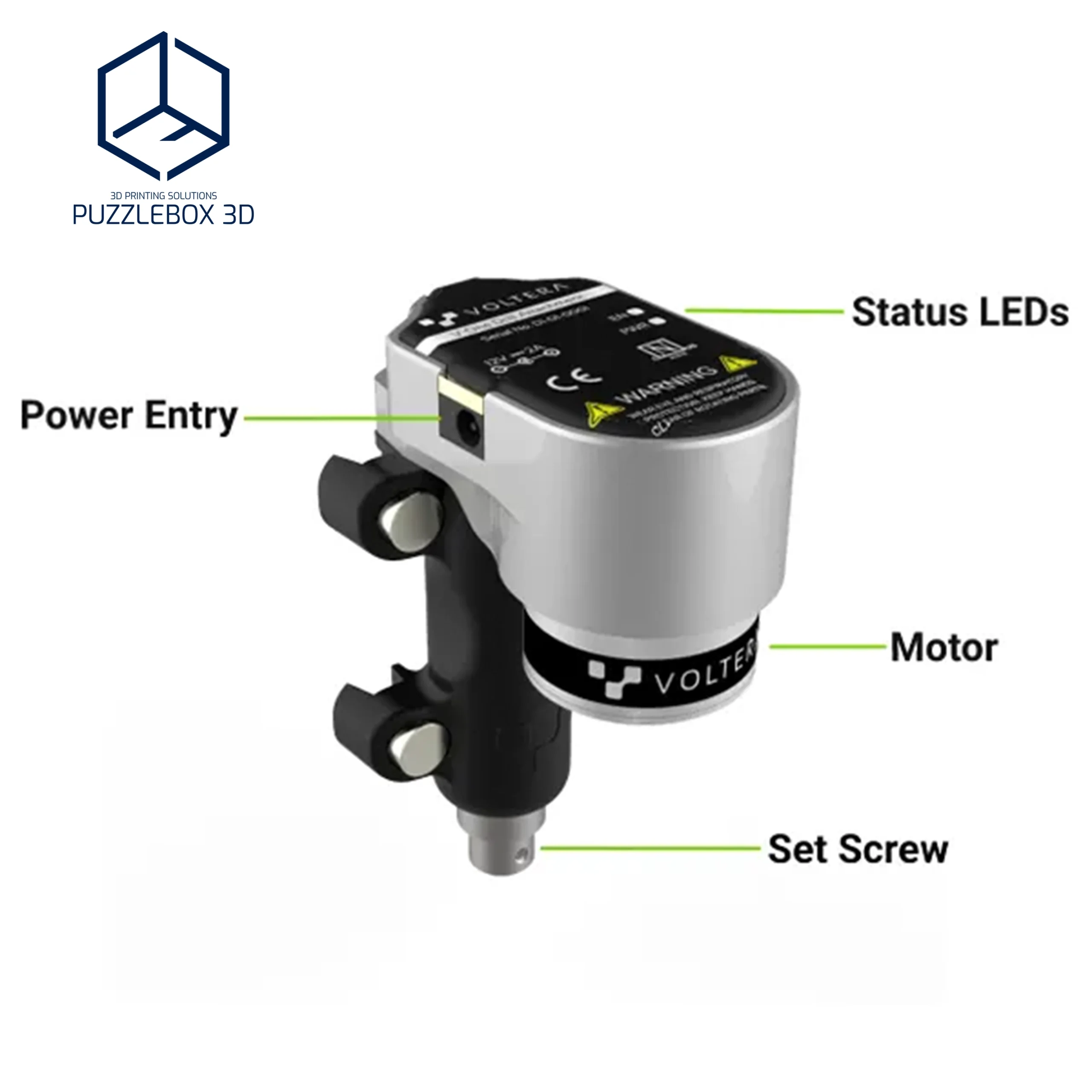

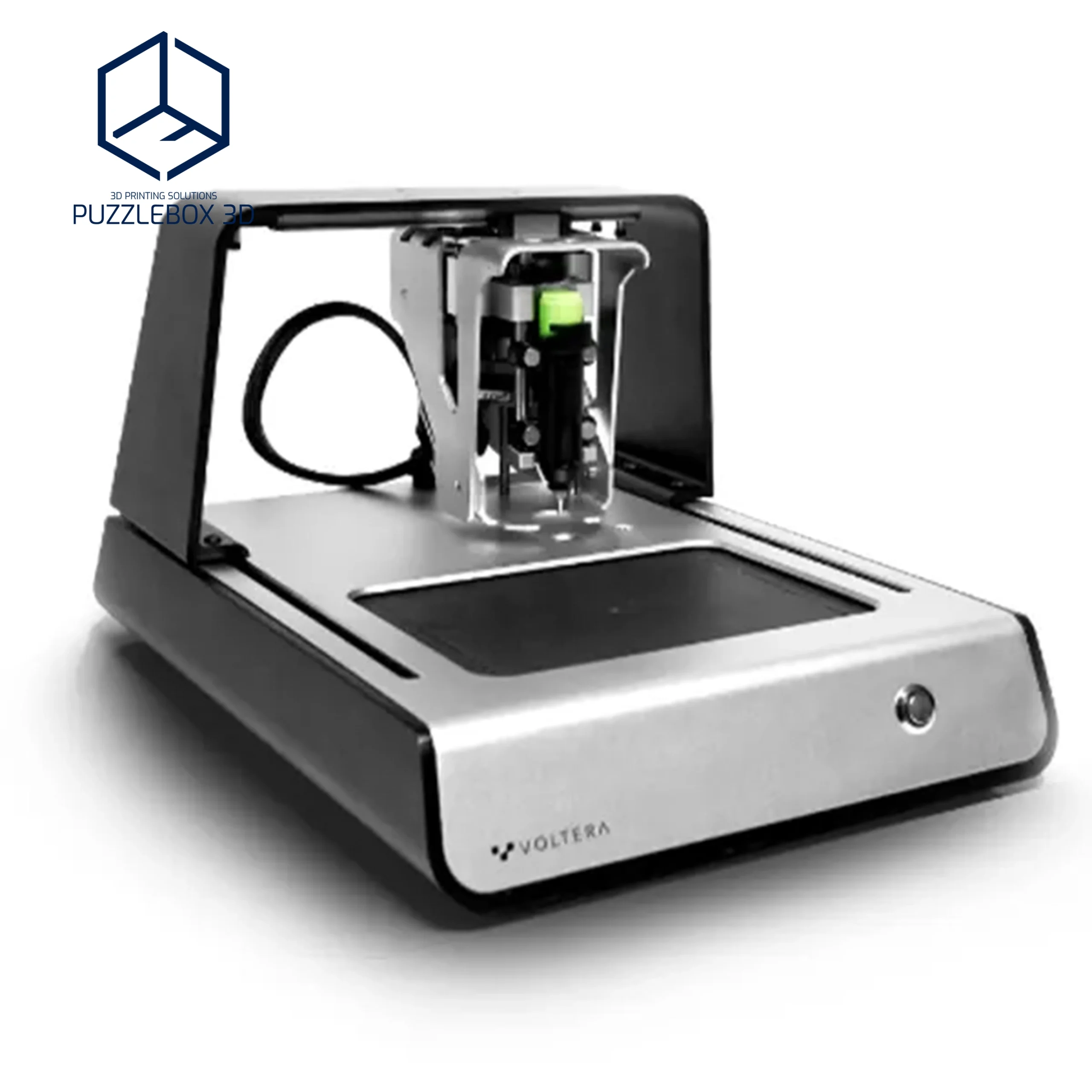

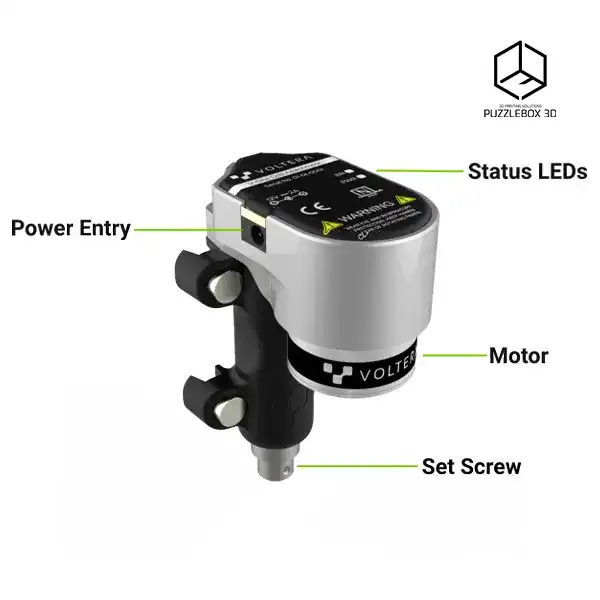

The Voltera V-One is a desktop PCB printer for prototyping printed circuit boards. Import your Gerber file into the V-One software, press print, and V-One will bring your board to life. Use the solder paste dispensing and reflow features to secure components onto your printed circuit board or a prefabricated board with ease. If you’re creating double-sided PCBs, the drill attachment would be a great addition — it drills through holes to make vias.

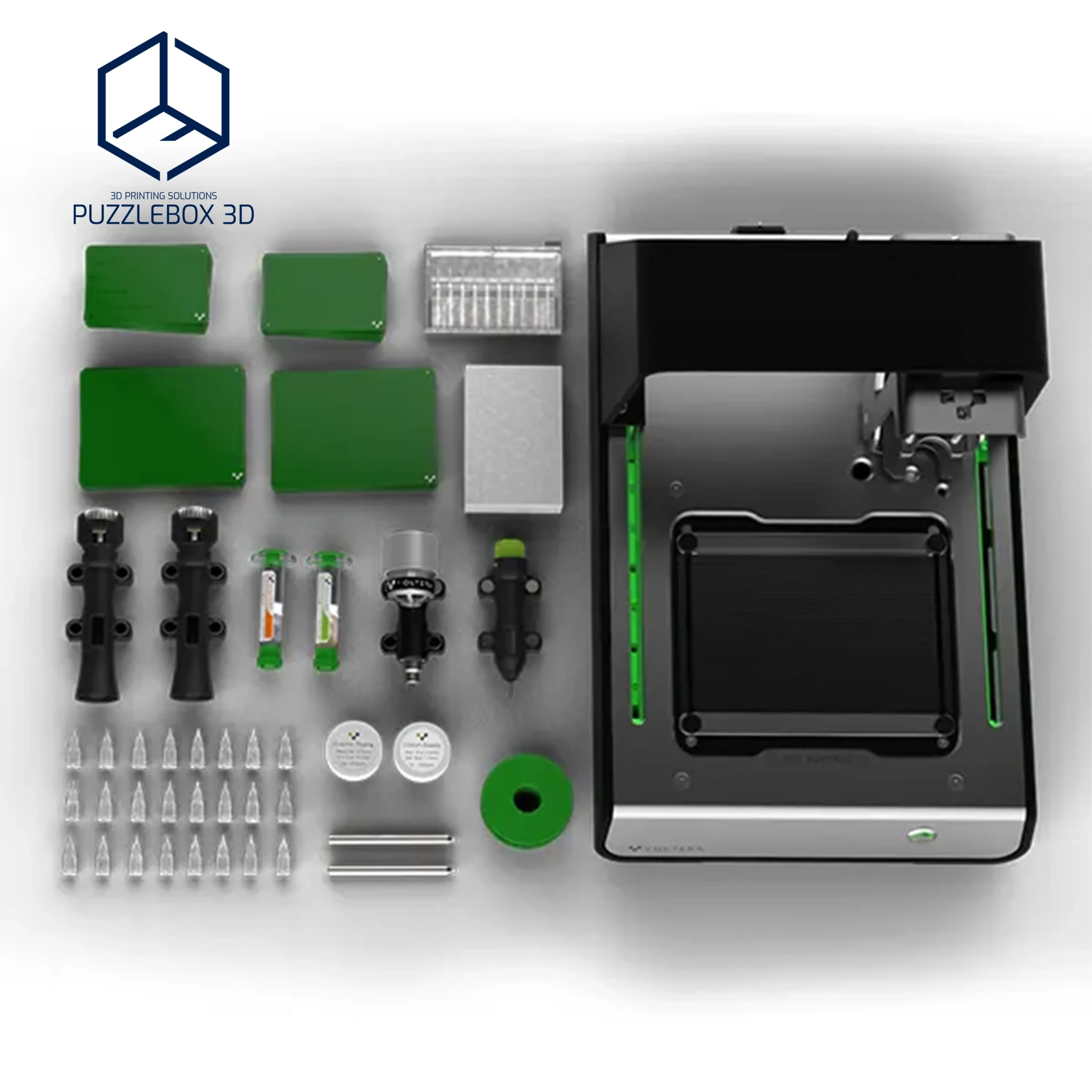

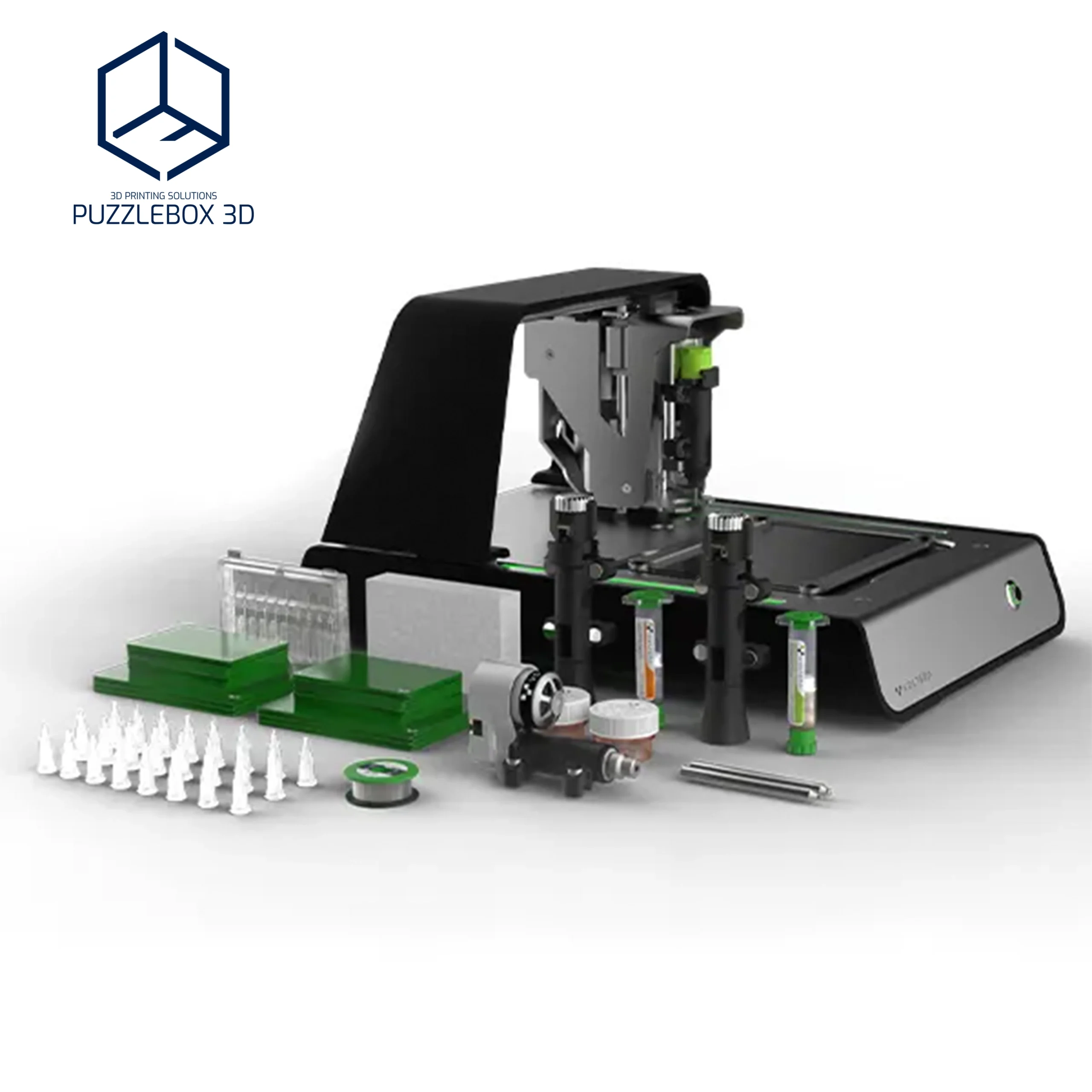

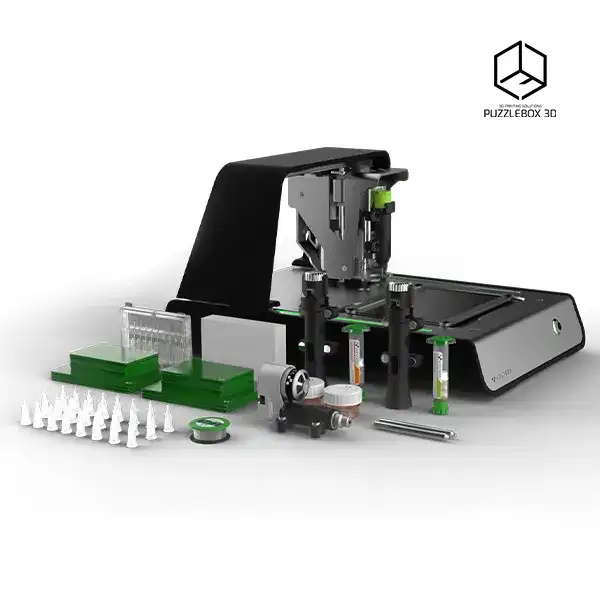

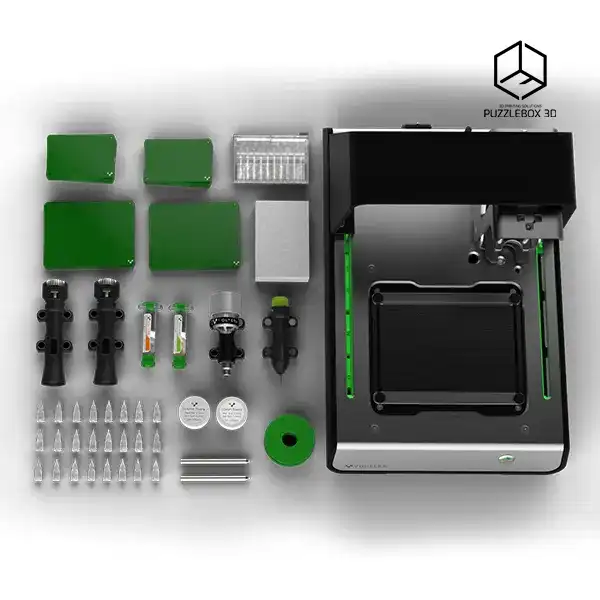

What's included
Consumables:
- 1 Conductor 2 cartridge
- 1 Solder Paste cartridge
- 10 2″x3″ FR4 substrates
- 6 3″x4″ FR4 substrates
- 10 2″x3″ FR1 substrates
- 6 3″x4″ FR1 substrates
- 25 disposables 230-micron nozzles
- 1 Burnishing pad
- 1 Solder wire spool
- 1 Drill bit set
- 200 0.4mm rivets
- 200 1.0mm rivets
- 2 Rivet tools
- 1 Sacrificial layer
- 1 Hello World starter kit
- 1 Punk Console starter kit
Accessories:
- 2 Substrate clamps and thumbscrews
- 2 Dispensers with caps
- 1 Probe
- 1 Drill
- 1 Set of safety glasses
- 1 Voltera anti-static tweezers
Additional information
| Dispensing technology | Direct ink write (DIW) |
|---|---|
| Pressure control | Open loop |
| Minimum trace width | 0.2 mm |
| Print area | 128 mm x 116 mm x 3 mm |
| XYZ resolution** | 10 µm x 10 µm x 1 µm |
| Layer capacity | Double-sided PCBs |
| Substrate thickness | 1-3 mm |
