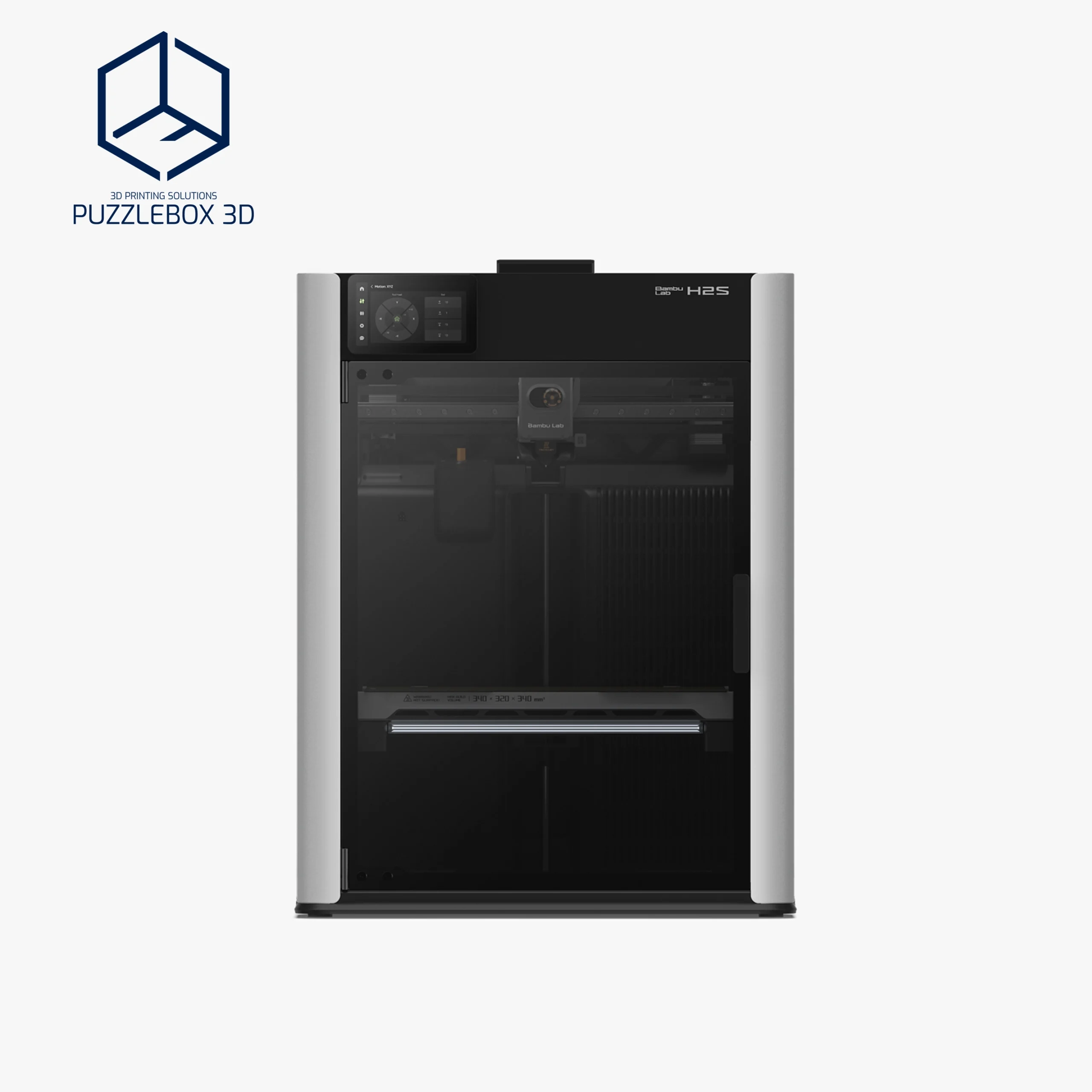

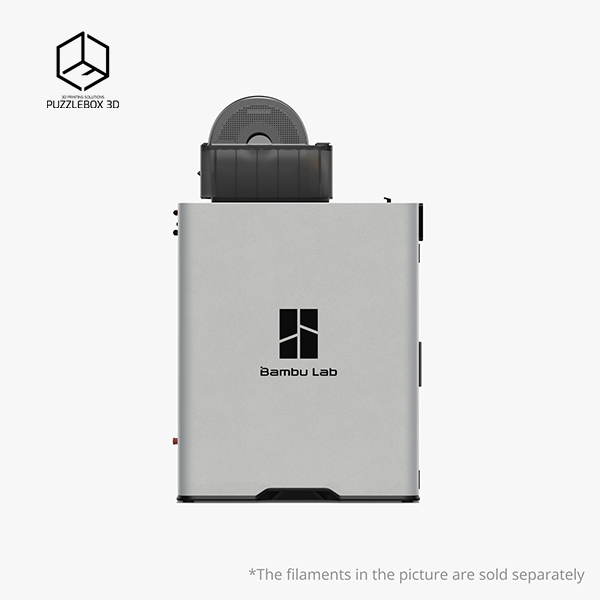

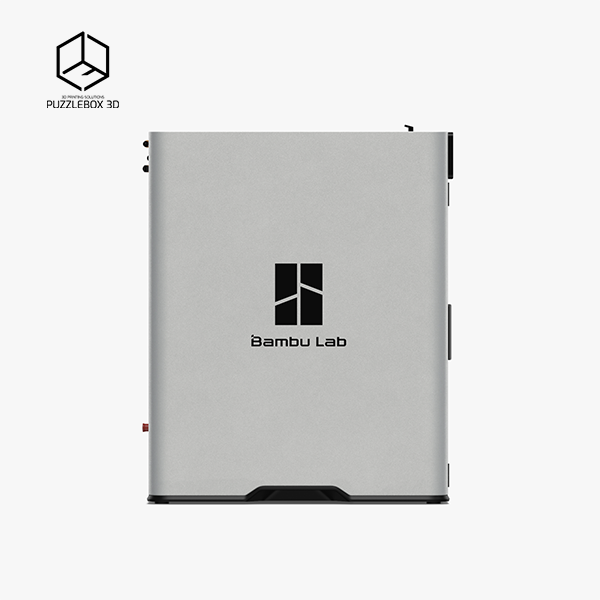

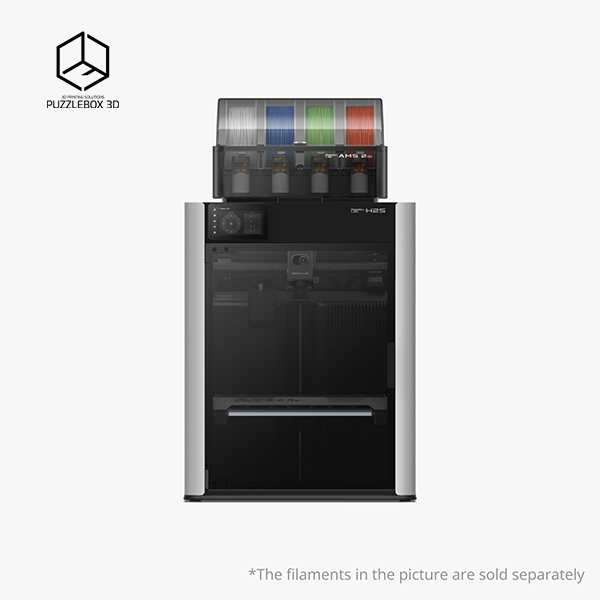

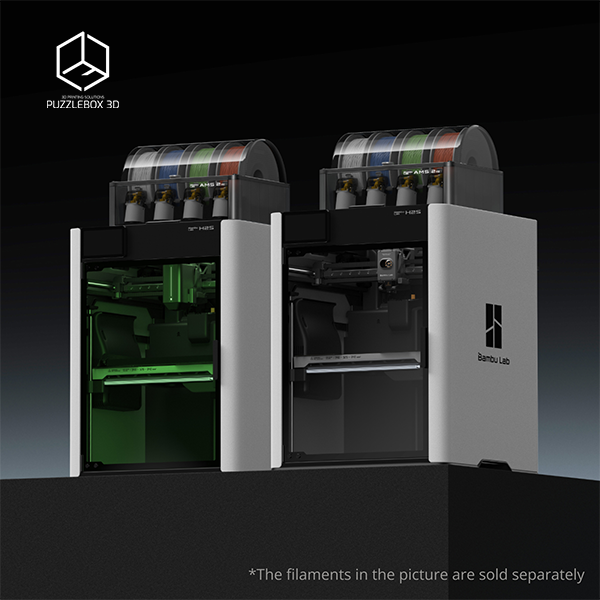

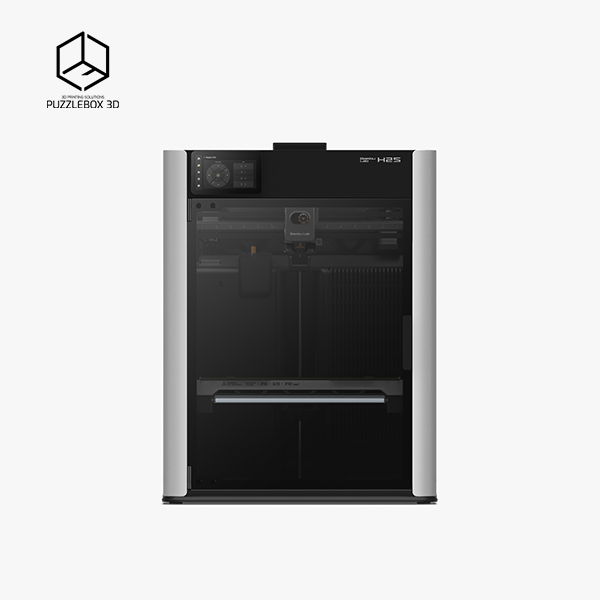

Bambu Lab H2S
Price range: ₱85,499.00 through ₱142,499.00
Product Features
- 340*320*340 mm³ Print Volume
- Multi-color 3D Printing
- Closed-loop Servo Motor Extruder
- Optional 10W Laser and Cutting Module
- 5μm Resolution Optical Motion Calibration
- 350°C Nozzle & 65°C Active Chamber Heating
- Full Filament Path AI Detection
- Voltage Range: 100-120 V
* To connect more than one AMS(including AMS 2 Pro, AMS HT), a 4-in-1 PTFE Adapter (FAZ013-N) is needed.
* Cybersecurity compliant with EU RED Article 3.3(d)(e) and ETSI EN 303 645 V2.1.1:2020.
Bambu Lab H2S
Your Personal
Manufacturing Hub
Get the Highlights
Your Go-To
Personal Manufacturing Hub
Accuracy That Works for
You

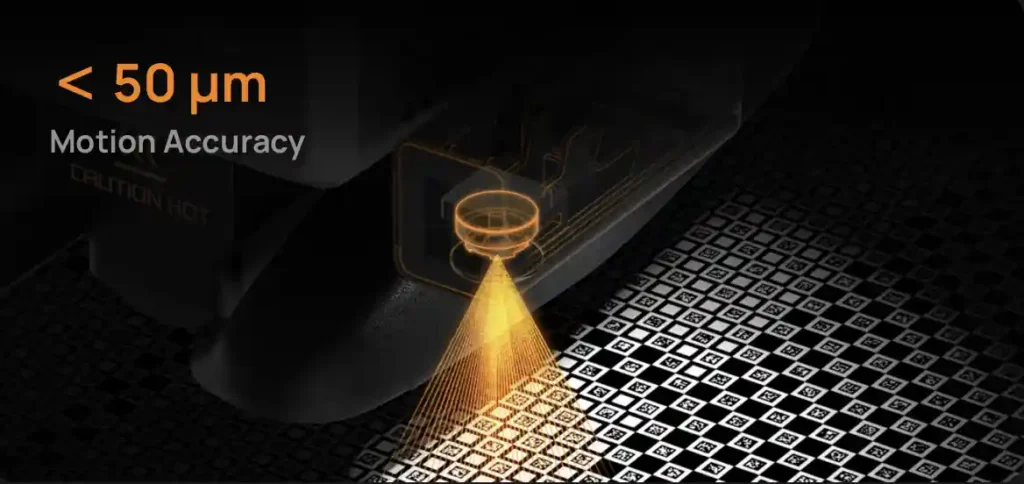

Correct Mechanical Deviations
Even the printer comes out of the factory with superb accuracy, mechanical wear and variances over time are inevitable—but now, first time in the industry, there’s a solution.With the Vision Encoder⁽¹⁾, the H2S achieves distance-independent motion accuracy under 50 μm—thinner than a human hair. During calibration, it automatically compensates for mechanical drift, ensuring consistent precision and peak performance over time.
One Print. Perfect Fit.
Bambu Lab's Auto Hole/Contour Compensation⁽²⁾ minimizes printing tolerances, delivering machine-shop-level precision for hole dimensions. Design fit-critical parts with confidence—integrate shafts, bearings, and fasteners without trial and error. Post-print assembly has never been easier.
Ready for Engineering Filaments
Featuring a 350 °C hotend and a 65 °C actively heated chamber, it supports the entire Bambu filament lineup—from PLA and PETG to PC and PPA. With closed-loop fan control and precise thermal management, the H2S minimizes warping and deformation while improving layer adhesion. Build large, high-performance parts that are as functional as they are strong.
350 °C Hotend
65 °C Heated Chamber
Even Surfaces, Crisp
Edges

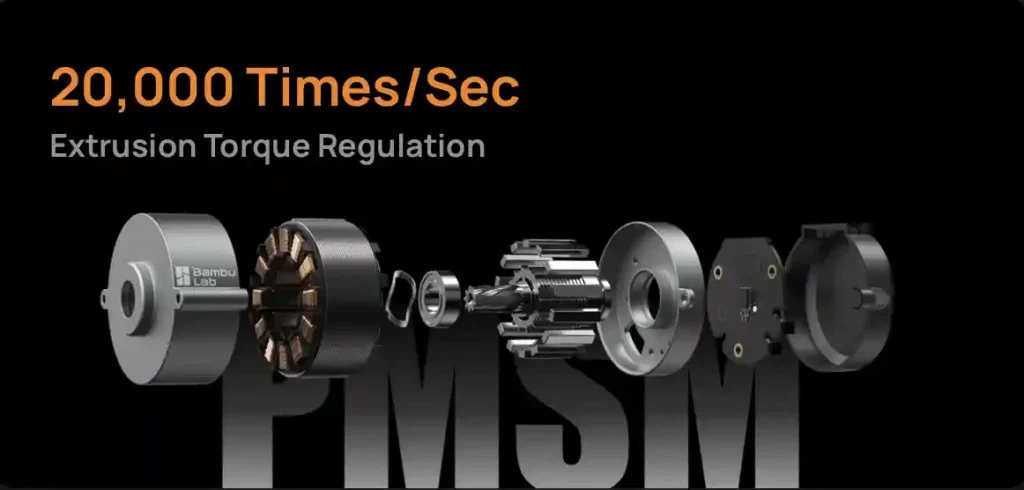

H2S uses both the sensing capability of its servo motor on the extruder and the high-resolution eddy current sensors on the nozzle to precisely control extrusion by measuring nozzle pressure and calibrating PA parameters for each filament, improving surface smoothness and edge sharpness.

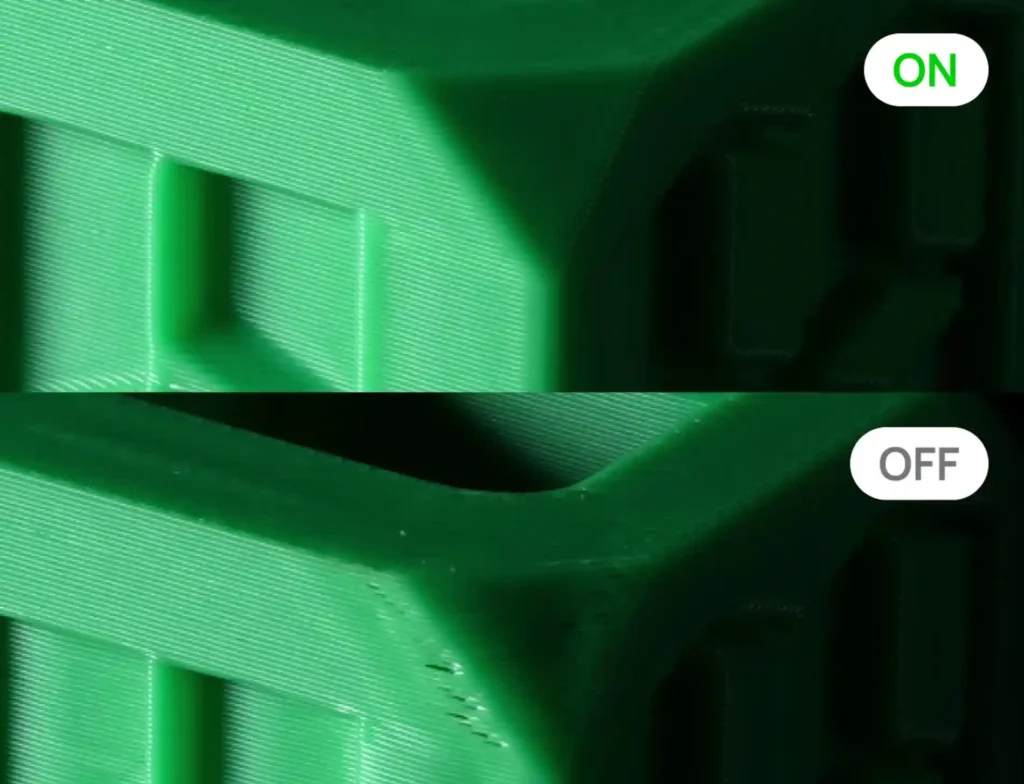

Precision in Motion
Active Vibration Compensation neutralizes micro-vibrations and resonance in real time, enabling premium print quality at higher speeds.

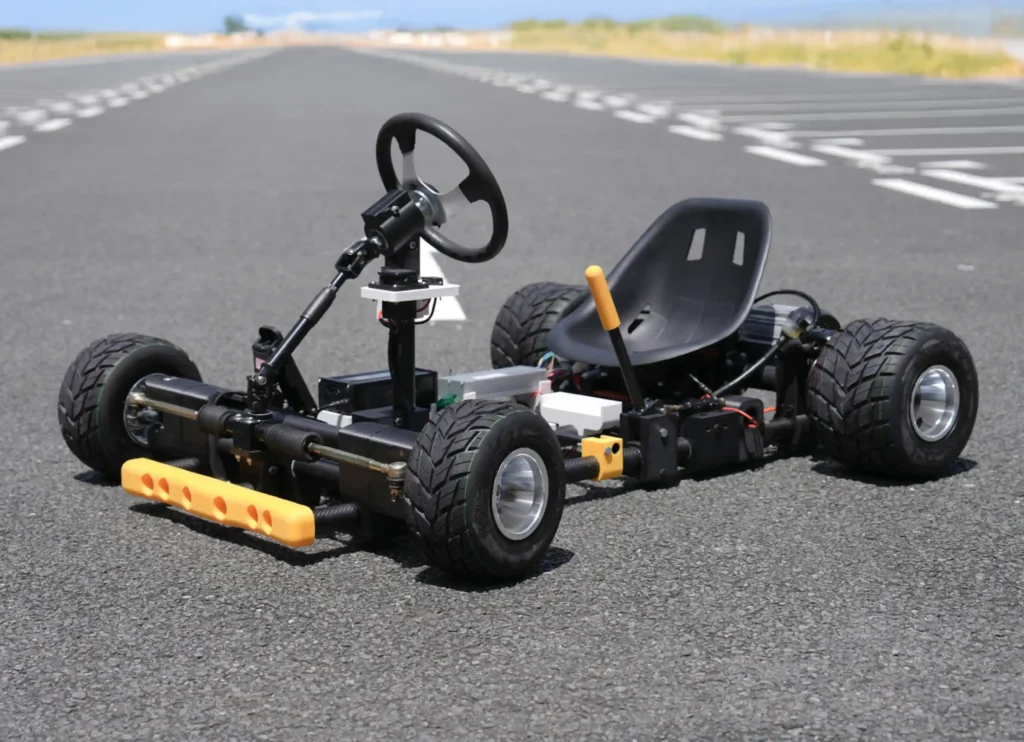

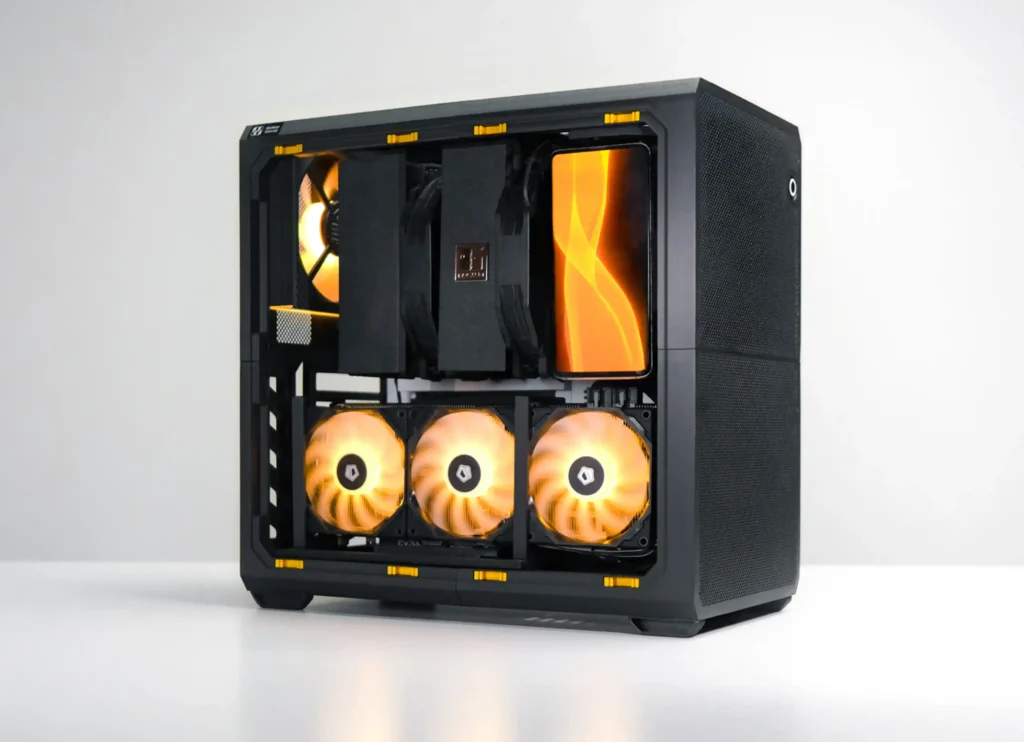

Print Functional Designs
Additional information
| Build Volume (W*D*H) | 340*320*340 mm³ |
|---|---|
| Chassis | Aluminum, Steel, Plastic and Glass |
| Laser Safety Windows | Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit |
| Air Assist Pump | Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit |
| Physical Dimensions | 492*514*626 mm³ (Package size: 580*605*750 mm³) |
| Net Weight | H2S: 30 kg |
| Hotend | All Metal |
| Extruder Gear | Hardened Steel |
| Nozzle | Hardened Steel |
| Max Nozzle Temperature | 350 °C |
| Included Nozzle Diameter | 0.4 mm |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Filament Cutter | Built-in |
| Filament Diameter | 1.75 mm |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor |
| Supported Build Plate Type | Textured PEI plate, Smooth PEI Plate |
| Max Heatbed Temperature | 120 ℃ |
| Max Speed of Toolhead | 1000 mm/s |
| Max Acceleration of Toolhead | 20,000 mm/s² |
| Max Flow for Hotend (Standard Flow Hotend) | 40 mm³/s(Test parameters: 250 mm round model |
| Max Flow for Hotend (Optional High Flow Hotend) | 65 mm³/s(Test parameters: 250 mm round model |
| Active Chamber Heating | Supported |
| Max Temperature | 65 °C |
| Pre-filter Grade | G3 |
| HEPA Filter Grade | H12 |
| Activated Carbon Filter Type | Granulated Coconut Shell |
| VOC Filtration | Superior |
| Particulate Matter Filtration | Supported |
| Part Cooling Fan | Closed Loop Control |
| Cooling Fan for Hotend | Closed Loop Control |
| Main Control Board Fan | Closed Loop Control |
| Chamber Exhaust Fan | Closed Loop Control |
| Chamber Heat Circulation Fan | Closed Loop Control |
| Auxiliary Part Cooling Fan | Closed Loop Control |
| Supported Filament Type | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; |
