Bambu Lab PA6-CF
Price range: ₱1,799.00 through ₱3,149.00
Product Features
- Superior Strength and Stiffness
- Toughness & Vibration Resistance
- Exceptional Thermal Resistance
- Comes with High Temperature Reusable Spool
- Diameter: 1.75mm +/- 0.03mm
Cautions for Use
- 0.2 mm Nozzle NOT Compatible
- Stainless Steel Nozzle NOT Recommended
- Dry before Use for the Highest Print Quality
- All AMS Series NOT Compatible

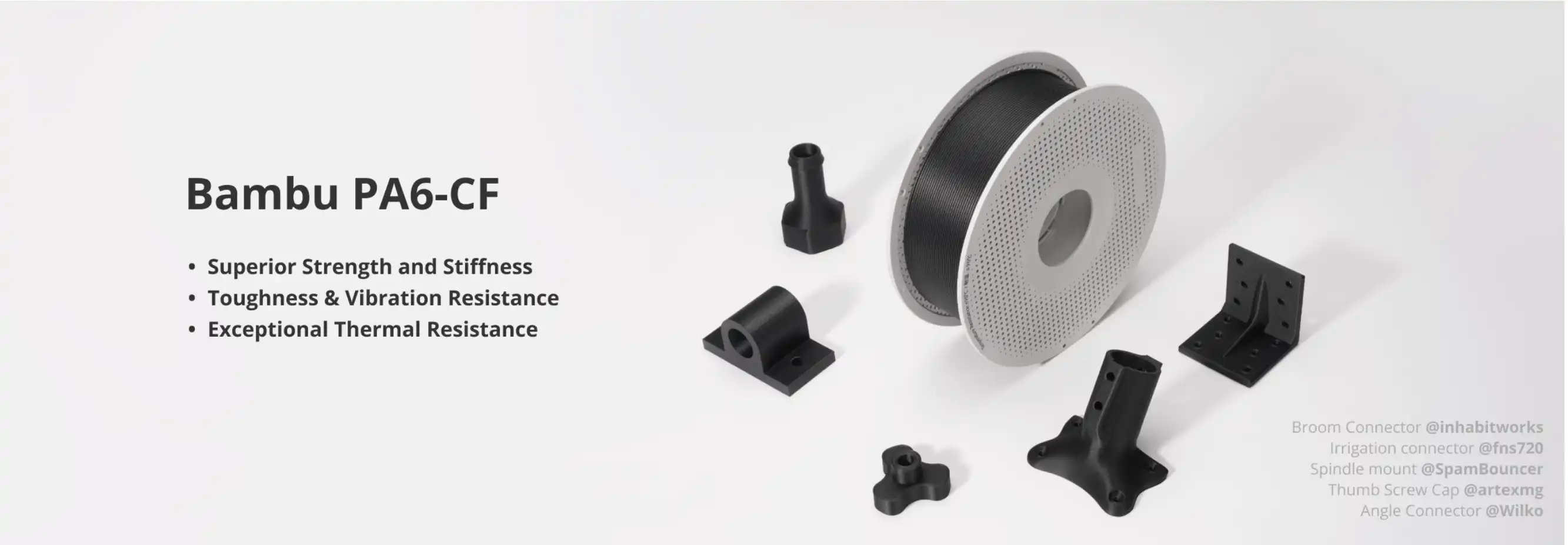

Bambu Lab PA6-CF

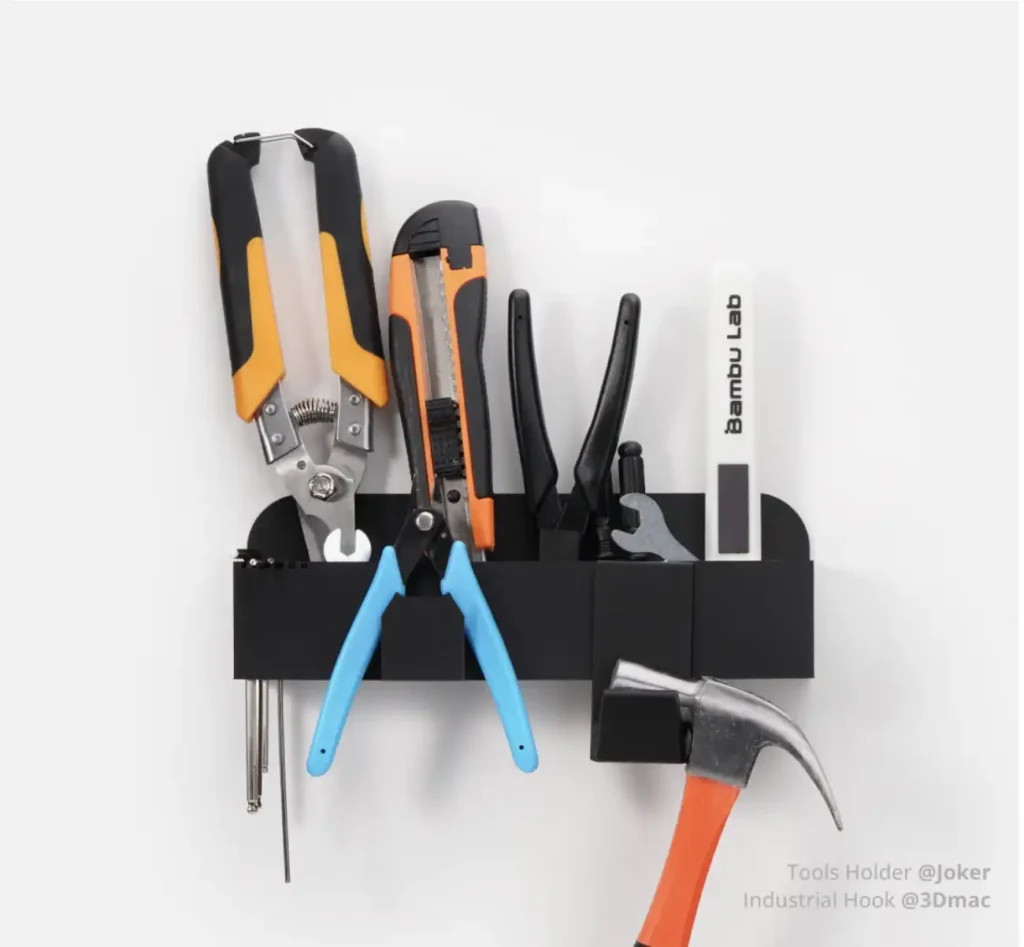

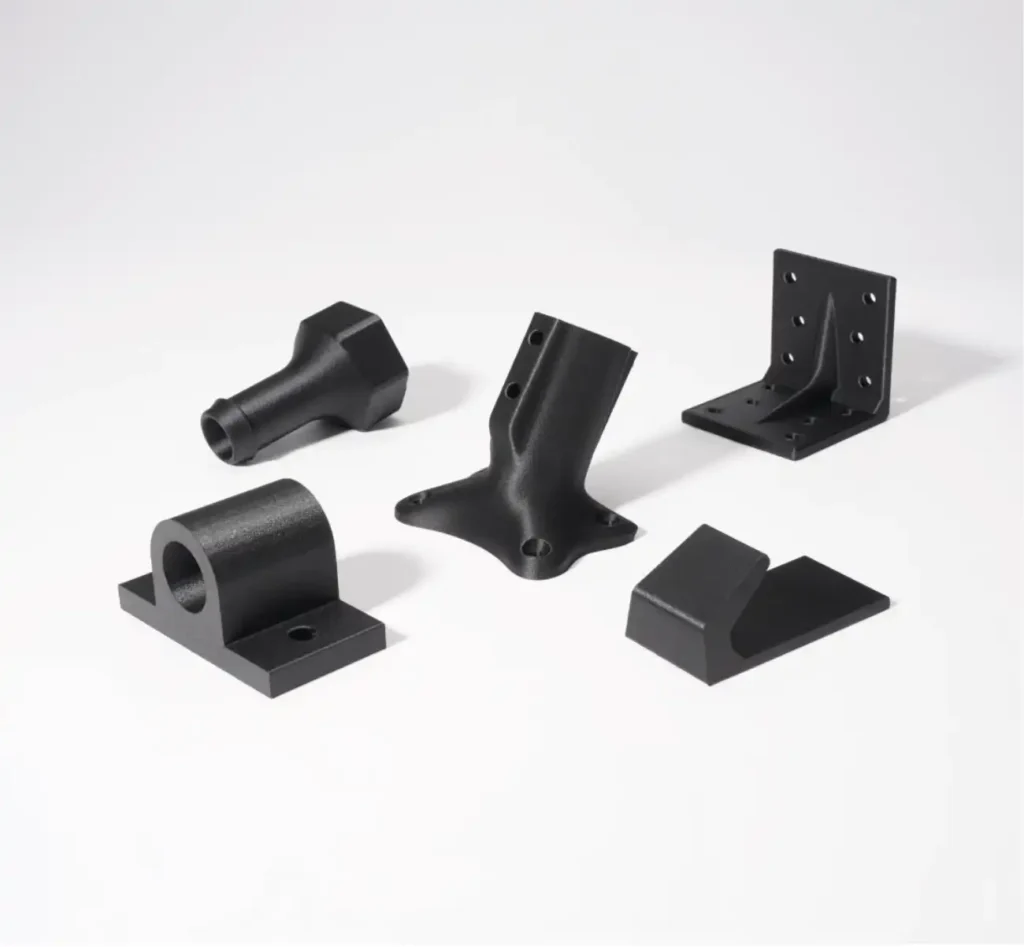

Bambu PA6-CF is a carbon fiber reinforced PA6 (Nylon 6) filament. The carbon fiber reinforcement provides significantly high stiffness and strength properties in dry environments and maintains exceptional heat resistance and impact resistance. Similar to other Bambu CF Filaments, these outstanding mechanical properties make it an ideal choice for printing fixtures, clamps, automotive and mechanical components and various structural and engineering parts that are used in dry environments.

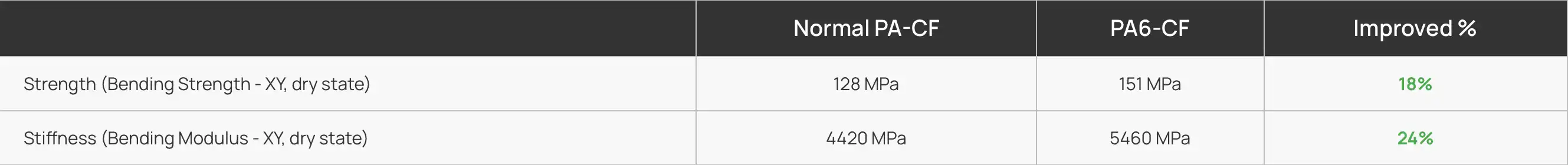

Superior Strength and Stiffness
As a new member of Bambu high performance filaments, PA6-CF keeps superior stiffness and strength properties in dry environments, it is perfect for printing load-bearing structural components.
Impact & Vibration Resistance

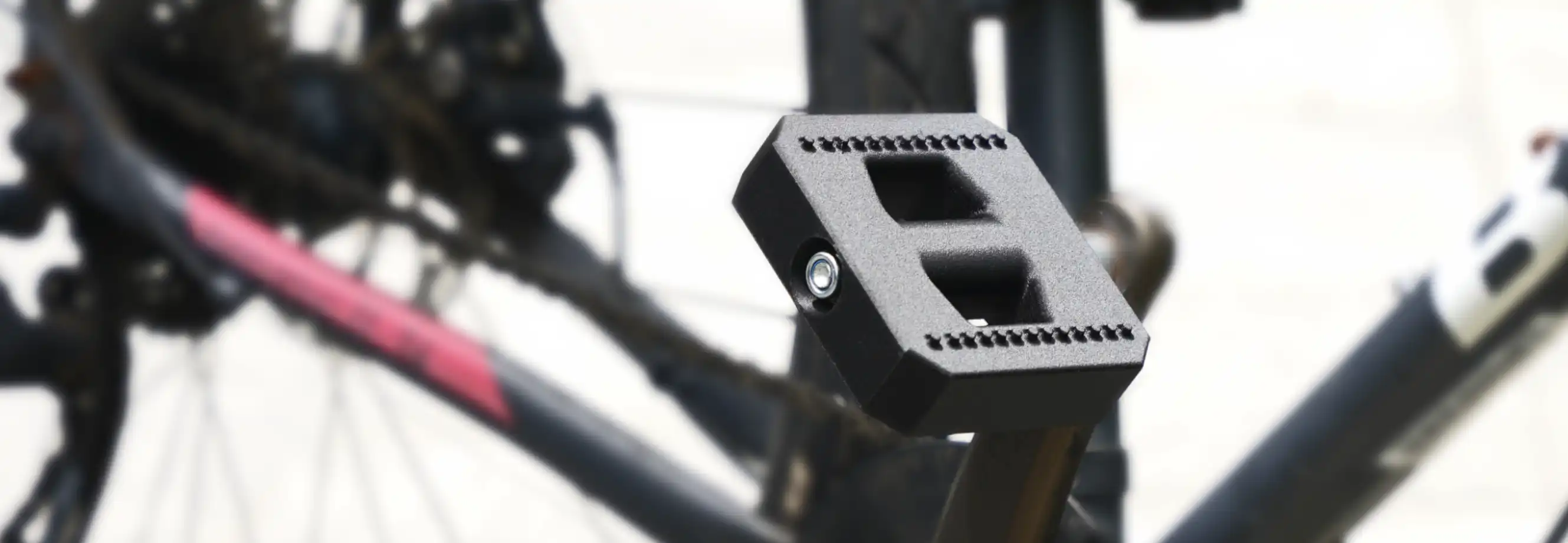

Bambu PA6-CF offers excellent impact resistance, ensuring effective vibration resistance for your prints. It is commonly used to print models that need to withstand impact, collision, and vibration.
* The prints of PA6-CF will be tougher after putting in humid environment more than 1 day.

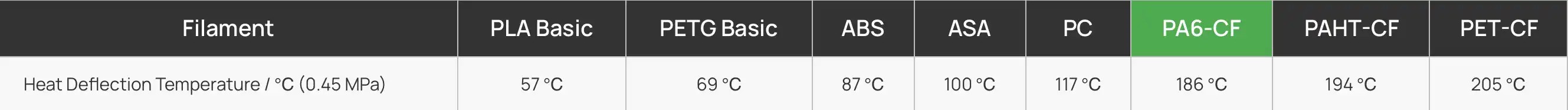

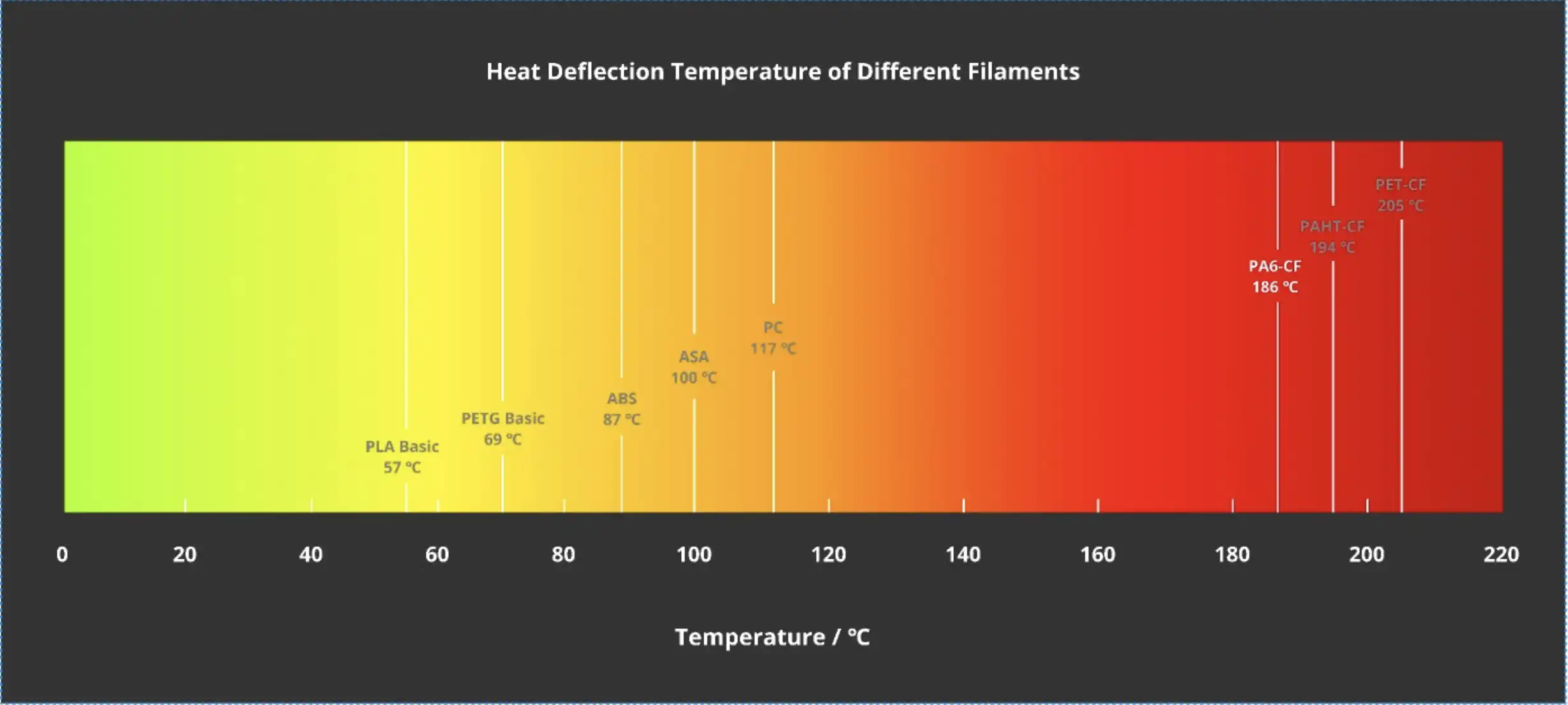

Exceptional Thermal Resistance
Additional information
| Diameter | 1.75 mm |
|---|---|
| Net Filament Weight | 1 kg |
| Spool Material | PC + ABS (Temperature resistance 90 ° C) |
| Spool Size | Diameter: 200 mm; Height: 67 mm |
| Drying Settings before Printing | Blast Drying Oven: 80 °C, 8 – 12 h |
| Printing and Keeping Container's Humidity | < 20% RH ( Sealed, with desiccant ) |
| Nozzle Size | 0.4, 0.6 ( Recommended ), 0.8 mm |
| Nozzle Temperature | 260 – 290 °C |
| Build Plate Type | Engineering Plate, High Temperature Plate or |
| Build Plate Surface Preparation | Glue |
| Bed Temperature | 80 – 100 °C |
| Cooling Fan | 0 – 60% |
| Printing Speed | < 100 mm/s |
| Retraction Length | 0.8 – 1.4 mm |
| Retraction Speed | 20 – 40 mm/s |
| Chamber Temperature | 45 – 60 °C |
| Max Overhang Angle | ~ 70 ° |
| Max Bridging Length | ~ 40 mm |
| Support | Support for PA/PET |
