Enhanced Funmat HT PAEK
₱545,000.00

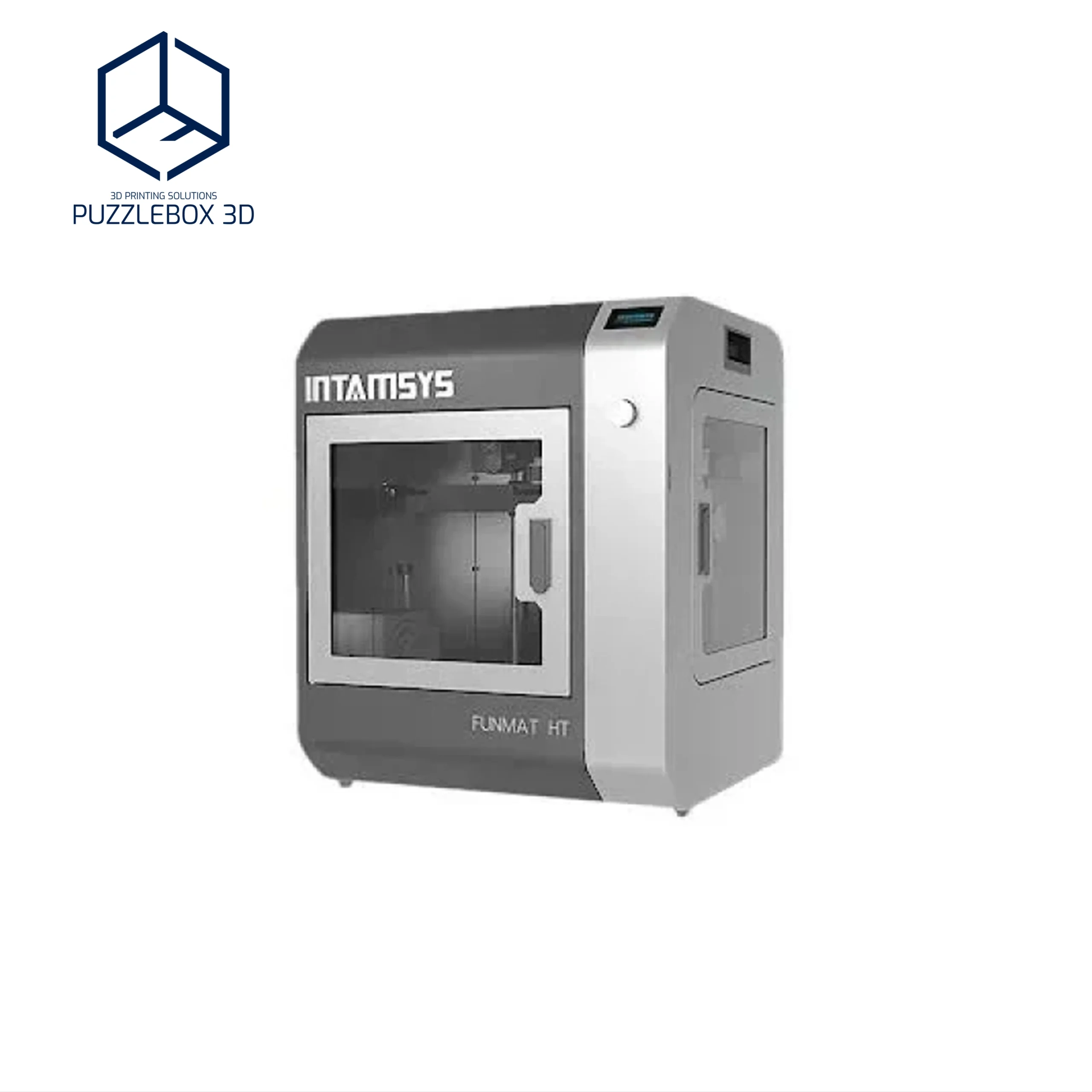

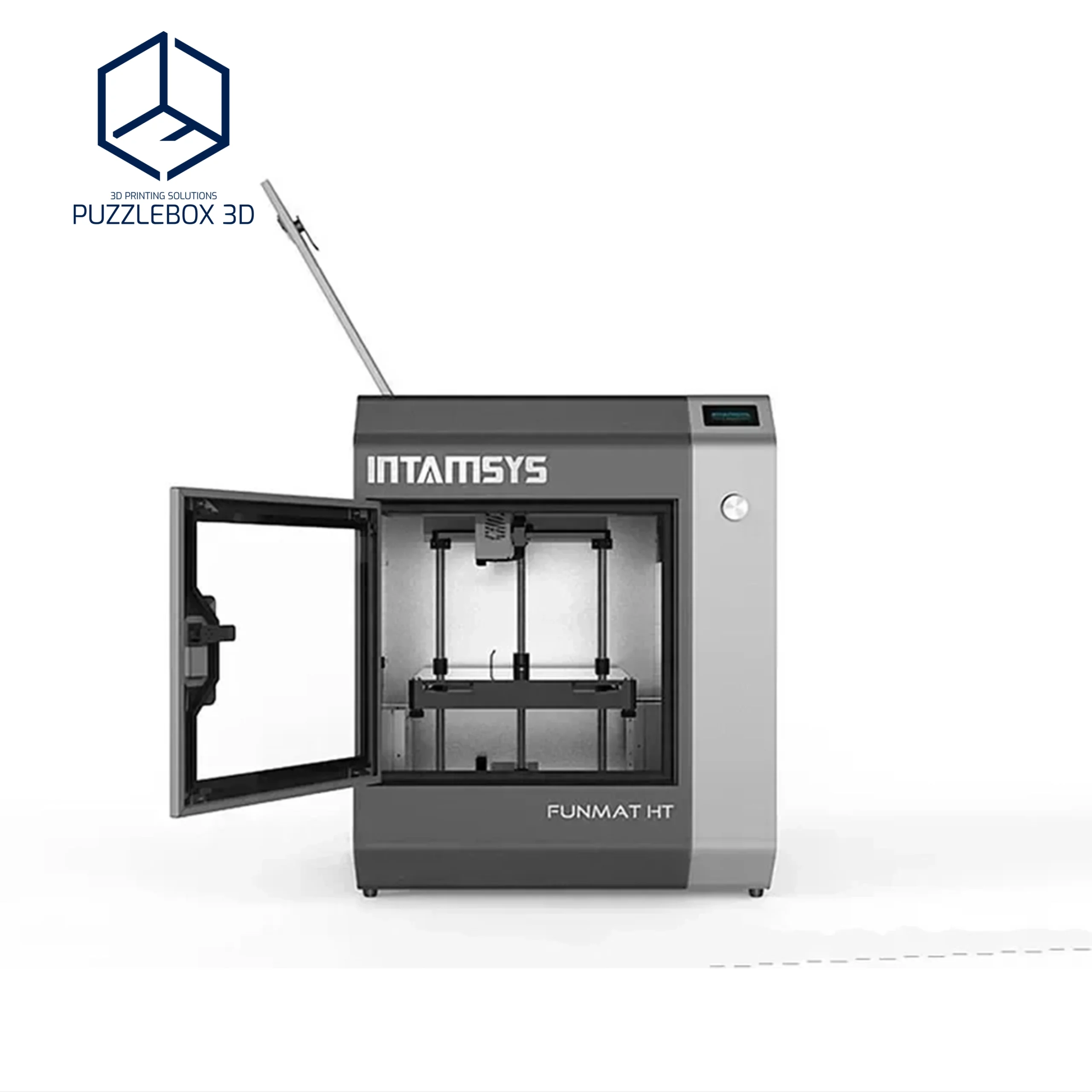

The Intamsys Funmat HT Enhanced is a desktop industrial 3D printer designed for high-performance thermoplastics like PEEK and ULTEM, offering industrial-grade parts at a lower cost. It features a 90°C chamber, 160°C heated bed, 450°C extruder, and upgrades like auto bed leveling and a glass-ceramic build plate for strong adhesion and reliability. With a 260 x 260 x 260 mm build area and 50-micron resolution, it delivers accurate, durable prints ideal for industries needing heat- and chemical-resistant parts.
What is the print quality and performance of the Intamsys Funmat HT?
The Funmat HT Enhanced prints at 50–300 microns with XY accuracy of 12.5 microns and Z accuracy of 1.25 microns. The calibration model below displays high dimensional accuracy, absence of fissures and cracks that can happen due to under-extrusion, as well as high print quality of the fine details.
Four independent drive motors and automated bed leveling ensure precise positioning and consistent first-layer adhesion across the 260 × 260 mm build surface, essential for high-performance filaments like PEEK and ULTEM. The ceramic glass platform with PI sheet improves adhesion and part removal.

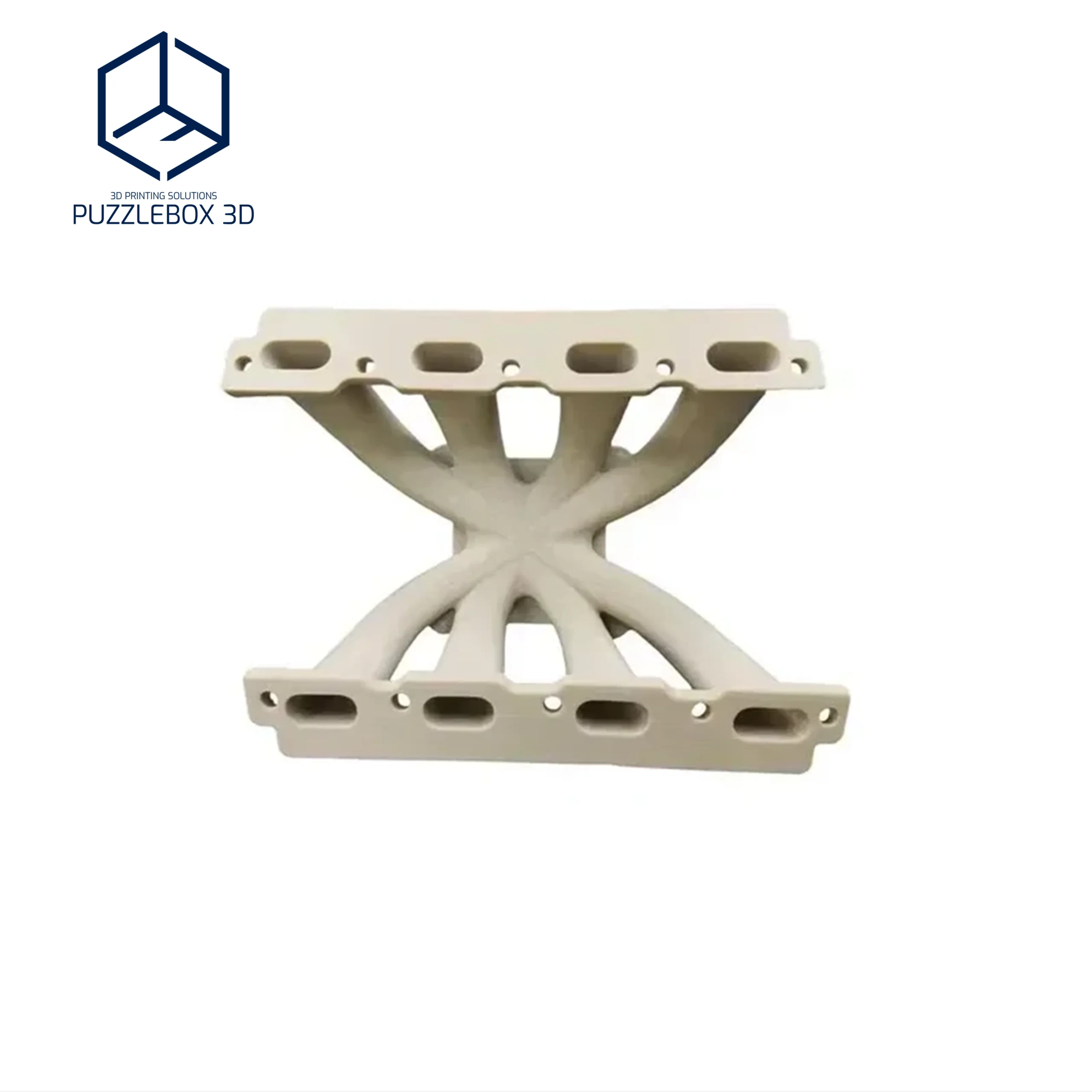

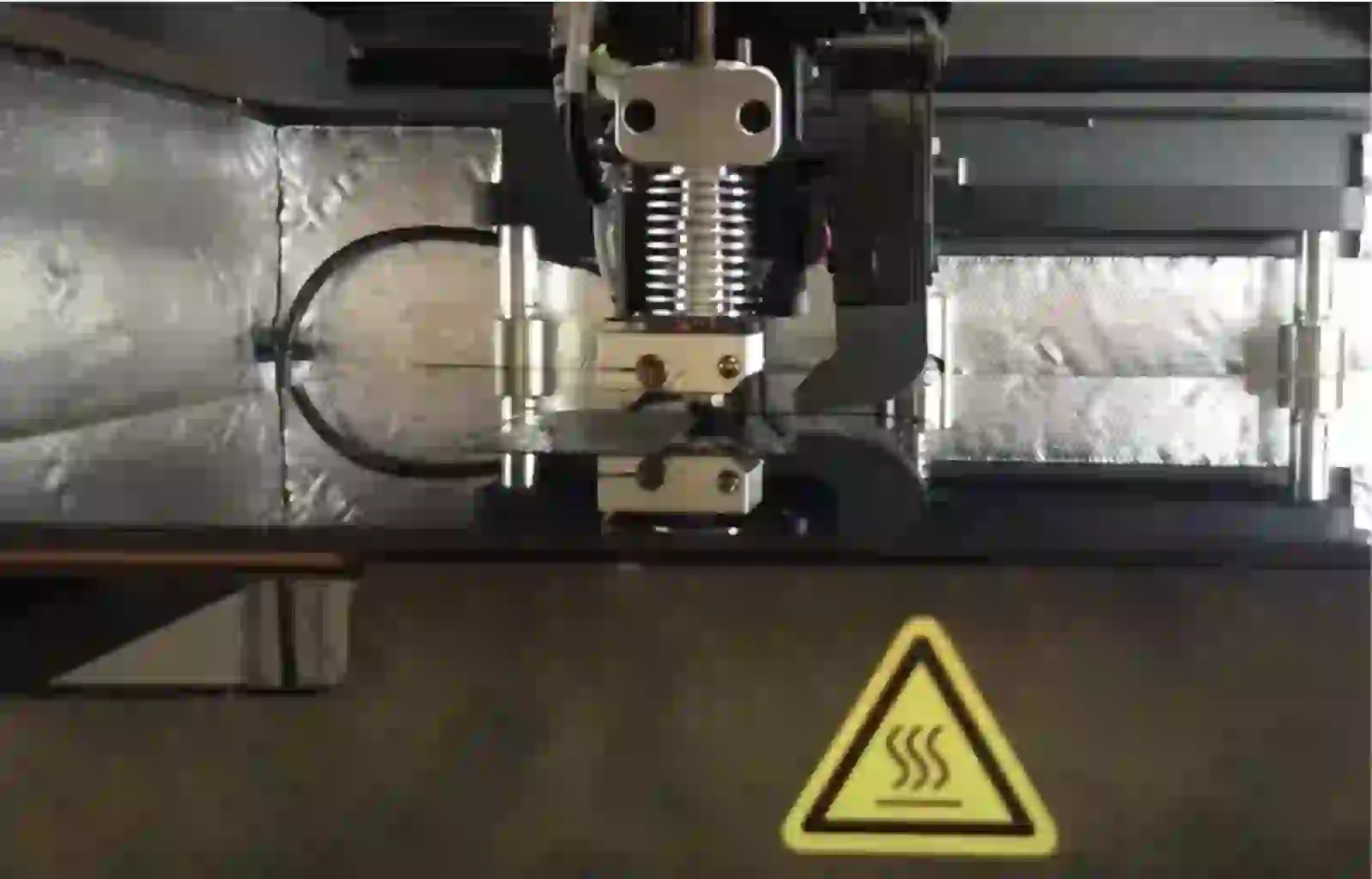

The Funmat HT Enhanced prints up to 300 mm/s, combining speed with precision. Its 90°C heated build chamber, 160°C build plate, and 450°C extruder with an all-metal hotend maintain stable conditions, preventing warping and delamination in sensitive filaments. For example, the 116x114x13 mm aircraft mount below was printed in PEEK in 4 hours and 10 minutes.
Additional information
| Filament Diameter | 1.75mm |
|---|---|
| Layer Thickness | 0.05-0.3mm |
| Min. layer height | 0.05mm |
| Print Speed | 30-300mm/s |
| Build volume | 260mm x 260mm x 260mm (10.24" x 10.24" x 10.24") |
| Chamber Temp. | 90°C/194°F |
| Features | Auto-Bed-Leveling, In-chamber camera, Heated build chamber |
| Platform Temp. | 160°C/320°F |
| Build Platform | Aluminum Plate + High Borosilicate Glass |
| Extruder Temp. | Standard Hotend: Up to 300°C – High Temperature Hotend: 450°C/842°F |
