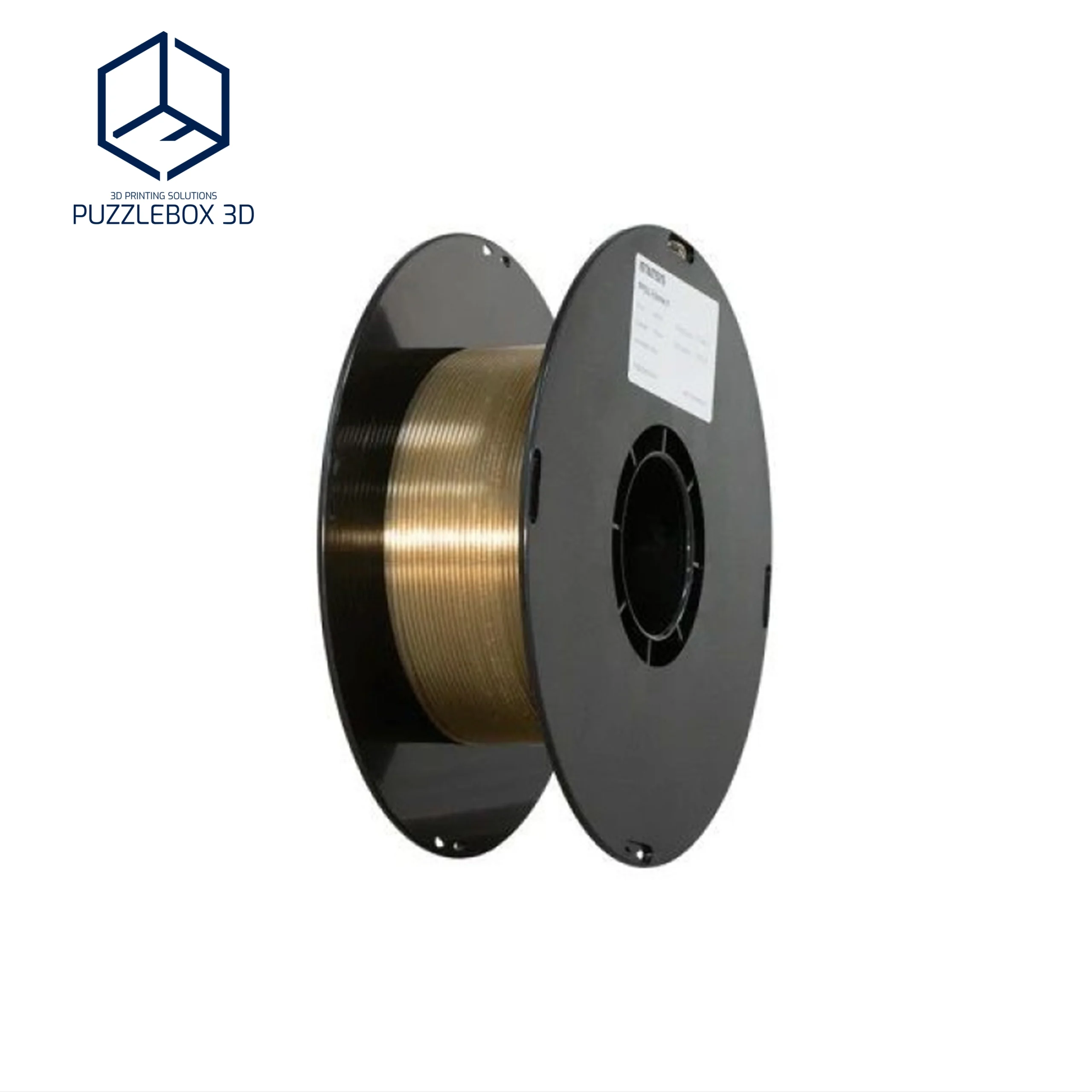

PPSU
Price range: ₱18,992.00 through ₱33,550.00
The Intamsys PPSU (polyphenylsulfone) is an amorphous high-performance thermoplastic featuring excellent impact strength and high chemical resistance, including resistance to common acids. PPSU parts can operate at temperatures of up to 180 °C which is ideal for engine components manufacturing in automotive and aerospace industries.
Due to its excellent hydrolysis resistance, PPSU is qualified for repetitive steam sterilization; it can also withstand other sterilization methods which makes it a perfect choice for fabrication of medical devices. Besides that, it is safe for manufacturing products that are in contact with food. PPSU is a common material for baby bottles production.
PPSU-made parts boast high dimensional stability, excellent mechanical and physical properties, and good dielectric characteristics which allows for the use in a broad application range. In certain cases, PPSU can become a more affordable substitute for PEEK.
Like other high-temp thermoplastics, the Intamsys PPSU requires special printing conditions. The 3D printer should be capable of supporting the extruder temperature of 360–400 °C and be equipped with a heated print bed and a fully enclosed print chamber.
Additional information
| Filament Diameter | 1.75 mm |
|---|---|
| Density | 1.29 g/cm³ |
| Filament weight | 500 g / 750 g / 1 kg |
| Flexural modulus | 3,114 MPa |
| Flexural strength | 124.5 MPa |
| Glass transition temperature | 220 °C |
| Heat deflection temperature (1.8 Mpa) | 198 °C |
