Funmat Pro 410 PAEK
₱2,690,000.00

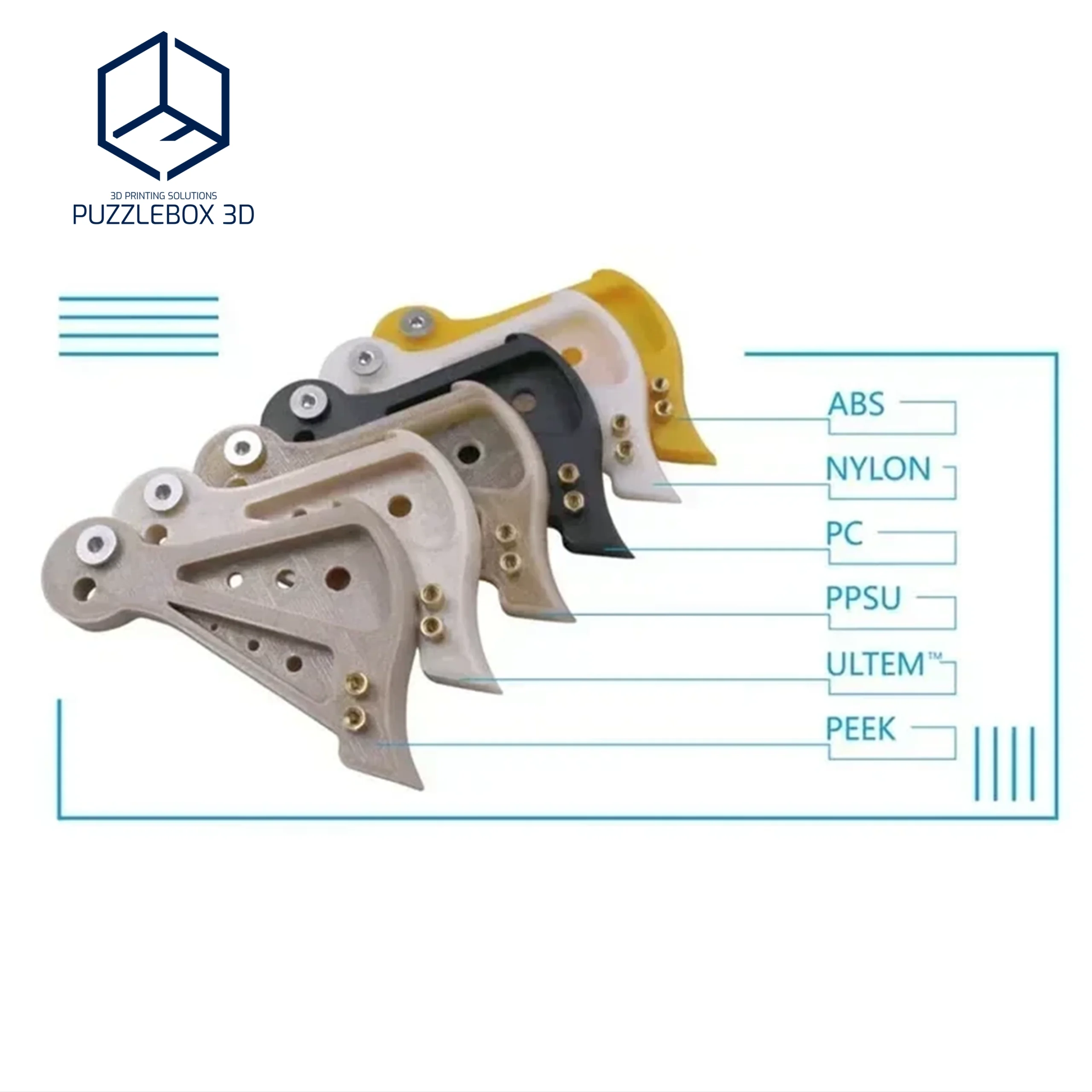

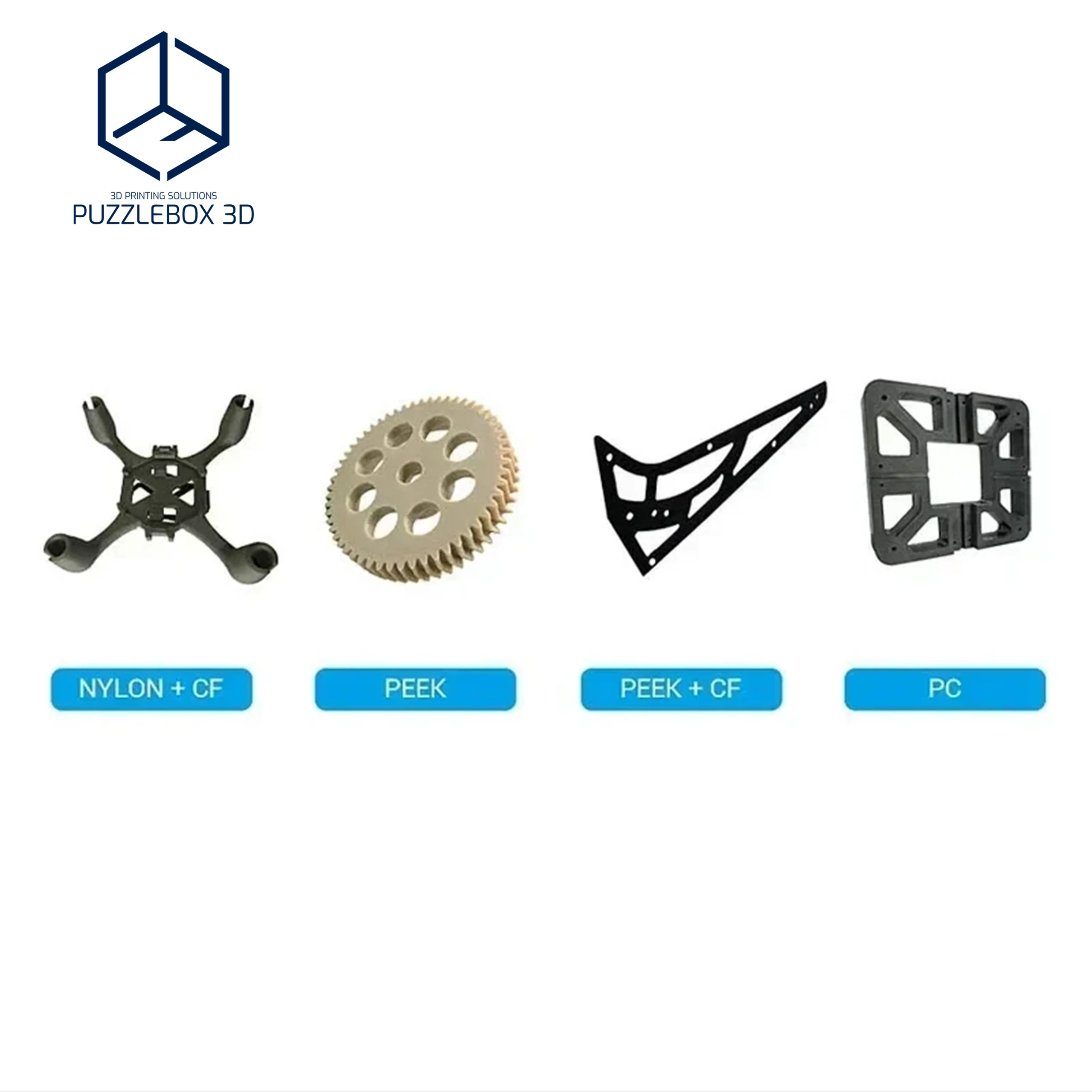

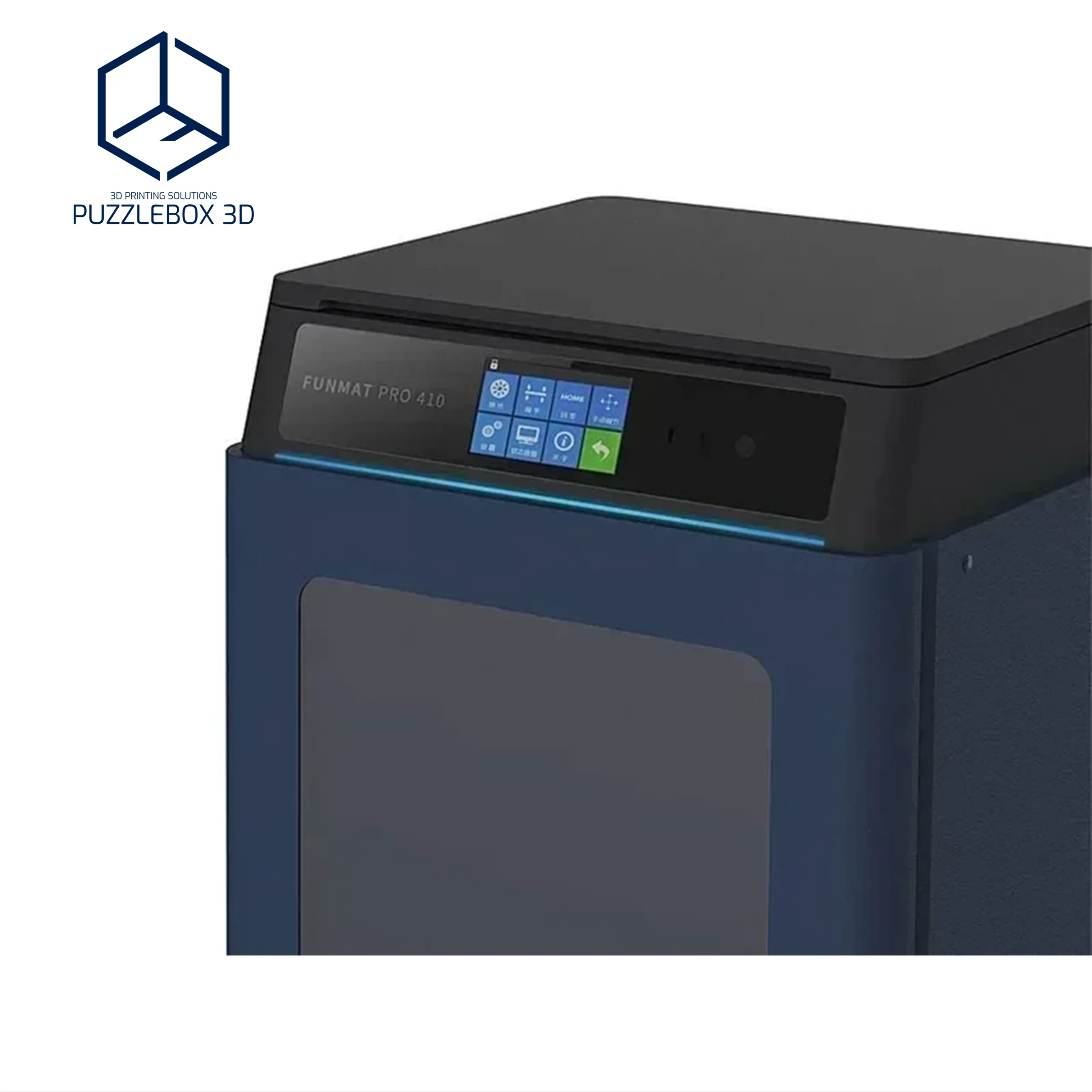

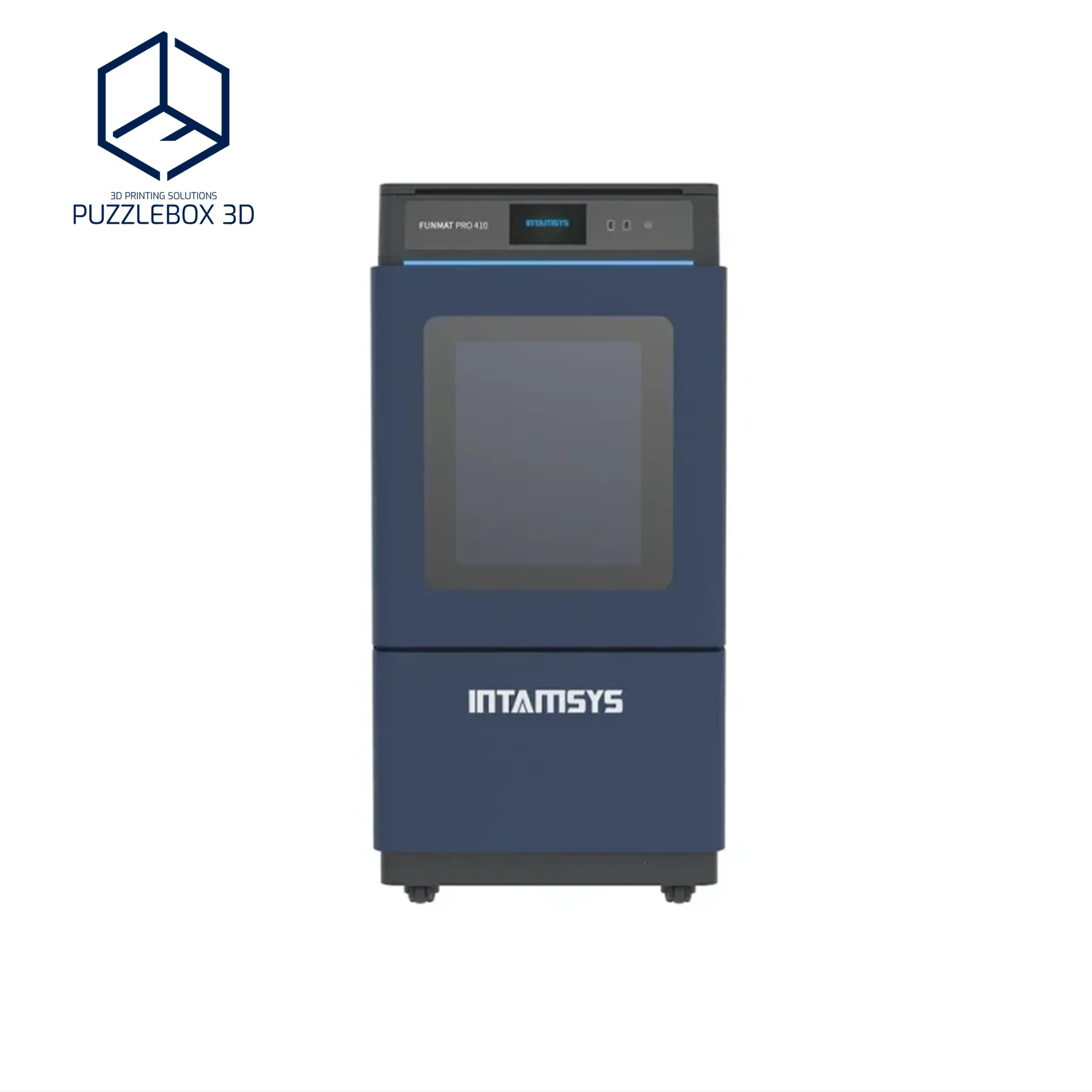

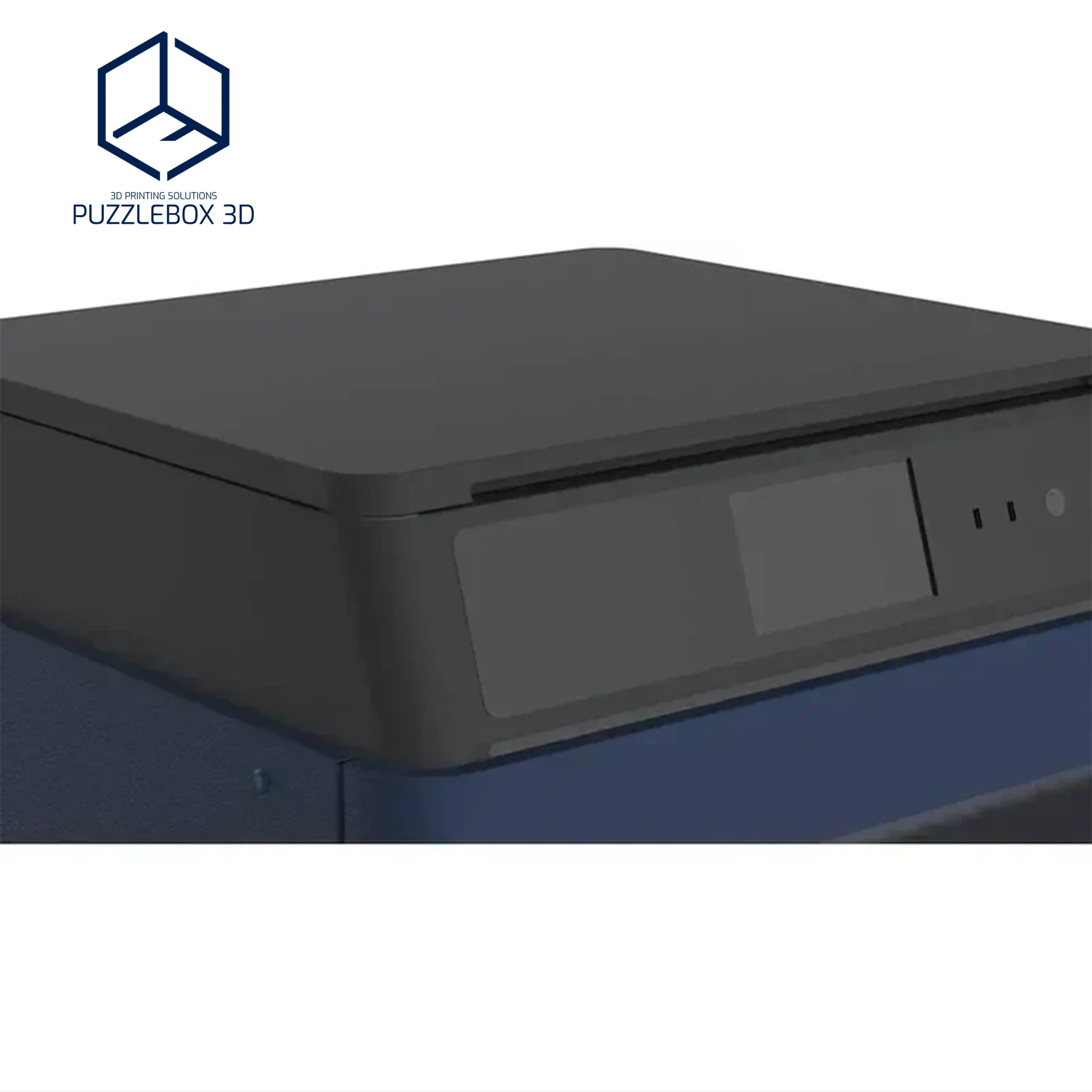

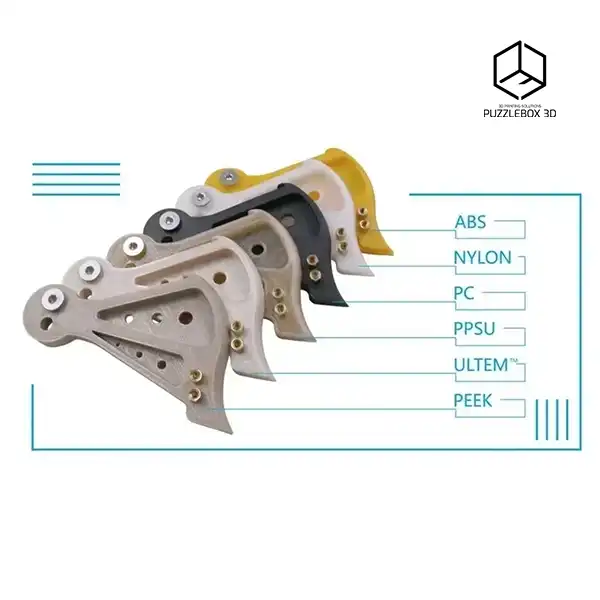

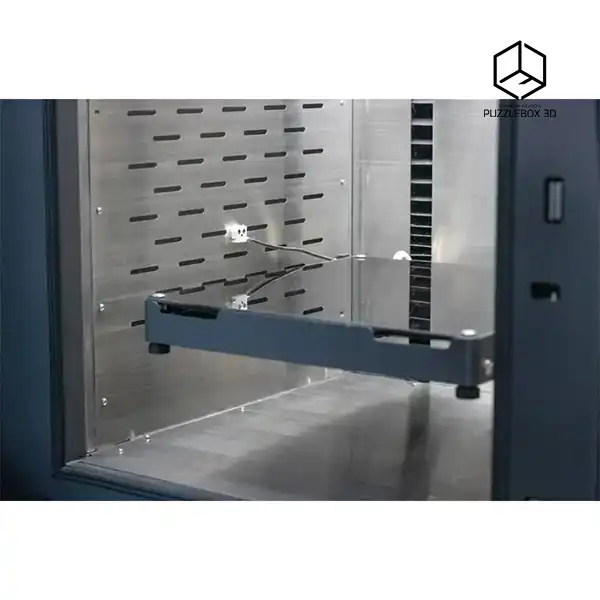

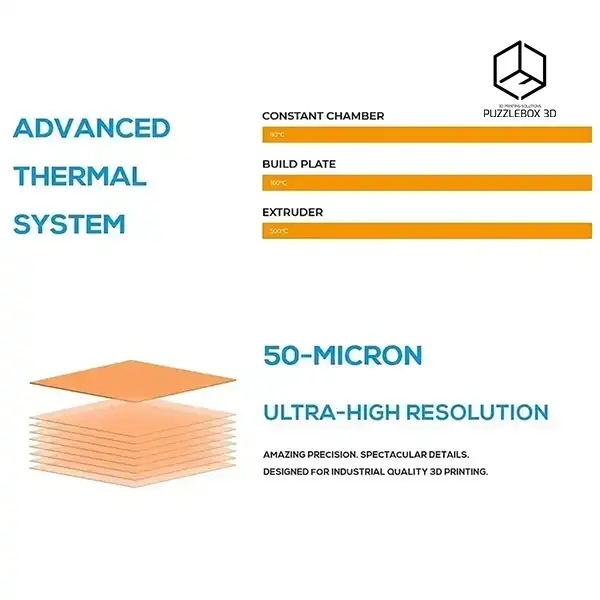

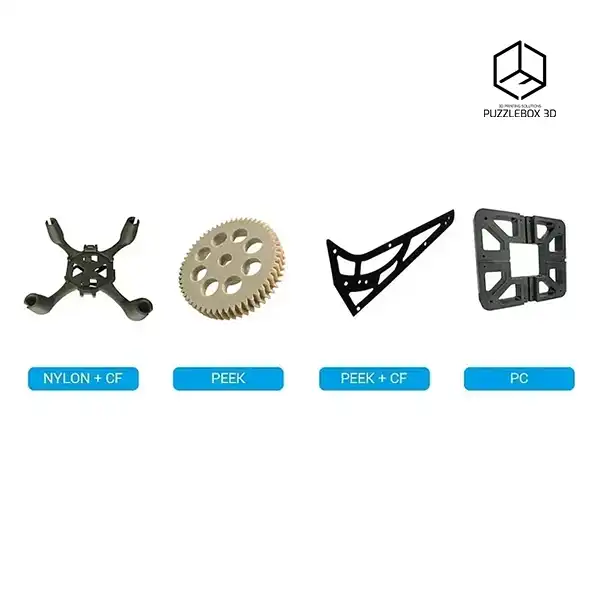

The INTAMSYS FUNMAT PRO 410 is an industrial dual-extrusion 3D printer with a 305 × 305 × 406 mm build volume and high thermal control (500°C nozzle, 160f°C bed, 90°C chamber) for engineering materials like PEEK, PEKK, ULTEM, PPSU, PC, and carbon-fiber composites. It supports soluble supports for complex parts and includes features like auto bed leveling, jam detection, power-loss recovery, and self-cleaning nozzles. Connectivity options and a built-in camera enable remote monitoring, making it suited for prototyping, testing, and small-batch production with high-temperature filaments.
What is the print quality and performance of the Intamsys Funmat Pro 410?
The FUNMAT PRO 410 prints high-temperature filaments with 50-micron precision and strong layer adhesion, producing durable, chemically resistant parts with fine details and smooth finishes. It handles materials like PEEK and reinforced composites, supporting industrial-scale output—WEERG used it to produce up to 25,000 complex components per day.
Benchmark tests show the FUNMAT PRO 410 achieves high dimensional accuracy, with an average offset of 0.112mm and a low 0.0415mm deviation across prints. It maintains circular precision as well, producing 100mm parts within 99.78–100.12mm, or 99.6% accuracy.
The FUNMAT PRO 410 handles demanding tests with ease, printing PEEK overhangs up to 50° without supports and bridging spans up to 20mm before distortion. Its strong retraction control minimizes stringing, maintaining accuracy and surface quality with high-temperature materials. Overall, it scored 77/100 in print performance.

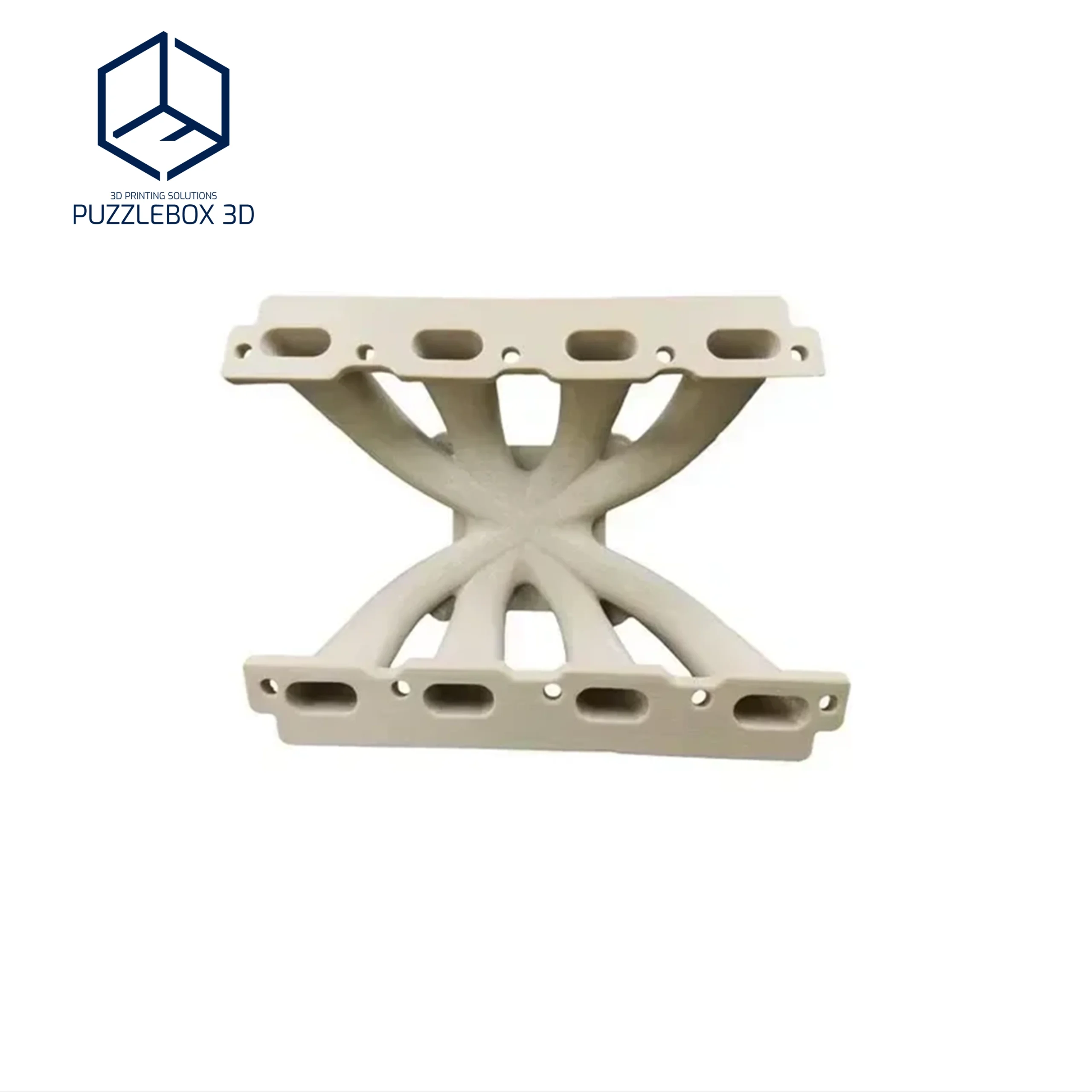

The FUNMAT PRO 410 reliably prints complex PEEK parts with fine features, strong layer adhesion, and precise dimensions.
Additional information

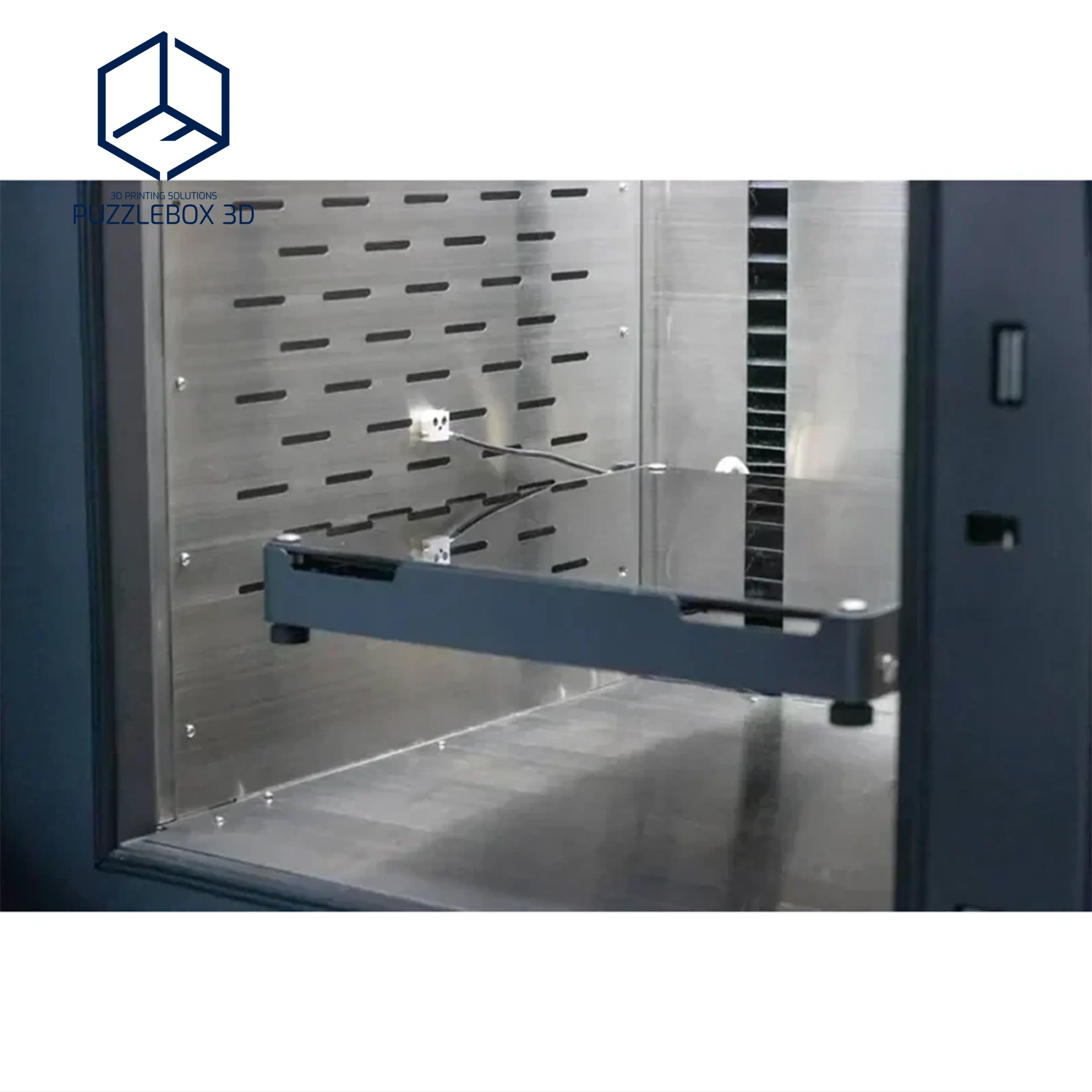

| Build Plate | Ceramic Glass |
|---|---|
| Cooling system | Water Cooling |
| Input | 200~240V/15A, 50~60Hz |
| Layer Thickness | 0.05~0.3mm, Default 0.4mm Nozzle |
| Leveling | Auto-leveling with High Precision Sensors |
| Max. power | 3KW |
| Max. print speed | MAX Travel Speed XY: 500mm/s MAX Acceleration XY: 5000mm/s^2 |
| Min. layer height | 0.05 mm |
| Nozzle diameter | Default 0.4mm, 0.6mm Selectable |
| Operating humidity | 30%~70% |
| Printer dimensions | 720 × 680 × 1470 mm |
