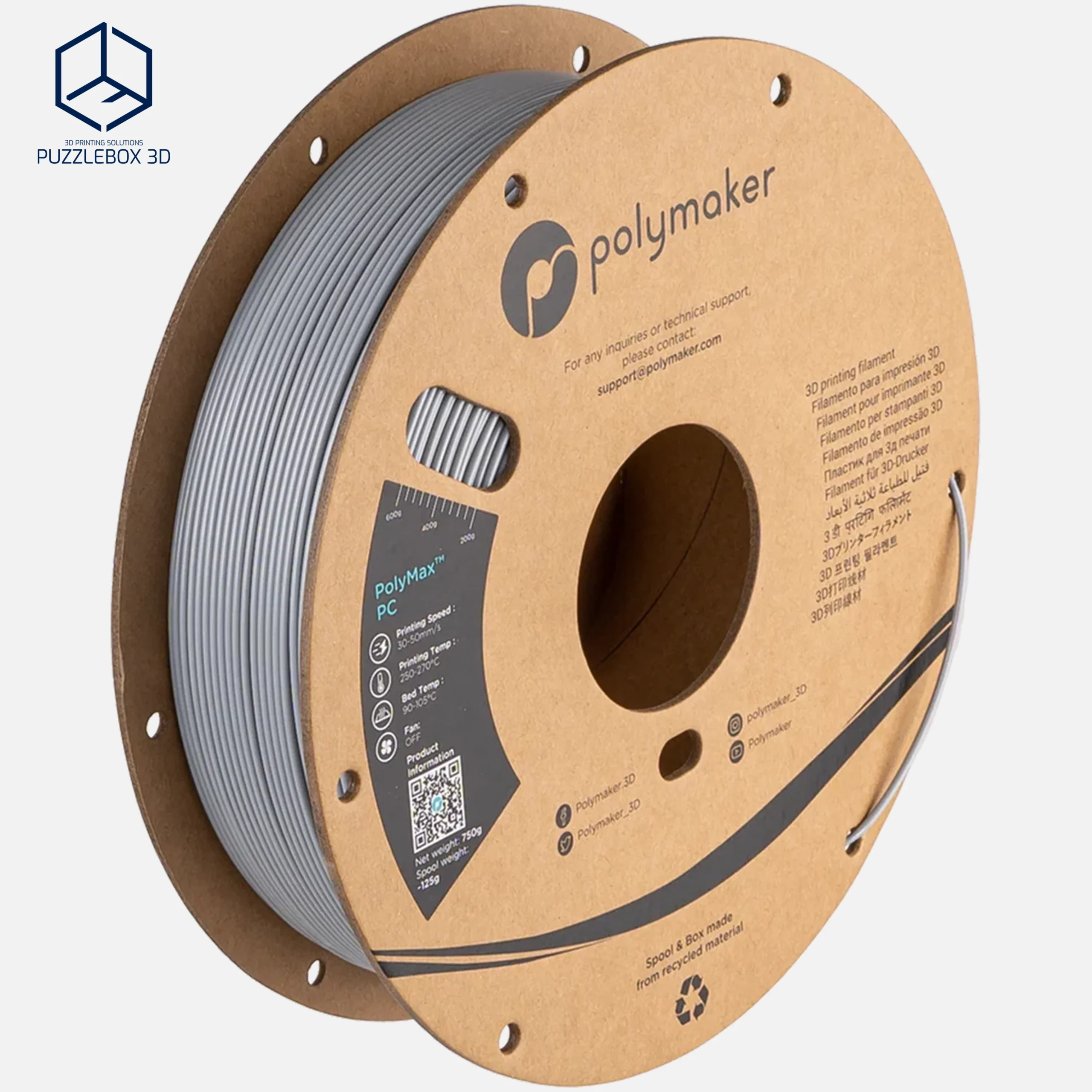

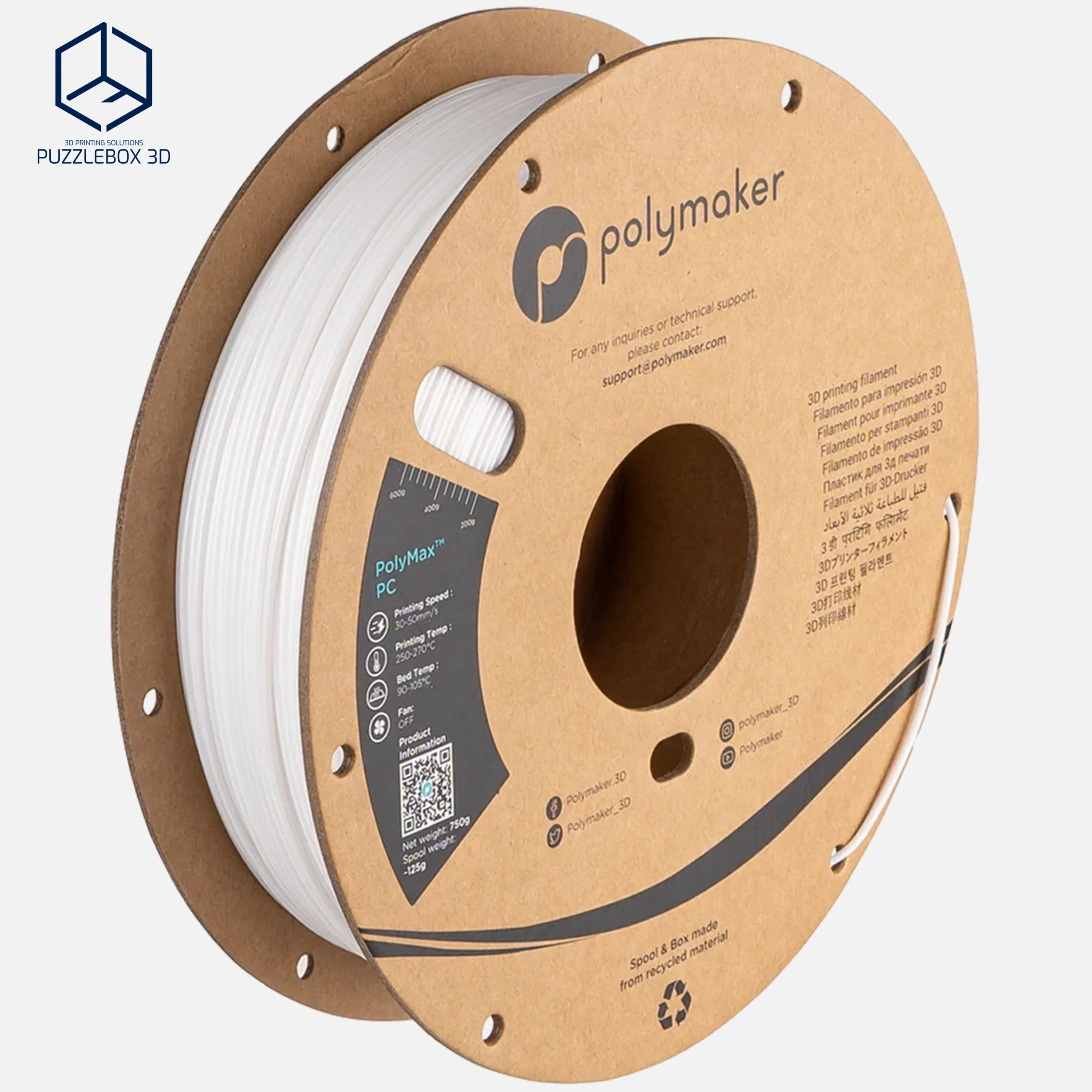

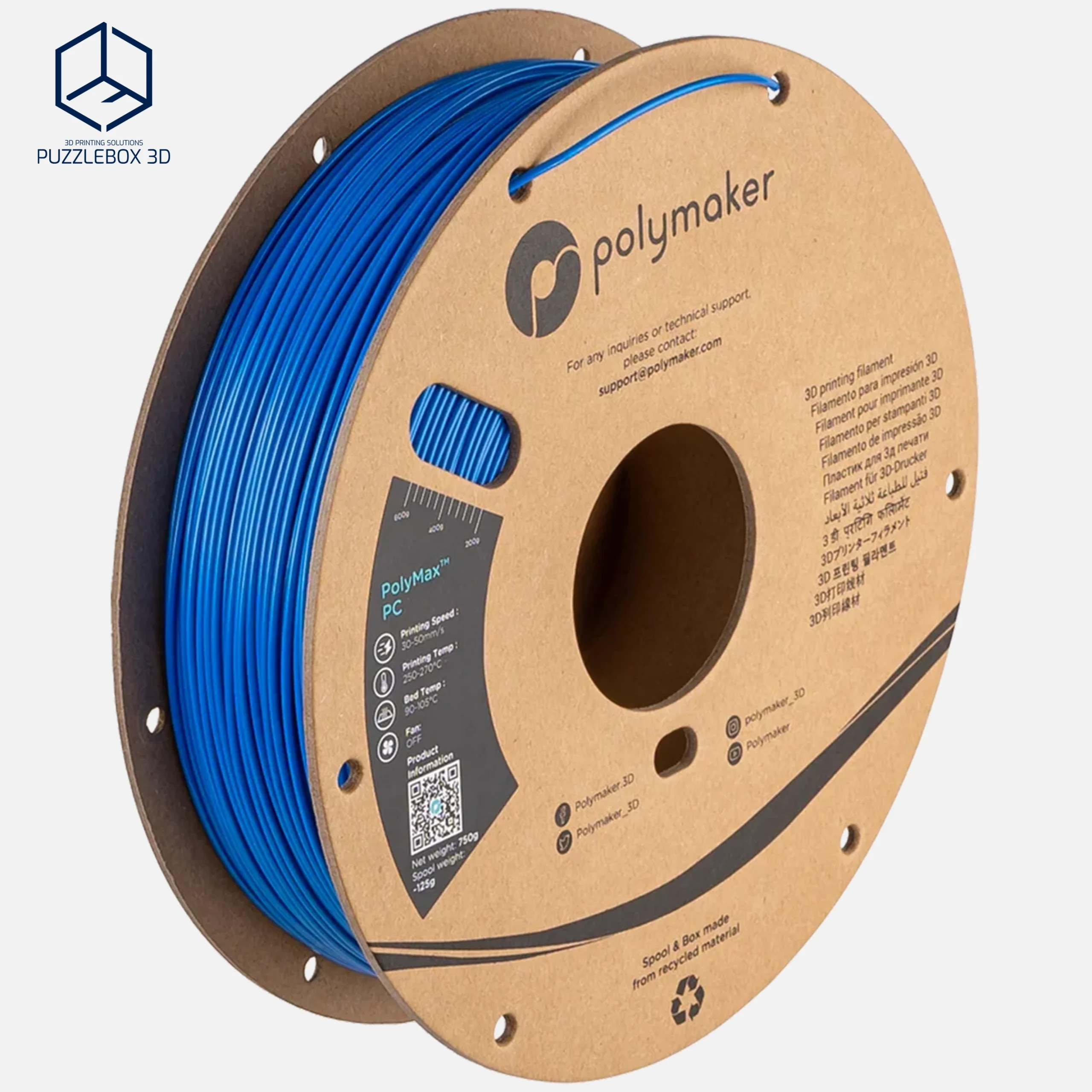

PolyMax™ PC
Price range: ₱2,199.00 through ₱7,999.00
PolyMax™ PC is an engineering PC filament combining excellent strength, toughness, heat resistance and printing quality. It outperforms many other choices of PC while still printing at a relatively low printing temperature. With a softening point of 113°C it can operate in demanding environments where impact resistance, heat resistance and vibration resistance is required.

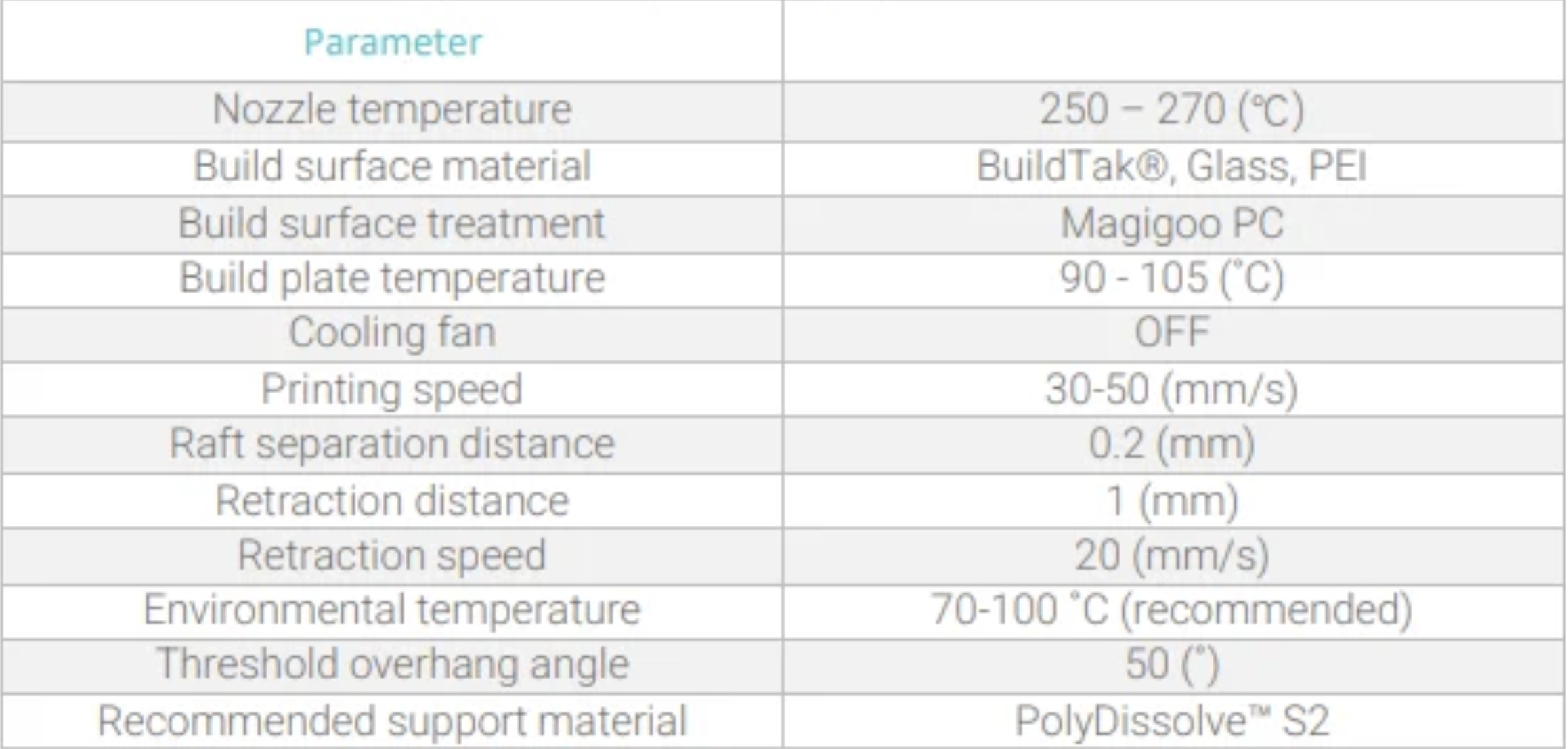

Recommended Printing Conditions
* Based on 0.4 mm nozzle and Simplify 3D v.4.0. Printing conditions may vary with different nozzle diameters
Note:
- When printing with PolyMax™ PC it is recommended to use an enclosure. For large part it is recommended to use a heated chamber.
- It is recommended to anneal the printed part right after the printing process to release the residual internal stress. Annealing settings: 90˚C for 2h
Additional information
| Material type | Polycarbonate (PC) |
|---|---|
| Filament Diameter | 1.75 mm / 2.85 mm |
| Typical Spool Weight | 0.75 kg / 1 kg / 3 kg |
| Density | ~1.19 g/cm |
| Printing Temperature | 250˚C – 270˚C |
| Bed Temperature | 90˚C – 105˚C |
| Printing Speed | 50-200mm/s |
| Fan | OFF |
| Direct Drive Retraction Distance | 1-3 mm |
| Direct Drive Retraction Speed | 20-40 mm/s |
| Indirect Drive Retraction Distance | 1-3 mm |
| Indirect Drive Retraction Speed | 20-40mm/s |
| Drying Settings | 75˚C for 6h |
| Annealing Settings | 90˚ for 2h |
