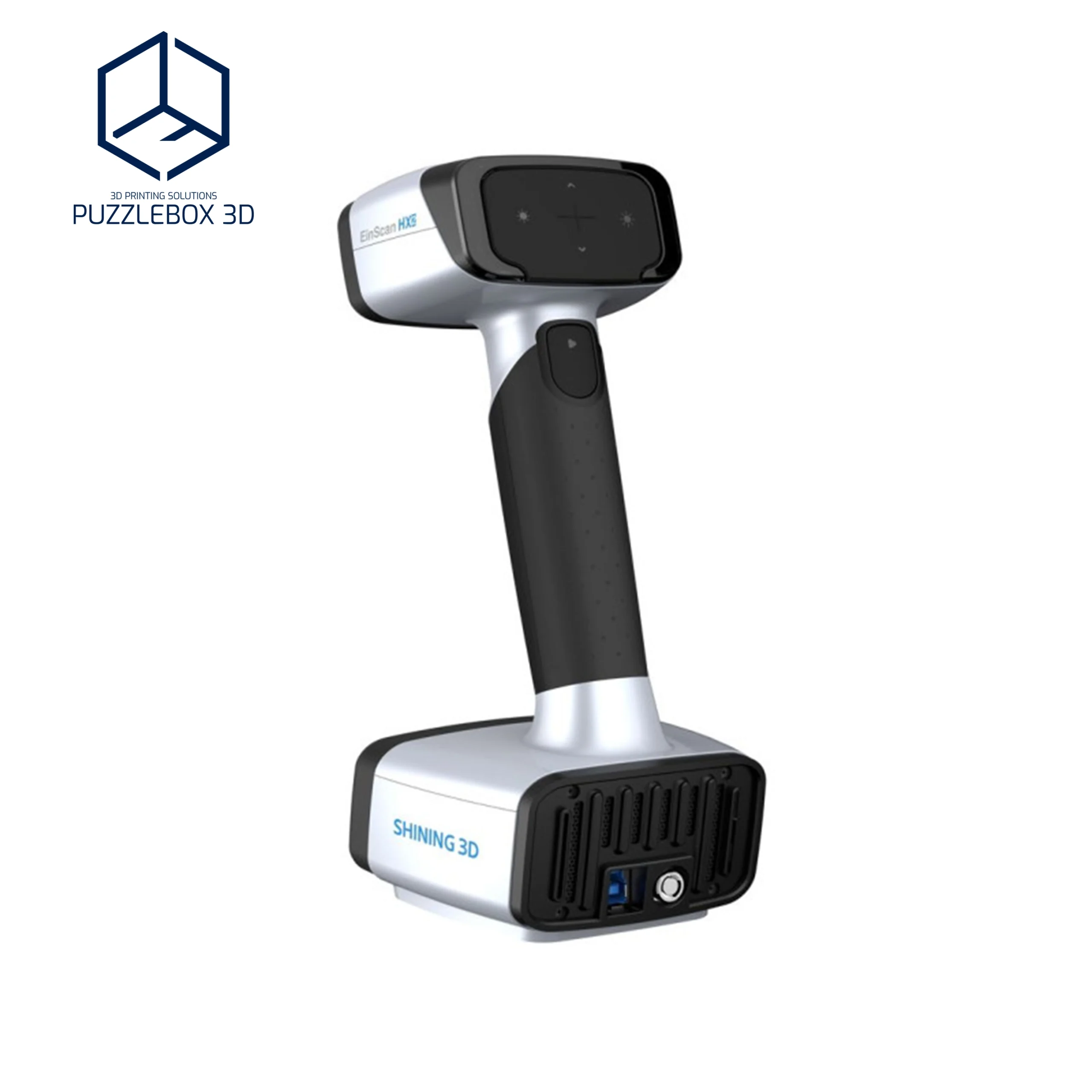

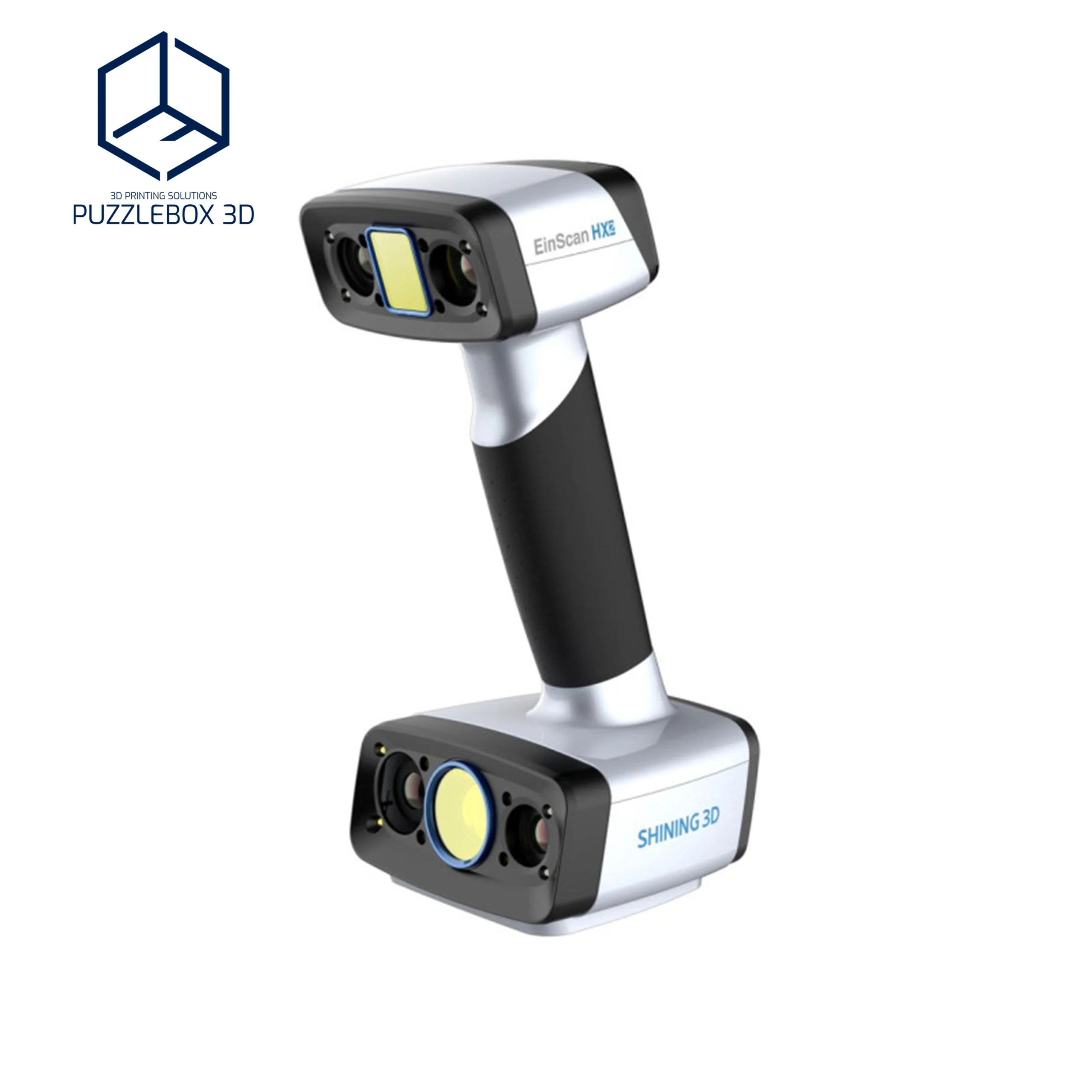

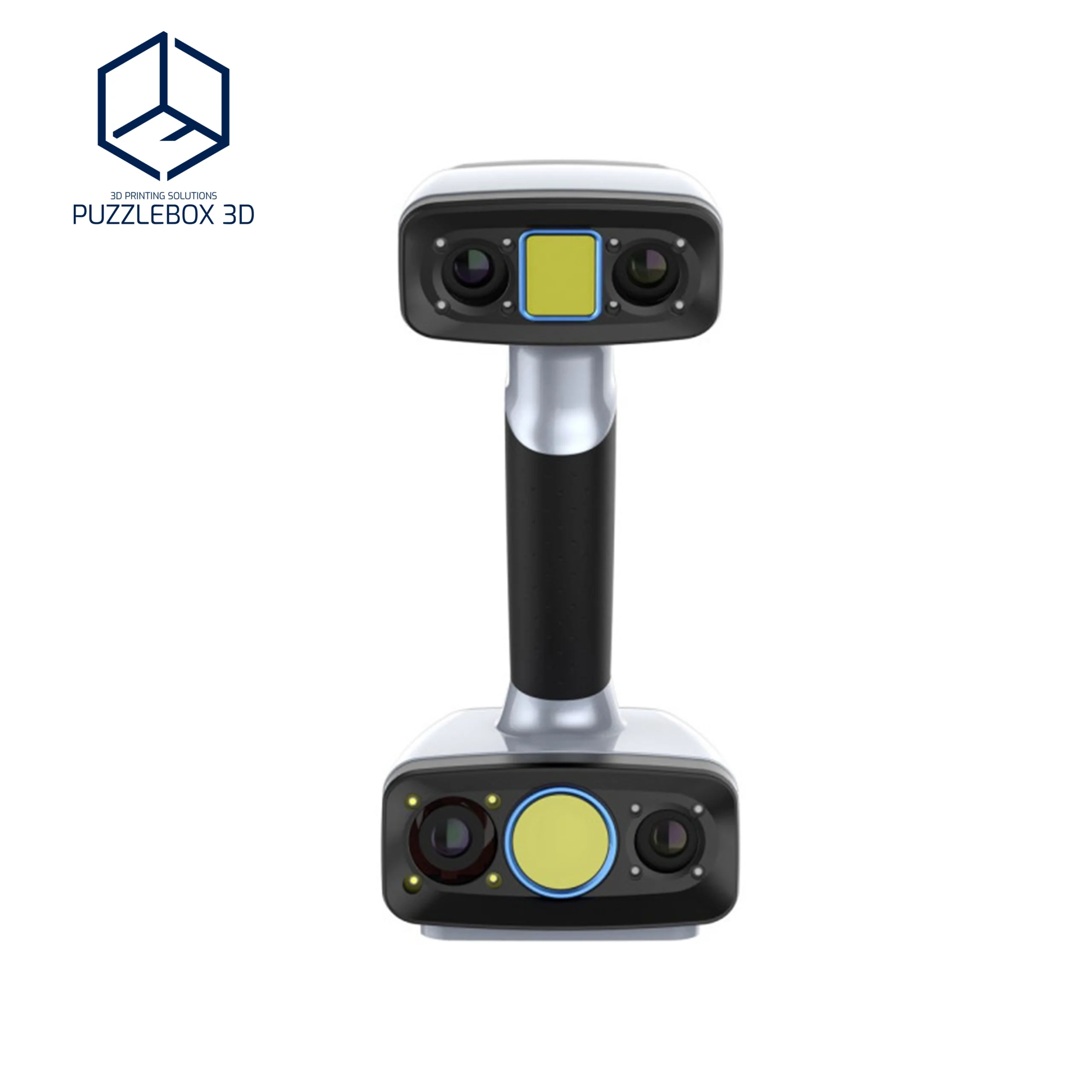

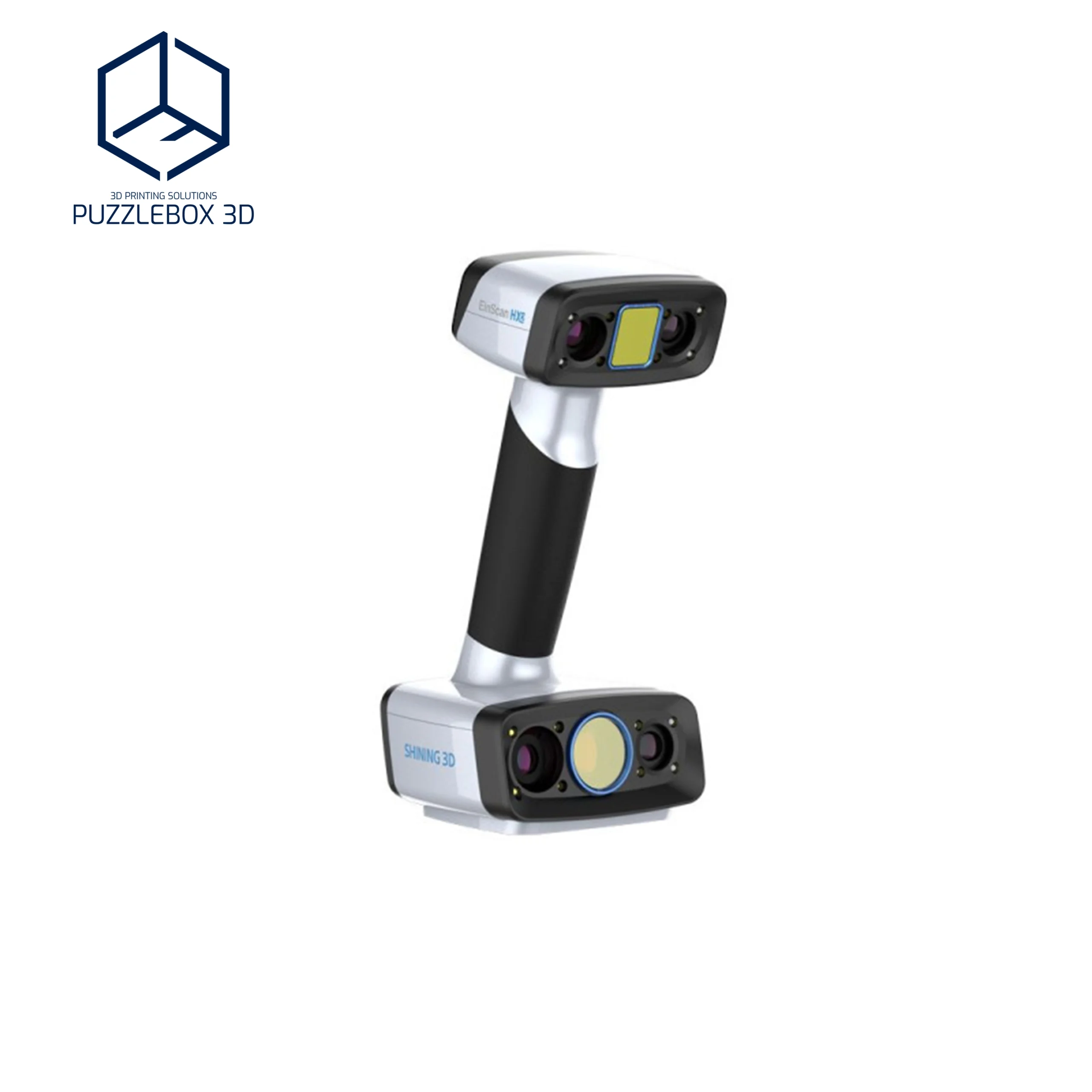

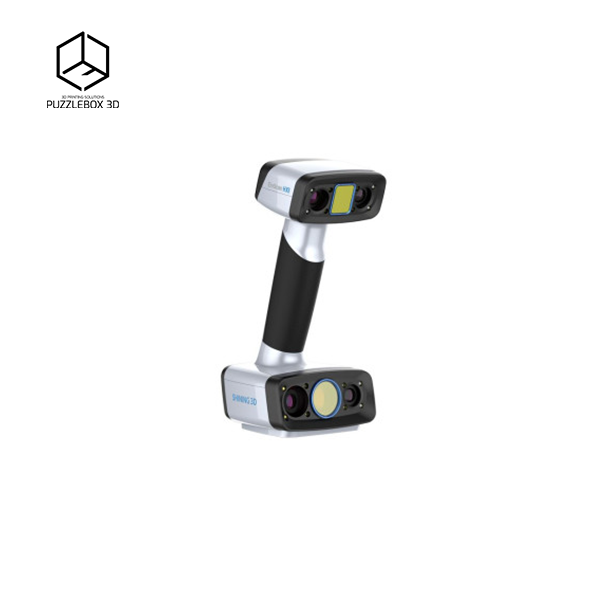

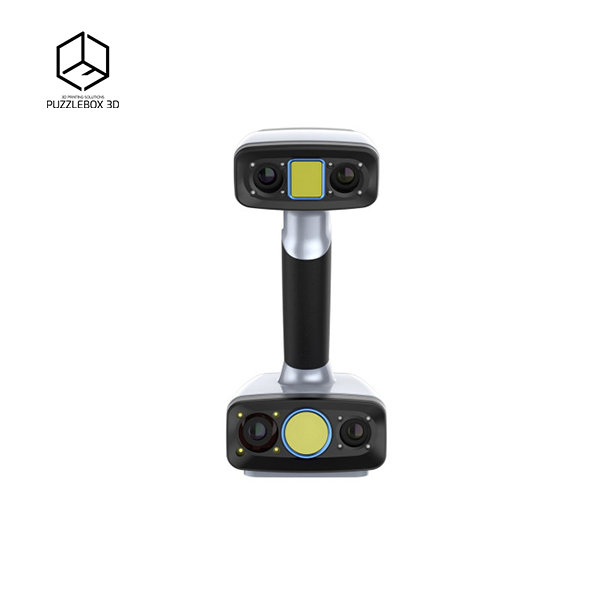

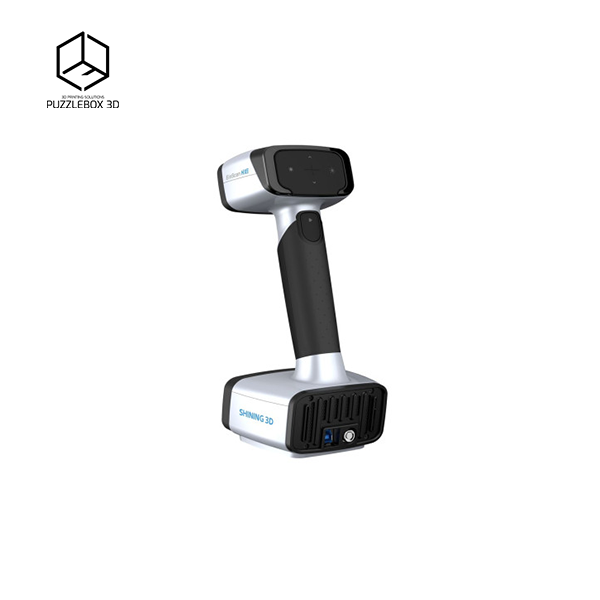

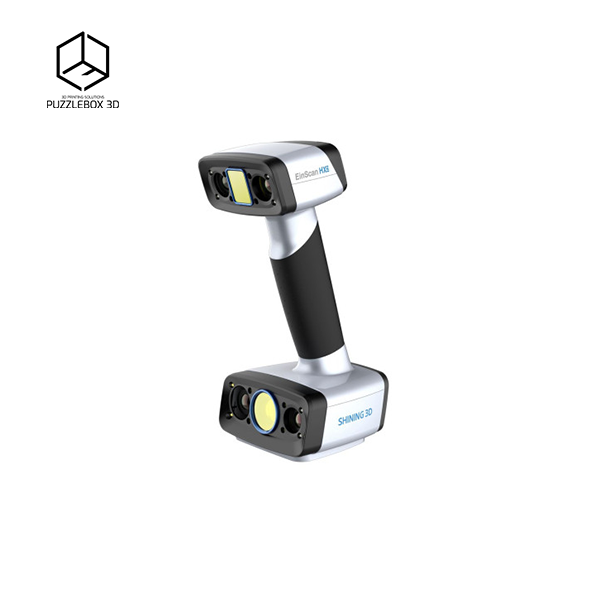

EinScan HX2
₱799,995.00
The Einscan HX2 is an industrial handheld 3D scanner from the Shining 3D's major series of products. This Einscan model combines two light sources: blue laser and structured light. It is a premium lightweight device with a futuristic and ergonomic design that can be taken to remote sites for scanning.
In contrast to the original HX model, the improved HX2 boasts 26 laser lines instead of 14 alongside increased scanning speed. The latter results in faster and more efficient data capturing as well as overall smoother 3D scanning experience.

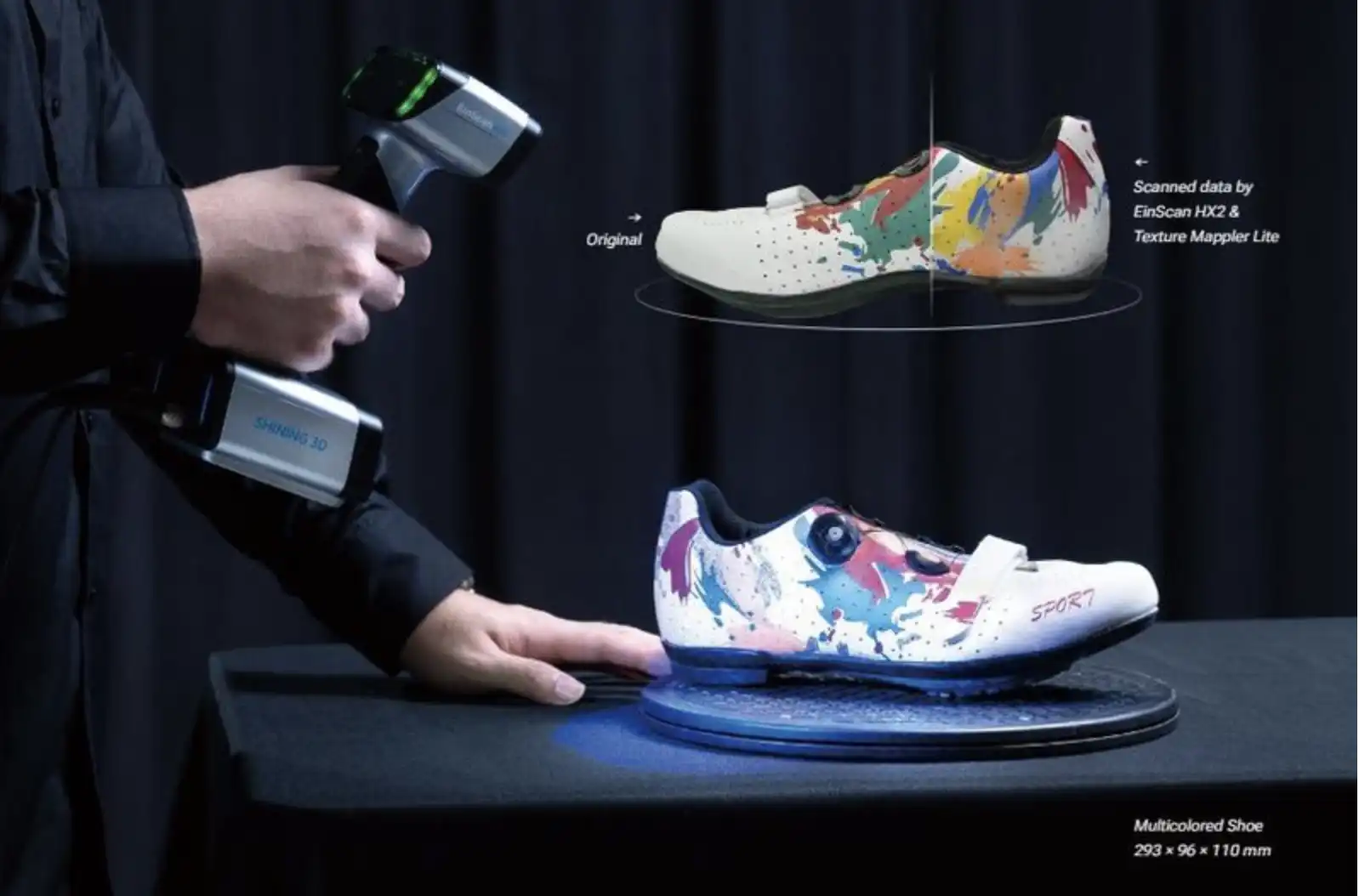

The Einscan HX2 boasts high-resolution scans, large scan volume, fast operation speed, advanced software, and a handful of other useful features for truly professional experience in reverse engineering and more. It offers an innovative hybrid system that employs dual blue LED light scanning technology allowing it to enter the rapid 3D scanning mode. Besides, there is a laser scanning mode, which is less sensitive to ambient light, designed to capture dark-colored models and objects with reflective surfaces. Thanks to its built-in color camera, the Einscan HX2 scanner supports full color / texture capturing.
The recommended object size range is between 30 and 300 cm.
The Einscan HX2 hybrid blue laser and LED light handheld 3D scanner greatly improves scanning materials adaptability and is compatible with a wider range of object sizes for more application possibilities. Therefore, it can be used in a plethora of different areas, such as:
- Architecture
- Art and generative design
- Reverse engineering
- Manufacturing
- Industrial engineering
- AR, VR, 3D modeling
- Heritage preservation, artifact restoration
- Science and education
- Healthcare
- Full-body and partial human scans
Additional information
| Accuracy | Up to 0.04 mm |
|---|---|
| Connectivity | USB 3.0 |
| Technology | Blue LED, Laser |
| Acquisition speed | Up to 1,200,000 points/s 20FPS (LED scan mode); up to 1,600,000 points/s 120FPS (Laser scan mode) |
| Align mode | Feature Alignment, Markers Alignment, Texture Alignment, Hybrid Alignment |
| Computer requirements (recommended) | OS: Win10/11, 64-bit; Graphics card: NVIDIA RTX2060 or better; Video memory: ≥6GB; Processor: Intel I7-10870H or better; Memory: ≥32GB |
| Depth of field | 200–700 mm (LED scan mode); 350–610 mm (Laser scan mode) |
| Max. resolution | Up to 0.05 mm |
| Operating Temperature Range | 0–40 °C |
| Output formats | OBJ; STL; ASC; PLY; P3; 3MF |
| Volumetric accuracy | Up to 0.04+0.06 mm/m |
| Scan volume | Scan volume420 x 440 mm (LED scan mode); 380 x 400 mm (Laser scan mode) |
