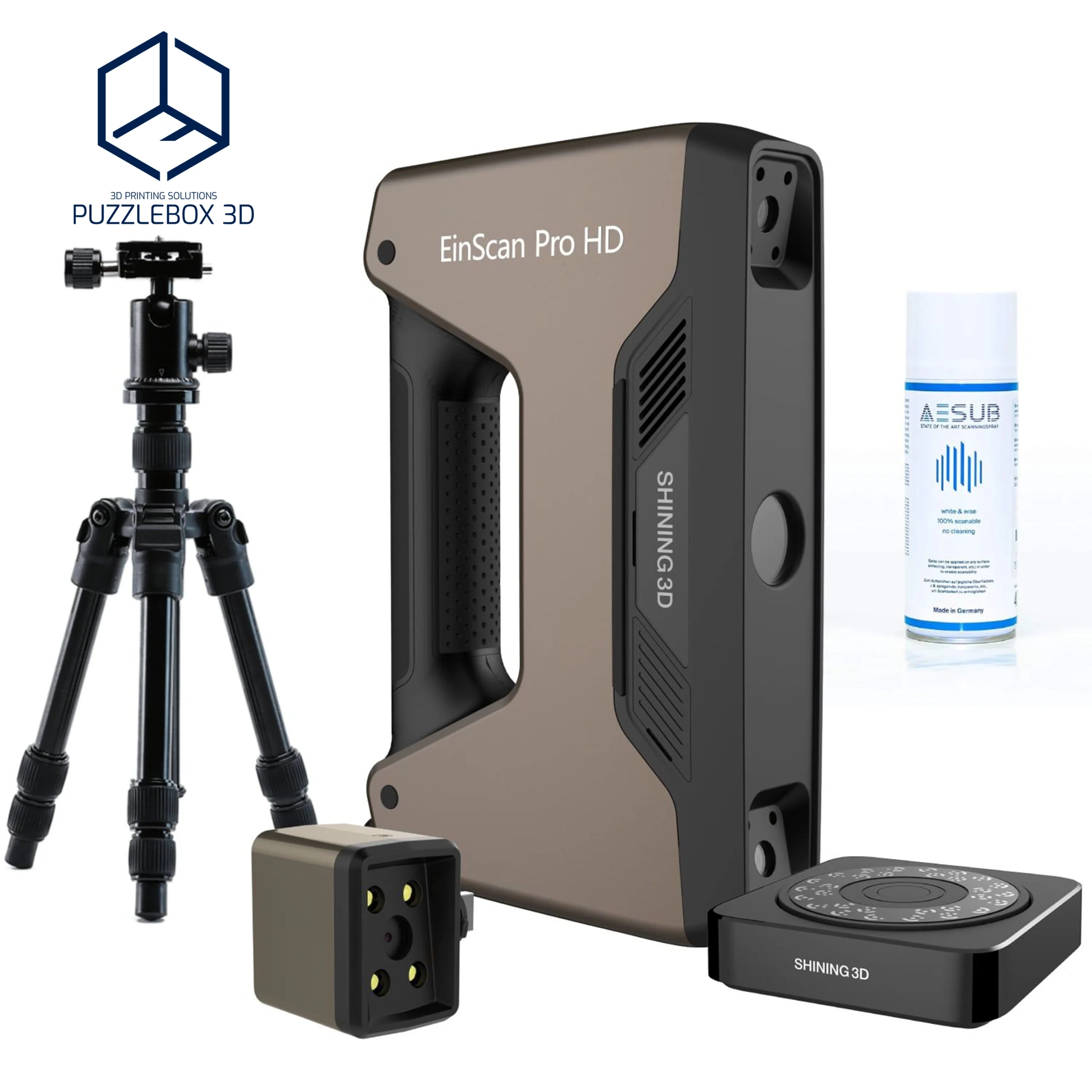

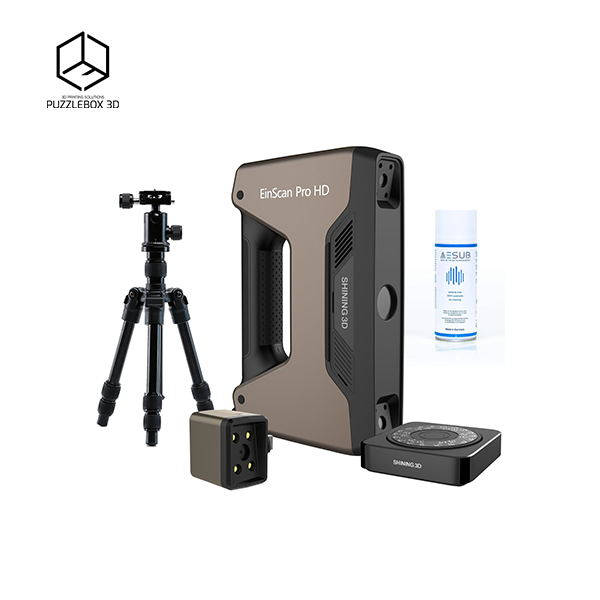

EinScan Pro HD Industrial Pack
₱49,495.00
Improves the Efficiency of High-quality 3D Modeling
Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience.
- Impressive high resolution for fine details
- Handle dark and casting metal surface with less limitations
- Fast scan speed for high efficiency
- With Color Pack HD, It’s able to enable the ability to capture the texture or color
- With Industrial Pack (Tripod & Turntable), It’s able to enable to scan in Auto scan mode and Fixed scan mode, which is suitable to scan small objects with higher accuracy up to 0.04mm and better details than handheld scan.
Improves the Efficiency of High-quality 3D Modeling
- Impressive high resolution for fine details
- Handle dark and casting metal surface with less limitations
- Fast scan speed for high efficiency
Less Limitations of Scan Objects

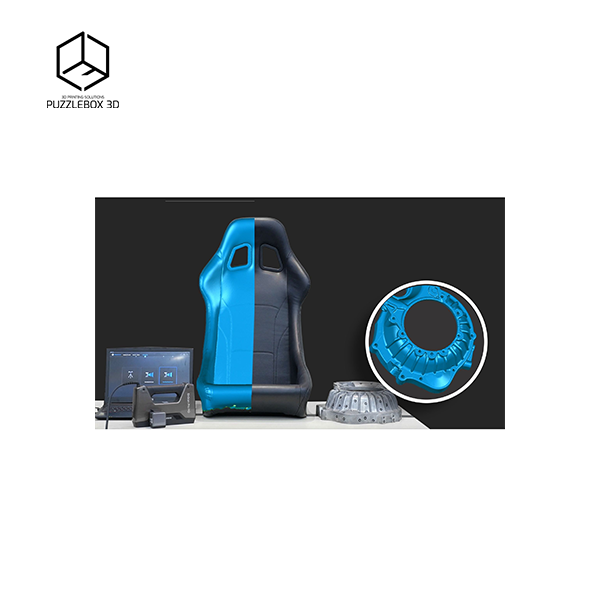

- With new lighting projection hardware and software algorithm, EinScan Pro HD is capable to scan a wider range of objects of dark or black color and casting metal surface, enriching the capability for 3D scanning of materials.
Fast Scanning Speed and Data Transmission
- EinScan Pro HD has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high speed data transmission.

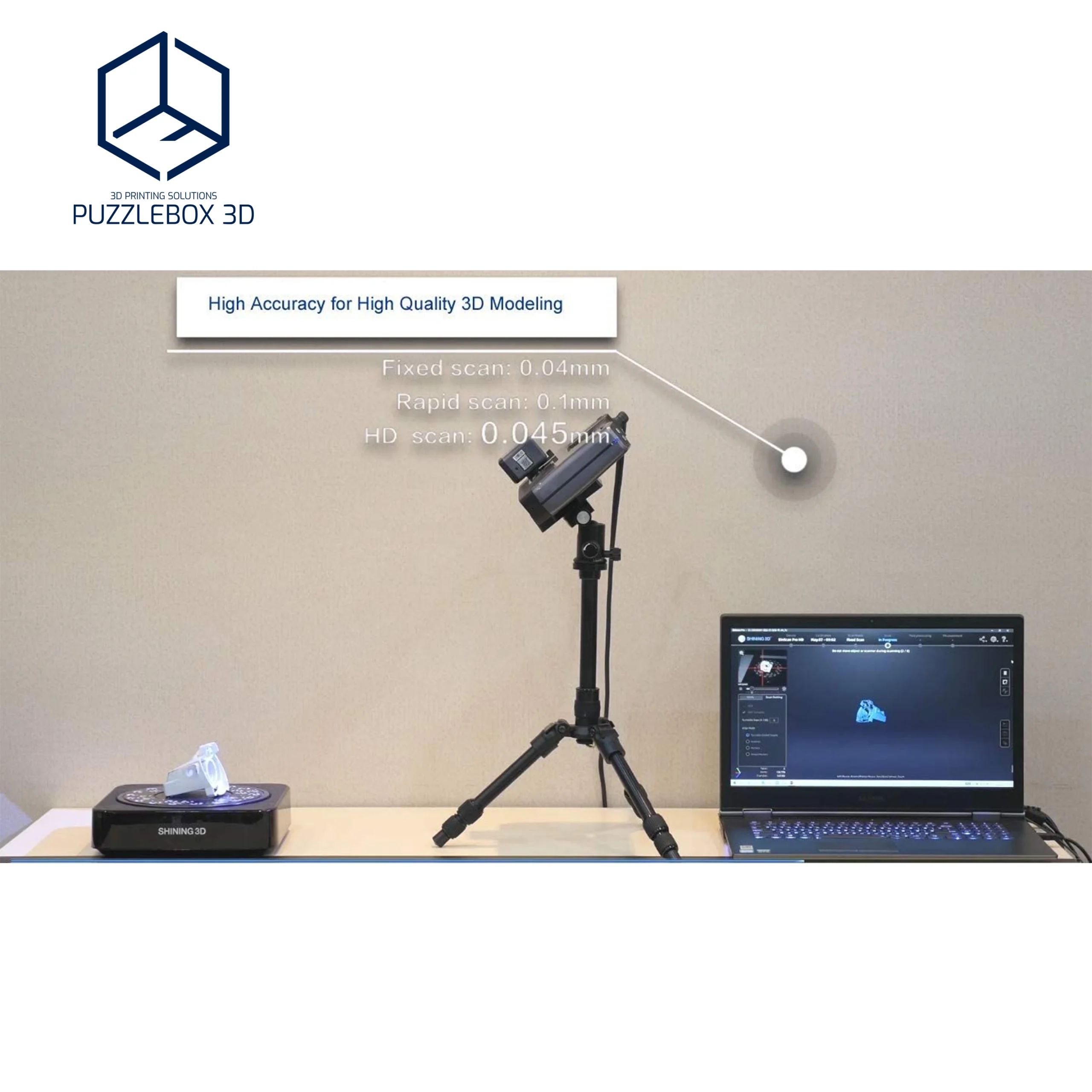

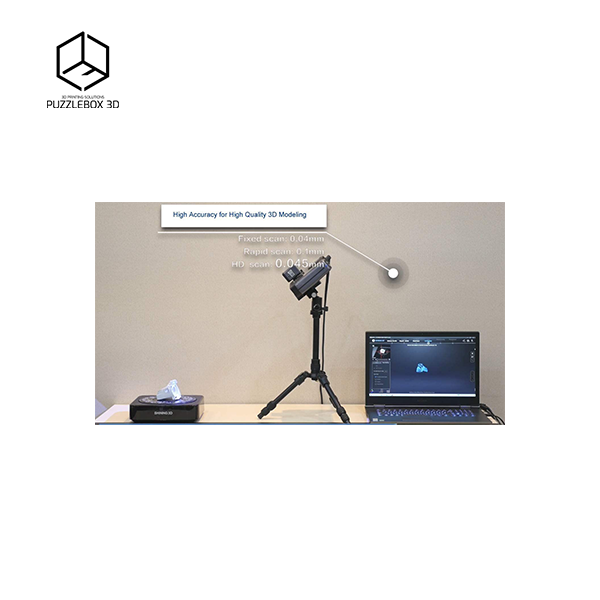

High Accuracy for High Quality 3D Modeling
- By kinds of positioning methods, both scanner or objects can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m.

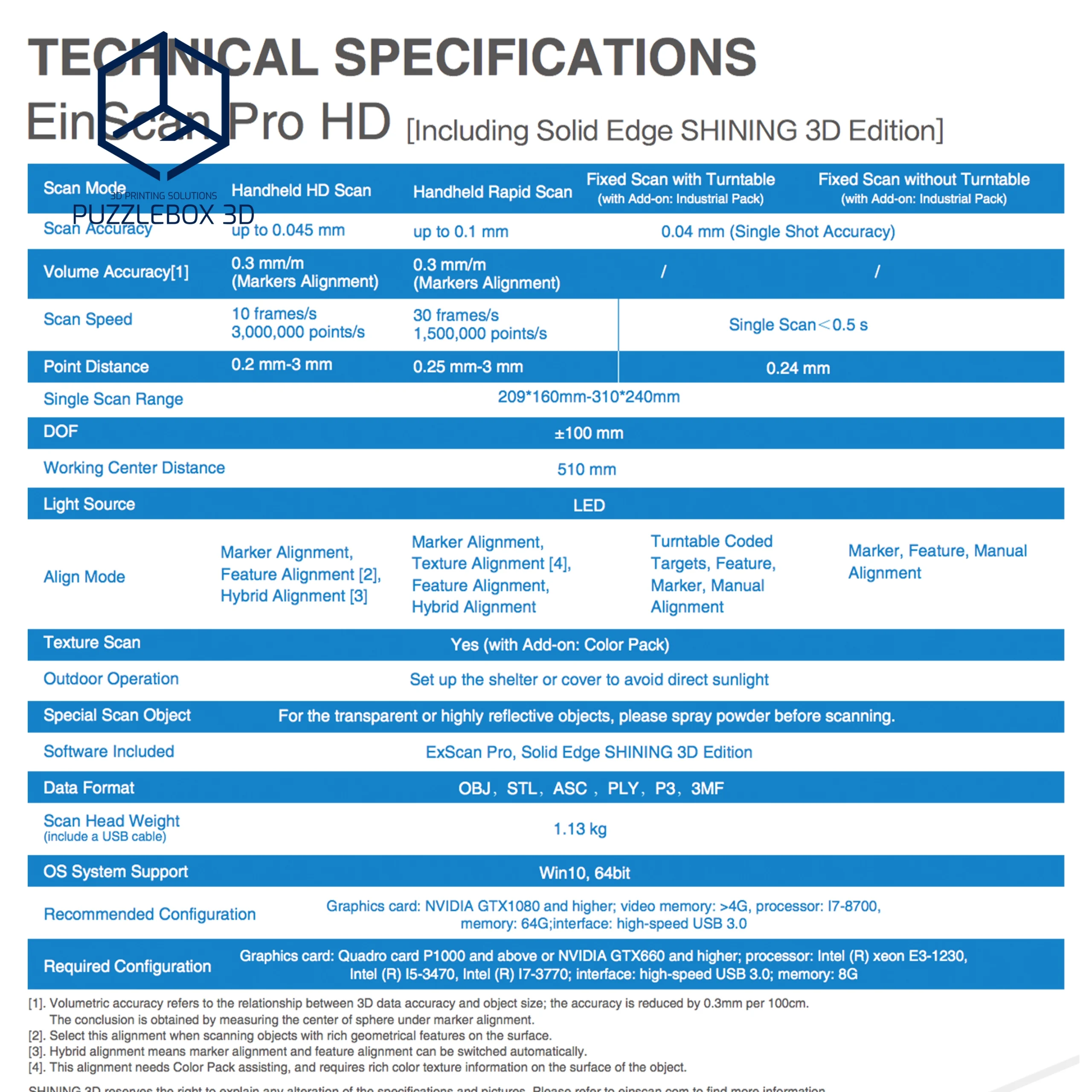

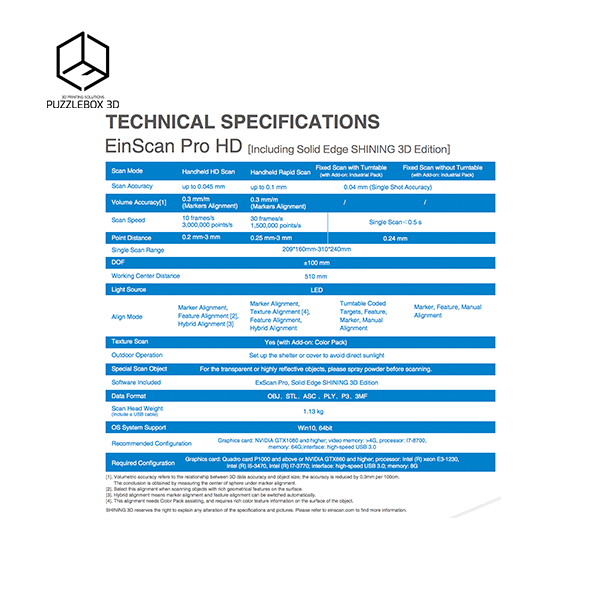

Additional information
| Supports | 4 scanning modes with various optional accessories |
|---|---|
| Scanning mode | Single shot scan accuracy ranges from 0.04mm to 0.1mm depending on scanning mode |
| Scan Speed | 10 frames/s, 3,000,000 points/s in Handheld HD Scan, 30 frames/s, 1,500,000 points/s in Handheld Rapid Scan |
| Single scan range | 209*160mm-310*240mm |
| Working Distance | 510 mm |
| Mesh editing features | hole filling, smoothing, sharpening added |
| Export file format | OBJ, STL, ASC, PLY, P3, 3MF |
