Description

A Professional 3D Scanner for Diverse Industries

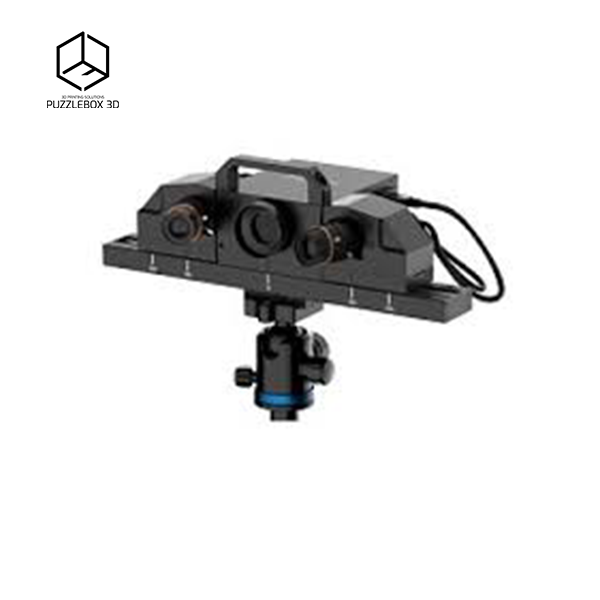

Transcan C

SHINING 3D developed the Transcan C as a professional-grade 3D scanner capturing exceptionally high resolution and accurate scans of objects from small to medium size for a great variety of industries. In addition, the 12 MP cameras produce rich and detailed textured 3D model, giving an intuitionistic image of the physical object.

  • Adjustable scanning range to meet various object scanning needs.
  • Smoothly shift between 3 levels of resolution in one project to create great detail with high efficiency.
  • 12 MP color cameras provide rich and detailed color textured 3D model.



Features:

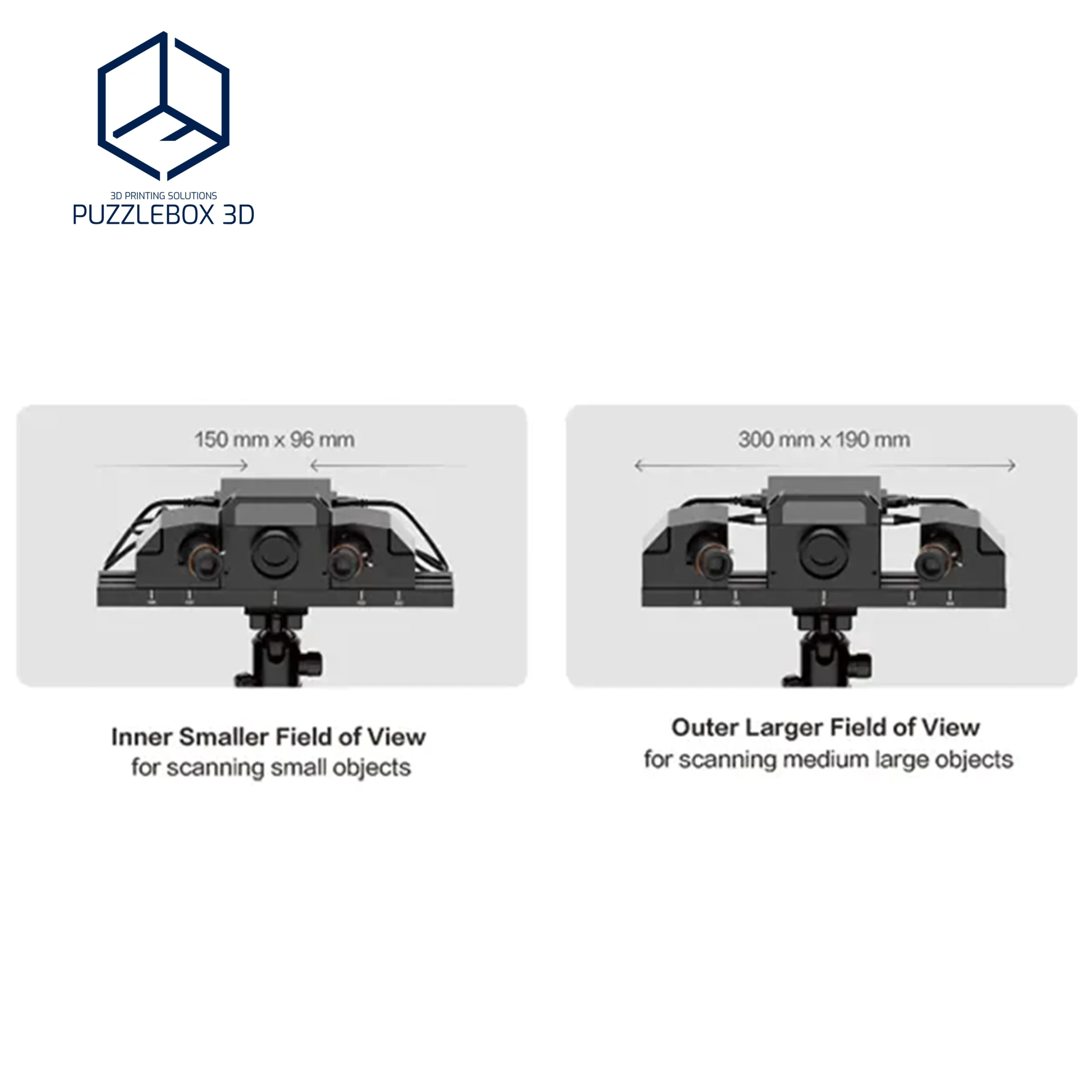

Ready-to-Use Dual Scan Range

The slide-rail design enables an easy switch of the scanning range between 150 mm x 96 mm and 300 mm x 190 mm meeting the needs of scanning objects of different sizes effectively.



Multi-Resolution Fusion

The Multi-Resolution Fusion Algorithm allows a mixture of 3 levels of resolution of high, medium or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.



High Color Fidelity

Two 12 MP color cameras are installed to capture a detailed 24-bit color map, replicating the authentic color of the physical object. Transcan C is the ideal solution to capture color 3D data for virtual display.



High-Accuracy Scan Data

The compact design scanner produces high accuracy of 0.035 mm at its inner position, and of 0.05 mm at its outer position. These results are valuble to many applications for measurement.



Micro Details Reproduction

The minimum point distance can reach



0.0375 mm (resolution)

to reproduce fine details on the surface in its inner position of 150 mm x 96 mm.



Intelligent Operation

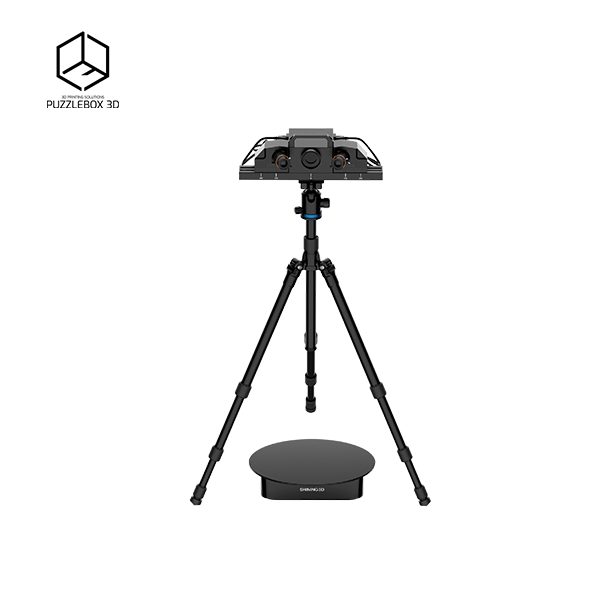

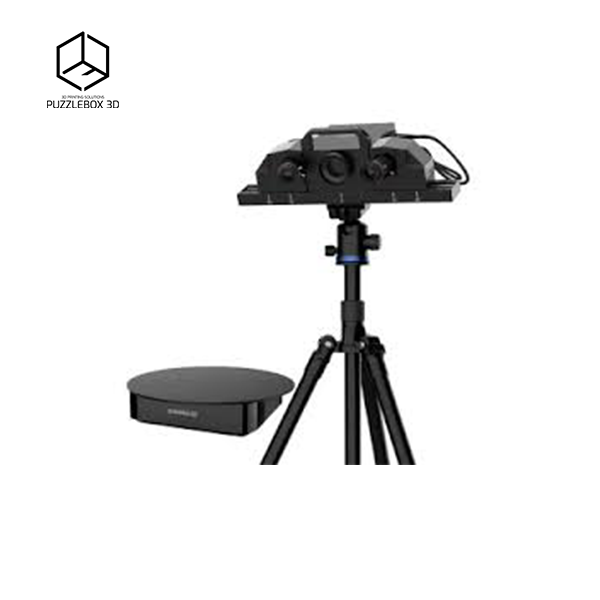

The scanning process is fully automatic with the turntable. Combined with the scanning software’s stitching algorithm, this ensures the efficient acquisition of 3D data without manual intervention. The software interface guides the user through a simple operation process while providing powerful tools for the hustle-free optimization of the scan results.



Specifications:

  • Light Source:
    White LED Light



  • Calibration Mode:
    Manual calibration



  • Scan Mode:
    Structured-light scan with automatic turntable



  • Scan Range:
    150 mm x 96 mm 丨300 mm x 190 mm



  • Single Shot Accuracy:
    0.035 mm丨0.05 mm



  • Scan Speed:
    <70 s (8 scans/turn without texture); <3 s (single frame without texture)



  • Texture Color:
    RGB 24-bit color



  • Texture acquisition method:
    Fully automatic soft light shooting



  • Texture Map:
    12 mega pixels, high fidelity color



  • Align Mode:
    markers alignment; feature alignment; manual alignment



  • Working Distance:
    260 mm 丨480 mm



  • Point Distance:
    0.0375 mm;0.075 mm;0.114 mm 丨0.075 mm;0.154 mm;0.23 mm



  • Data Format:
    OBJ, STL, ASC, PLY, 3MF



  • Working Temperature:
    Indoor, room temperature



  • System:
    Win10; 64-bit



  • Recommended Computer Configuration:
    Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 1060; Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB



  • Size:
    Host module: 332 mm x 110 mm x 142 mm (bare machine size) Tripod components: 475 mm x 120 mm x 120 mm (bare machine size) Turntable module: 320 mm x 320 mm x 68 mm (bare machine size)



  • Weight:
    Host module: 2.74 KG (net weight)Tripod assembly: 2.165 KG (net weight) Turntable module: 2.008 KG (net weight)



  • Maximum Turntable Load-Bearing Capacity:
    ≤10 KG



  • Notice:
    SHINING 3D reserves the right to explain any alteration of the specifications and pictures.
