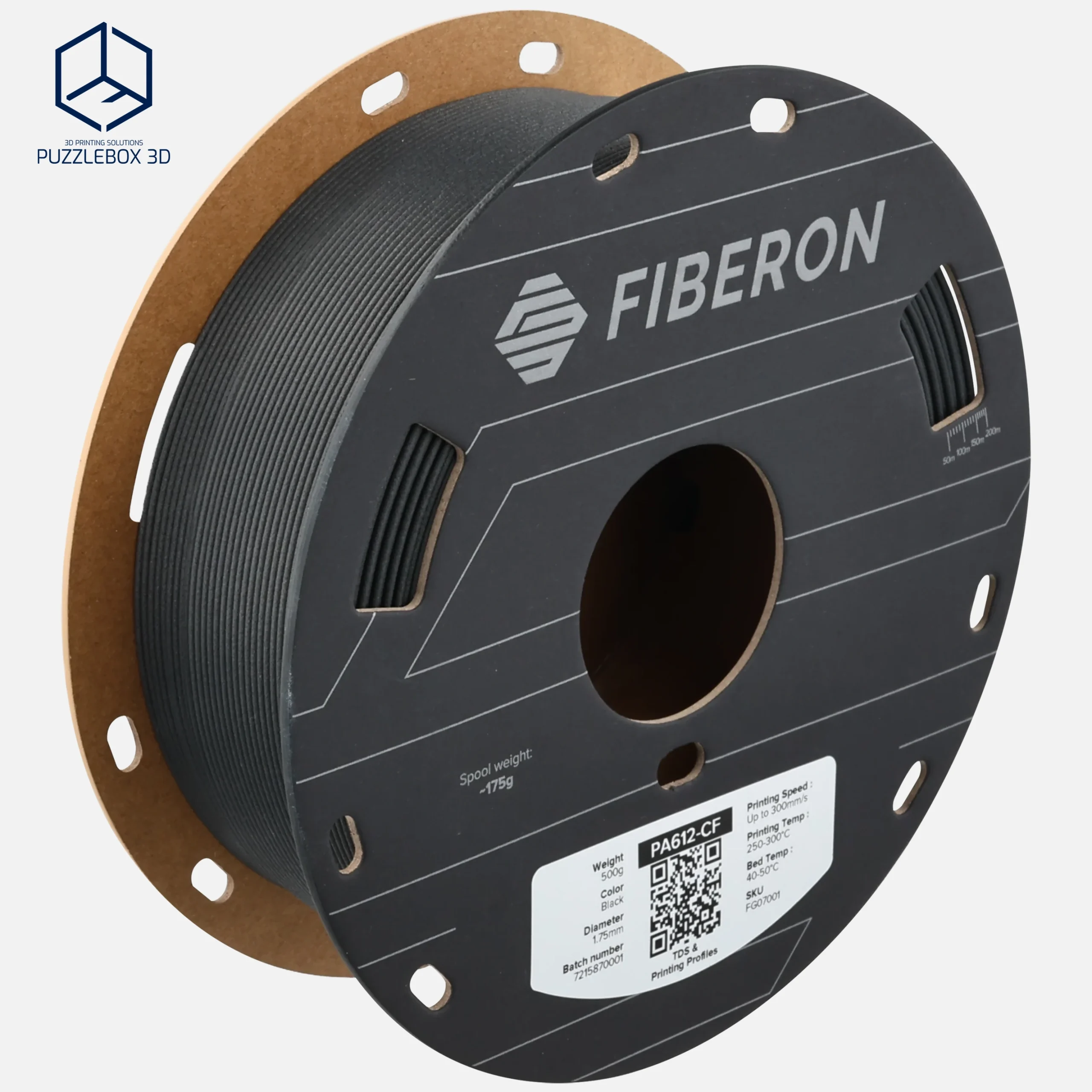

Fiberon™ PA612-CF15 (Formerly PolyMide™ PA612-CF)
₱2,499.00
Fiberon™ PA612-CF15
Less Moisture Sensitive than PA6
Stronger than PA12
Stronger than PA12

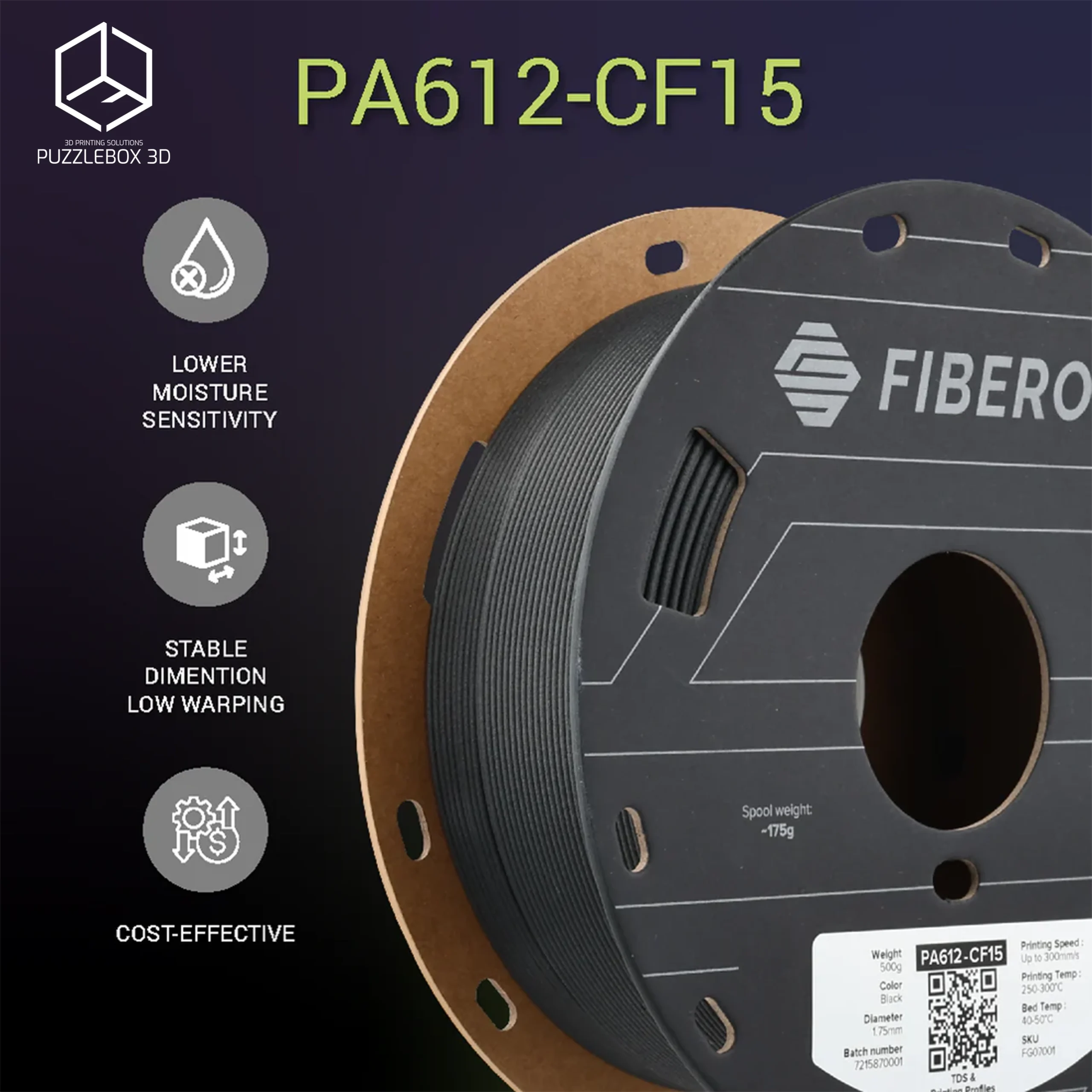

Fiberon™ PA612-CF15 is a carbon fiber reinforced long chain copolyimide filament. Thanks to its chemical structure, this product has lower moisture sensitivity compared to PA6/66 and PA6-based materials, and better mechanical properties than PA12-based materials. In addition, the carbon fiber reinforcement and Warpfree™ technology enhance the size stability of the prints produced with this material.
Fiberon™ PA612-CF15 is the same great formula as PolyMide PA612-CF, although Fiberon™ PA612-CF15 may print in a slightly darker black shade color than its predecessor.
Fiberon™ PA612-CF15 is the same great formula as PolyMide PA612-CF, although Fiberon™ PA612-CF15 may print in a slightly darker black shade color than its predecessor.

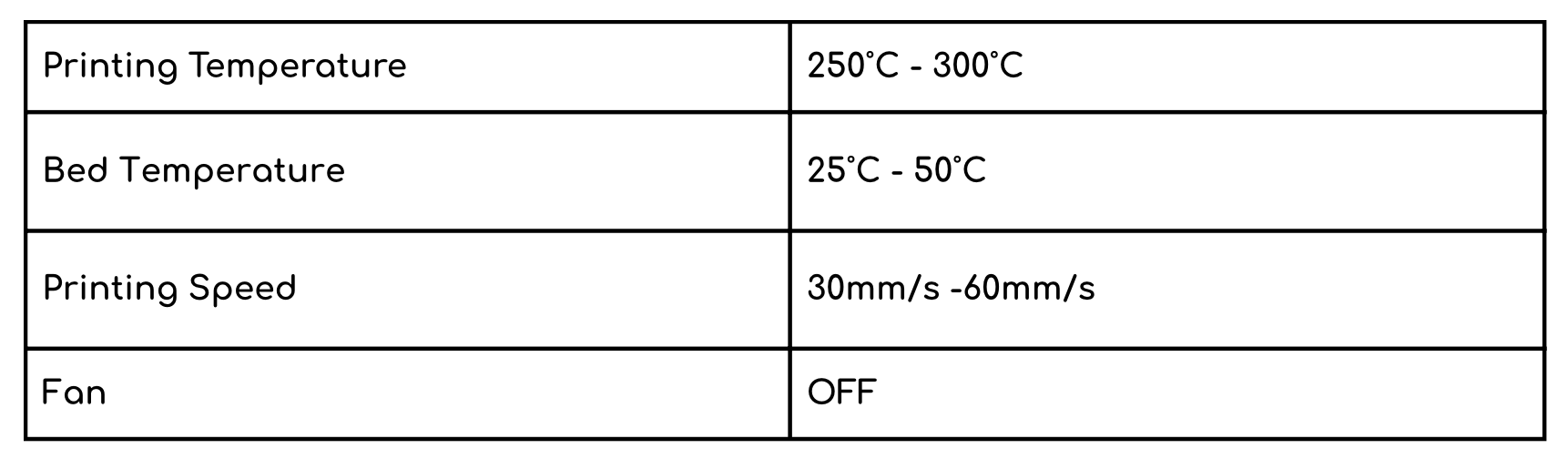

Recommended Printing Conditions
Direct Drive:
Indirect Drive
Drying Settings: 100˚C for 8h
(Only if the material has absorbed moisture)
Annealing: 80˚C for 6h
Note:
- Abrasion of the brass nozzle happens frequently when printing PolyMide™ PA612-CF. Normally, the life of a brass nozzle would be approximately 9h. A wear-resistance nozzle, such as hardened metal coated brass nozzle, for example, nickel coated brass nozzle, metal hardened steel and ruby nozzle, is highly recommended to be used with PolyMide™ PA612-CF.
- If printing PolyMide™ PA612-CF on a general desktop 3d printer at 250-260℃, it is highly recommended to use a hardened metal-coated brass nozzle, for example, a nickel-coated brass nozzle.
- If PolyMide™ PA612-CF is used as the support material for itself, please remove the support structure before excessive moisture absorption. Otherwise, the support structure can be permanently bonded to the model.
After the printing process, it is recommended to anneal the model in the oven at 80°C for 6 hours.
Additional information
| Material type | Polyamide (Nylon) |
|---|---|

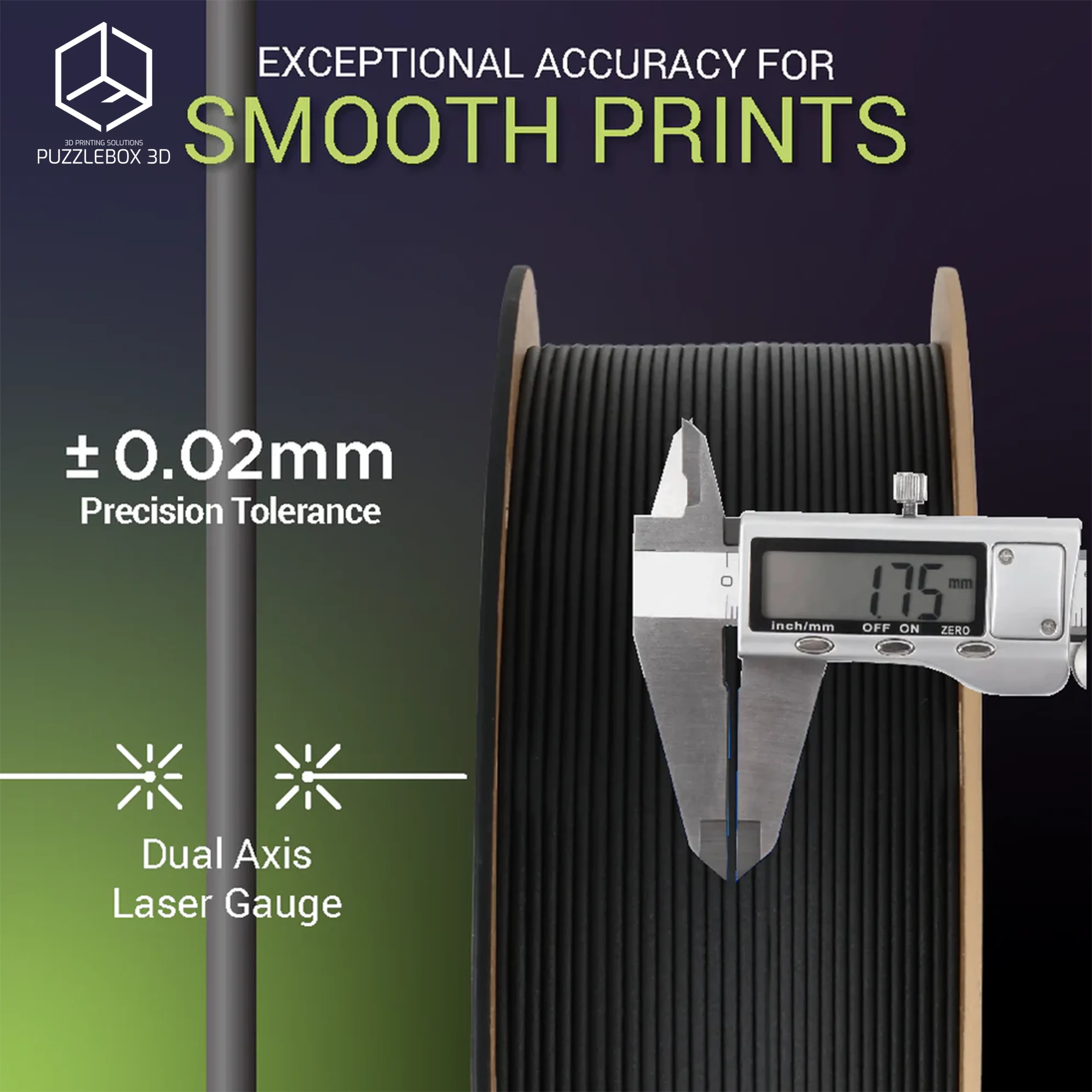

| Filament Diameter | 1.75 mm / 2.85 mm |

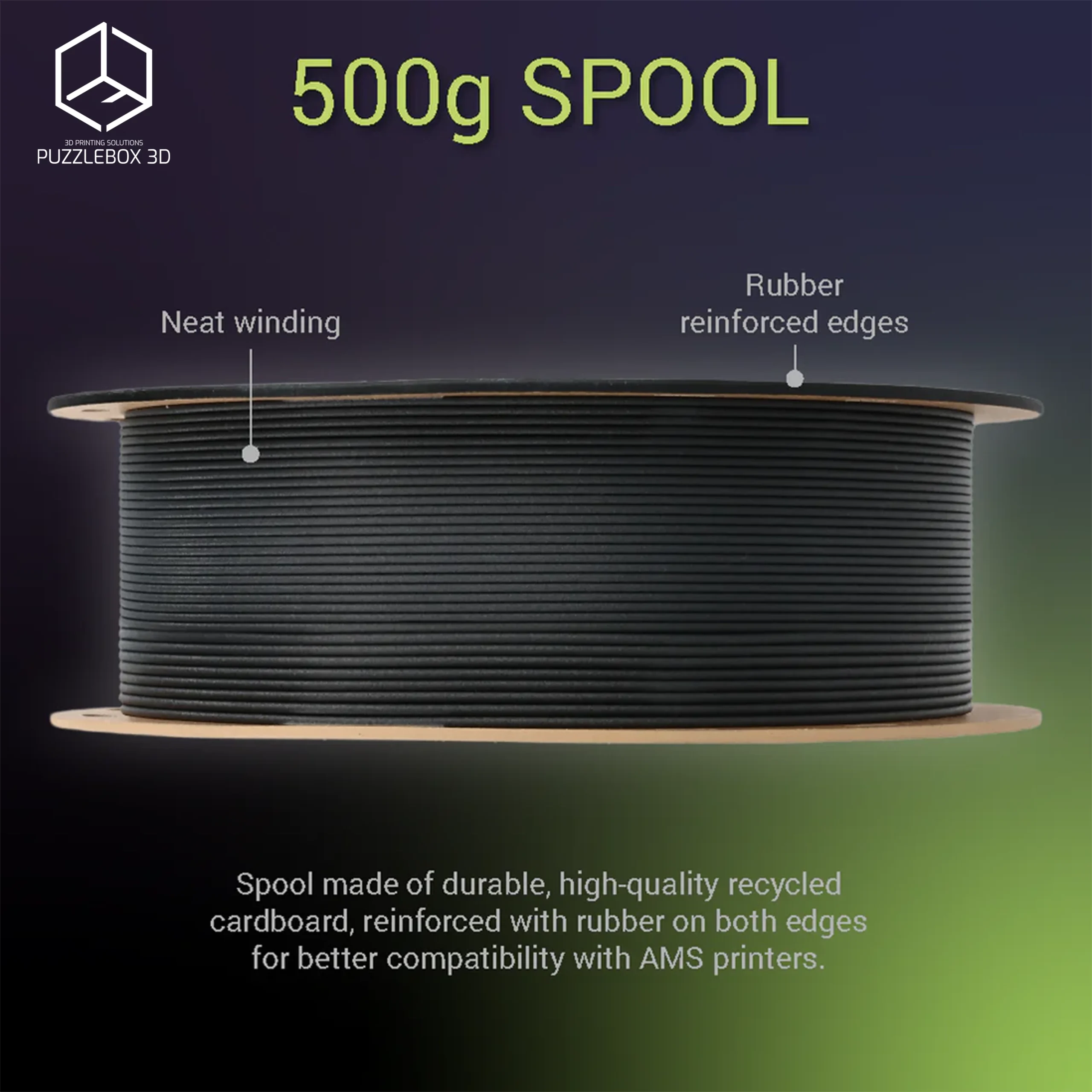

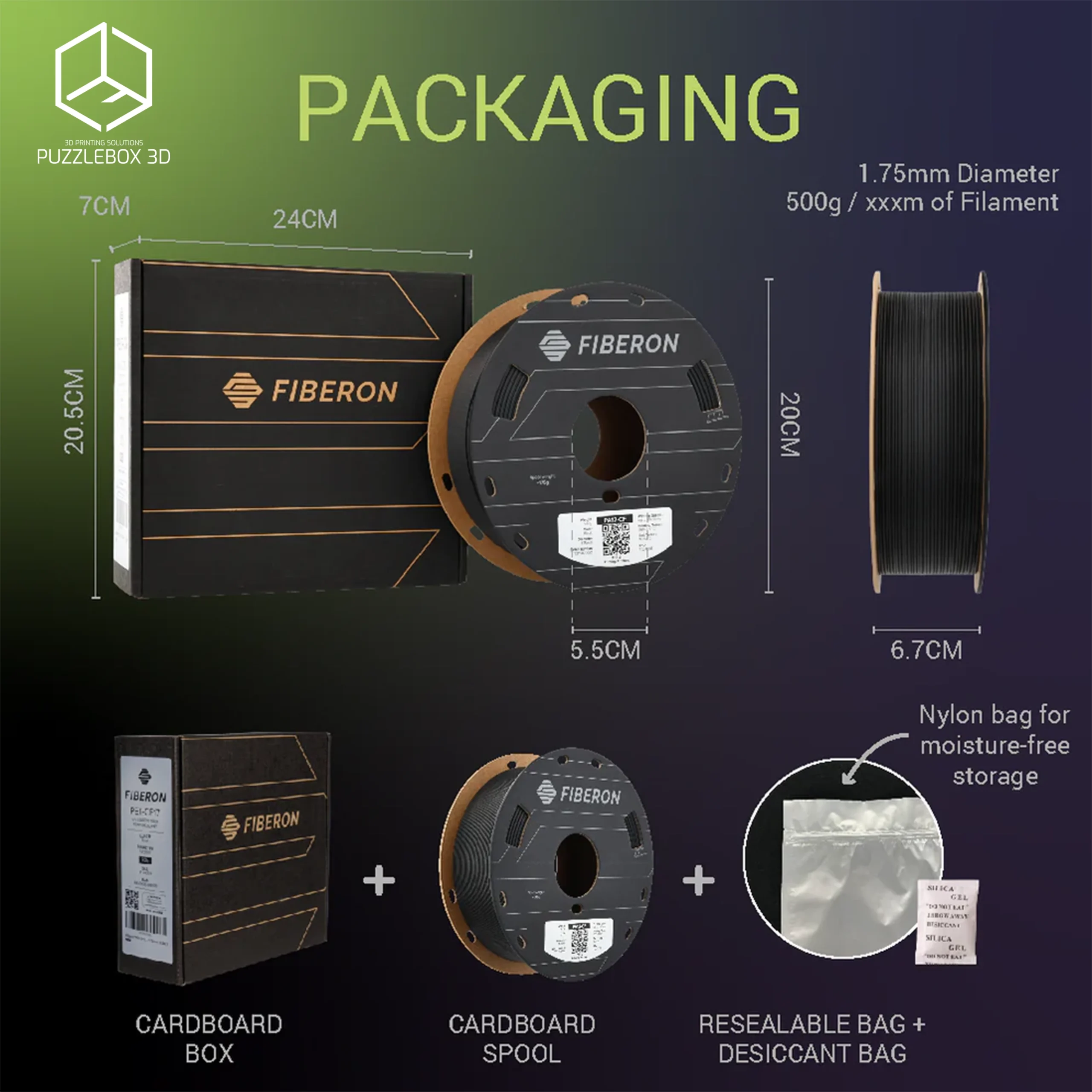

| Typical Spool Weight | 0.5 Kg / 0.75 kg / 1 kg |
| Printing Temperature | 250˚C – 300˚C |
| Build Plate Temperature | 40˚C – 50˚C |
| Chamber Temperature | Room Temperature |
| Printing Speed | up to 300mm/s |
| Cooling Fan | Cooling Fan |
| Direct Drive Retraction Distance | 3mm |
| Direct Drive Retraction Speed | 40mm/s |
| Indirect Drive Retraction Distance | 6mm |
| Indirect Drive Retraction Speed | 60mm/s |
| Regular Oven | 100˚C for 10h |
| PolyDryer | Level 3 for 18h (PolyDryer™) |
| Annealing Settings | 100˚C for 16h |
