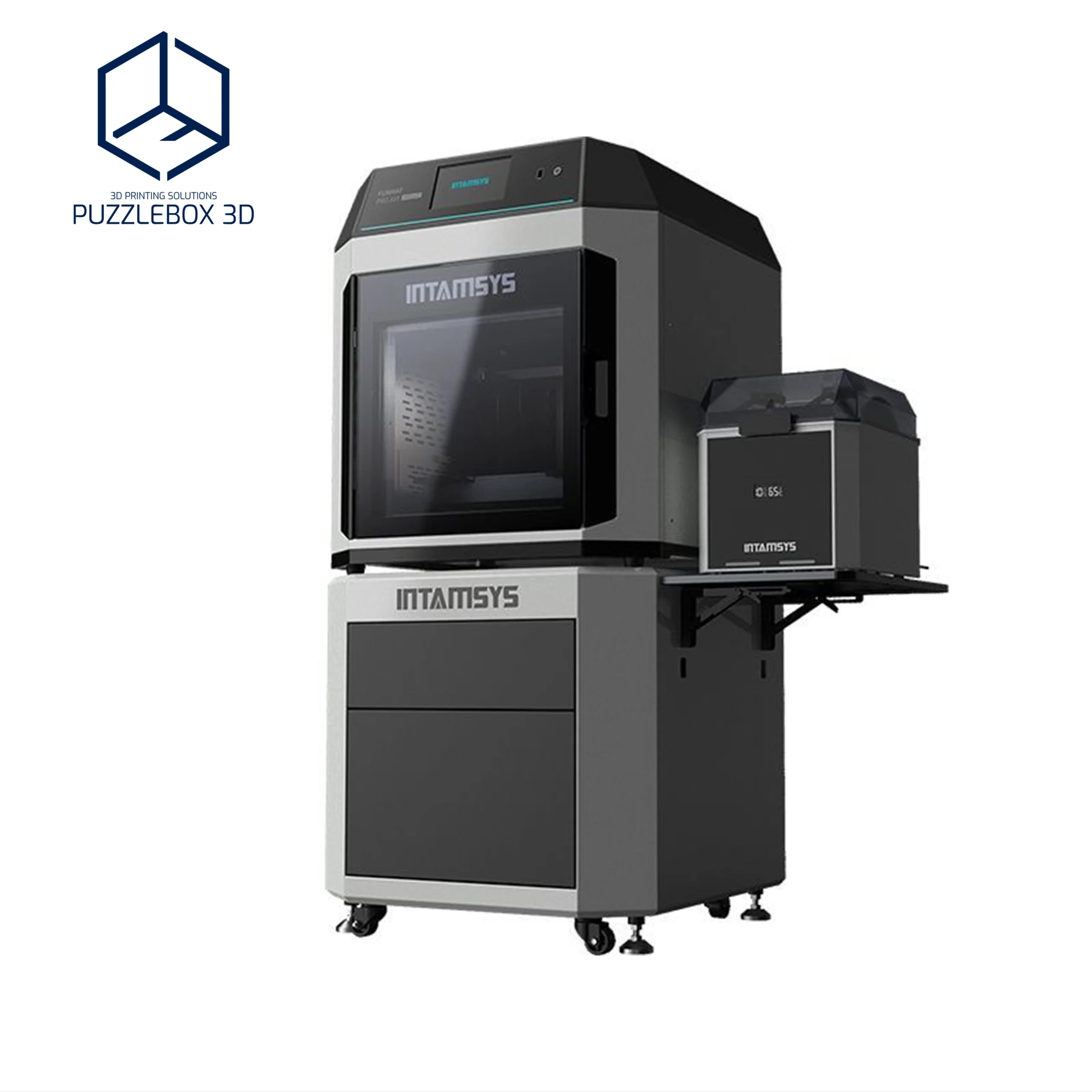

Funmat Pro 310 Apollo PAEK Printer
₱1,250,000.00
The Intamsys Funmat Pro 310 APOLLO is an industrial FFF 3D printer engineered specifically for PAEK-class production and continuous manufacturing of high-performance polymer parts. The APOLLO targets full-range PAEK applications and supports PEEK, PEKK, PEEK-CF, and PEEK-GF for functional end-use components.
The machine combines a 450 °C dual-nozzle IDEX system with a 160 °C build plate and a 100 °C thermostatic chamber to deliver high Z-axis strength and dimensional stability at production speeds. For example, the APOLLO reaches up to 200 mm/s process speed for PAEK materials and achieves Z-tensile strength exceeding 40 MPa, which corresponds to roughly 2x higher Z-axis strength compared to standard PEEK printers.
For continuous production, the Funmat Pro 310 APOLLO integrates dual 3 kg active-dry filament boxes and the INTAMQuality™ traceability suite into the base system. The integrated dry boxes maintain up to 65 °C, monitor humidity in real time, and support week-long jobs without spool swaps, while INTAMQuality records process data, provides full part and material tracking, and uses RFID spool recognition for material validation.
The APOLLO addresses high-requirement applications in aerospace, aerostructures, robotics, and oil and gas where elevated temperatures, high loads, and demanding environments are standard requirements. INTAMSYS highlights aerospace PEEK parts that combine high strength and radiation resistance, PEKK aerostructure components with extremely high Z-strength and no post-processing, carbon-fiber-reinforced PEEK parts for robotics with ultra-high modulus, and PPS-GF components for oil and gas with high wear resistance and rigidity.
Additional information
| Acceleration | Max. 8000 mm/s² (PAEK-tuned high-speed architecture) |
|---|---|
| Assembly | Fully-assembled |
| Build Plate | Magnetic flexible HPP build plate, compatible with EP build plate options |
| Connectivity | USB, Ethernet, Wi-Fi |
| Display | 7" touch screen HMI |
| Extruder Type | Independent dual extruder (IDEX) |
| Filament Diameter | 1.75 mm |
| Filter | HEPA + activated carbon, replaceable |
| Leveling | Mesh leveling (max. 100 points) with dual-extruder auto calibration |
| Max. build plate temperature | 160 °С |
| Max. chamber temperature | 100 °С |
| Max. extruder temperature | 450 °С |
| Max. print speed | Max. 500 mm/s; PAEK — Max. 200 mm/s |
| Nozzle diameter | 0.4 mm |
