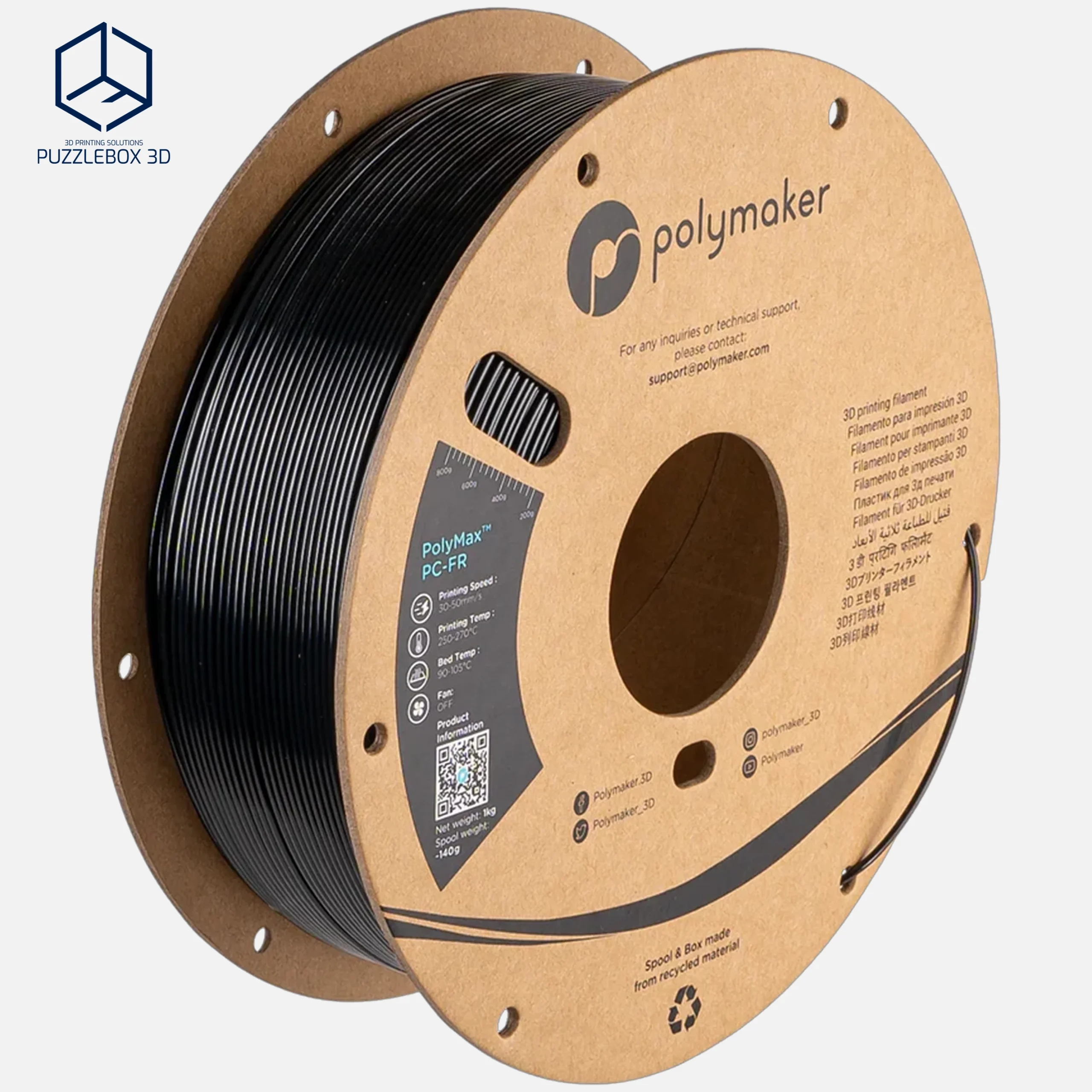

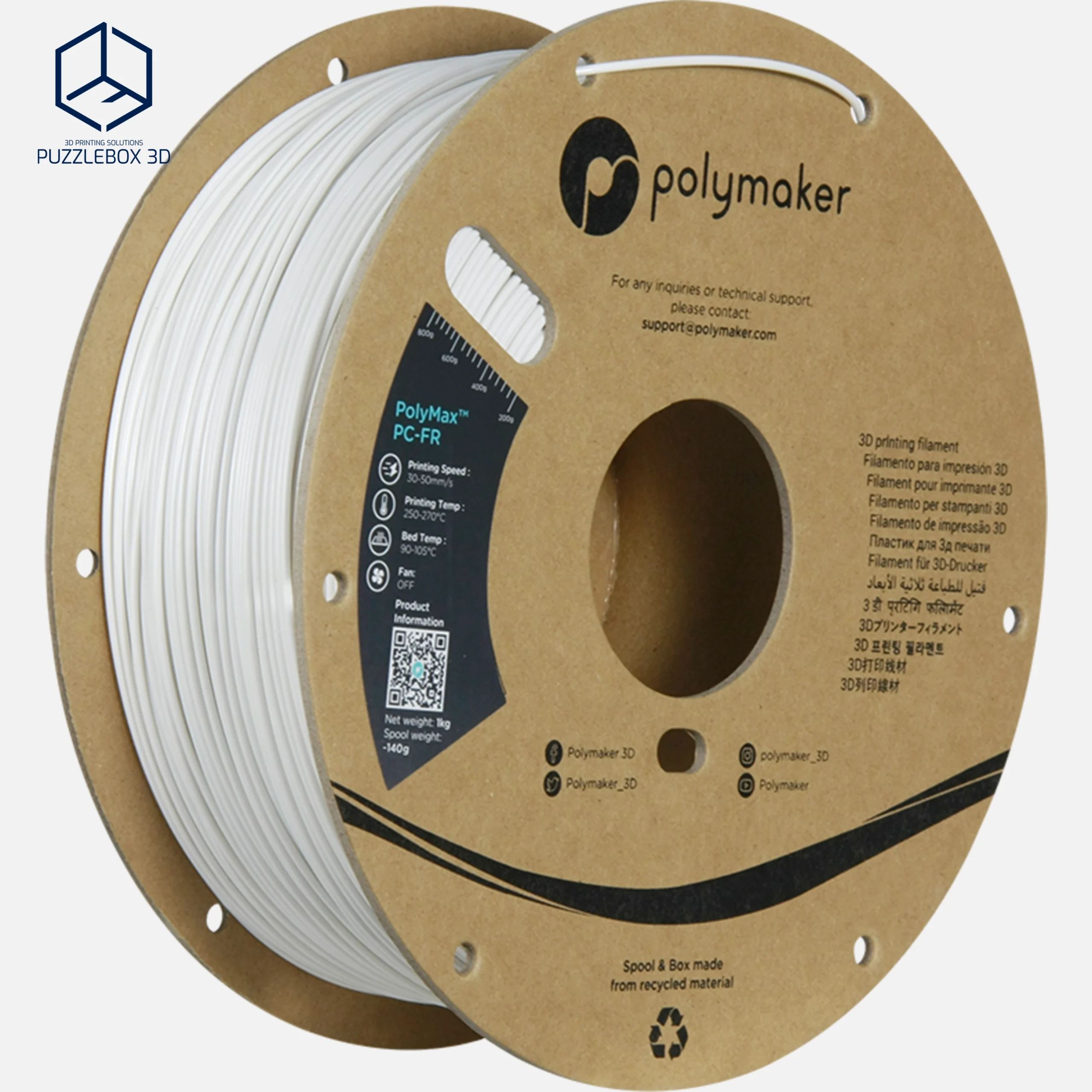

PolyMax™ PC-FR
₱2,999.00
PolyMax™ PC-FR is a fire-retardant PC filament displaying strength and toughness whilst also achieving a V0 score in the UL94 flame retardancy test. PolyMax™ PC-FR can reduce the intensity of a fire or slow/stop the spread of fire due to its self-extinguishing characteristics.
Recommended Printing Conditions
Direct Drive:
Indirect Drive:

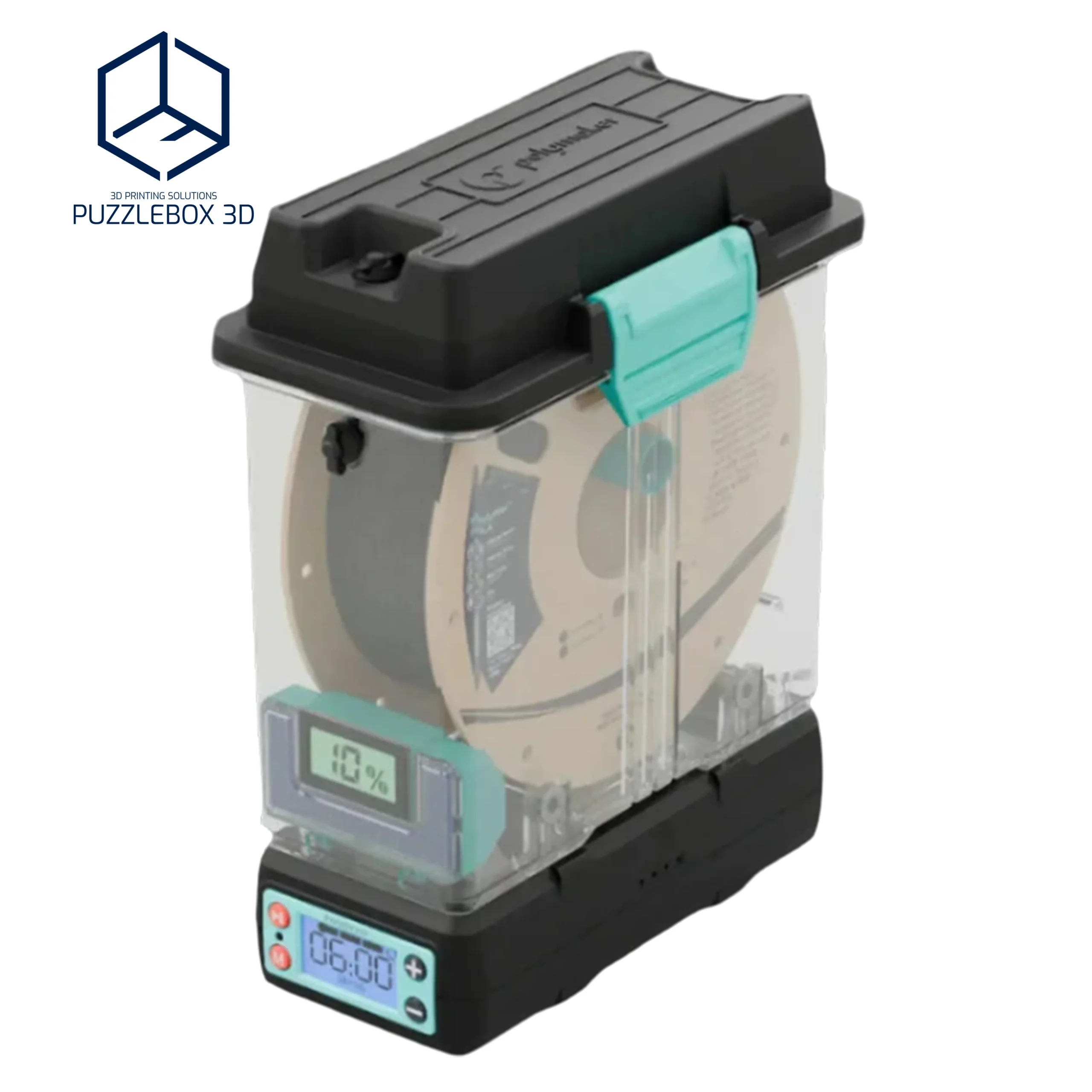

Drying Settings: 75˚C for 6h
(Only if the material has absorbed moisture)
Note:
- When printing with PolyMax™ PC-FR, it is recommended to use an enclosure. For large part, it is recommended to use a heated chamber.
- It is recommended to anneal the printed part right after the printing process to release the residual internal stress. Annealing settings: 90˚C for 2h
Additional information
| Material type | Polycarbonate (PC) |
|---|---|
| Filament Diameter | 1.75 mm / 2.85 mm |
| Typical Spool Weight | 0.75 kg / 1 kg / 3 kg |

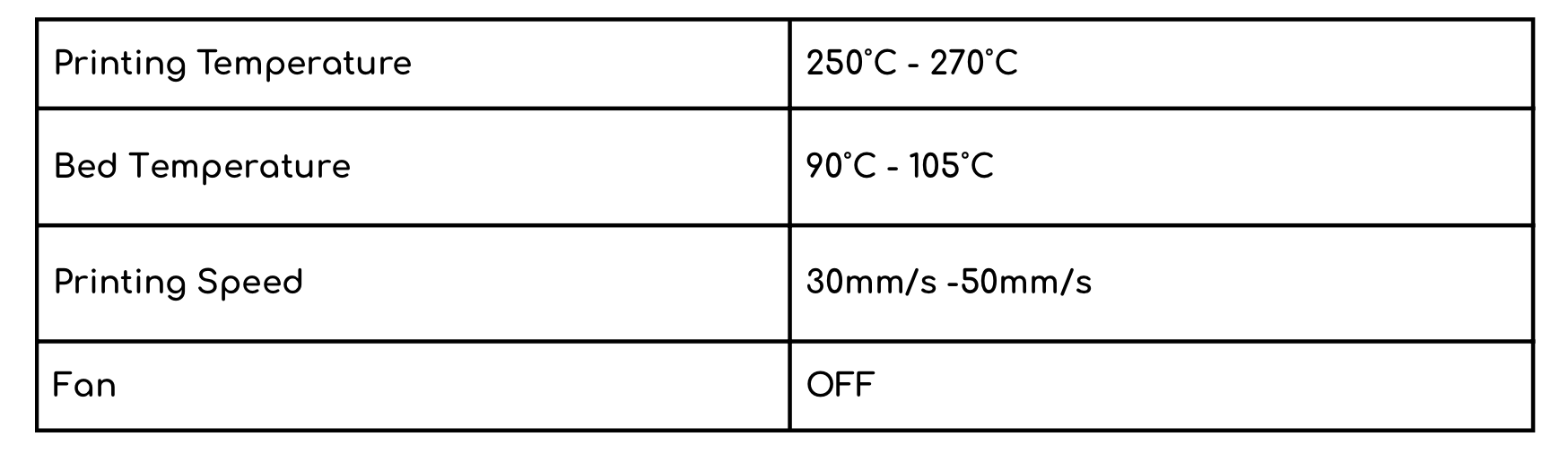

| Printing Temperature | 250˚C – 270˚C |
| Bed Temperature | 90˚C – 105˚C |
| Chamber Temperature | 90˚C – 100˚C |
| Printing Speed | 30mm/s – 50mm/s |
| Fan | OFF |
| Direct Drive Retraction Distance | 1mm |
| Direct Drive Retraction Speed | 20mm/s |
| Indirect Drive Retraction Distance | 3mm |
| Indirect Drive Retraction Speed | 40mm/s |
| Drying Settings | 75˚C for 6h |
| Annealing Settings | 90˚ for 2h |
