Bambu Lab AMS Hub
In Stock
Ships Tomorrow
New
Includes Warranty
Local Technical Support
Ships Tomorrow
New
Includes Warranty
Local Technical Support
Why Puzzlebox 3D?
We are the Philippine’s leading supplier for Digital Fabrication equipment. We offer the largest selection of expertly curated 3D Printers, 3D Scanners, Thermoforming, Filament, Resins PEEK, Metal, Injection Moulding and Fablab equipment handpicked from across the globe.

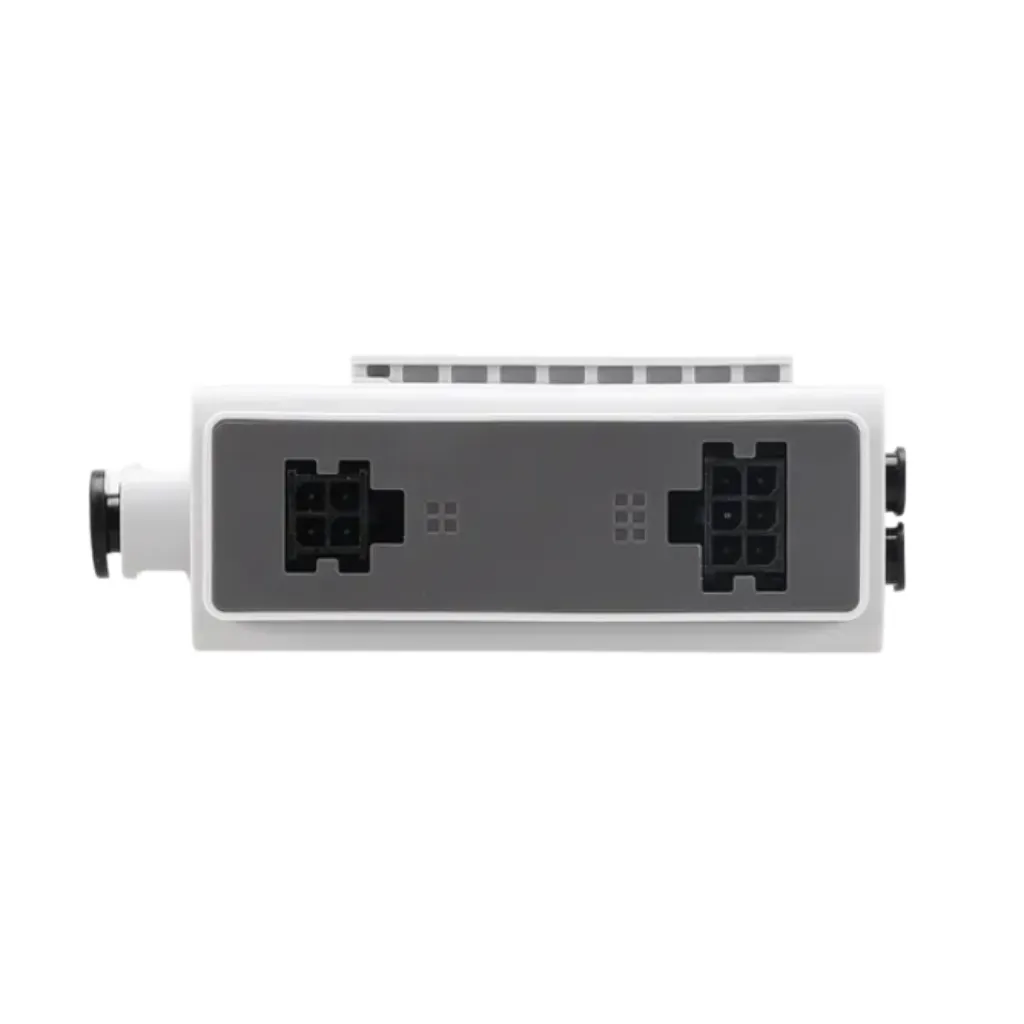

Bambu Lab AMS Hub

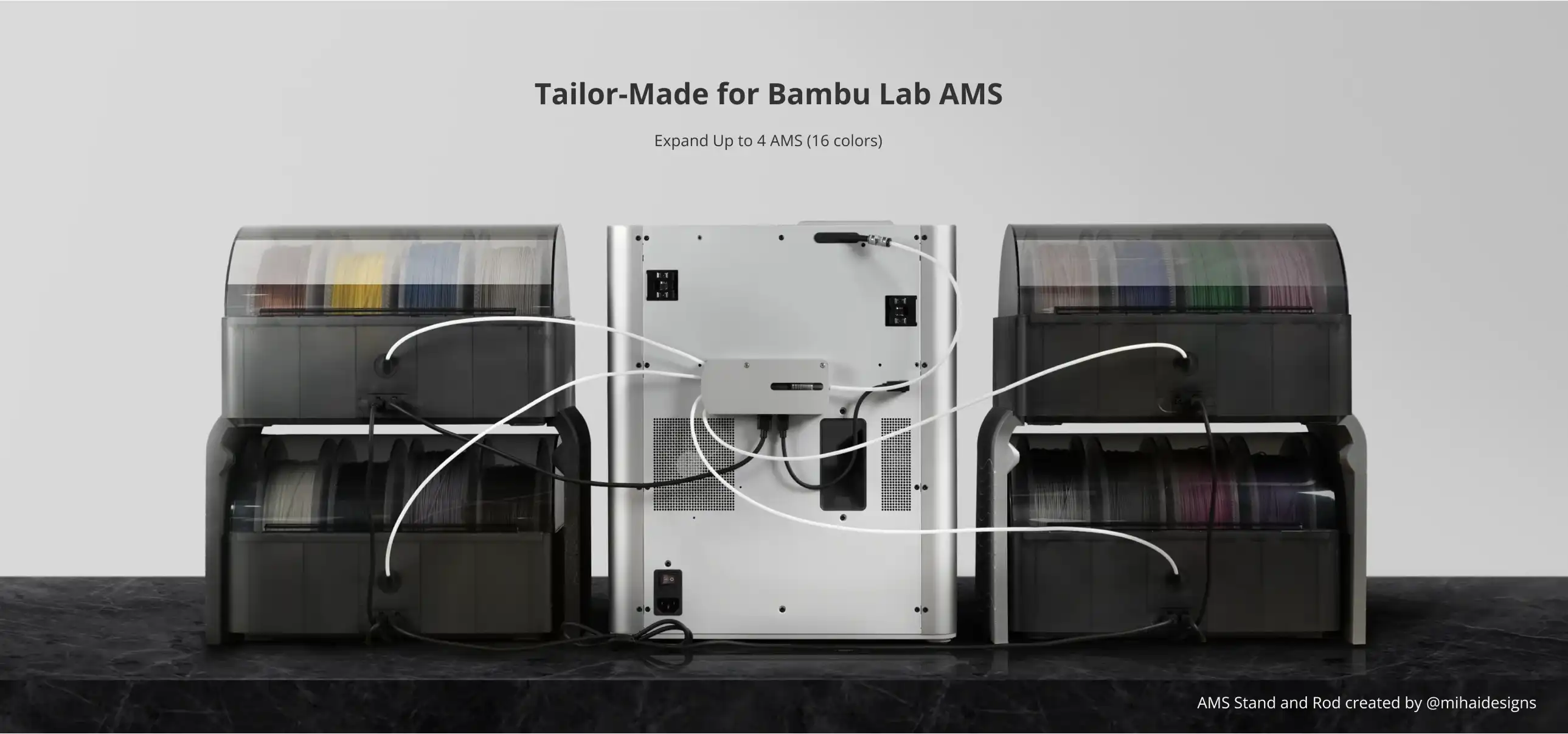

The AMS Hub is used to expand the number of AMS connected to Bambu X1 series printers from 1 (4 channels) to a maximum of 4 (16 channels) to improve the refueling speed across your multiple AMS units and support the redundancy of a buffered signal.
In the Box
2x Bus Cable - 6pin, 1xPTFE Tube, 2x M3*28 Screw
How-to video
Installation

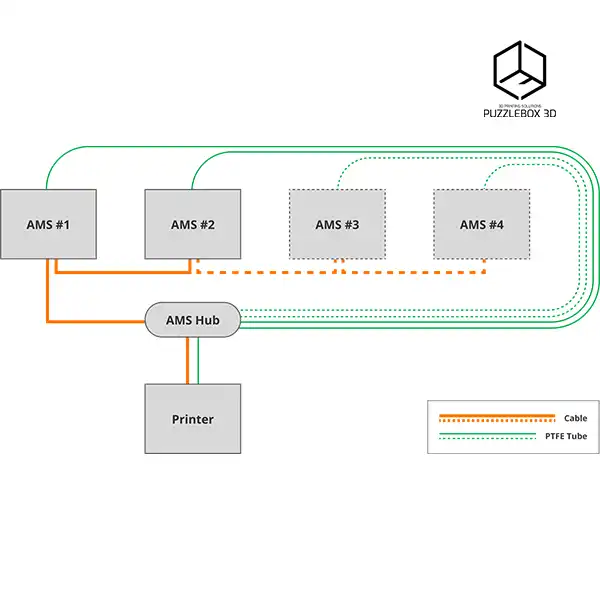

- Install the AMS Hub on the back of the printer, replacing the Filament buffer if you have one, and use the matching Bambu 4 Pin cable to connect to the printer, use the Bambu 6 Pin cable to connect to the first AMS, then continue to use the 6-pin cable to connect the remaining AMS in series.
- Use the matching PTFE Tube to connect the AMS Hub and the air tube connector on the back of the printer, the tube should pass between the 4-pin plug and the spool holder to reduce the resistance.
- According to the placement of the AMS and the printer, you can choose the appropriate length of the PTFE tube to connect the AMS and the AMS Hub. The tube should be as short as possible and avoid winding to reduce the feeding resistance.
AMS Hub Tech Specs
| Product Size |
140*60*22 mm
|
| Package Size |
235*167*40 mm
|
| Product Weight | 84 g |
| Gross Weight | 321 g |
| Material | Plastic, metal, printed circuit board |
| Input | 24V 3A |
| Color | Gray |
