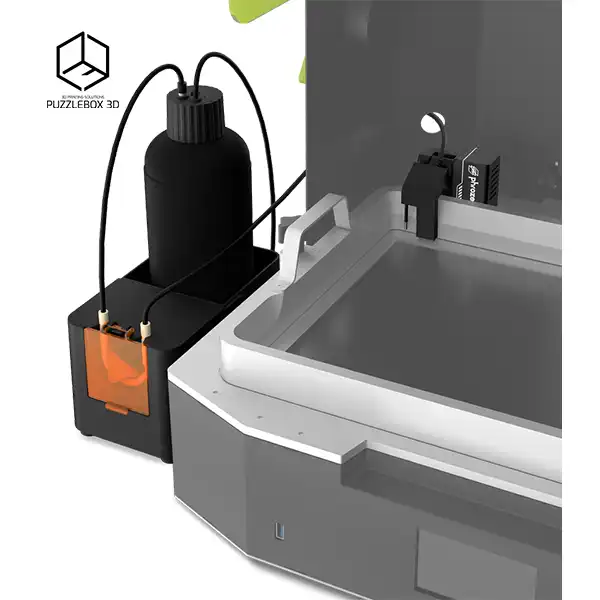

Phrozen Mega 8kS Pump and Fill Automated Resin Feeder
₱12,700.00
- Automatically add resin mid-prints when needed.
- Auto-suck leftover resin on the vat after printing.
- Manual resin pump feature for vat cleaning.
- Add-ons for Soinic Mighty Revo & Mega 8K S.
Keep Your Machine Printing Even When You Rest
Printing large models has its own challenge as you might need to constantly refill the resin vat. But if you add in too much, you'll end up with a full mega vat of resin that would be a hassle to clean.
Benefits
Phrozen Pump & Fill eliminates both issues with its Resin Auto-Fill and Resin Auto-Pump functions:
- Resin Auto-Fill Function: Automatically add resin mid-prints when the sensor detects your vat is running low on resin. No need to worry about prints failing due to insufficient resin because you’ll always have enough.
- Resin Auto-Pump Function: Automatically suck the leftover resin back into the bottle once you finish printing so it’s easier and safer when you clean the vat.
- Immediate Resin Pump: Turn the suction feature manually when you want to clean up your vat.
Content
- Pump Case X1
- Pump Lid X1
- Empty Resin Bottle X1
- Inlet Component X1 (Including Inlet Hose, Servo Cable, and Sensor Cable)
- Pump Data Cable X1
- Lid Data Cable X1
- Peristaltic Tube X1
Note:
- Compatible bottle height: 210 mm
- Compatible bottle diameter: 90 mm
- The peristaltic tube is consumable. Please replace it every 6 months.
- Please note that the Pump & Fill is NOT compatible with ABS-Like+, Onyx Pro410, PC/GF-Like, Onyx Impact Plus, and Protowhite. Pump & Fill is compatible with most other Phrozen resins (except those listed above). For resins with other packaging (250g, 500g, or 5kg), please use the empty bottle provided with your Pump & Fill purchase. We recommend using Phrozen Pump & Fill with Phrozen resin for the best performance. If any issue occurs, please contact our support team.
- We suggest using the Phrozen Pump & Fill with Phrozen Resin for optimum performance and best printing experience. If a problem occurs, please feel free to contact our support team.
Additional information
| Functions | Resin Auto-Fill, Resin Auto-Pump, Manual Suction |
|---|---|
| Resin Level Maintenance | Automatically maintains a 7–9 mm level |
| Pump Type | Peristaltic Pump (Consumable tube replaced every 6 months) |
| Max Bottle Height | $\leq$ 210 mm |
| Max Bottle Diameter | $\leq$ 90 mm |
| Bottle Cap Limit | $\varnothing$ 37 mm |
| Connectivity | Dedicated Pump Data Cable & Sensor/Servo interface |
| Compatibility | Specifically designed for the Sonic Mega 8K S and 8K V2 |
| Feature | Automatic 10-minute post-print suction cycle |
