Formerly PolyMide PA12-CF
Note: You may still received products under PolyMide packaging. They are SIMILAR.

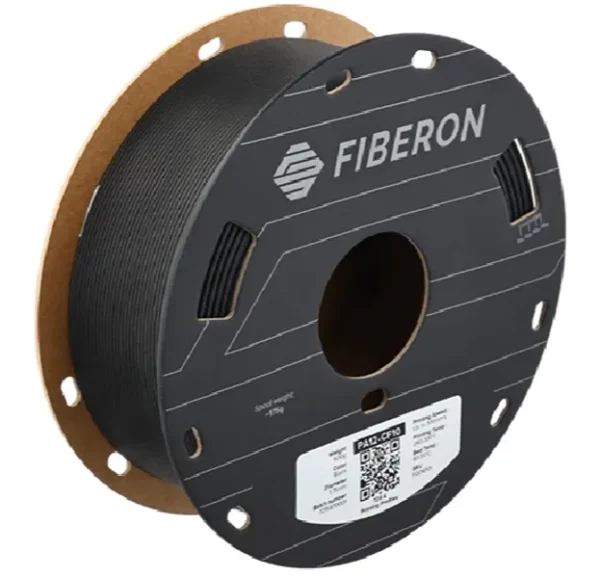

Polymaker Fiberon PA12-CF10
Fiberon™ is a family of Nylon/polymide based filaments. Produced with Polymaker’s Warp-Free™ technology, Fiberon™ filaments deliver engineering properties intrinsic to Nylon and ease of printing.
Fiberon™ PA6-CF20 is a carbon fiber reinforced PA6 (Nylon 6) filament. The carbon fiber reinforcement provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion.
Fiberon™ PA6-CF20 is a carbon-fiber reinforced nylon filament with high tensile strength and heat deflection up to 215 °C. This material can operate in extremely demanding applications in the automotive, scientific, and engineering industries.
Fiberon™ PA6-CF20 features Polymaker’s Warp-Free™ technology and Fiber Adhesion™ technology:Warp-Free™ technology enables the production of Nylon-based filaments that can be 3D printed with excellent dimensional stability and near-zero warpage. This is achieved by the fine control of microstructure and crystallization behavior of Nylon, which enables the material to fully release the internal stress before solidification.
RECOMMENDED SETTINGS
Nozzle Temperature:
280˚C – 300˚C *
Printing Speed:
60mm/s
Bed Temperature:
25˚C – 50˚C (Do NOT exceed 50 ˚C)
Bed Surface:
almost any surface with a thin coat of PVA glue or Magigoo PA
Cooling Fan:
OFF
Based on 0.4 mm nozzle and Simplify 3D v.4.0. Printing conditions may vary with different printers and nozzle diameters
* We highly recommend to use a wear resistant nozzle
MECHANICAL PROPERTIES
Young’s Modulus:
7453 ± 656 (MPa)
Tensile Strength:
105.0 ± 5.0 (MPa)
Bending Strength:
169.0 ± 4.7 (MPa
Charpy Impact Strength:
13.34 ± 0.52 (kJ/m2)
THERMAL PROPERTIES
Heat Deflection Temperature
(ISO 75 1.8 MPa)
196 ˚C
Heat Deflection Temperature
(ISO 75 0.45 MPa):
215 ˚C
Melting Temperature:220 (°C)
NOTES
Drying Settings:
80˚C for 12h
Recommended Support Materials:PolyDissolve™ S1
