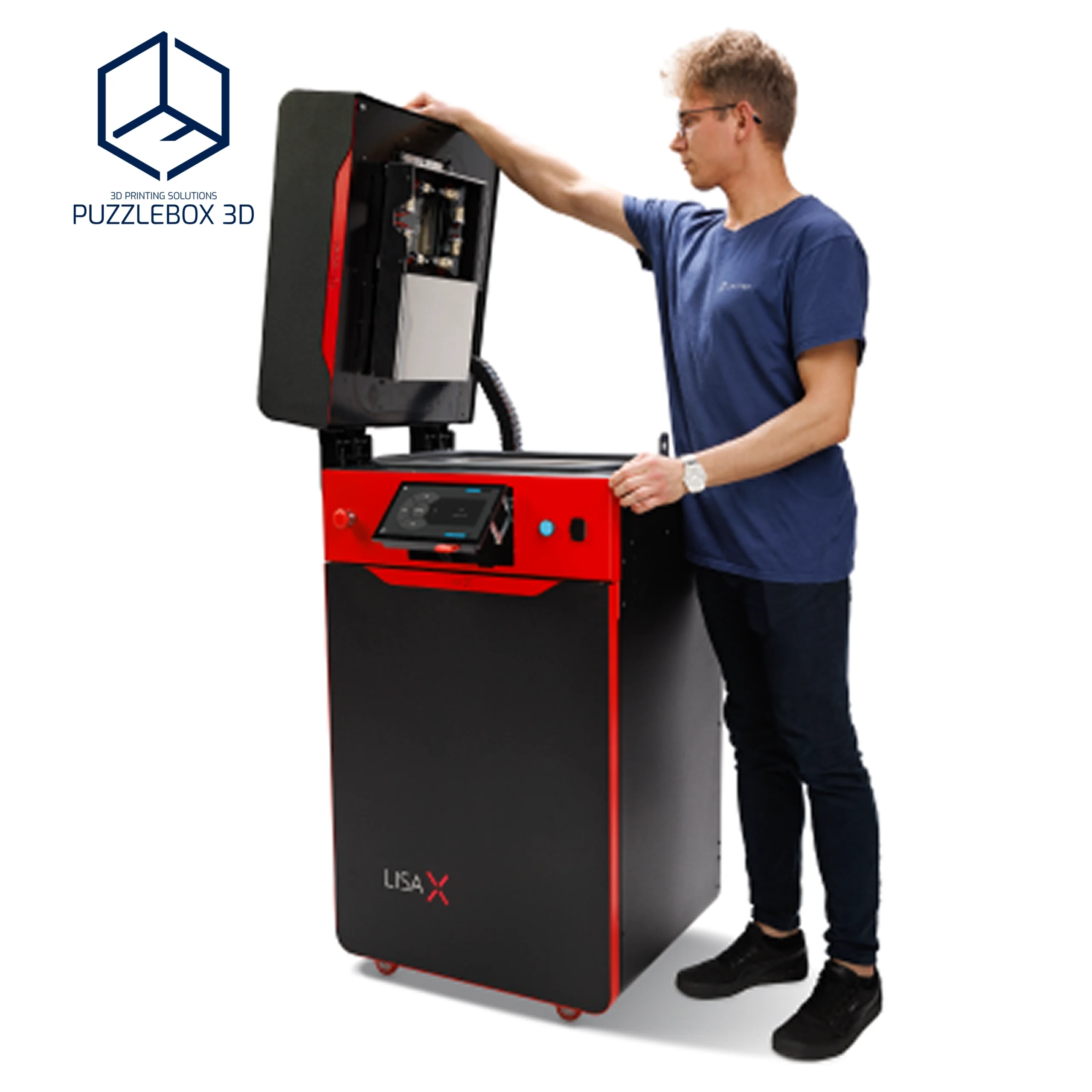

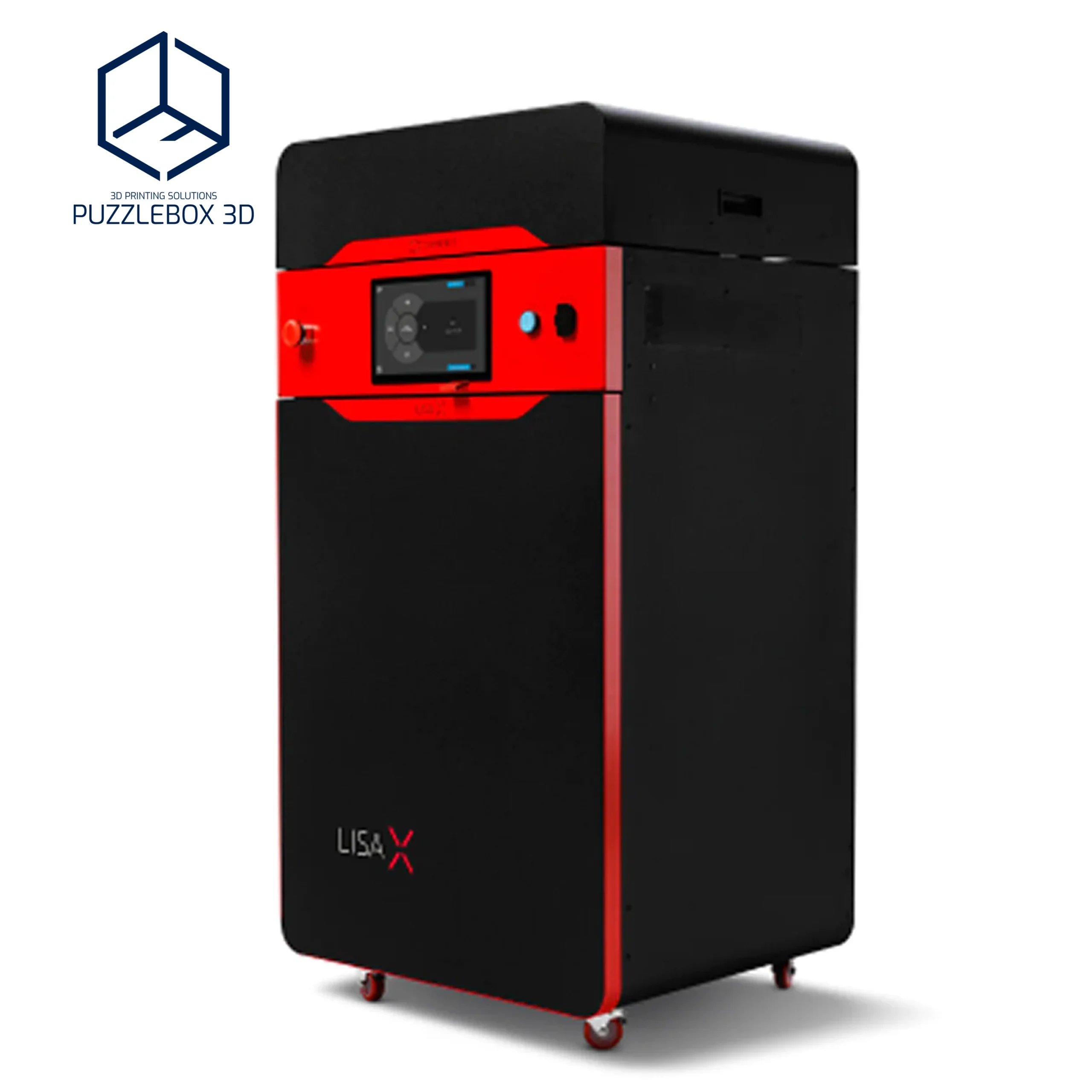

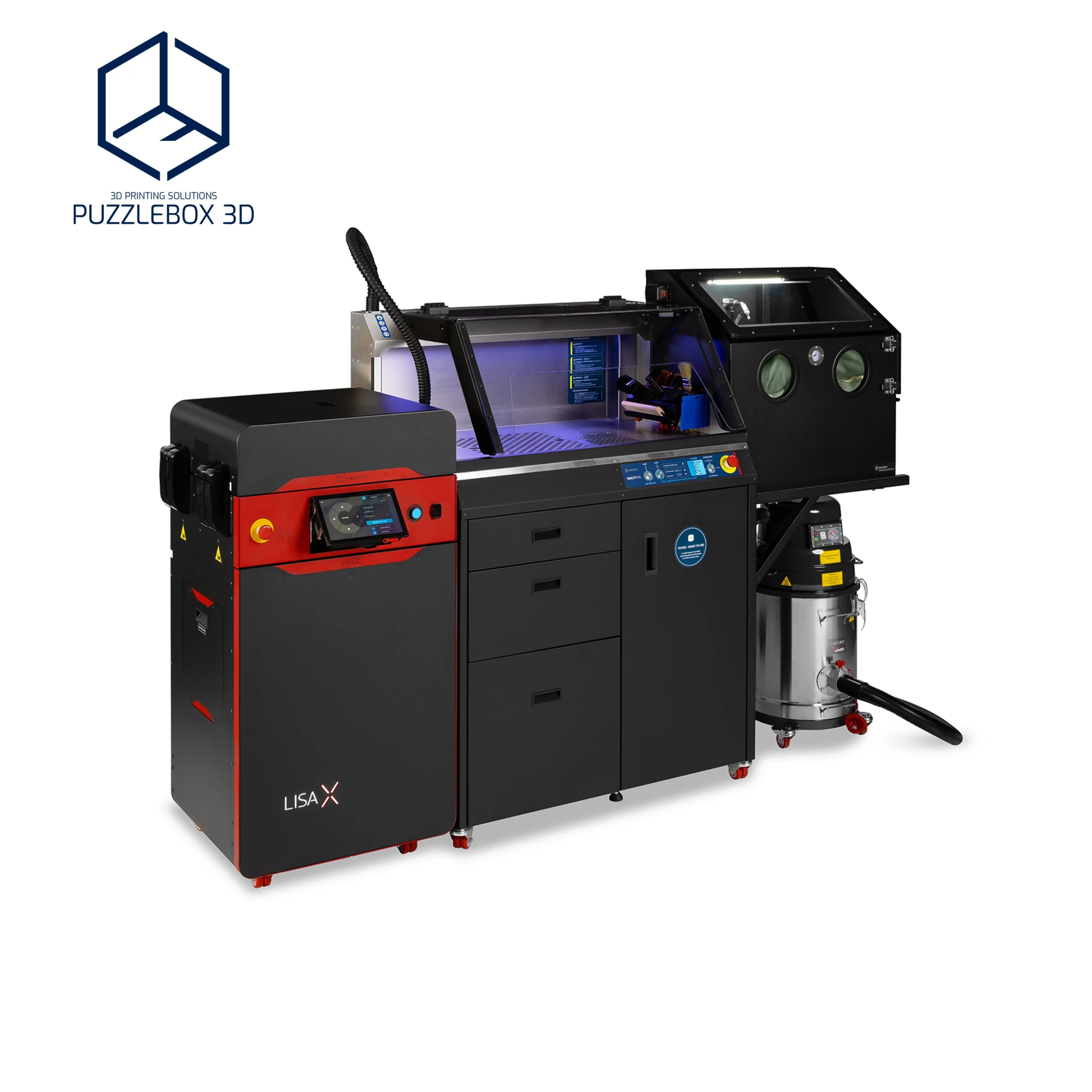

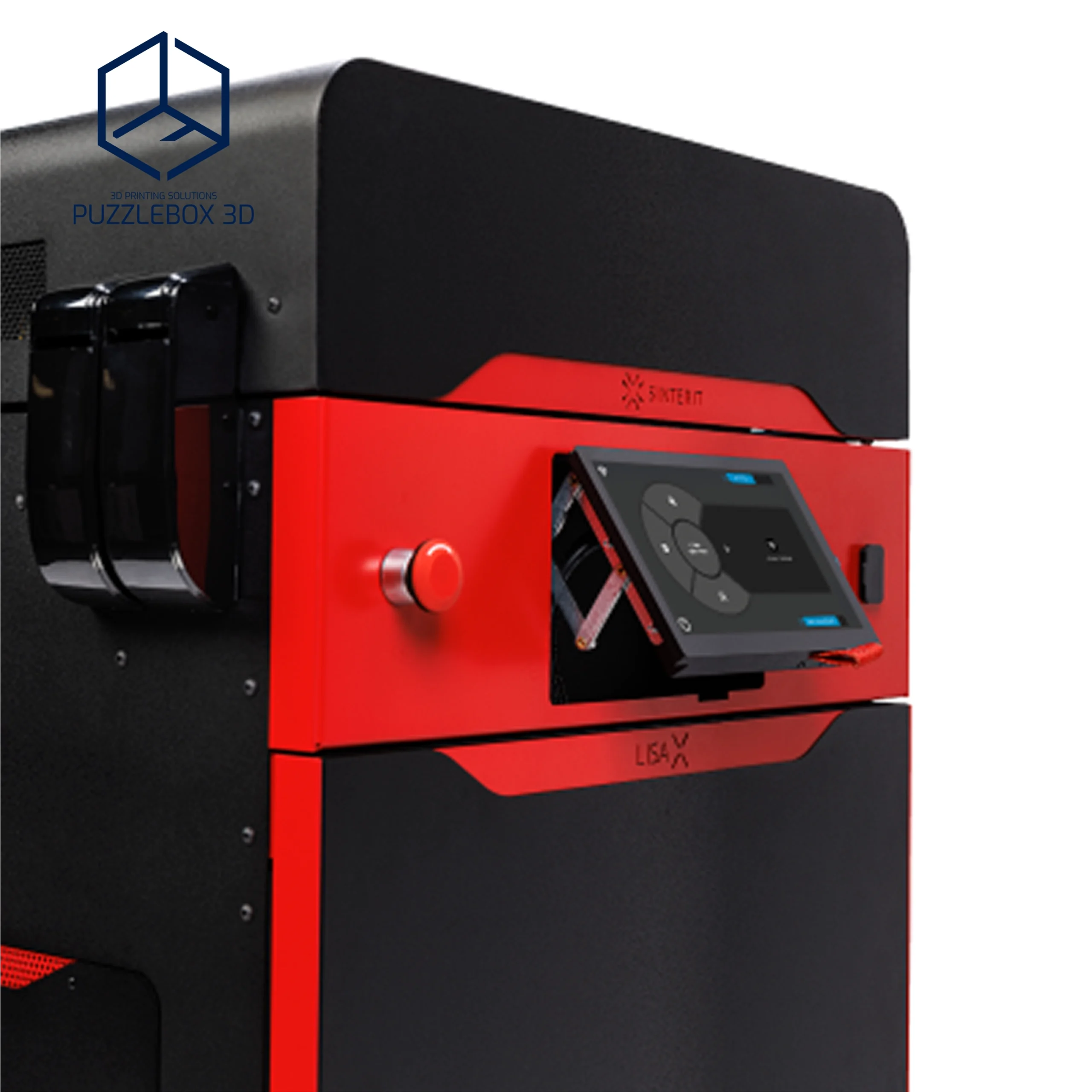

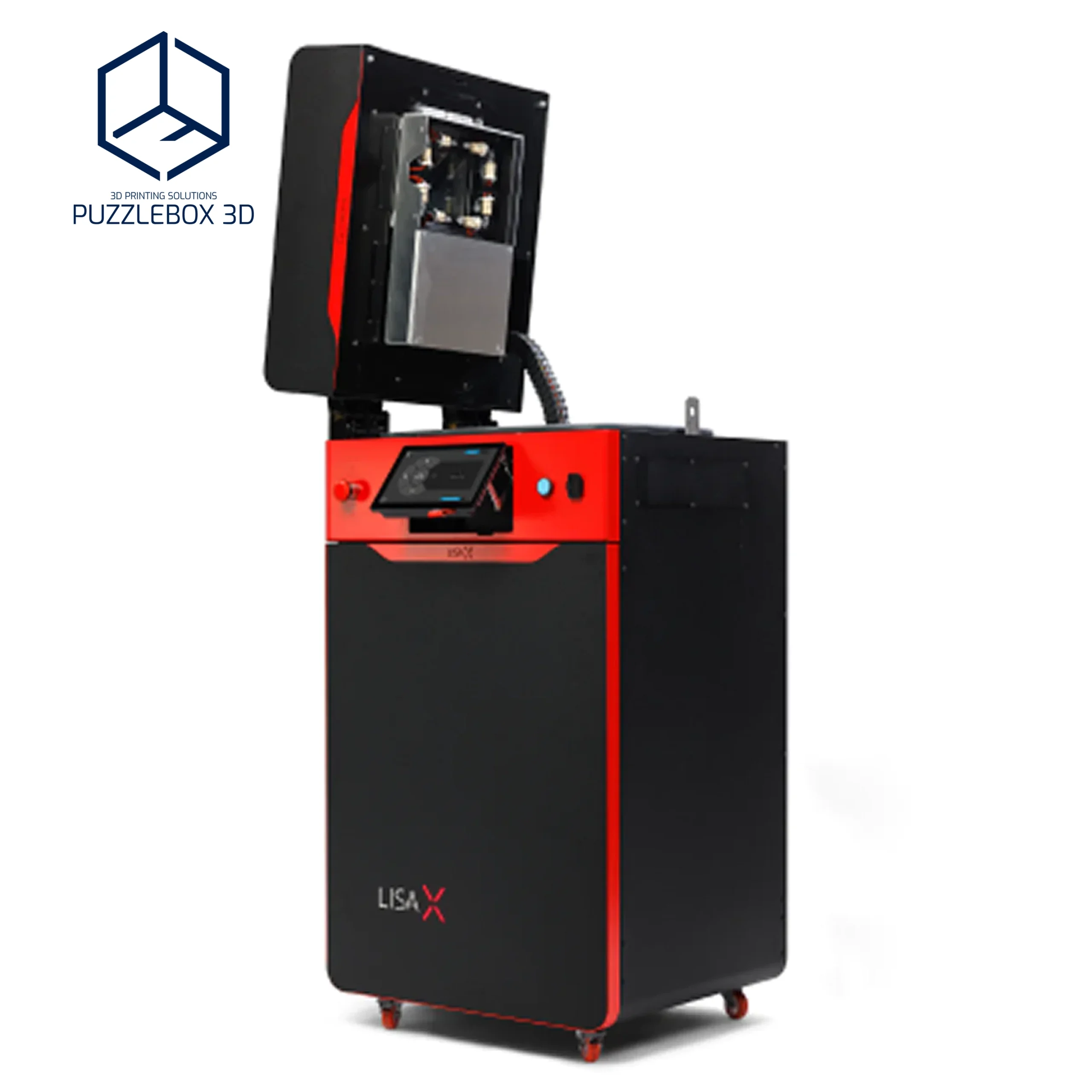

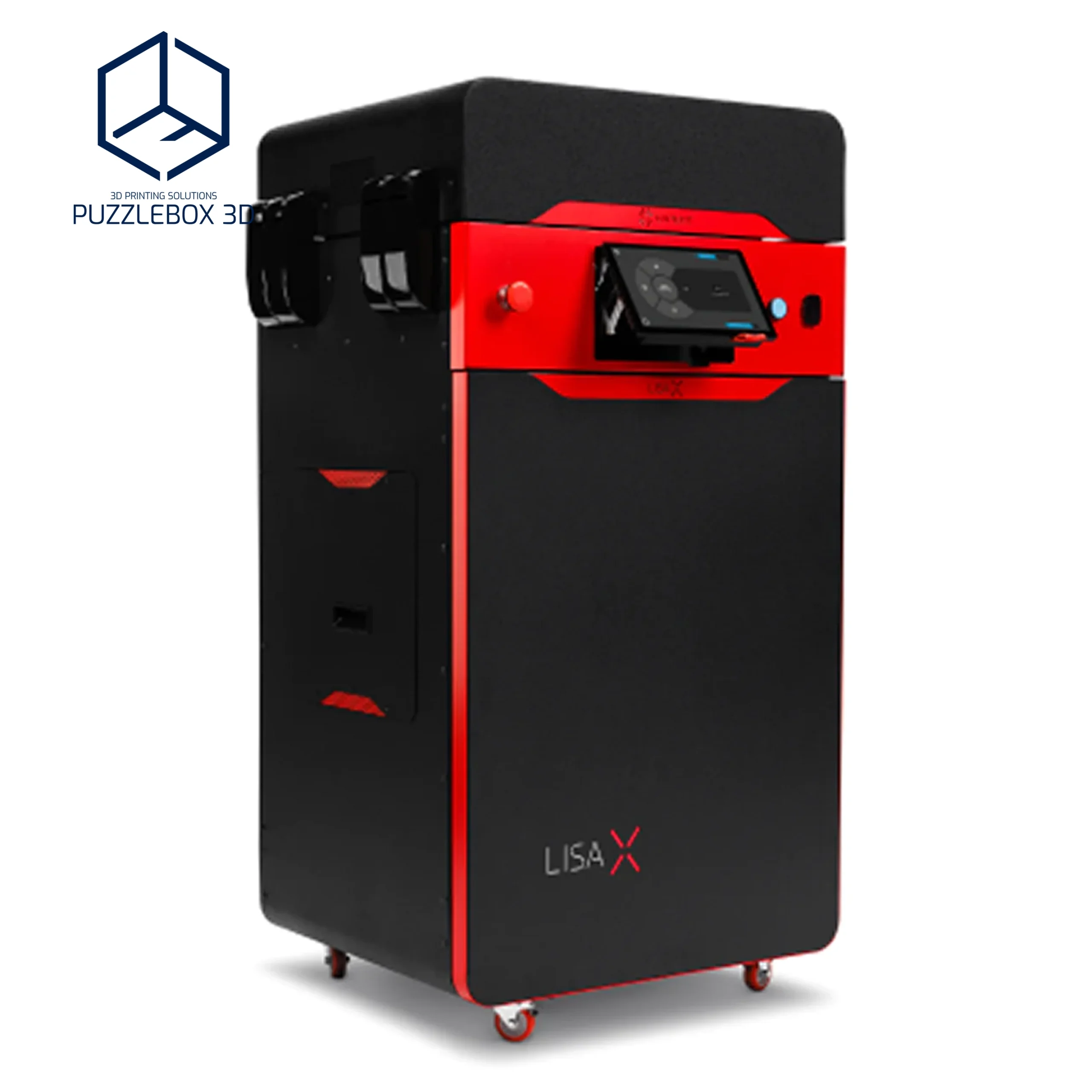

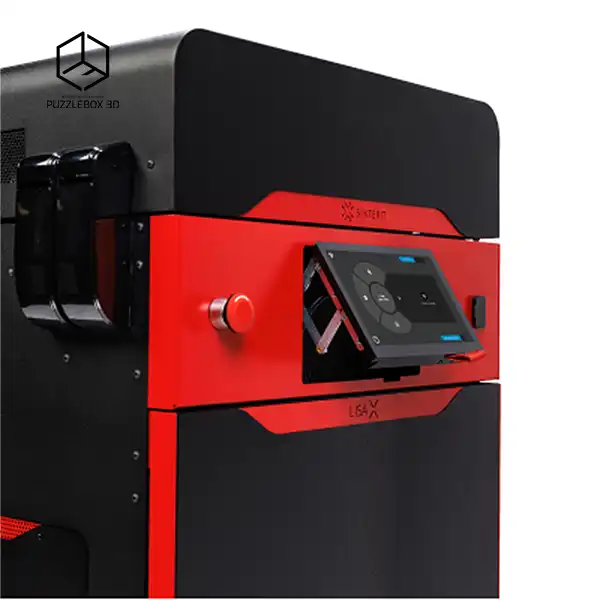

Sinterit Lisa X
Lisa X 3D offers lightning-fast 3d printing, a large working area, access to open parameter materials. All of these are designed to give you more freedom to innovate more and faster.
Print bigger parts (even 130 x 180 x 330 mm) in less than 24 hours with SLS (selective laser sintering) quality.
Lisa X is the only compact additive manufacturing solution which spans fast printing time, open printing environment and top quality parts.
Sinterit Lisa X
Lisa X 3D offers lightning-fast 3d printing, a large working area, access to open parameter materials. All of these are designed to give you more freedom to innovate more and faster.
Print bigger parts (even 130 x 180 x 330 mm) in less than 24 hours with SLS (selective laser sintering) quality.
Lisa X is the only compact additive manufacturing solution which spans fast printing time, open printing environment and top quality parts.
Meet the fastest compact SLS 3D printer Sinterit ever made. Register for free to the first webinar showing Lisa X in action.
The dimensions of 130 x 180 x 330 mm allow you to print:
- A few iterations of prototypes in one run,
- Laptop mockup,
- Production holder claws,
- Shoe sole.
Technical Benefits:
EXCEPTIONALLY FAST PRINTING
Build speed of 10-14 mm/h and a full bed of the most complicated shapes printed in 34 hours.
BIGGER BUILD VOLUME
With a bed measuring 180 x 130 x 330 mm, the Lisa X is the largest compact SLS printer in our arsenal.
A WIDE RANGE OF MATERIALS

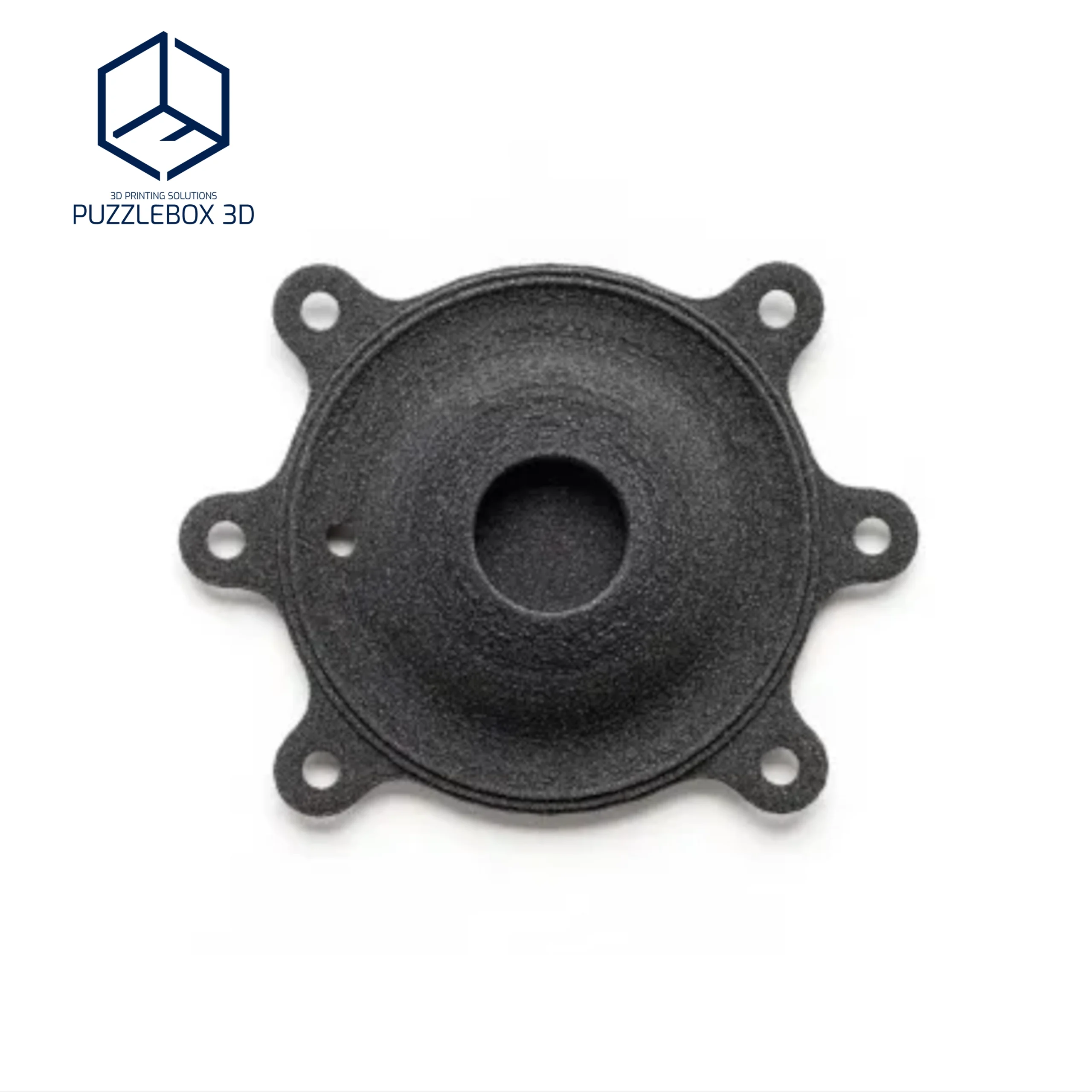

Nine materials, from ultra-durable, flexible materials to more specialized ones like ESD powder.
TOP PRINT QUALITY
Top-notch detail achieved thanks to Sinterit’s experience-gained know-how in the SLS industry.
OPEN ENVIRONMENT
Over 50 open printing parameters to manage and the ability to use external materials.
Business Benefits:
FASTER PROTOTYPING
Most projects can be printed in less than 24 hours, shortening product development cycles.
MORE PRINTS PER WEEK
The Lisa X enables you to test many more designs and material features faster.
OPTIMAL PRINTING COSTS
Made possible thanks to Lisa X’s revolutionary speed and best powder refresh ratio on the market.
MORE APPLICATIONS COVERED
With more materials, faster printing and more open parameters, 3D printing applications are unlimited.
ERGONOMIC OPERATION

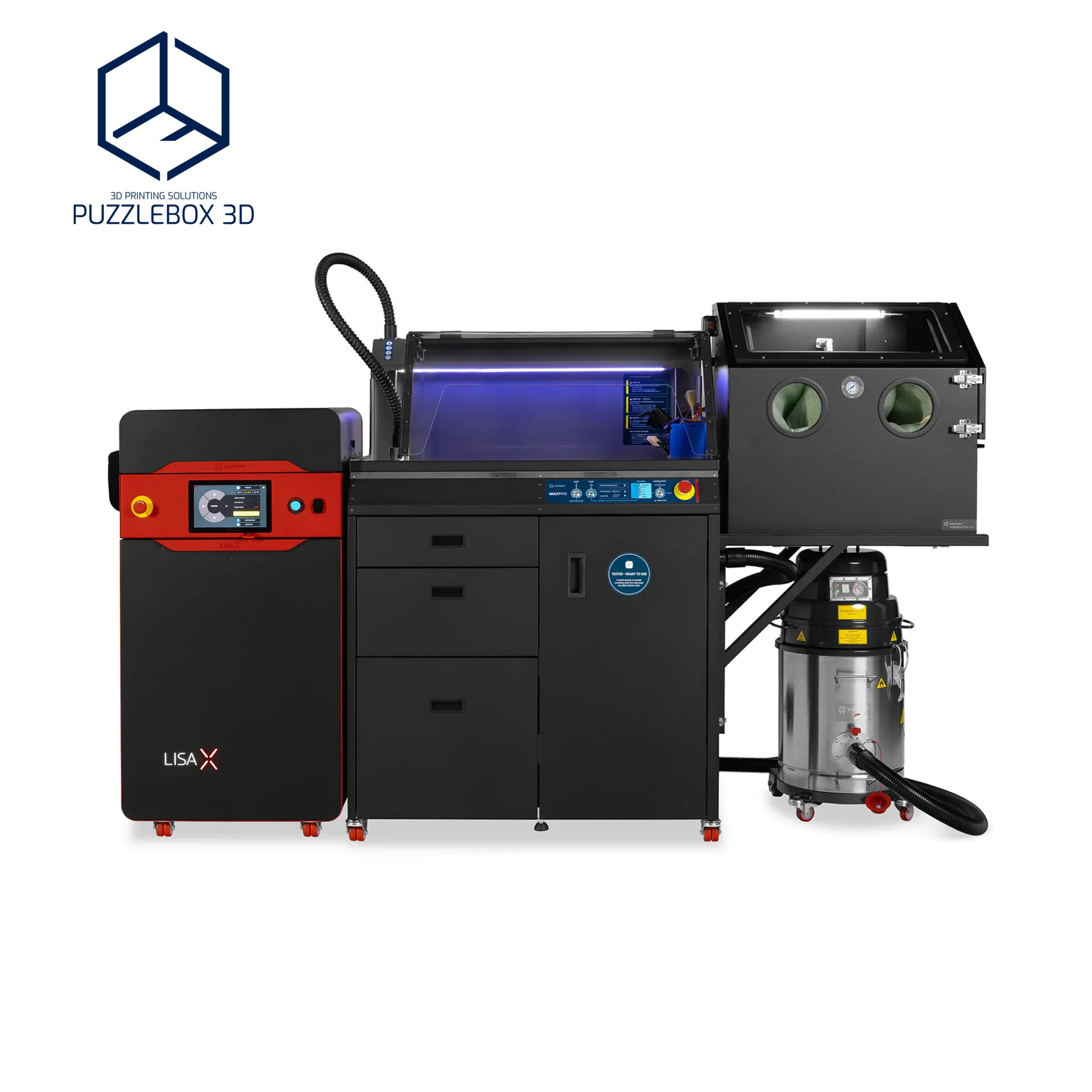

Lisa X is an easy-to-use machine, thanks to simple material change, low cool down time and and a complete solution available.
| General Specifications | |
|---|---|
| Laser Type | IR Fiber Coupled Diode Laser, 30[W]; λ = 976 ± 3 [nm] rated to > 30,000 hrs |
| Laser Scanner Type | Galvo |
| Dimensions | 650 x 610 x 1200 [mm] (25.6 × 24.0 x 47.2 [in]) |
| Weight | 145 [kg] (319.7 [lbs]) |
| Printer Parameters | |
| Max Size of Print Diagonally | 398 [mm] (15.7 [in]) |
| Max Print Volume (TPU/Flexible Material) | 130 x 180 x 340 [mm] (5.1 × 7.1 × 13.3 [in]) |
| Max Print Volume (PA/PP) | 130 x 180 x 330 [mm] (5.1 × 6.7 × 13.3 [in]) |
| Layer Height (Min – Max) | 0.075 – 0.175 [mm] (0.003 – 0.006 [in]) |
| Build Speed | up to 14 [mm/h] (0.55 [in/h]) |
| Inert Gas Control System | Built-in |
| Average Inert Gas Consumption | 0.48 [m3/h] = 8 [l/min.] |
| Software | |
| Supported File Types | STL, 3MF, OBJ, 3DS, FBX, DAE |
| OS Compatibility | Microsoft Windows 10 or higher |
| Power | |
| Operating Voltage | 230 [V] AC, 50/60 [Hz], 7.5 [A] or 100-120 [V] AC, 50/60 [Hz], 15 [A] |
| Average Power Consumption | 0.85 [kW] |
| Max Power Consumption | 1.65 [kW] |
