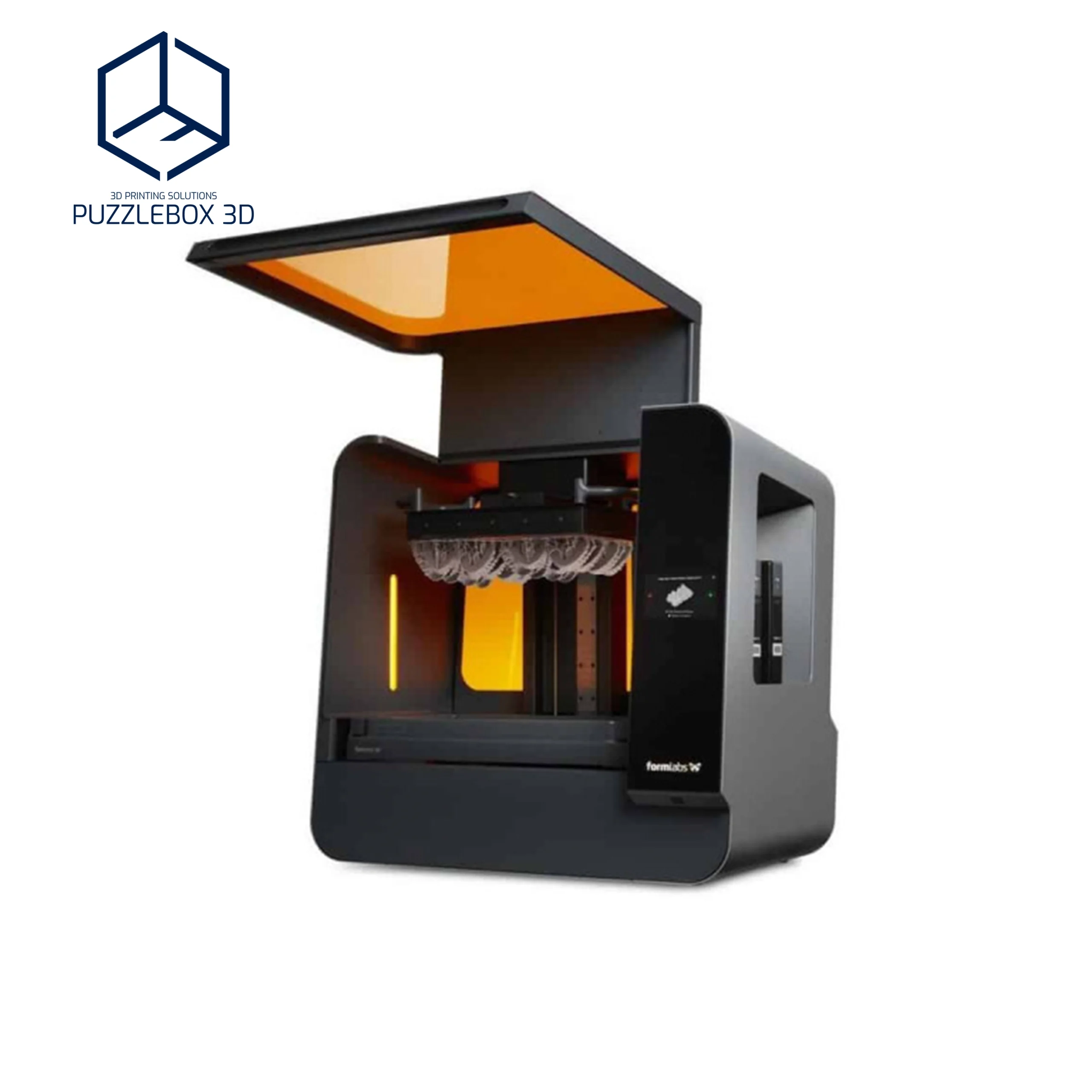

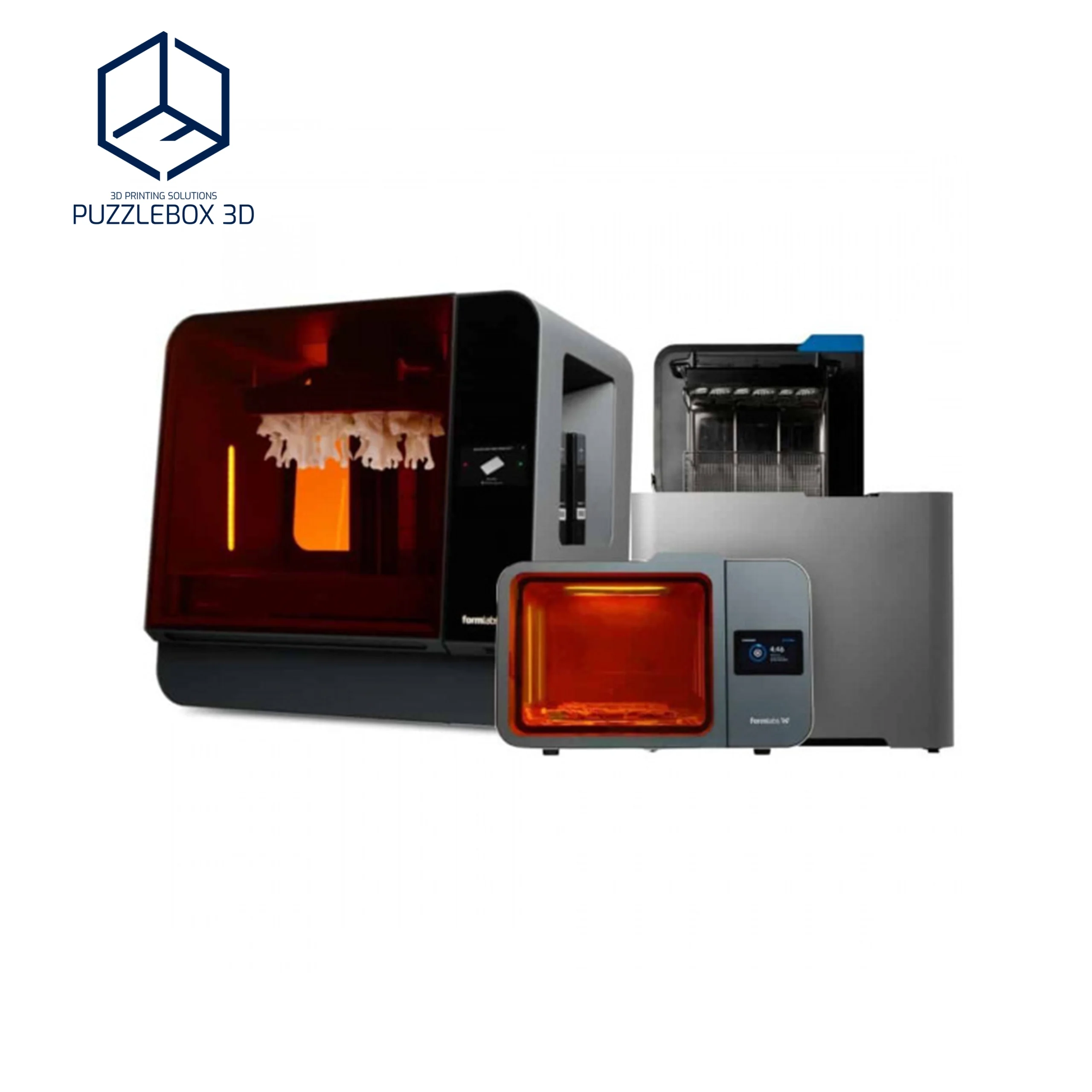

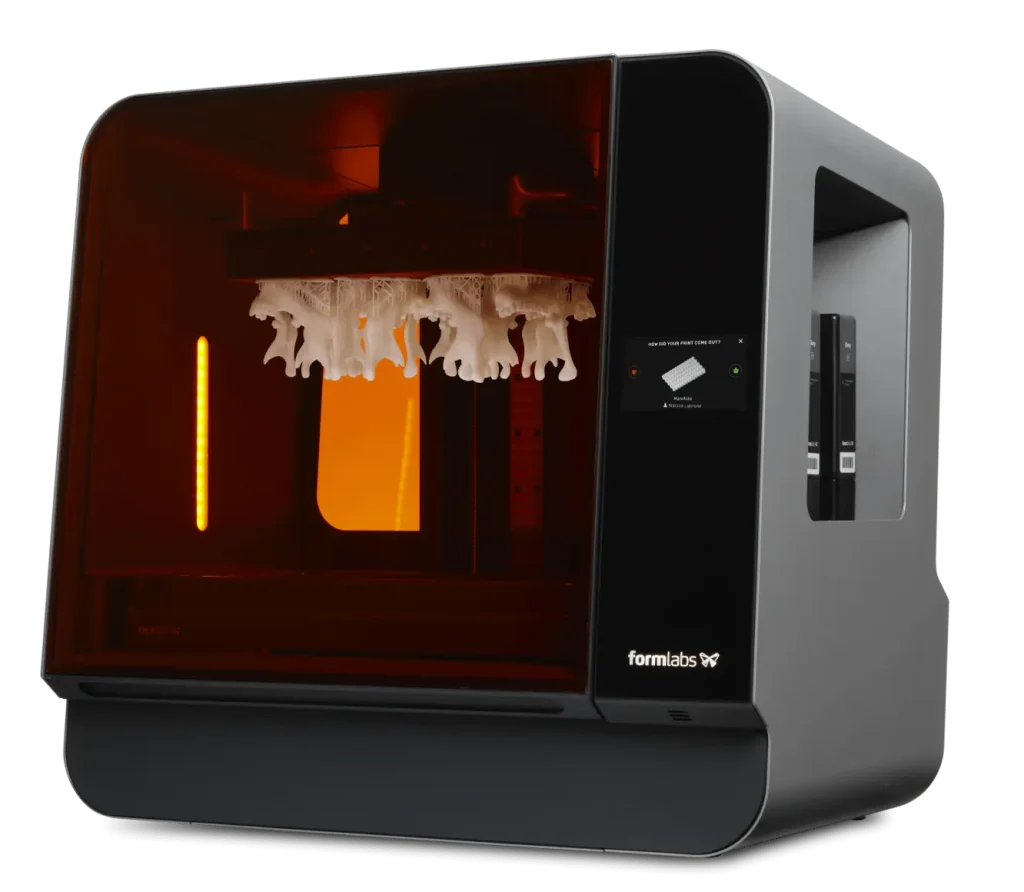

Form 3BL

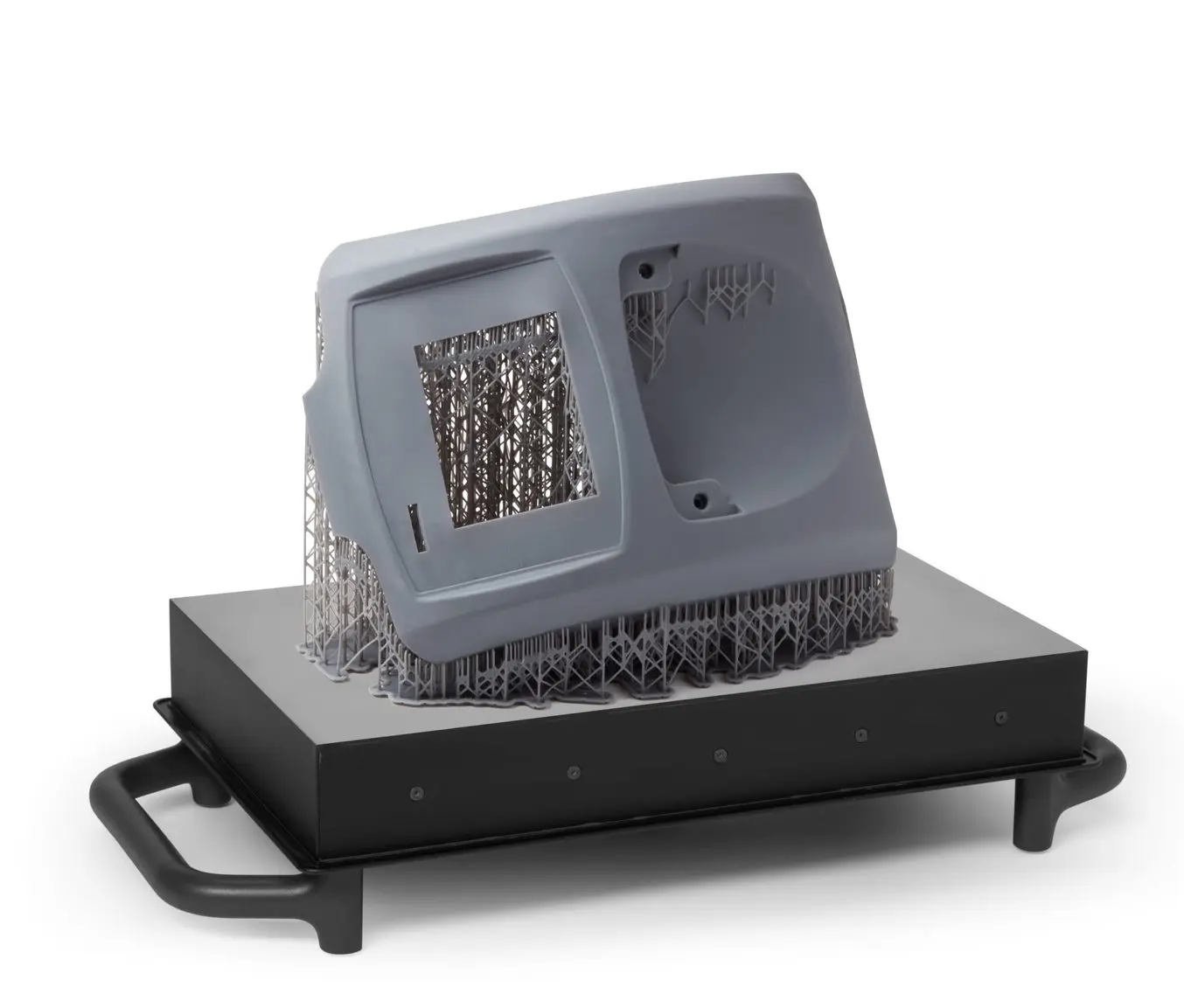

Large Medical Devices and Anatomical Replicas at Full Scale

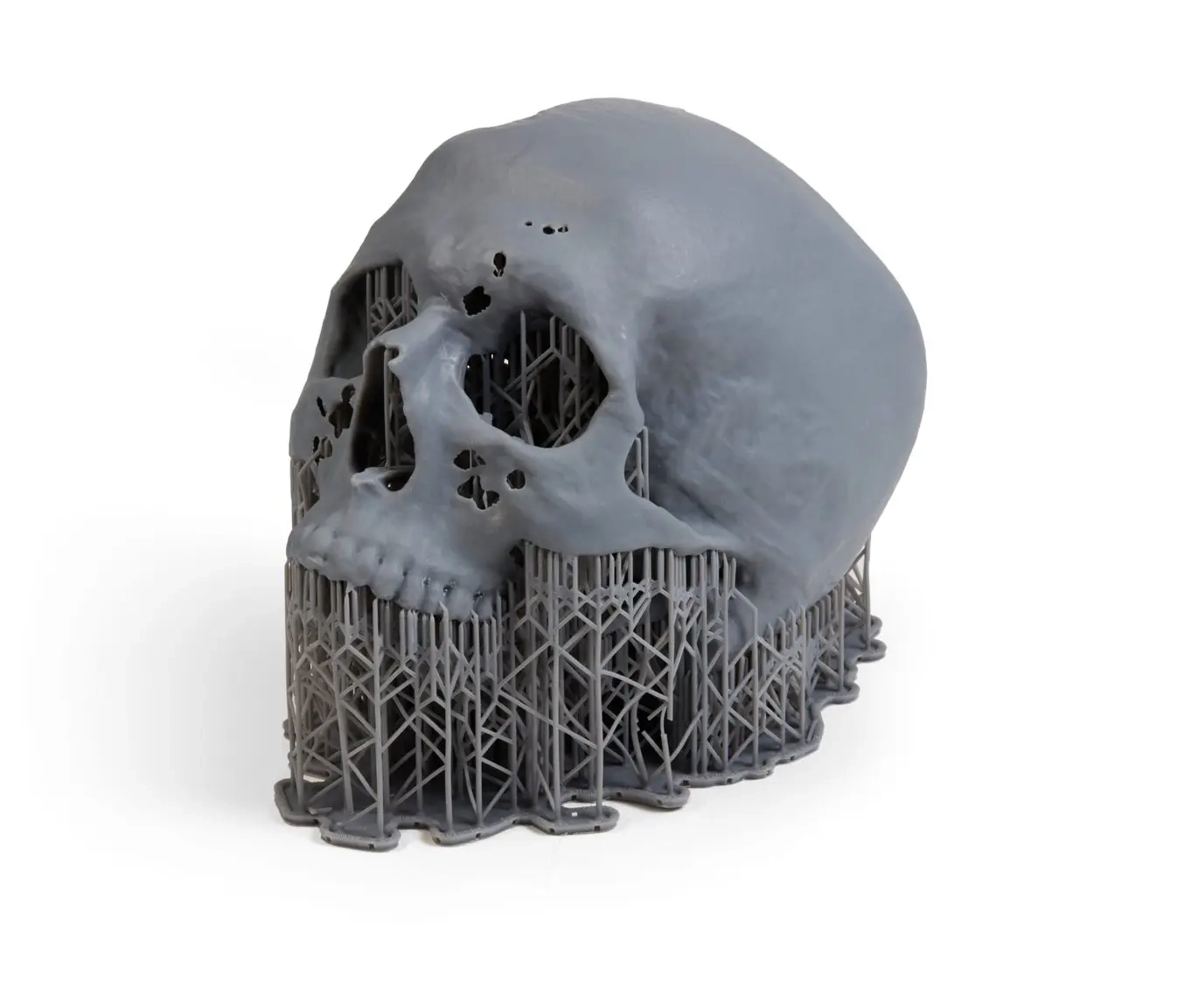

3D print adult patient-specific anatomy at 1:1 scale or large medical devices in one build with the Form 3BL, a large-format 3D printer developed for medical professionals. This 3D printer is compatible with the majority of the SLA materials library, including biocompatible, sterilizable materials.
Form 3BL Is Ideal For:
Intuitive and efficient
Seamlessly integrate the Form 3BL into your existing clinical workflows - no specialized technicians required. With automatic resin dispensing, simple print preparation software, and a thoughtfully designed interface, the Form 3BL is designed for efficiency.
Always on call
The Form 3BL works around the clock with minimal supervision required. With compatability with the entire SLA materials library, sensors that maintain ideal print conditions, and remote printing, the Form 3BL helps you meet critical deadlines, even for trauma surgery. Achieve multicolor parts using various techniques.
Incredible part quality
The Form 3BL resolves fine details down to the micron level, critical when using surgical planning models for diagnostic use, while the smooth surface finish and high accuracy of the Form 3BL ensures medical devices meet production standards.
| Technology | |
|---|---|
| Type | Laser-Powered Stereolithography (SLA) |
| Printer Engine | |
| Technology | Low Force Stereolithography™ (LFS) |
| Key Components |
|
| Light Source | |
| Type | 2 Light Processing Units |
| Certification | EN 60825-1:2014 certified Class 1 Laser Product |
| Optical Wavelength | 405 nm |
| Laser Power | Two 250 mW lasers |
| Laser Spot Size | 85 µm |
| Printing Speeds and Accuracy | |
| Maximum Print Speed | 23 mm/hour (0.9 in/hour) |
| Typical Print Speed | Average: 8 mm/hour (0.3 in/hour) |
| XY Resolution | 25 µm (0.001 in) |
| Layer Thickness | 25-300 µm (0.001-0.012 in) |
| Materials | |
| Supported Materials | 37 industry-leading Formlabs materials, including 14 biocompatible |
| Resin Cartridges | 2 Original Resin Cartridges |
| Build Volume and Dimensions | |
| Build Volume (W x D x H) | 33.5 × 20 × 32 cm (13.2 × 7.9 × 12.6 in) |
| Build Area | 670 cm² (104.3 in²) |
| Printer Dimensions (W x D x H) | 77 × 52 × 74 cm (30.3 × 20.5 × 29.1 in) |
| Minimum Access Dimensions (W x D x H) | 90 × 96 × 104 cm (35.4 × 37.8 × 41 in) |
| Printer Weight | 54.4 kg (120 lb) |
| Operating Environment | |
| Temperature | 18–28 °C (64–82 °F) |
| Power and Connectivity | |
| Power Requirements | 100–240 VAC, 8.5A MAX, 50/60HZ, 650 W |
| Connectivity | Wi-Fi (2.4 and 5 GHz), Ethernet (1000 Mbit), USB-B 2.0 |
| Printer Control and Alerts | |
| Control Panel | 5.5″ interactive touchscreen, 1280 × 720 resolution |
| Alerts | Touchscreen alerts, SMS/email via Dashboard, LED status indicators, speaker for audio alerts |
| Software | |
| Software | PreForm, Dashboard, Fleet Control |
| System Requirements |
|
| File Types | STL, OBJ, and 3MF file input, FORM file output |
| Print Setup Features |
|
| Dashboard Printer Management | Manage prints and printers via the cloud, track resin and tank usage, SMS/email alerts |
| Resin Tank and Light Processing Unit | |
| Resin Tank Estimated Lifetime | 250-800 hours of printing |
| Light Processing Unit Estimated Lifetime | Not measured |
