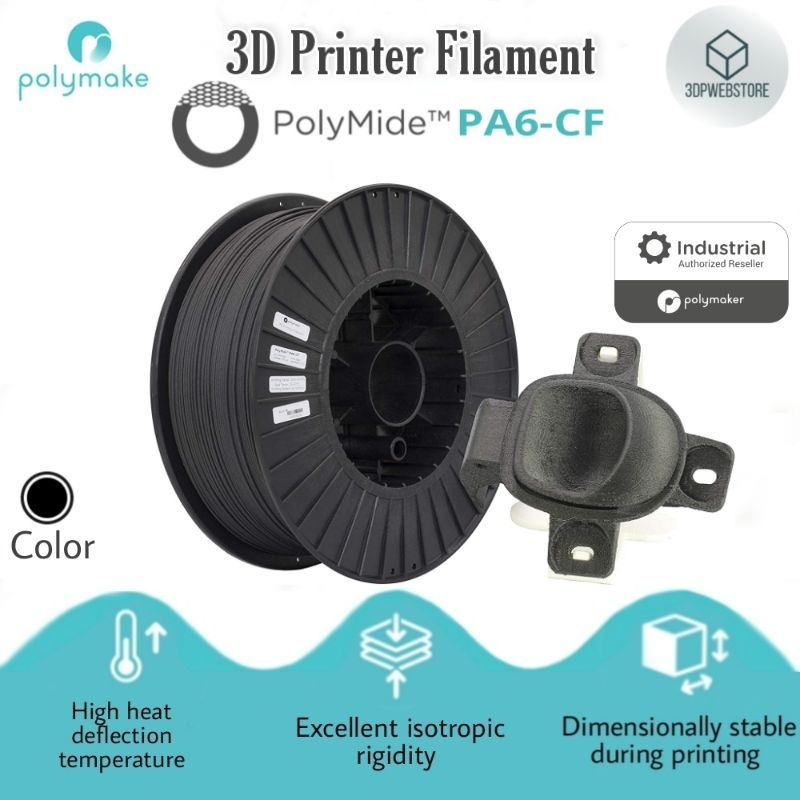

Polymaker Fiberon PA6-CF20 3D Printing Filament Carbon Fiber Reinforced Nylon 6 Filament
Polymaker Fiberon PA6-CF20 3D Printing Filament Carbon Fiber Reinforced Nylon 6 Filament - Image 2

Polymaker Fiberon PA6-CF20 3D Printing Filament Carbon Fiber Reinforced Nylon 6 Filament

polymakerlogo

Fiberon by Polymaker: A new product line dedicated to democratizing high-performance composite materials. This cost-effective 3D printing filament is optimized for high-speed printing and offers excellent printability and compatibility with most mainstream and entry-level printers, enabling the production of high-performance parts.

Formerly PolyMide PA6-CF

  • Note: You may still received products under PolyMide packaging. They are SIMILAR.
In Stock
Ships Tomorrow
Same Day Shipping
New
Sale

₱2,199.00 – ₱6,899.00

  • Black
    Black
  • 1.75mm
  • 2.85mm
  • 2kgs
  • 500g
Clear

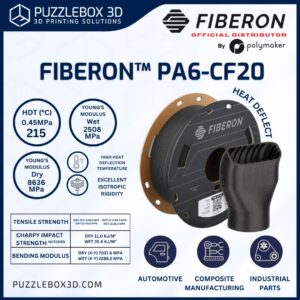

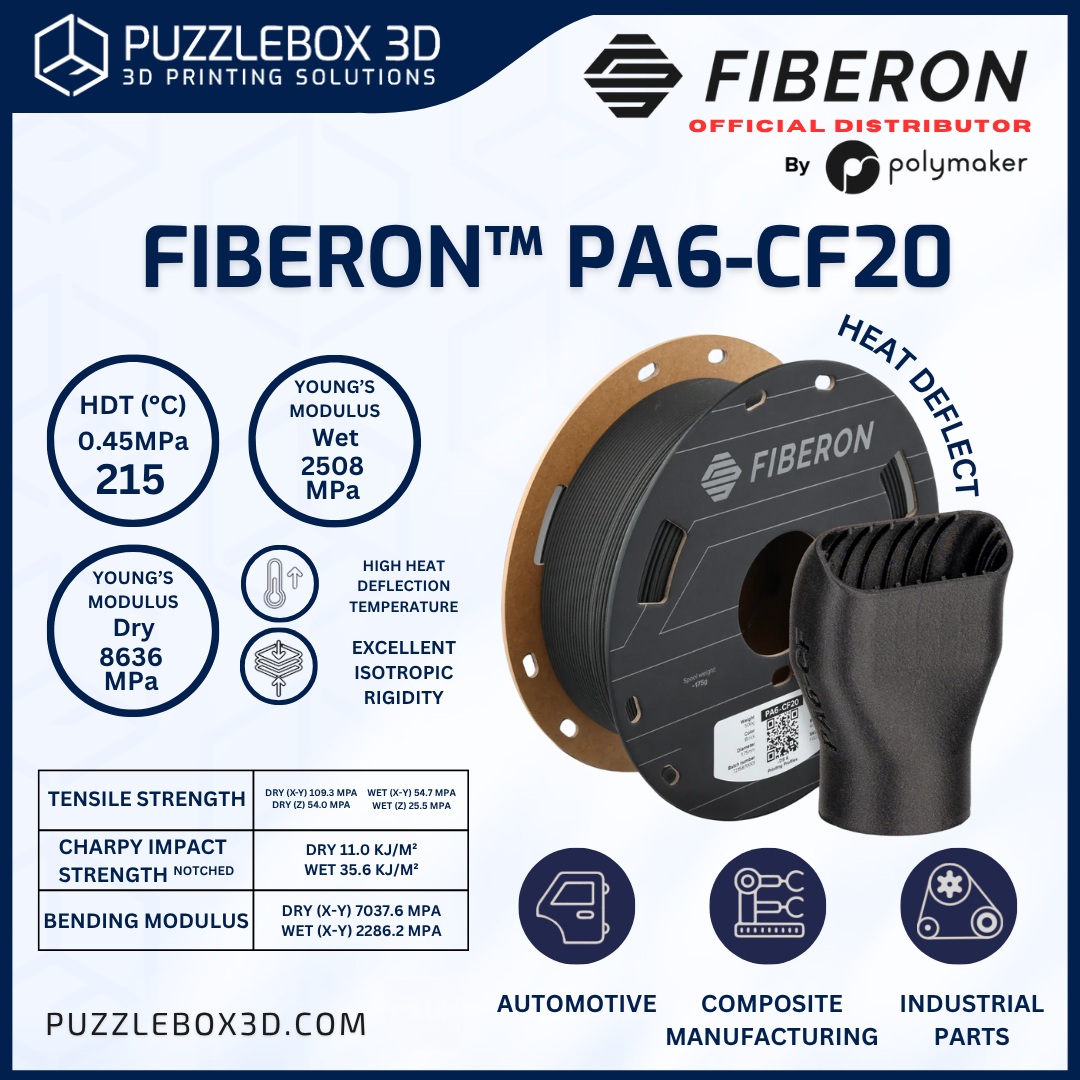

Polymaker Fiberon PA6-CF20 3D Printing Filament Carbon Fiber Reinforced Nylon 6 Filament

Fiberon by Polymaker: A new product line dedicated to democratizing high-performance composite materials. This cost-effective 3D printing filament is optimized for high-speed printing and offers excellent printability and compatibility with most mainstream and entry-level printers, enabling the production of high-performance parts.

Formerly PolyMide PA6-CF

  • Note: You may still received products under PolyMide packaging. They are SIMILAR.
In Stock
Ships Tomorrow
Same Day Shipping
New
Sale

₱2,199.00 – ₱6,899.00

  • Black
    Black
  • 1.75mm
  • 2.85mm
  • 2kgs
  • 500g
Clear
Description Technical Specs Video
Fiberon™ is a family of Nylon/polymide based filaments. Produced with Polymaker’s Warp-Free™ technology, Fiberon™ filaments deliver engineering properties intrinsic to Nylon and ease of printing.Fiberon™ PA6-CF20 is a carbon fiber reinforced PA6 (Nylon 6) filament. The carbon fiber reinforcement provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion.



Fiberon™ PA6-CF20 is a carbon-fiber reinforced nylon filament with high tensile strength and heat deflection up to 215 °C. This material can operate in extremely demanding applications in the automotive, scientific, and engineering industries.



Fiberon™ PA6-CF20 features Polymaker’s Warp-Free™ technology and Fiber Adhesion™ technology:Warp-Free™ technology enables the production of Nylon-based filaments that can be 3D printed with excellent dimensional stability and near-zero warpage. This is achieved by the fine control of microstructure and crystallization behavior of Nylon, which enables the material to fully release the internal stress before solidification.

RECOMMENDED SETTINGS

Nozzle Temperature:

280˚C – 300˚C *

Printing Speed:

60mm/s

Bed Temperature:

25˚C – 50˚C (Do NOT exceed 50 ˚C)

Bed Surface:

almost any surface with a thin coat of PVA glue or Magigoo PA

Cooling Fan:

OFF

Based on 0.4 mm nozzle and Simplify 3D v.4.0. Printing conditions may vary with different printers and nozzle diameters

* We highly recommend to use a wear resistant nozzle

MECHANICAL PROPERTIES

Young’s Modulus:

7453 ± 656 (MPa)

Tensile Strength:

105.0 ± 5.0 (MPa)

Bending Strength:

169.0 ± 4.7 (MPa

Charpy Impact Strength:

13.34 ± 0.52 (kJ/m2)

THERMAL PROPERTIES

Heat Deflection Temperature

(ISO 75 1.8 MPa)

196 ˚C

Heat Deflection Temperature

(ISO 75 0.45 MPa):

215 ˚C

Melting Temperature:220 (°C)

NOTES

Drying Settings:

80˚C for 12h

Recommended Support Materials:PolyDissolve™ S1
