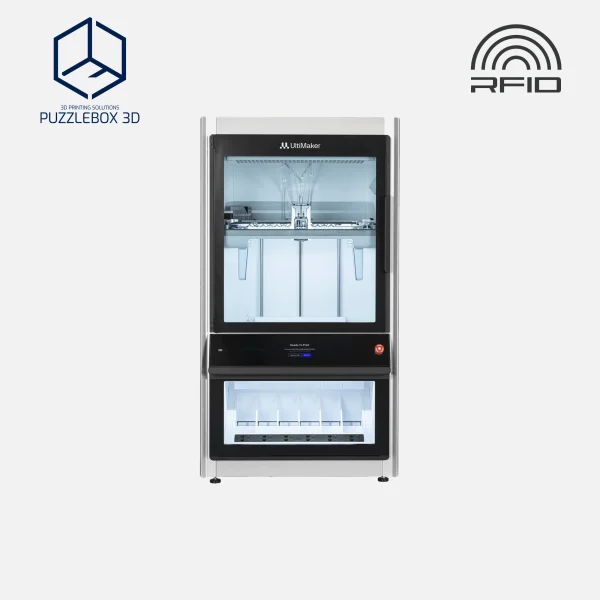

Ultimaker Factor 4
UltiMaker Factor 4, our new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.
- Build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
- Assembled dimensions: 695 x 605 x 1287 mm (27.5 x 24 x 51 inches)
- Print technology: Fused Deposition Modeling (FDM)
- Compatible filament diameter: 2.85 mm
New
Includes Warranty
Local Tech Support
Pre-Order
Ultimaker Factor 4
UltiMaker Factor 4, our new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.
- Build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
- Assembled dimensions: 695 x 605 x 1287 mm (27.5 x 24 x 51 inches)
- Print technology: Fused Deposition Modeling (FDM)
- Compatible filament diameter: 2.85 mm
New
Includes Warranty
Local Technical Support
Pre-Order
Industrial-grade performance. Reliable and repeatable results.
UltiMaker Factor 4, our new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.
See what sets Factor 4 apart
Core Benefits
Built for the factory floor.
Reliability, repeatability and validation.
Achieve more with FDM
3D printing.
A future-proof
investment.
Built for the
factory floor.
The seamless, powerful upgrade that your production workflows demand.
Factor 4 elevates manufacturing with its triple-insulated build chamber and direct dual extrusion. The automated material handling system maintains filament quality. And the robust, temperature-controlled design ensures consistent production output also on complex and challenging designs.
Heavy duty, heavy weight
Direct Dual Extrusion
Effective dual 3D printing
Reliability, repeatability
and validation.
High quality results. Every time. Anywhere.
Achieve the highest print accuracy of any UltiMaker printer – even at high resolution on small design features. These will achieve a dimensional accuracy of ± 0.2 mm + ± 0.2% of feature nominal length over the full build plate and across multiple printers.*
Hassle free 3D printing
95%
print completion success rate.
*print success rate tested using UltiMaker PLA, Tough PLA, PETG, PET CF,
and PPS CF.
Achieve more with FDM 3D printing.
Direct drive extrusion for flexible materials.
The Factor 4 excels at quickly switching from 3D printing highly flexible materials all the way to strong composites, like UltiMaker PPS CF. Its H-bridge gantry and direct drive head enable rapid dual material printing.
High-temperature capabilities up to:
340°C
with the new UltiMaker HT Core.
High quality. Every time. Anywhere.
Success with every 3D print.
Factor 4 makes it possible to additively produce & deploy structural integrity verified parts across different locations. The low variance, less than 10%, in extrusion rate and mechanical properties batch after batch, part after part is a combination of the H-bridge gantry, closed loop feed control, and uniformly controlled build plate temperatures – with a maximum variation of 2 °C across the X and Y axes.
Actively temperature controlled
build volume up to:
70°C,
heated bed up to:
120°C
A future-proof
investment.
Versatility and quality that translates to fast ROI.
Regular updates ensure that your Factor 4 will evolve over time – far beyond the 12 to 18 months it will take to achieve return on investment. The 3D printer's modular build allows our global support network to quickly replace parts, minimizing downtime.
New printer. Same UltiMaker
DNA
Compatible with Cura, Digital Factory and more.
Built on more than 13 years of UltiMaker legacy – dedicated to innovation, accessibility, and openness.
Integrated HEPA filter
Independently tested to remove up to 95% of ultrafine particles to increase air quality peace of mind. The fully enclosed build chamber also boosts print quality.
Onboard structural integrity validation
After every print job, receive a detailed report on extrusion deviations, their locations, and severity after each print job.
Automated material handling
with low humidity storage
Automatic pre-loading and spool switching (up to 6) with
RH < 15% on any external conditions.
Emergency stop button
Automatic pre-loading and spool switching (up to 6) with
RH < 15% on any external conditions.
7-inch capacitive touchscreen
Mounted higher to give a better view of the first layers when remote monitoring. Monitor your print in high resolution remotely via UltiMaker Digital Factory.
H-bridge Gantry
H-bridge gantry and direct drive head enable rapid dual material printing. Factor 4 is capable of reaching up to 340°C on its print cores, 70 °C on the print chamber and 120 °C on its heated bed.
Always up to date.
With dual onboard processors, there is plenty of computing headroom for planned and even unplanned future updates.
| Printer Specifications | |
|---|---|
| Build Volume | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled Dimensions | 695 x 605 x 1287 mm (27.5 x 24 x 51 inches) |
| Print Technology | Fused Deposition Modeling (FDM) |
| Compatible Filament Diameter | 2.85 mm |
| Weight | 120 kg (265 lbs) |
| Maximum Power Output | 600 W |
| Printer Properties | |
| Layer Resolution |
0.25 mm nozzle: 150 – 60 micron 0.4 mm nozzle: 200 – 20 micron 0.6 mm nozzle: 300 – 20 micron 0.8 mm nozzle: 600 – 20 micron |
| XYZ Resolution | 6.9, 6.9, 2.5 micron |
| Feeder Type | Dual-extrusion, direct drive print head and swappable print cores |
| Display | 7 inches interactive touchscreen (resolution 1024 × 600 px) |
| Print Core Replacement | Swappable print cores |
| Print Head | Dual extrusion print head with auto-nozzle lifting system, swappable print cores, and flood detection |
| Nozzle Diameters | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Operation Parameters | |
| Filter Technology | Replaceable HEPA H13 filter |
| Nozzle Temperature | 180 – 340 °C |
| Build Plate | PEI-coated flexible steel build plate |
| Operating Ambient Temperature | 18 – 30 °C (64 – 86 °F), Humidity: 30 – 70% RH |
| Non-operating Temperature | 5° – 40 ºC (41 – 104 °F), Humidity: 20 – 90% RH |
| Ecosystem | |
| Supplied Free Software | UltiMaker Cura – print preparation software, UltiMaker Digital Factory – printer management software |
| Supported OS | MacOS, Windows, and Linux |
| Plugin Integration | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported File Types | STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG, G, GCODE, GCODE.gz, UFP |
| File Transfer | Wi-Fi (2.4 and 5 GHz), Ethernet, USB |
