MASSIVE PERFORMANCE, IMPRESSIVELY SMALL FOOTPRINT

The new Ultimaker S3 delivers high-quality, composite-ready performance – all efficiently from your desktop. Packed with our latest technology, it is as easy to use as it is powerful, offering the most cost-effective way for disruptive businesses to adopt in-house 3D printing

Features summary

The Ultimaker S3 is a complete production system you can depend on in the office or studio. With advanced features to ensure a reliable printing experience, it’s still simple to use thanks to its award-winning touch interface and seamless software integration.

• Dual extrusion with a build volume of 230 x 190 x 200 mm (9 x 7.4 x 7.9 inches)
• Down to 20 micron (0.001 inch) layer resolution
• Open filament system, compatible with glass and carbon fiber composites
• Dual filament flow sensors notify you if material runs out
• 4.7-inch touchscreen interface – Winner of iF Design Award 2019

Reliable

The Ultimaker S3 features next-generation reliability. Its advanced active leveling, stiffer build platform, heated build plate, and more accurate stepper drivers result in the highest print quality of a machine in this form factor. And dual filament flow sensors notify you if you run out of material.

Easy to use

The Ultimaker S3 was designed so that anyone can achieve high-quality results after a 30-minute introduction. Its award-winning touch interface, quick-swap print cores, and predefined print settings enable rapid changeovers and reduce operator time needed.

Accessible

On every level, the Ultimaker S3 is our most accessible 3D printer yet. Start creating the parts and models you need using any filament, from any desktop, as part of any workflow, and quickly achieve ROI.

Material choice

Thanks to our pioneering alliance with global materials companies, the Ultimaker S3 lets you print with a growing library of advanced materials – including glass and carbon fiber composites (when using print core CC Red 0.6 – sold separately).

From mechanical strength to flame retardancy, simply pick the material for your application, download a print profile in the Ultimaker Marketplace, and start printing. Optimized performance – no manually entering parameters.

Trusted by the world’s leading brands

3D printers that simply work

Our award-winning 3D printers are robust, reliable, and easy to use. They deliver quality parts time and again. Certified to run 24/7, they allow you to achieve the results you need more quickly and easily

Software ready for Industry 4.0

Trusted by millions of users across 14 languages, Ultimaker Cura slices your model and integrates with any workflow through Marketplace plugins. Then scale production and digital distribution with Ultimaker Cloud. Natively compatible with your CAD softwares such as Solidworks, Autodesk, Siemens NX Software through plugin.

Material choice like never before

Ultimaker offers the widest material choice on the market. Through our Material Alliance, choose the perfect filament for your application – from advanced polymers to carbon fiber composites.

Learn about the Ultimaker Materials Alliance of over 50 different material brands

Support dedicated to your success

Wherever you are in the world, Ultimaker support is close by. Our global network of service partners offer professional installation, training, and maintenance in your language and time zone. Get in touch with your friendly Puzzlebox 3D personnel to avail of our services.

TECHNICAL SPECIFICATIONS

Print Technology: Fusion Deposition Modeling (FDM)

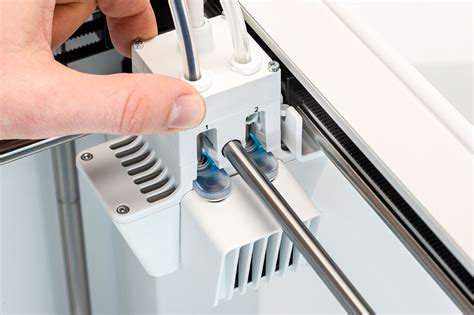

Print Head: Dual Extrusion Print head with a unique auto-nozzle lifting system and swappable print cores

Nozzle Compatibility with:

AA Print Core Technology Nozzle type

BB Print Core Technology for dissolvable support Nozzle type

CC Print core for Composites and Abrasive Materials

Build volume: 230x190x200mm

Feeder type: Dual-geared feeder, reinforced for composite materials

Build plate leveling: Advanced active leveling

Layer Resolution:

0.25 mm nozzle: 150 – 60 micron

0.4 mm nozzle: 200 – 20 micron

0.6 mm nozzle: 300 – 20 micron

0.8 mm nozzle: 600 – 20 micron

Speed and precision:

Print speed: Min. 30- Max. 300mm/s

Travel speed: Min. 30- Max. 350mm/s up to 16mm3/s

Precision: 6.9/6.9/2.5 micron

Nozzle options: 0.25mm / 0.4mm / 0.6mm / 0.8mm and more++

Print surface: Heated Borosilicate Glass build plate; Bed ; 20-140C

Heatup Time: <2mins

Auto detection of materials thru NFC technology material Input

Sound Operation level: 50dbA

Supported Filament: PLA, PVA, ABS, CPE, CPE+, Nylon, PC, PP and more…

Composite materials compatible: Print parts with high strength and unique properties

Display: 4.7-inch IF Design Award Winner color touchscreen

Software: Ultimaker Cura  – print preparation software

Ultimaker Connect – printer management software

Cloud Support: Ultimaker Cloud (allows printer to be connected to a printer management system that can track the users, print times, print consumption and other statistics)

Plugin integration: SolidWorks, Siemens NX, Autodesk Inventor

Supported File Types: Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG. Printable formats: G, GCODE, GCODE.gz, UFP

Supported OS: Windows, Mac, Linux

AC Input: 100-240V / 50-60HZ / 350W max.

*NFC system to automatically detects  material type with official Ultimaker filament

*Open filament system allows printing of 3rd party filament

Connectivity: WiFi, Ethernet, standalone via USB-drive

Camera: Yes

Warranty: One-year manufacturer’s warranty

Expert support: Market-leading technical support via email, phone, or from our global community is available to you in your language and timezone.

Extended support: Online resources, extensive manuals (in multiple languages), material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more.
