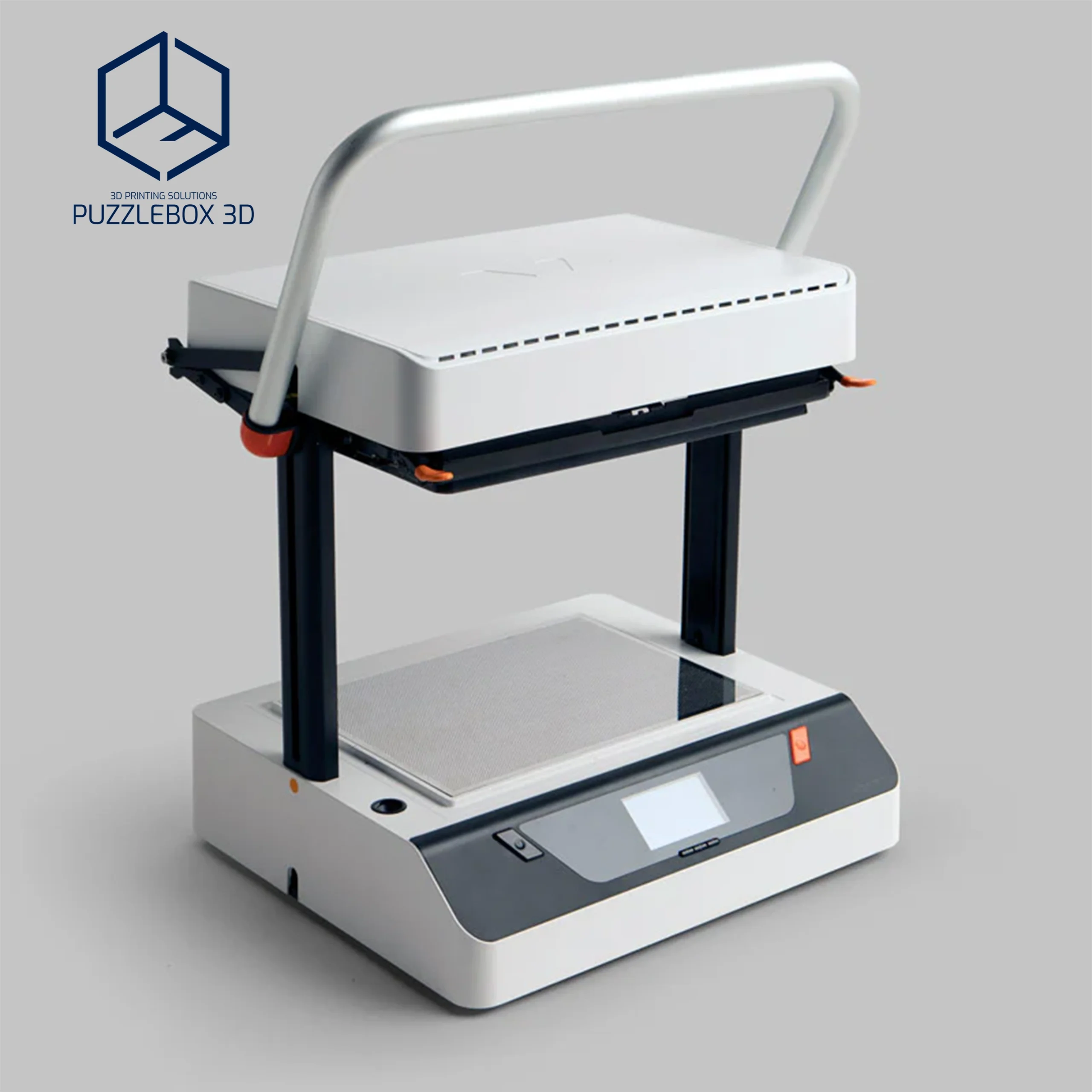

The World's First Digital Desktop Vacuum Former
Professional-grade thermoforming made compact, affordable and easy-to-use.

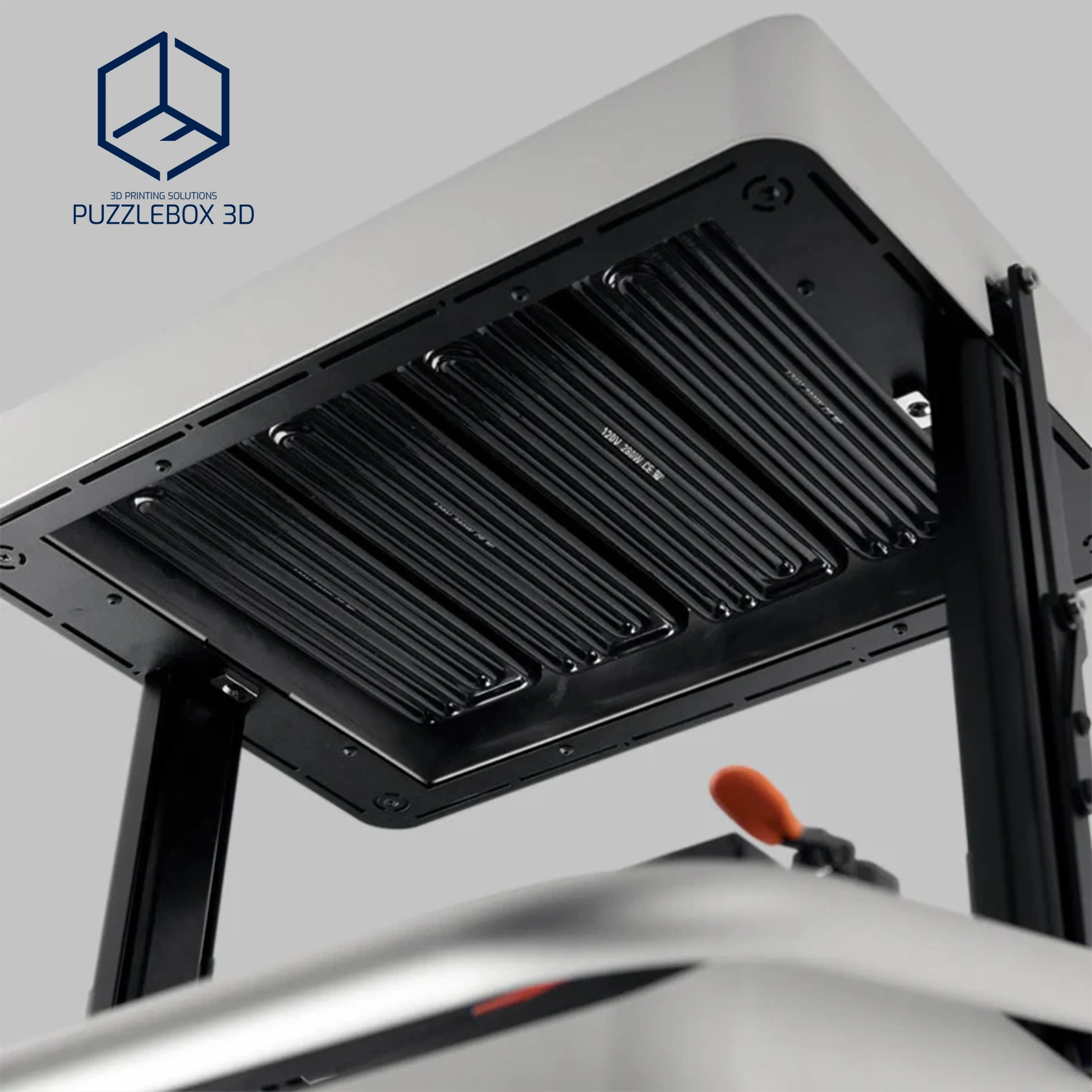

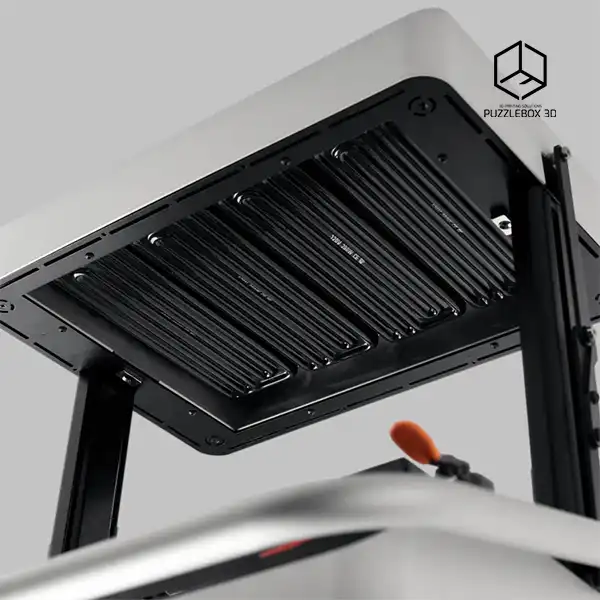

Vaquform is a manually operated vacuum forming machine that can produce industrial-grade plastic moldings while being compact enough to fit on a desktop. Vaquform features pre-programmed process controls and user sensors that make it easy to use. The powerful ceramic heaters allow you to prepare the plastic sheet in a few minutes, while the built-in hybrid vacuum gives high accuracy and mold detail each production cycle. Affordable, compact and easy to use, Vaquform will appeal to all neophytes for their packaging and design projects.
Application
Creating molds for packaging, chocolate moulds, candy molds, masks, covers, PPE's, Dental, Medical, prototyping and more.

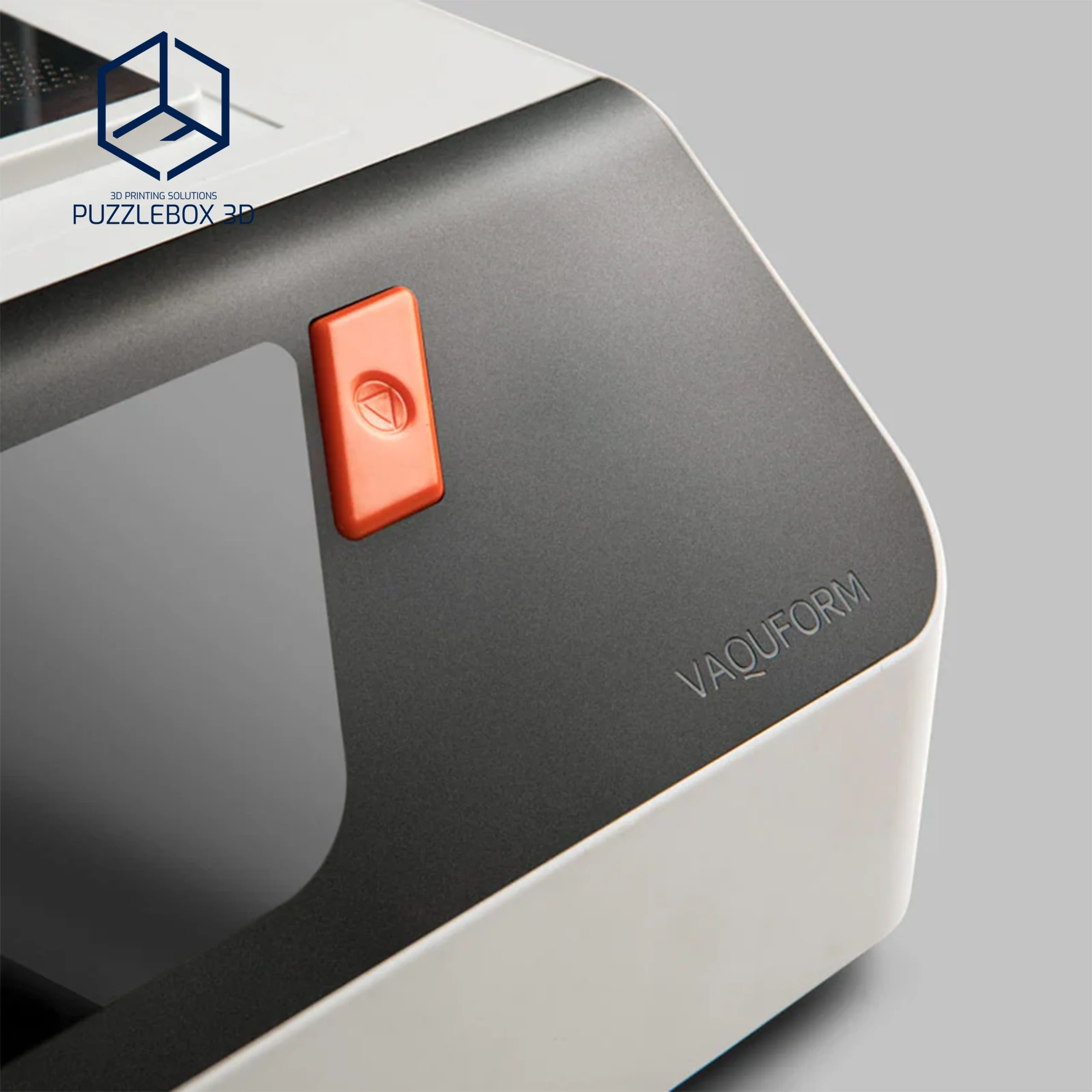

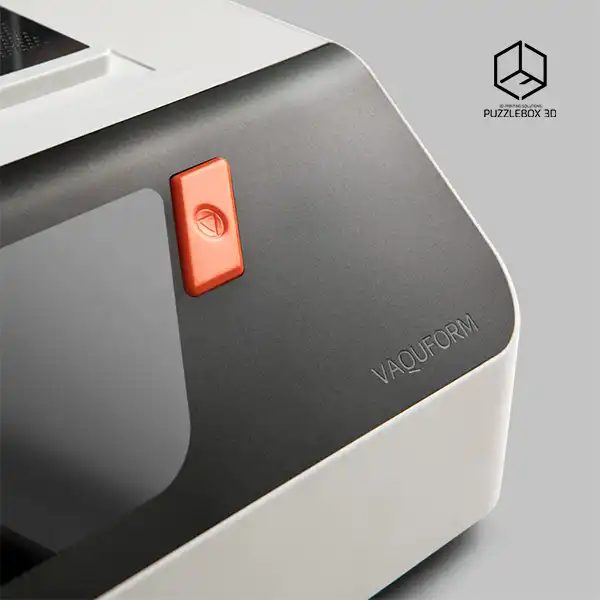

User Interface
Become an expert with built-in smart process controls and sensors.
Built-in Hybrid Vacuum
A patent-pending system that combines high airflow and vacuum, speed and power.
Easy To Use
The built-in process controls and ergonomic design make forming effortless.
| Specifications | |
|---|---|
| Sheet Size | 330 mm x 250 mm |
| Maximum Sheet Thickness | 3.0 mm |
| Minimum Sheet Thickness | 0.2 mm |
| Forming Area | 280 mm x 200 mm |
| Maximum Depth Draw | 200 mm |
| Overall Width | 400 mm |
| Overall Height | 405 mm |
| Weight | 9 kg (19.84 lbs) |
| Standard Input Voltage | 100 V – 240 V |
| Standard Frequency | 50, 60 Hz |
| Standard Wattage | 1.32 kW |
| Noise Level | 65 dB |
| Heater Temperature | up to 280 °C |
